Video interface and parameters

Input signals

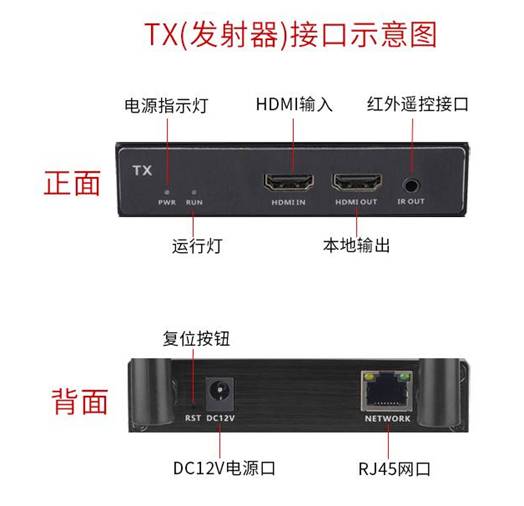

TX transmitter: 1 HDMI input

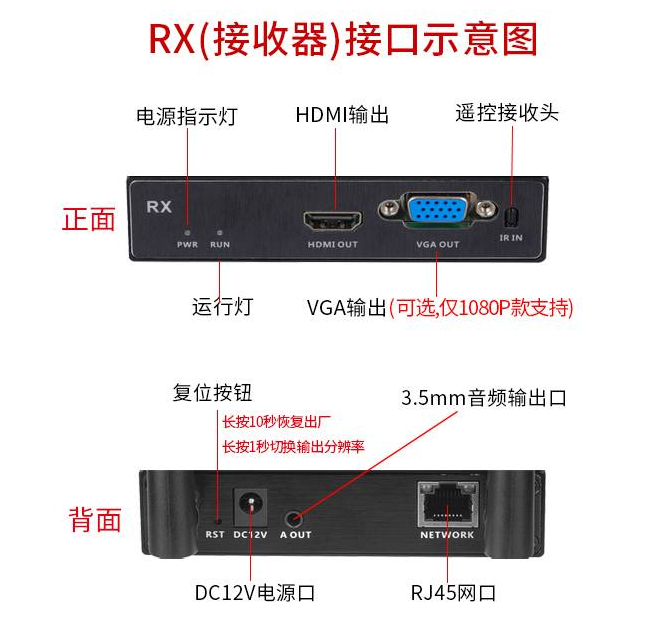

RX Receiver: 1 IR input

RX Receiver: 1 USB keypad input (optional)

RX Receiver: 1 x USB mouse input (optional)

Output signals

RX Receiver: 1 HDMI output

RX Receiver: 1 x 3.5mm linear audio output

RX Receiver: 1 VGA output (optional, only 1080P models support VGA output)

TX transmitter: 1 HDMI output

TX transmitter: 1 IR output

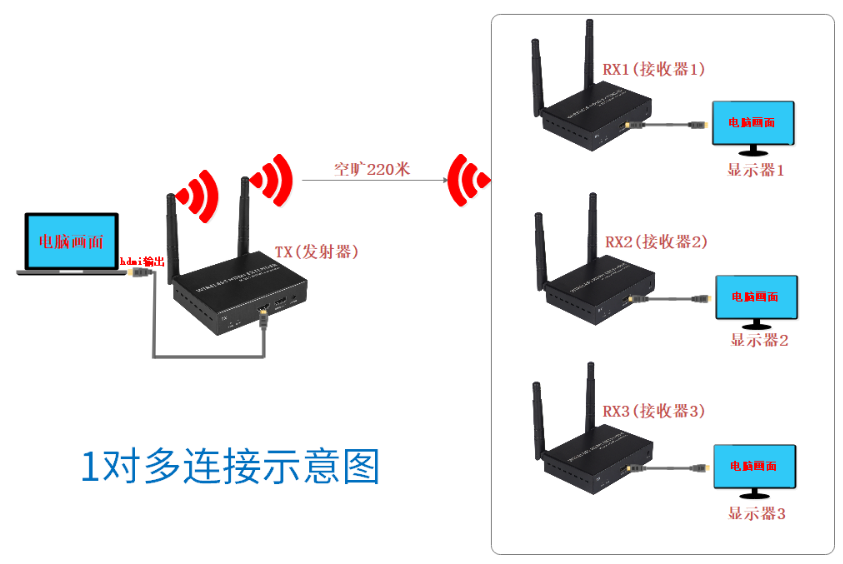

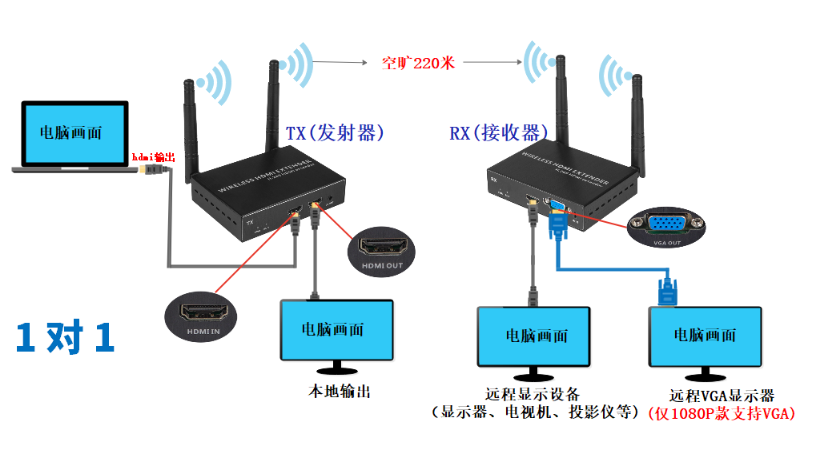

Transmission distance

0-220m (open, barrier-free)

Video input/output interface

HDMI

HDMI version

1.4

Video encoding

H.265

HDMI resolution

Support up to 4K (3840x2160@30HZ), 1080P (1920x1080@60HZ) compatible and below resolution image transmission (1366x768 resolution is not supported)

Infrared remote control performance and interface

Remote control interface

TX transmitter: 3.5mm connector x1

Remote control interface signal

IR control signal (Bluetooth is not supported)

Wireless

Frequency

5G/5.8GHZ

Transmitter / Receiver antennas

External

General

Dimension

Transmitter: 110mmX77mmX25mm, Antenna length: 108mm Weight: 187g

Receiver: 110mmX77mmX25mm, Antenna length: 108mm Weight: 182g

Package size

194mmX116mmX116mm

Housing

Aluminum

Color

Black

Gross Weight

670g

Power

Adaptation voltage

Input: AC110V-220V, 50/60HZ

Output voltage

Output: DC12V/2A

Transmitter power consumption

≤3.6W

Receiver power consumption

≤3.6W

Operating environment

Operating temperature

-15℃-55℃

Storage temperature

-40℃-60℃

Humidity

0-95% (non-condensing)
