Ethernet

Standards:

IEEE802.3 10BASE-T

IEEE802.3u 100BASE-TX/FX

IEEE802.3ab 1000BASE-T

IEEE802.3z 1000BASE-X

IEEE802.3bz 2.5Gbps

Forward & Filtering Rate:

14,880pps (10Mbps)

148,800pps (100Mbps)

1,488,000pps (1000Mbps)

3,720,000pps (2500Mbps)

Packet Buffer Memory:

12M bits

Processing Type:

Store-and-Forward

Backplane bandwidth

110Gbps

Max Packet Length:

9K Bytes Jumbo Frame

Address Table Size:

8K MAC Addresses

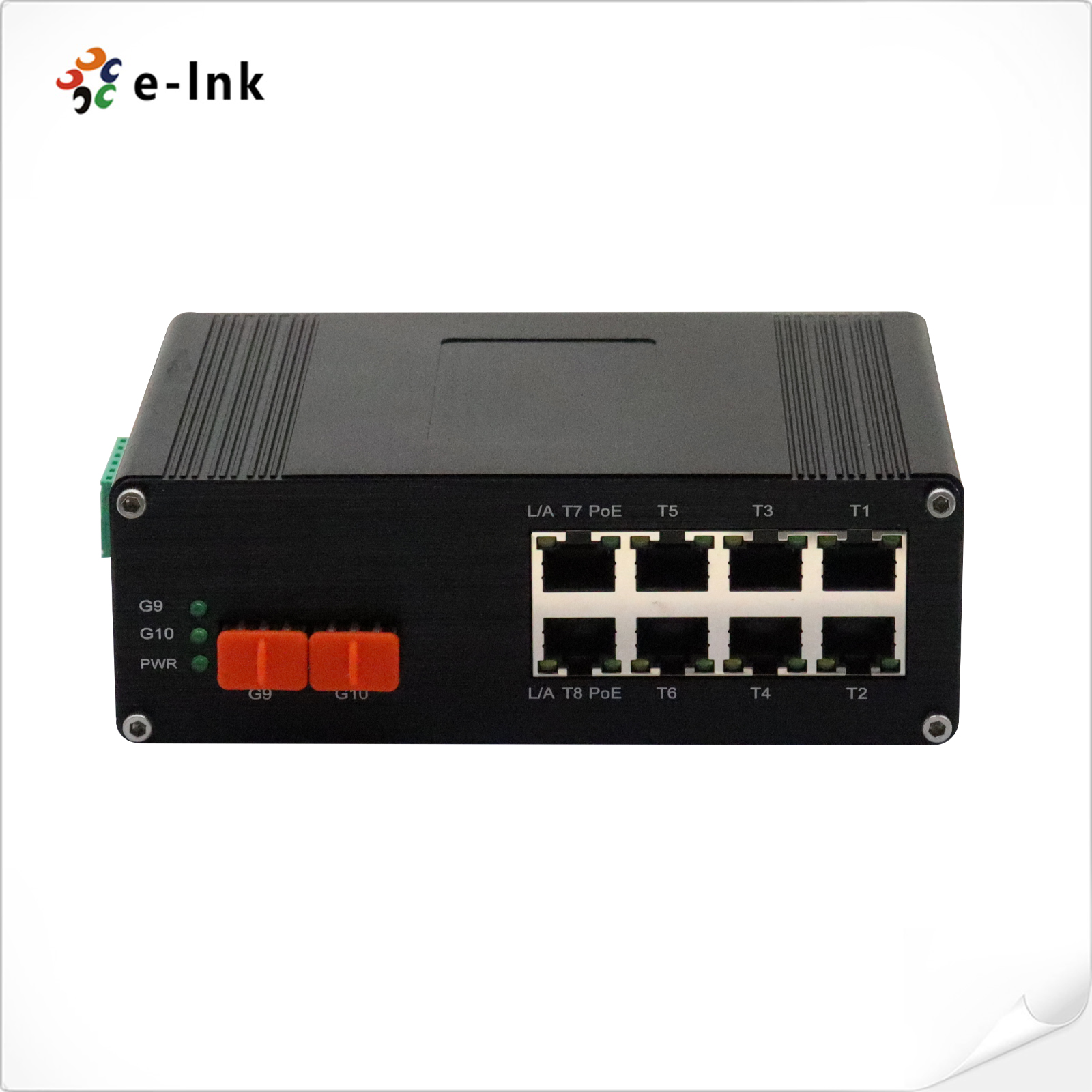

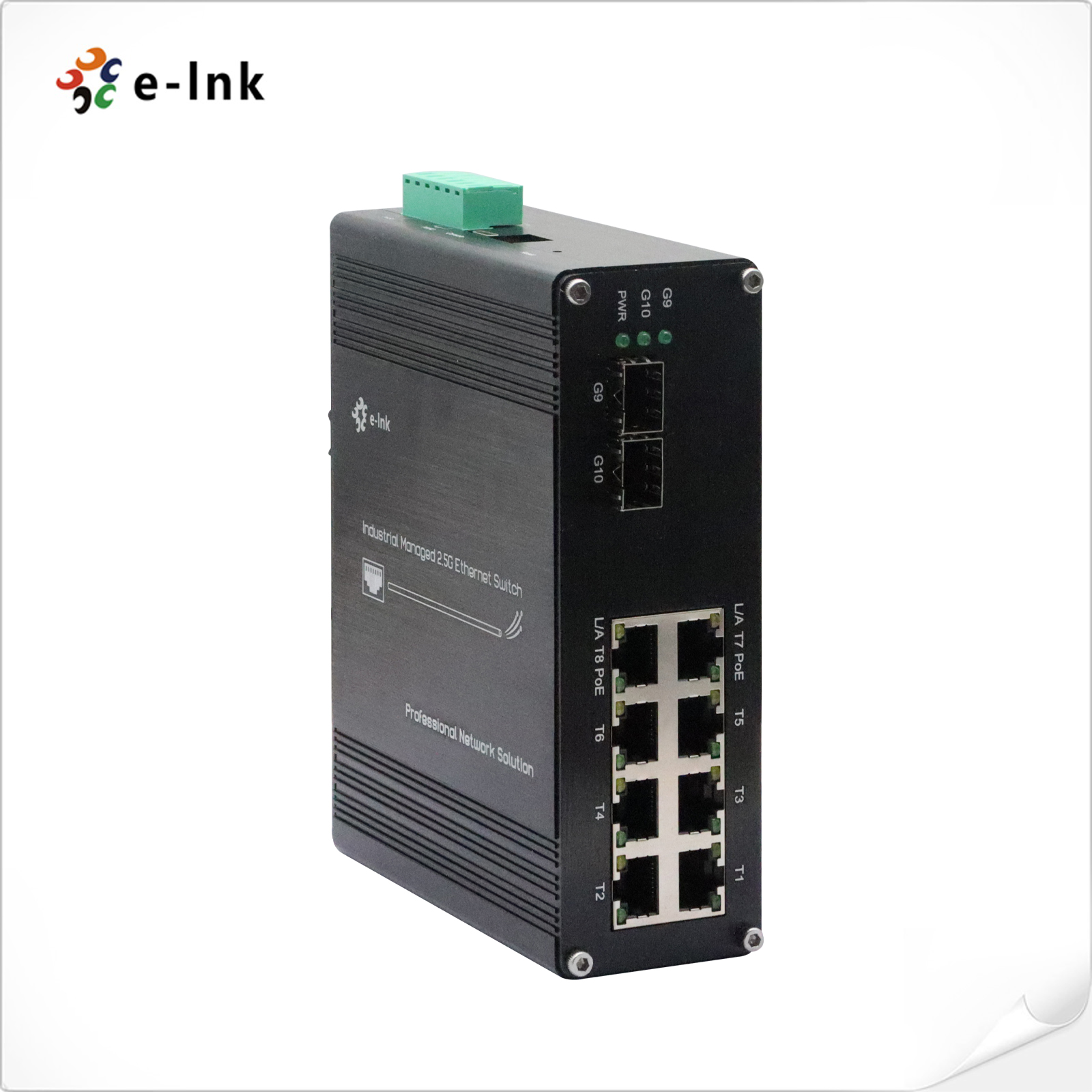

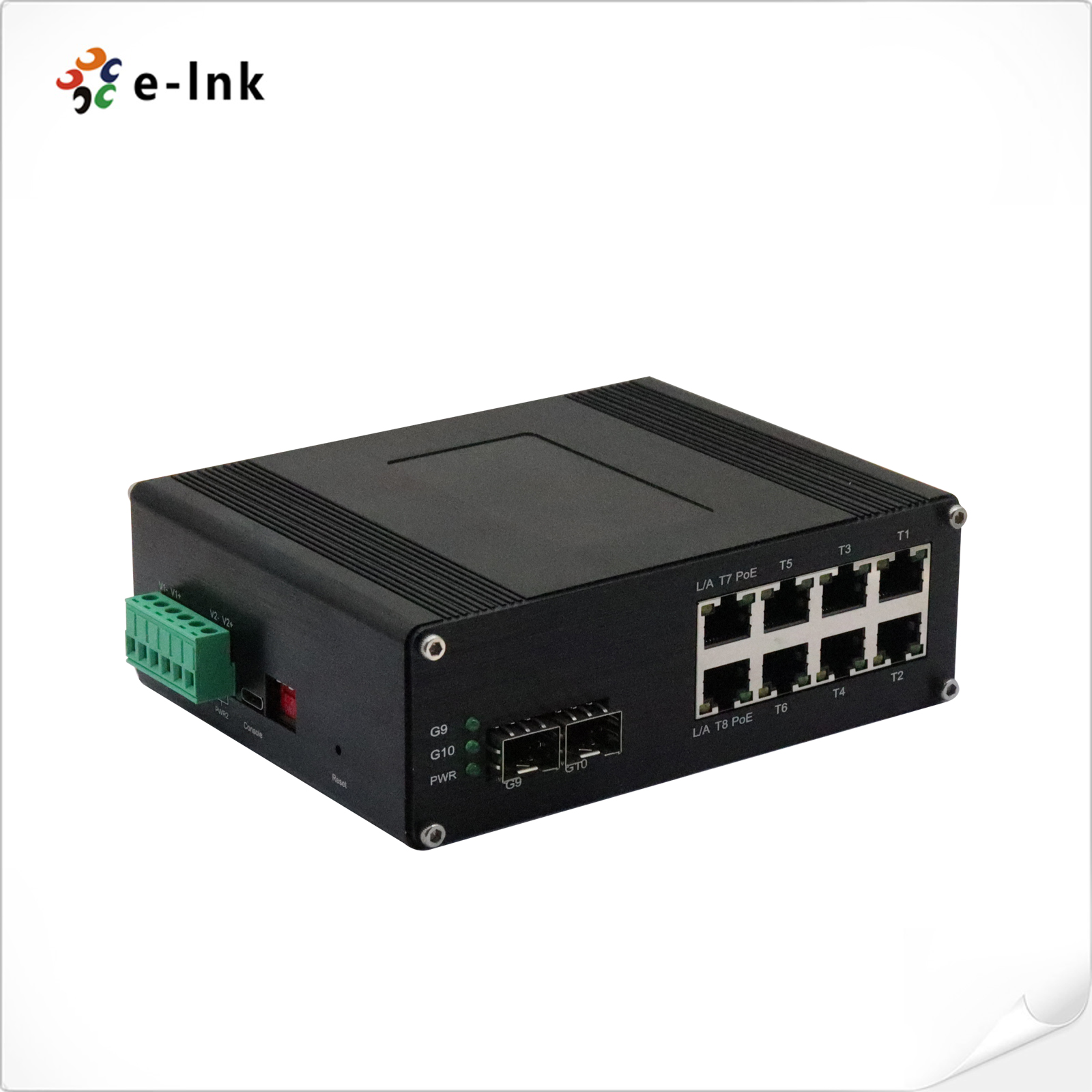

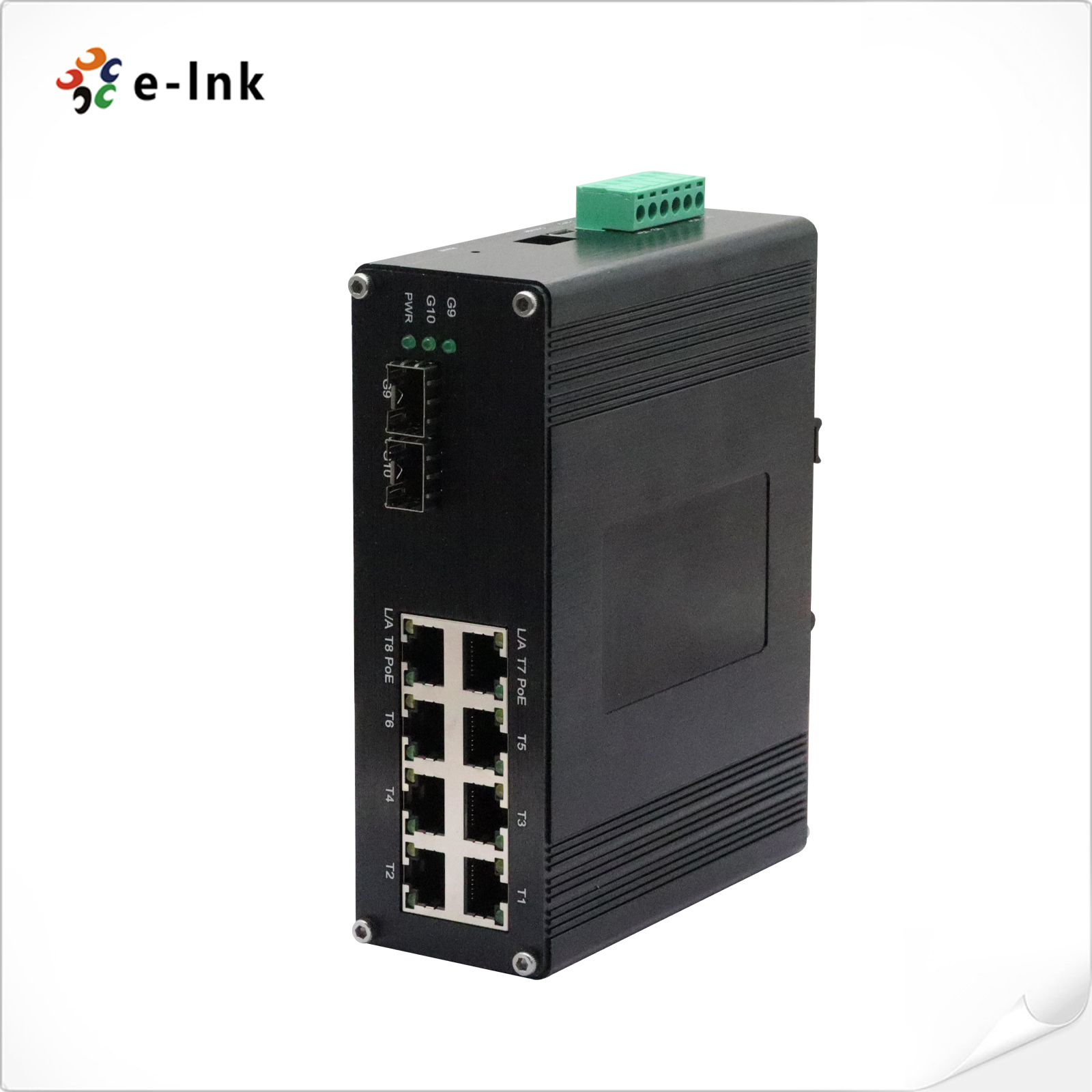

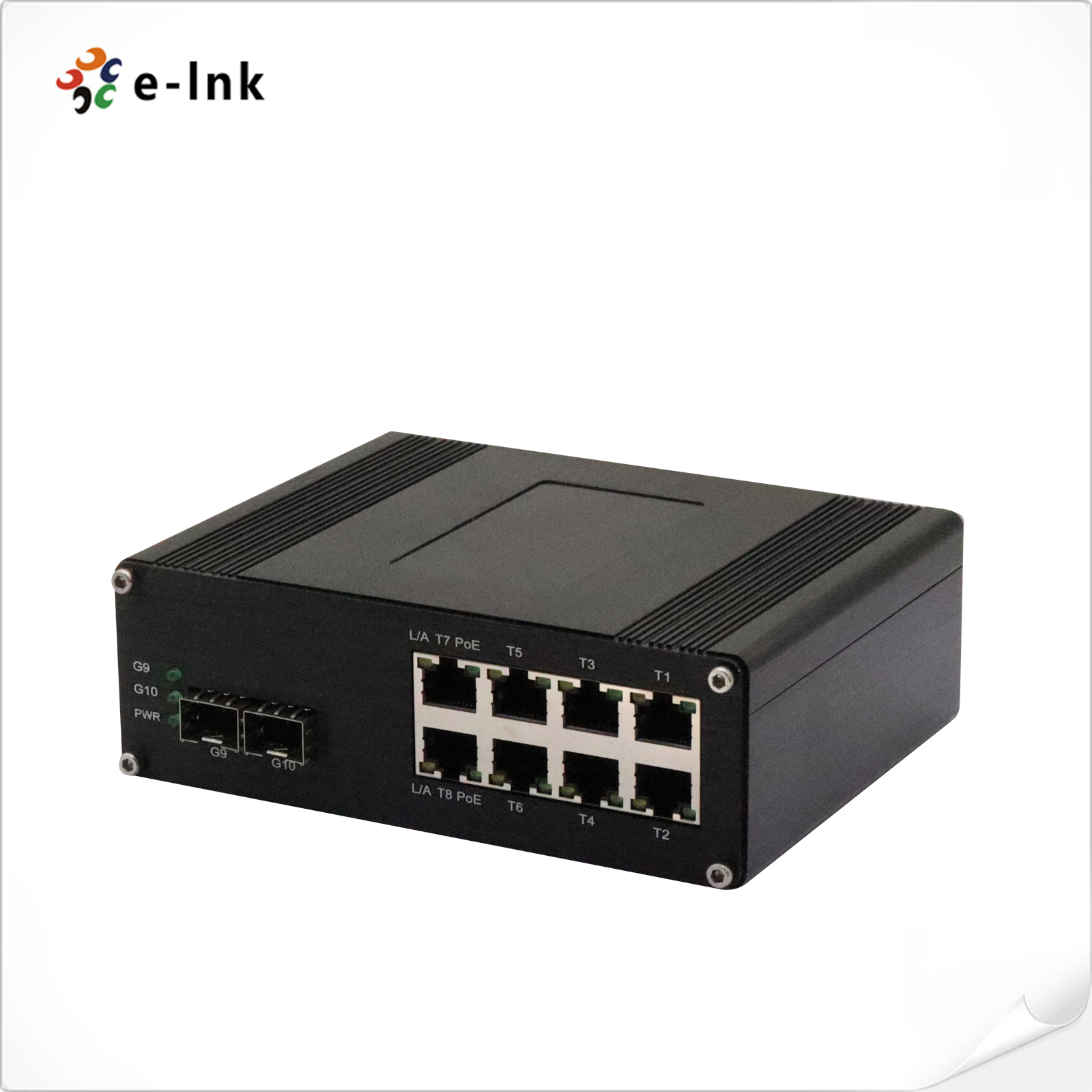

Interface

Ethernet Port:

8 x RJ45 (10/100/1000M/2.5G Base-TX)

Optical Port:

2 x 1.25G/2.5G/10G SFP+

Management Port:

1 x USB-C

PoE (Power over Ethernet)

Standard:

IEEE 802.3bt Power over Ethernet

IEEE 802.3at Power over Ethernet

IEEE 802.3af Power over Ethernet

Port:

RJ45

Power Pin Assignment

1/2(+), 3/6(-) or 4/5(+), 7/8(-)

PoE Budget:

90-watt each PoE Port,

Total up to 360-watt PoE budget

Environmental

Operating Temperature:

-40°C to 80°C (-40°F to 176°F)

Storage Temperature:

-40°C to 85°C (-40°F to 185°F)

Relative Humidity:

5% to 95% non-condensing

MTBF

> 200,000 hrs

Electrical and Mechanical

Input Power:

48~57V DC,Redundant Power (6-pin Terminal Block)

Power Consumption:

8W Max.(PoE in Use<360W)

Protection:

Power Input Overload:

Automatic Resettable

Reverse Polarity:

Present

DIP Switch

4-digit DIP switch function

DIP

Function

Settings

SW 1

Reserved

ON - Reserved

SW 1

SW 2

Ring Management

ON - Enabled

SW 2

SW 3

Reserved

ON - Reserved

SW 3

SW 4

Reserved

ON - Reserved

SW 4

LED Indicators:

PWR:

Power Status

Ethernet (Per Port):

Link/Activity

PoE:

PoE Status

Fiber:

SFP Port: F9~F10

Dimensions (WxDxH):

149 x 114 x 50 mm

Weight:

0.55Kg

Casing:

Aluminum Case

Mounting Options:

DIN-Rail mount

Management Interface Features

System

System Info, IP Address, User Account, System Time, SNTP Setting, Loop Prevention, STP Config, System Reboot, Factory Reset

Advanced

Port Settings, EEE, QoS Mode, QoS Rate Limit, QoS Q Scheduler, QoS TC2Q MAP, QoS CoS2TC MAP, QoS DSCP2TC MAP, Port Mirror, Link Aggregation, Port Based VLAN, Tag Based VLAN, IGMP Snooping, Storm Control, LLDP

Status

Port Statistics, Static MAC Entries, Dynamic MAC Entries

Tools

Config Tools, Cable Test, Firmware Backup, Firmware Update, USXGMII PHY Eye Test

Default IP

192.168.40.253

Default User Name

admin

Default Password

admin

Regulatory Approvals

ISO9001, CE, RoHS, FCC

EN55022:2010+AC: 2011, Class A

EN 61000-3-2: 2006+A1: 2009+A2: 2009

EN 61000-3-3: 2013

EN55024:2010

IEC 61000-4-2: 2008 (ESD)

IEC 61000-4-3: 2010 (RS)

IEC 61000-4-4: 2012 (EFT)

IEC 61000-4-5: 2014 (Surge)

IEC 61000-4-6: 2013 (CS)

IEC 61000-4-8: 2009 (PFMF)
