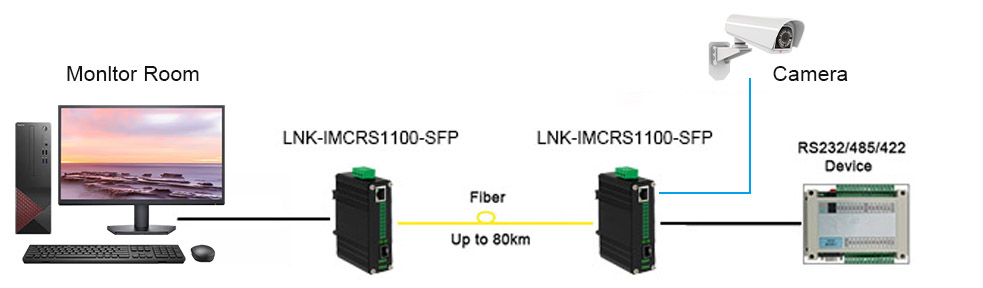

Ethernet

Standards:

IEEE802.3 10Base-T

IEEE802.3u 100Base-TX/FX

IEEE 802.3az Energy Efficient Ethernet (EEE)

Processing Type:

Store-and-Forward

Forward Filter Rate:

14,880pps (10Mbps)

148,800pps (100Mbps)

Packet Buffer Memory:

1 Mbit

Max Packet Length:

9K Bytes

Address Table Size

2K MAC Addresses

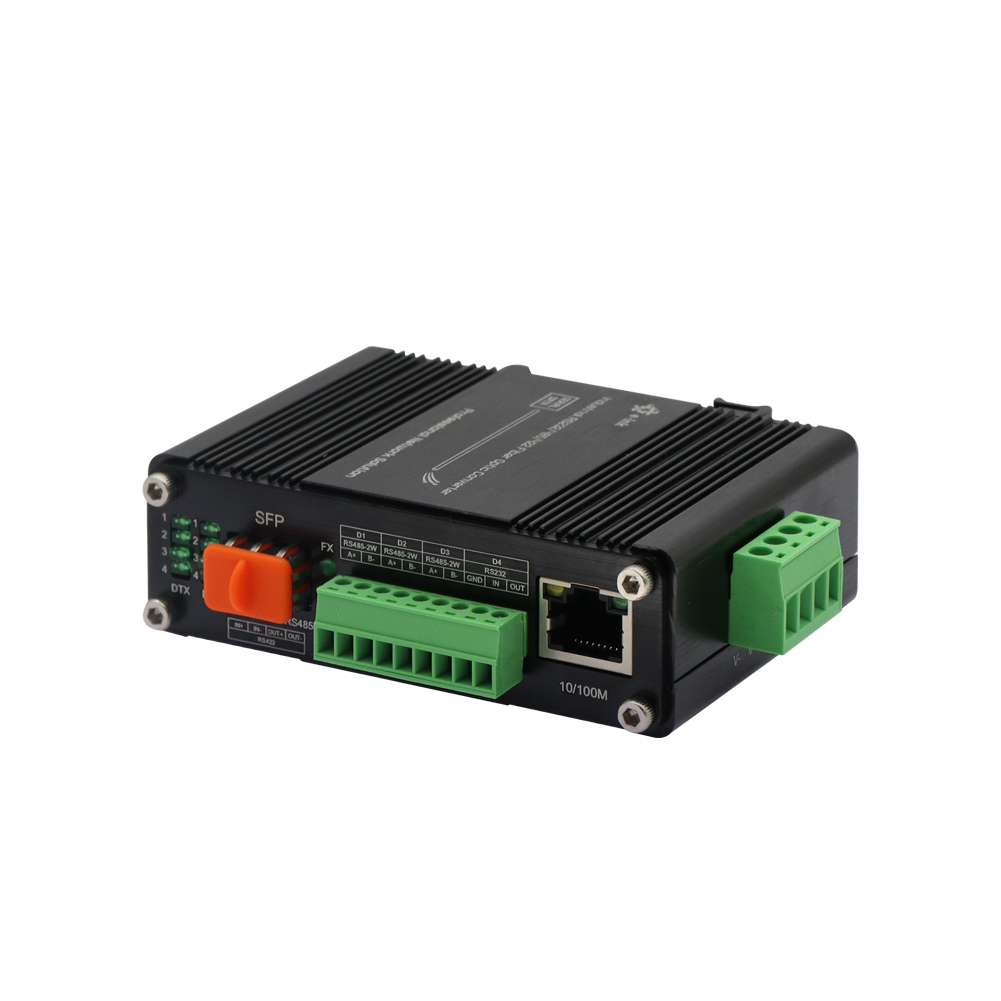

Interface

Ethernet Port:

1 x RJ45

Optical Port:

1 x SFP 100Base-FX

Serial Port

1 x RS232/RS485/RS422Industrial Terminal

RS232/RS485/RS422

Serial Interface

Industrial Terminal

Signal Ports

1Ch RS232 - 1Mbps

1Ch R485 - 1Mbps

2Ch RS485H- 2Mbps

2Ch RS485H can be grouped into 1Ch High Speed RS422

BaudRate

RS485/RS422/RS232：4800-460800

Standard

EIA /TIA RS232/485/422

Serial Distance

RS232: 15 meters, RS485/422: 1000 meters

Rate

Max 2Mbps

RS-232

TXD, RXD, GND -Bi-directional

RS-485

D+, D-, GND -Bi-directional

Static protection

15KV electric static discharge (ESD) protection

Surge protection

1500W/sec surge protection

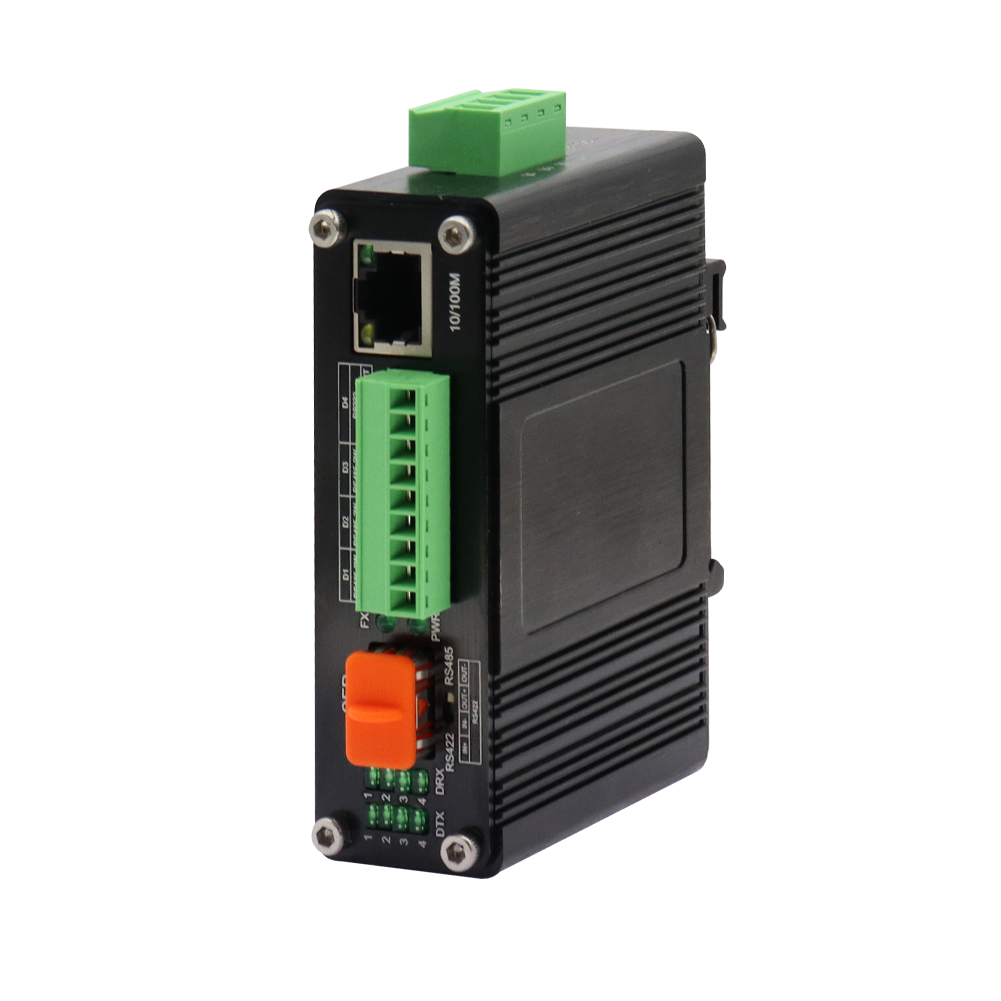

Electrical and Mechanical

Input Power:

12~48VDC, 4-pin terminal block

Power Consumption:

3W Max.

Dimensions (WxDxH):

95 x 70 x 30 mm

Weight:

0.25Kg

Casing:

AluminumCase

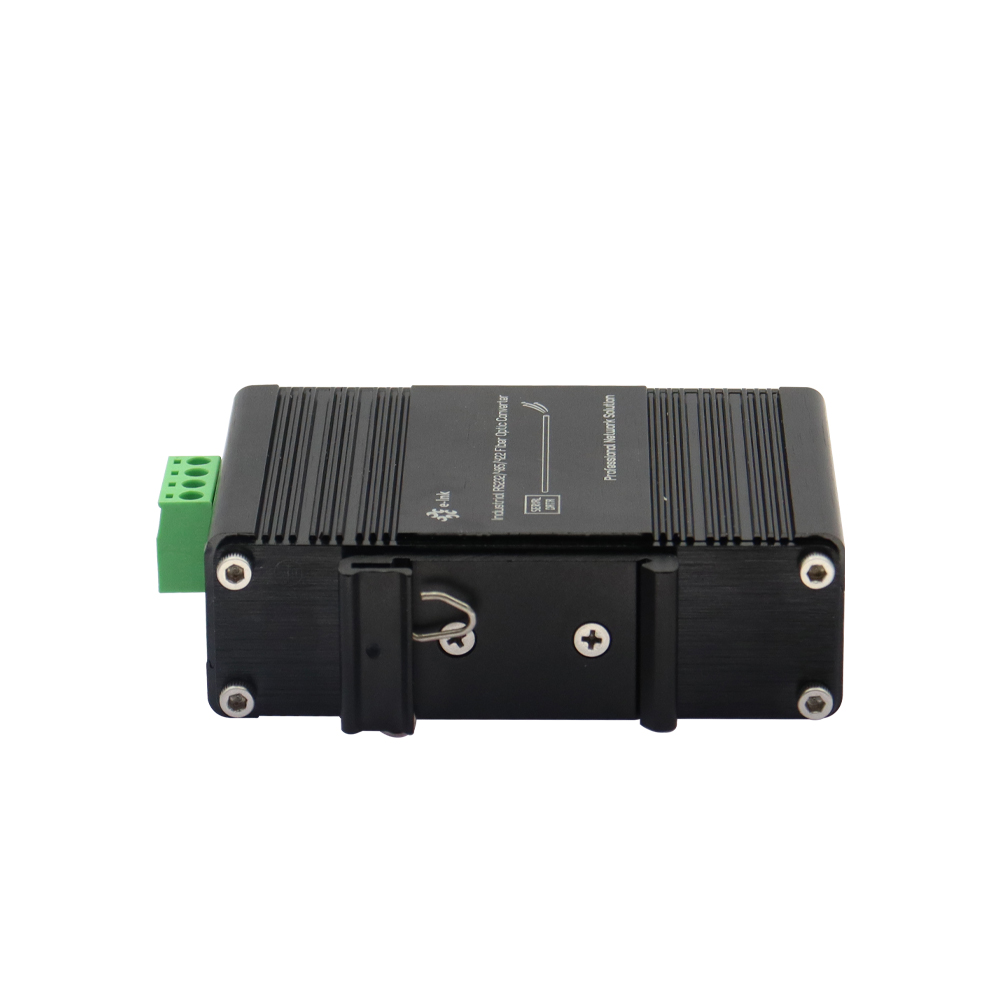

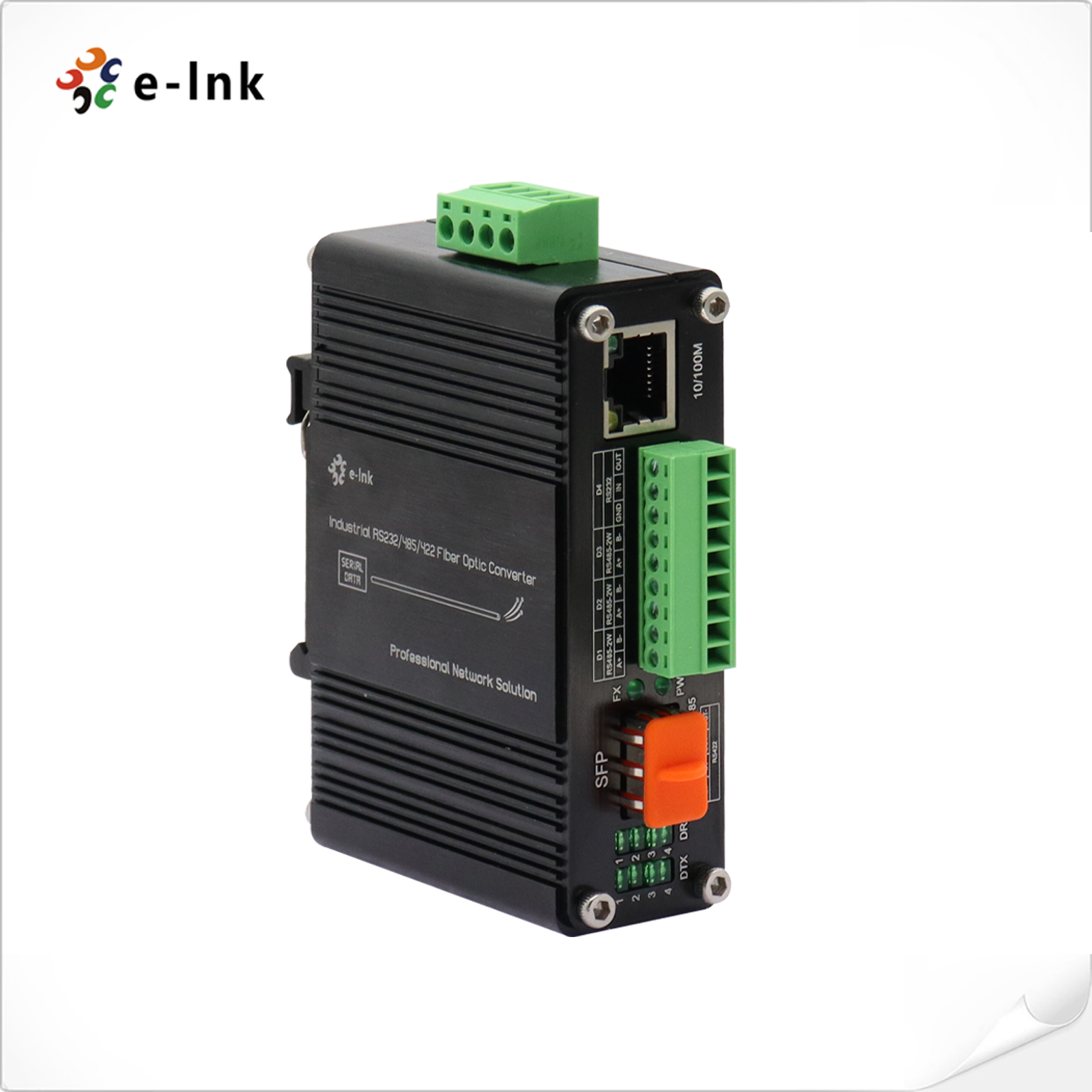

Mounting Options:

DIN-Rail / Wall-mount

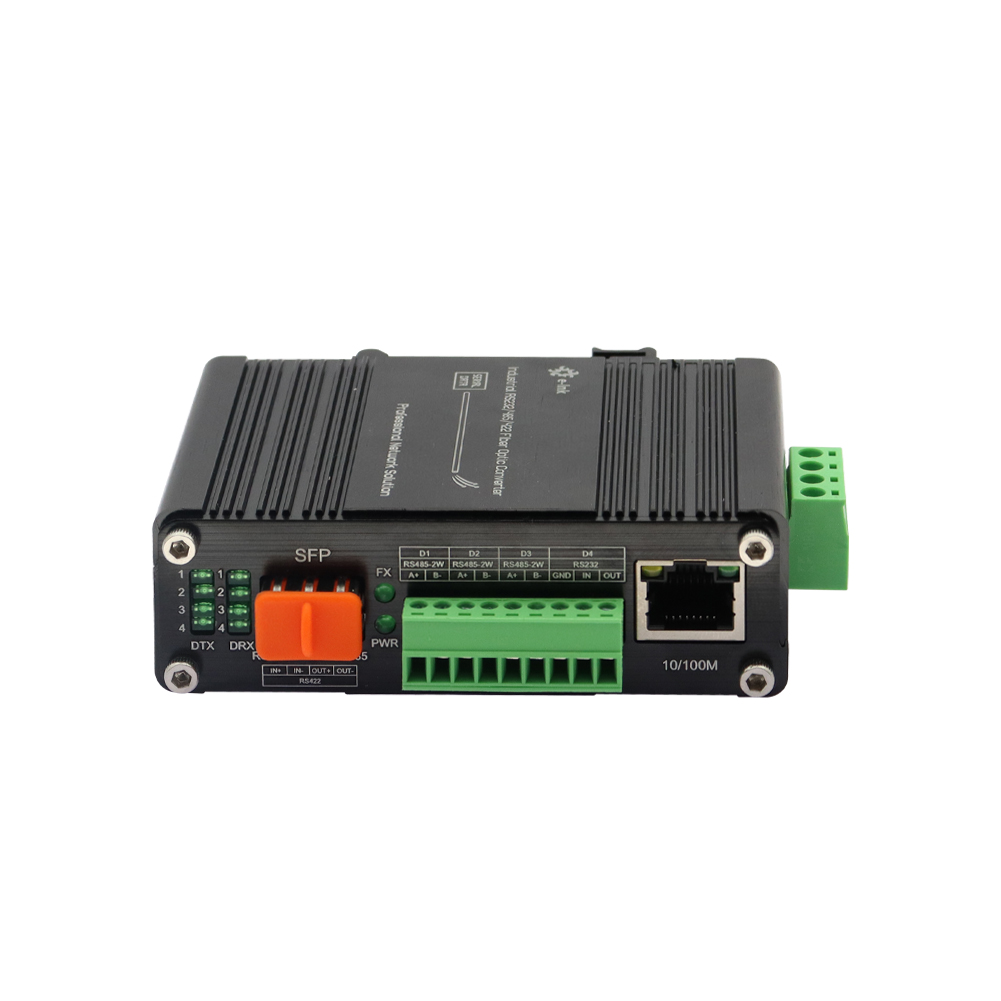

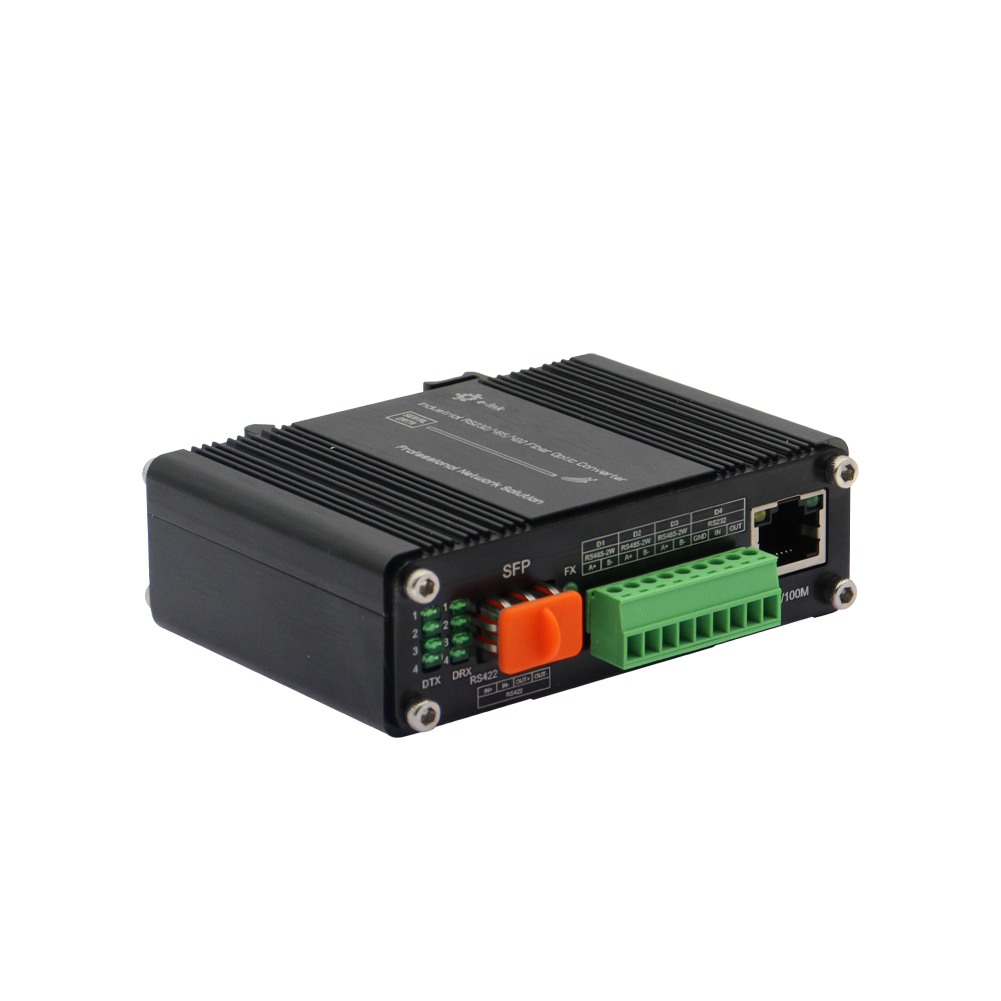

LED Indicators

PWR:

Power Status

FX:

Data LINK Status

10/100M:

Ethernet Status

DTX 1 2 3 4

Serial Data Status

DRX 1 2 3 4

Serial Data Status

Environmental

Operating Temperature:

-40°C to 75°C (-40°F to 167°F)

Storage Temperature:

-40°C to 85°C (-40°F to 185°F)

Relative Humidity:

5% to 95% non-condensing

MTBF

> 200,000 hrs

Regulatory Approvals

ISO9001, CE, FCC, RoHS

EMI:

EN55022:2010+AC: 2011, Class A

EN 61000-3-2: 2006+A1: 2009+A2: 2009

EN 61000-3-3: 2013

EN55024: 2010

EMS:

IEC 61000-4-2: 2008 (ESD)

IEC 61000-4-3: 2010 (RS)

IEC 61000-4-4: 2012 (EFT)

IEC 61000-4-5: 2014 (Surge)

IEC 61000-4-6: 2013 (CS)

IEC 61000-4-8: 2009 (PFMF)
