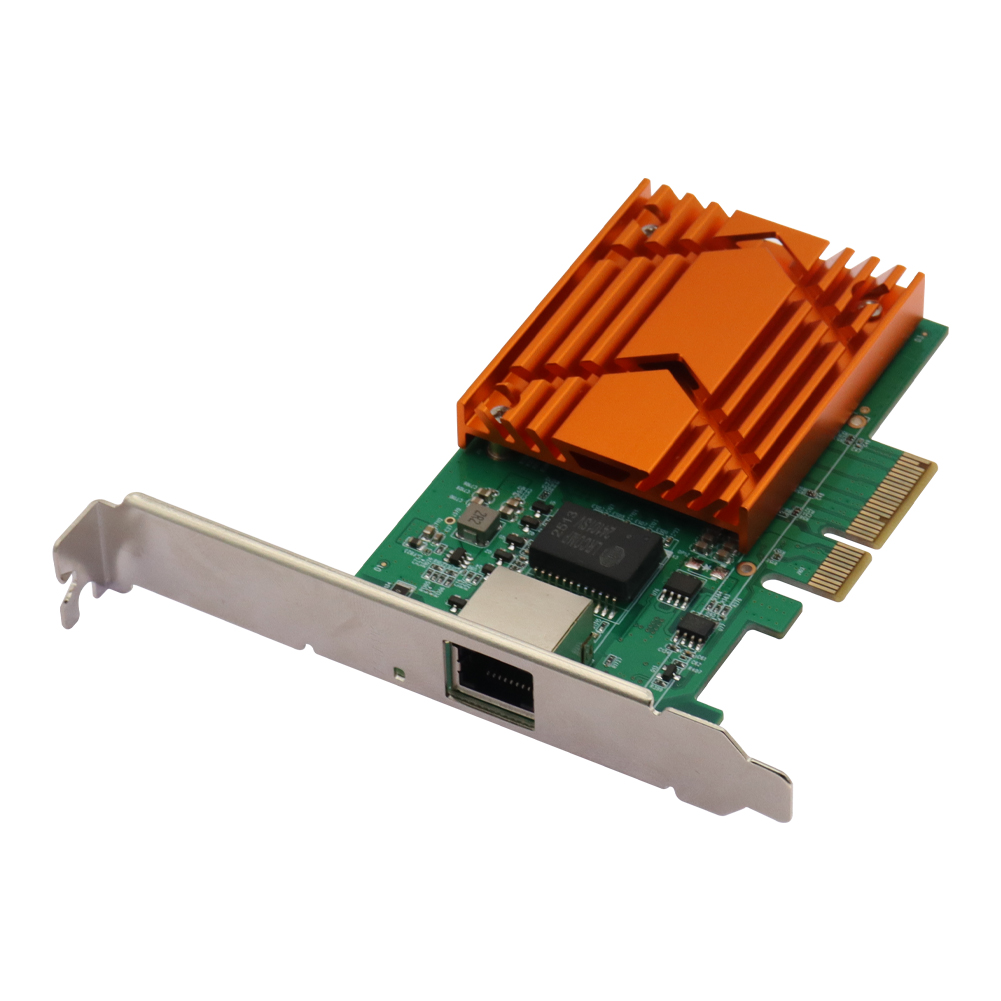

PCIe x4 Single-port RJ45 10G Ethernet Network Adapter
Model:LNK-NIC-10GE
► PCIE x 4 Hardware Interface.
► Support systems: Windows, Linux, Ubuntu, etc
► Windows 7/8/8.1/10
► Windows Server 2008 R2/2012 R2/2016 R2/2019 R2
► Linux Stable Kernel version 2.6.32/3.x/4.x or later
► Linux CentOS/RHEL 6.5 / 7.x or later
► Ubuntu 14.x/15.x/16.x or later
► VMware ESX/ESXi 4.x/5.x/6.x or later
► 10/100/1000M/2.5G/5G/10Gbps data rate
LNK-NIC-10GEis a PCI Express x4 single port 10 Gigabit Ethernet network adapter. It is also compatible with PCle x8 and x16 channels. A high-performance, five rate NIC adapter that integrates PCle, MAC, and PHY to provide power and space-efficient connectivity to client systems. The PCle x4 universal interface gives this product great flexibility.
The integrated PHY can be routed through Cat 6a at speeds up to 10Gbps over a distance of 30 meters. It also supports 5Gbps network connections over traditional Cat 5e or Cat 6 cabling. The LNK-NIC-10GE is IEEE 802.3an & IEEE 802.3 bz compliant and enables 2.5GBASET, 5GBASE-T，10GBASE-T,1000BASE-T and 100BASE-TX transmission over 100m twisted pair cabling. MSI, MSI-X, LSO, RSS and IPv4/IPv6 checksum offload for high performance and low CPU utilization with up to 16 KB of massive data frame support.► PCIE x 4 Hardware Interface.
► Support systems: Windows, Linux, Ubuntu, etc
► Windows 7/8/8.1/10
► Windows Server 2008 R2/2012 R2/2016 R2/2019 R2
► Linux Stable Kernel version 2.6.32/3.x/4.x or later
► Linux CentOS/RHEL 6.5 / 7.x or later
► Ubuntu 14.x/15.x/16.x or later
► VMware ESX/ESXi 4.x/5.x/6.x or later
► 10/100/1000M/2.5G/5G/10Gbps data rate
► Jumbo frame support up to 16 KB.
► Extensive software support: Windows and Linux drivers; UEFI and PXE remote boot.
► MSI, MSI-X, LSO, RSS and IPv4/IPv6 checksum offload.

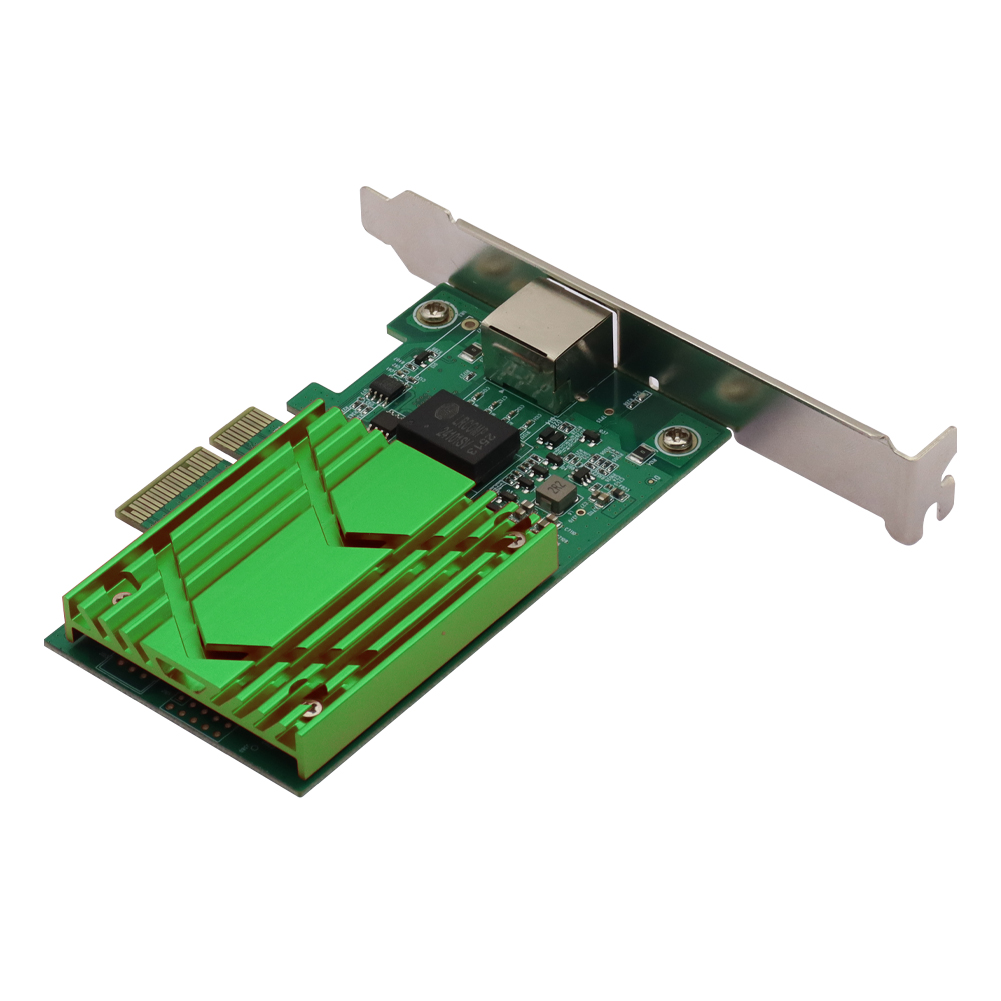

► Brown and Green color optional
|
Copper |
|
|
Copper Type |
10GBase-T：Cat 7 or higher up to 30m 5GBase-T：Cat 7 or higher up to 30m 2.5GBase-T：Cat 6A or higher up to 100m 1GBase-T：Cat 6 or higher up to 100m 100MBase-T：Cat 6 or higher up to 100m |
|
Baffle Height |
Half & Full height |
|
Power Consumption |
4.7W |
|
OS Support |
Windows 7/8/8.1/10 Windows Server 2008 R2/2012 R2/2016 R2/2019 R2 Linux Stable Kernel version 2.6.32/3.x/4.x or later Linux CentOS/RHEL 6.5 / 7.x or later Ubuntu 14.x/15.x/16.x or later VMware ESX/ESXi 4.x/5.x/6.x or later |
|
Bus Type |
PCIe v3.0 x4，compatible with x8, x16 |
|
Data rate per port |
10/100/1000M/2.5G/5G/10Gbps data rate |
|
Connector |
1*10G RJ45 |
|
Standards compliant |
IEEE 802.3an 10 Gbit/s Ethernet over unshielded twisted pair IEEE 802.3bz 2.5/5GBASE-T IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.1Q VLANs IEEE 802.3x Full Duplex and flow contro IEEE 802.3az - Energy Efficient Ethernet (EEE) |
|
iSCSI |
No |
|
WoL |
No |
|
Jumbo Frames |
Yes |
|
DPDK |
Yes |
|
PXE |
Yes |
|
FCoE |
No |
|
Operating Temperature |
0℃ to 55℃ (32℉ to 131℉) |
|
Storage Temperature |
-40℃ to 70℃ (-40℉ to 158℉) |
|
Storage Humidity |
Maximum: 90% non-condensing relative humidity at 35℃ |
|
Size |
125 x 125 x 20 mm |
|
Weight |
90g |
|
LED indication |
Power: Light on when power on; LNK/ACT: Light on when connected, light blinks when transfer data. |
- Download FileName：E-link LNK-NIC-10GE 10G Ethernet Network Adapter Datasheet V1.0.pdf Size： 1.68MB
|
Model |
Description |
|
LNK-NIC-10GE |
PCIE x4 Single-port RJ45 10G Ethernet Network Adapter |
