Ethernet

Standards:

IEEE802.3 10BASE-T

IEEE802.3u 100BASE-TX/FX

IEEE802.3ab 1000BASE-T

IEEE802.3z 1000BASE-X

Forward & Filtering Rate:

14,880pps (10Mbps)

148,800pps (100Mbps)

1,488,000pps (1000Mbps)

Packet Buffer Memory:

2.75M bits

Processing Type:

Store-and-Forward

Backplane bandwidth

64Gbps

Max Packet Length:

16K Bytes Jumbo Frame

Address Table Size:

16K MAC Addresses

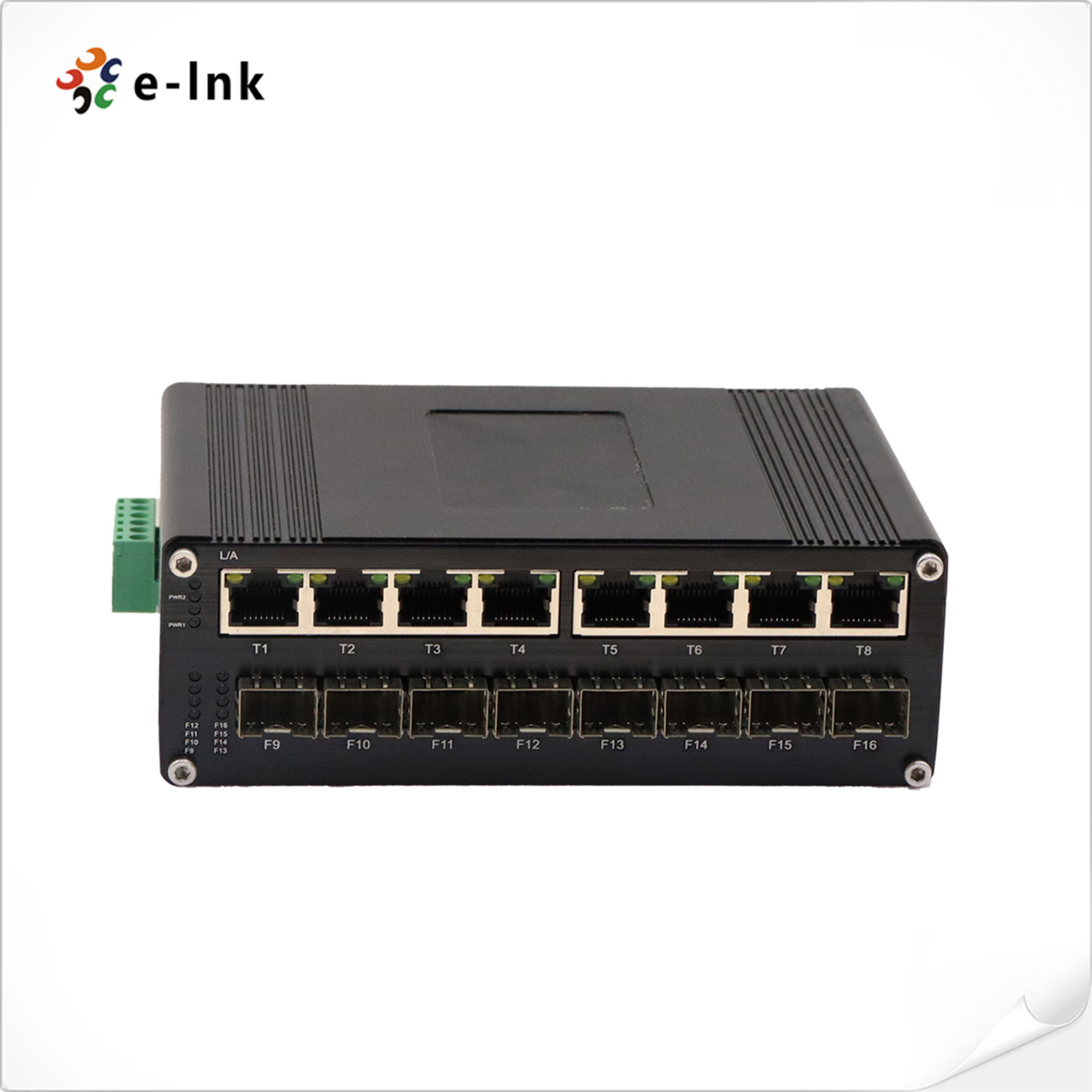

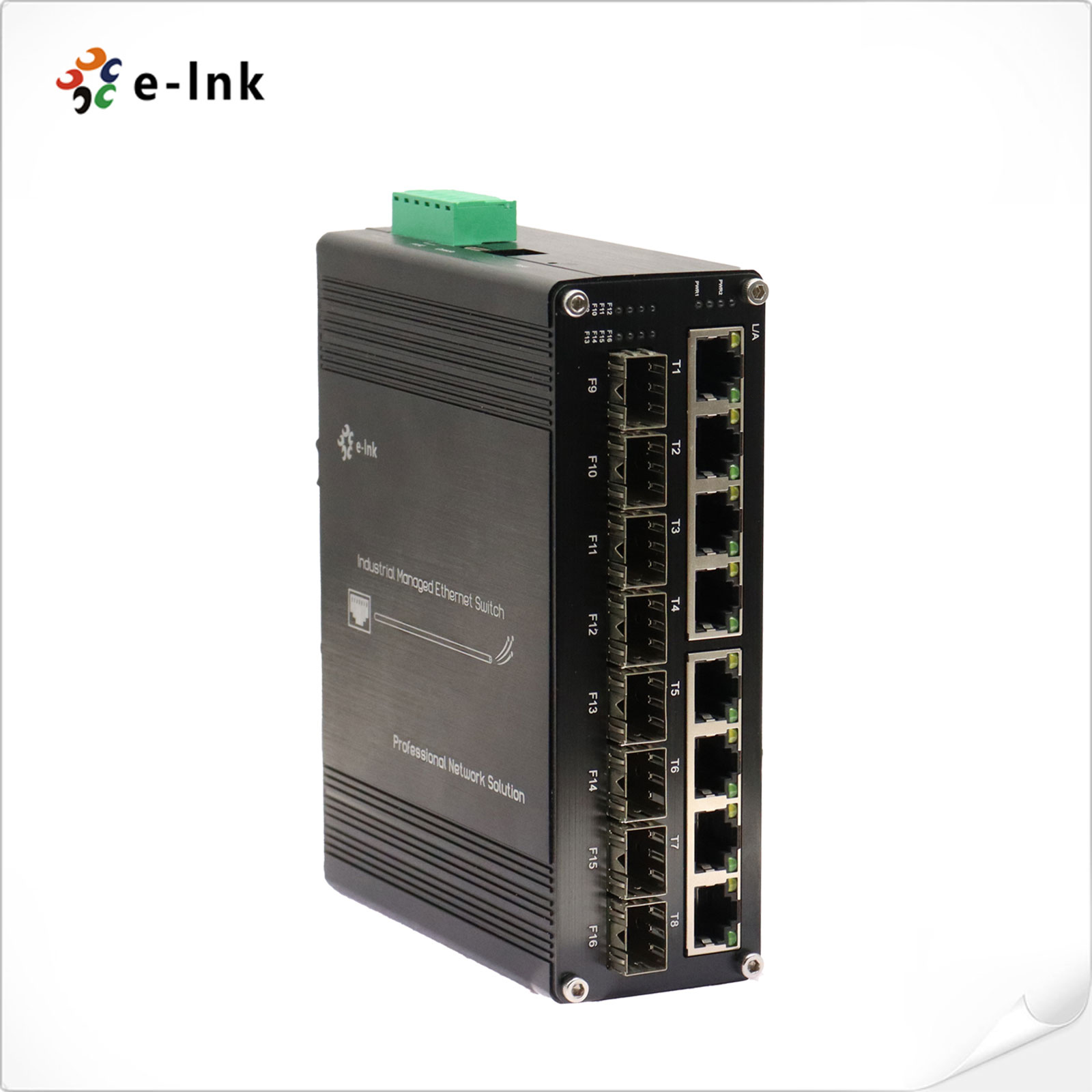

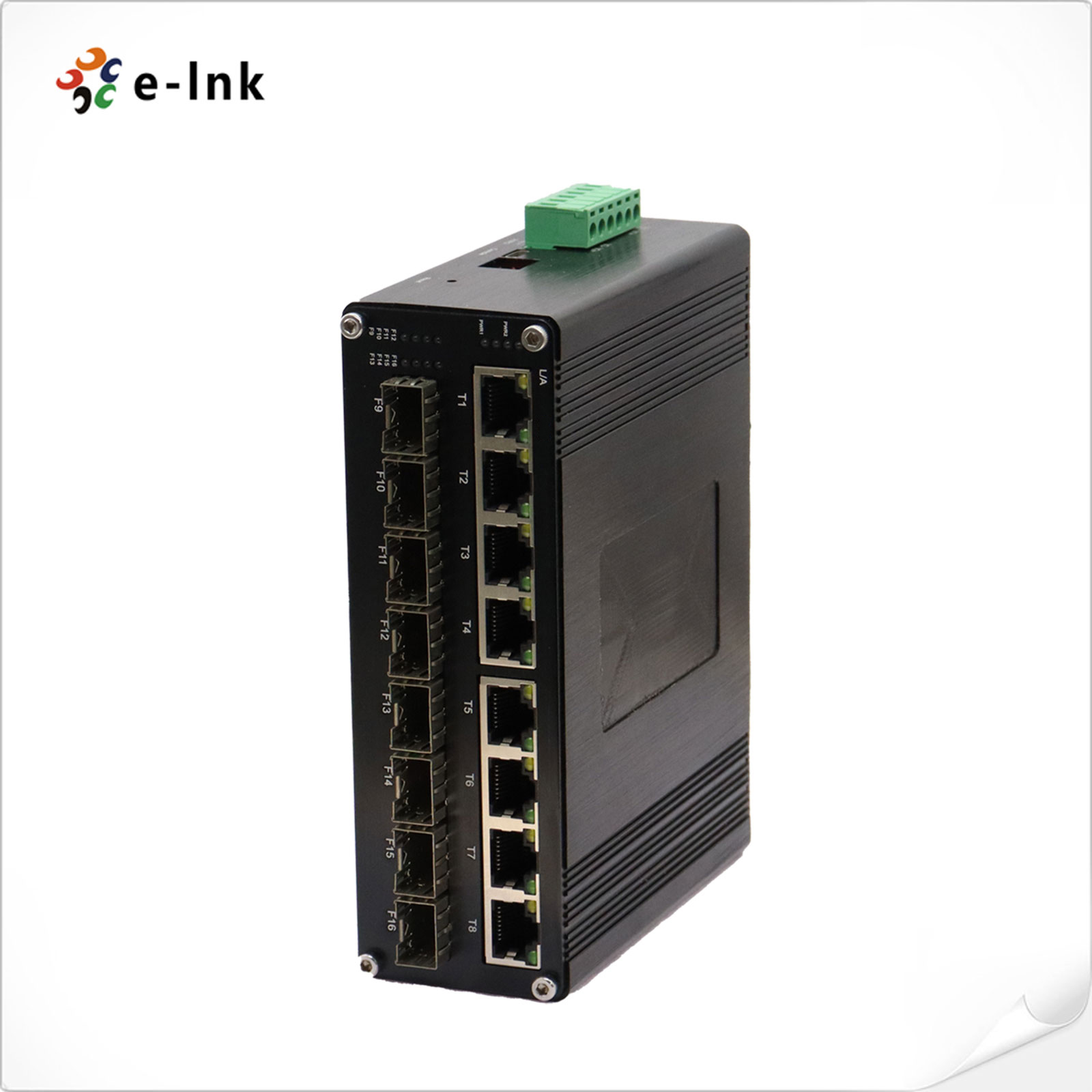

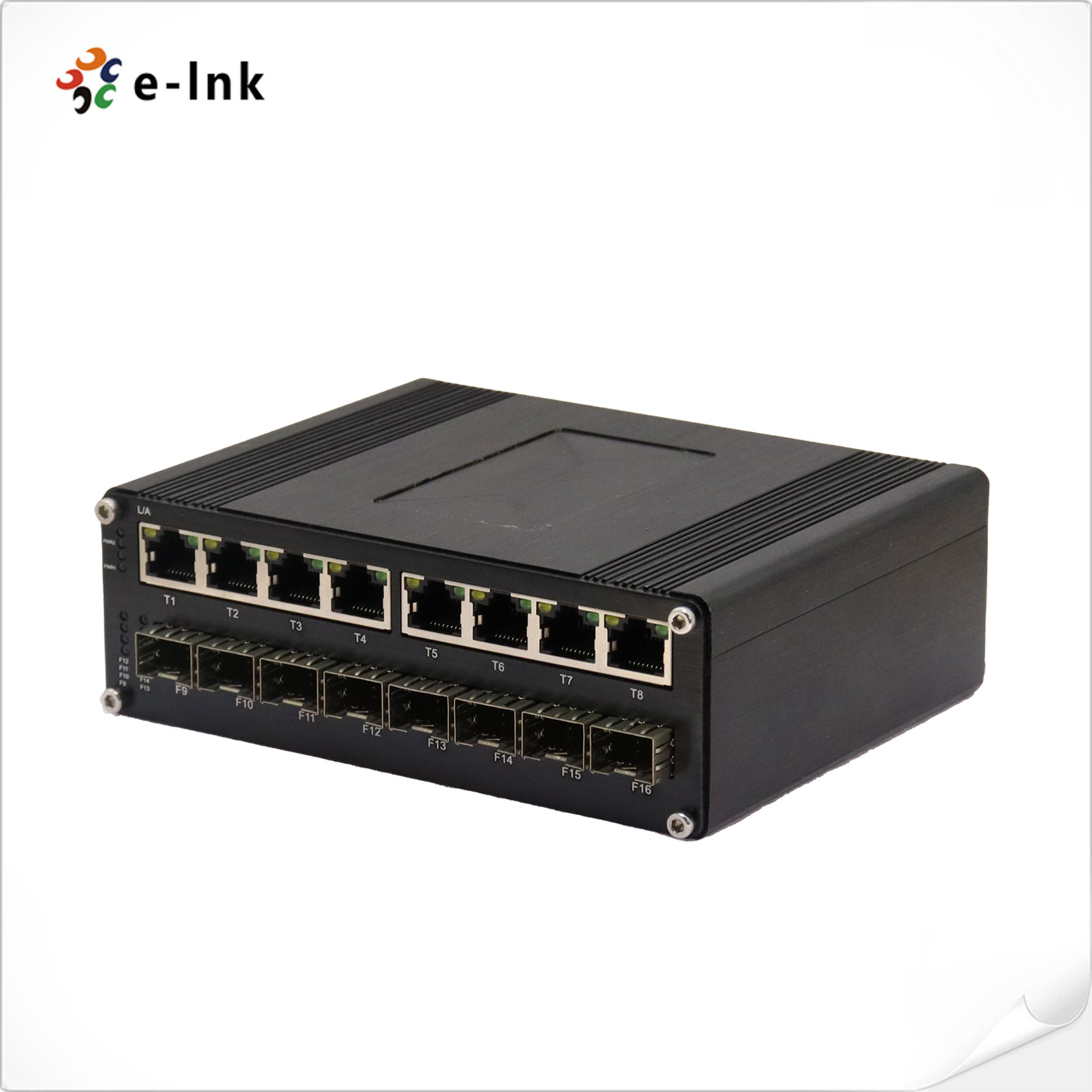

Interface

Ethernet Port:

8 x 10/100/1000Base-T RJ45

Optical Port:

8 x 1000Base-X SFP

Management Port:

1 x USB-C (for Management)

Environmental

Operating Temperature:

-40°C to 80°C (-40°F to 176°F)

Storage Temperature:

-40°C to 85°C (-40°F to 185°F)

Relative Humidity:

5% to 95% non-condensing

MTBF

> 200,000 hrs

Electrical and Mechanical

Input Power:

12~57V DC,Redundant Power (6-pin Terminal Block)

Power Consumption:

8W Max.

Protection:

Power Input Overload:

Automatic Resettable

Reverse Polarity:

Present

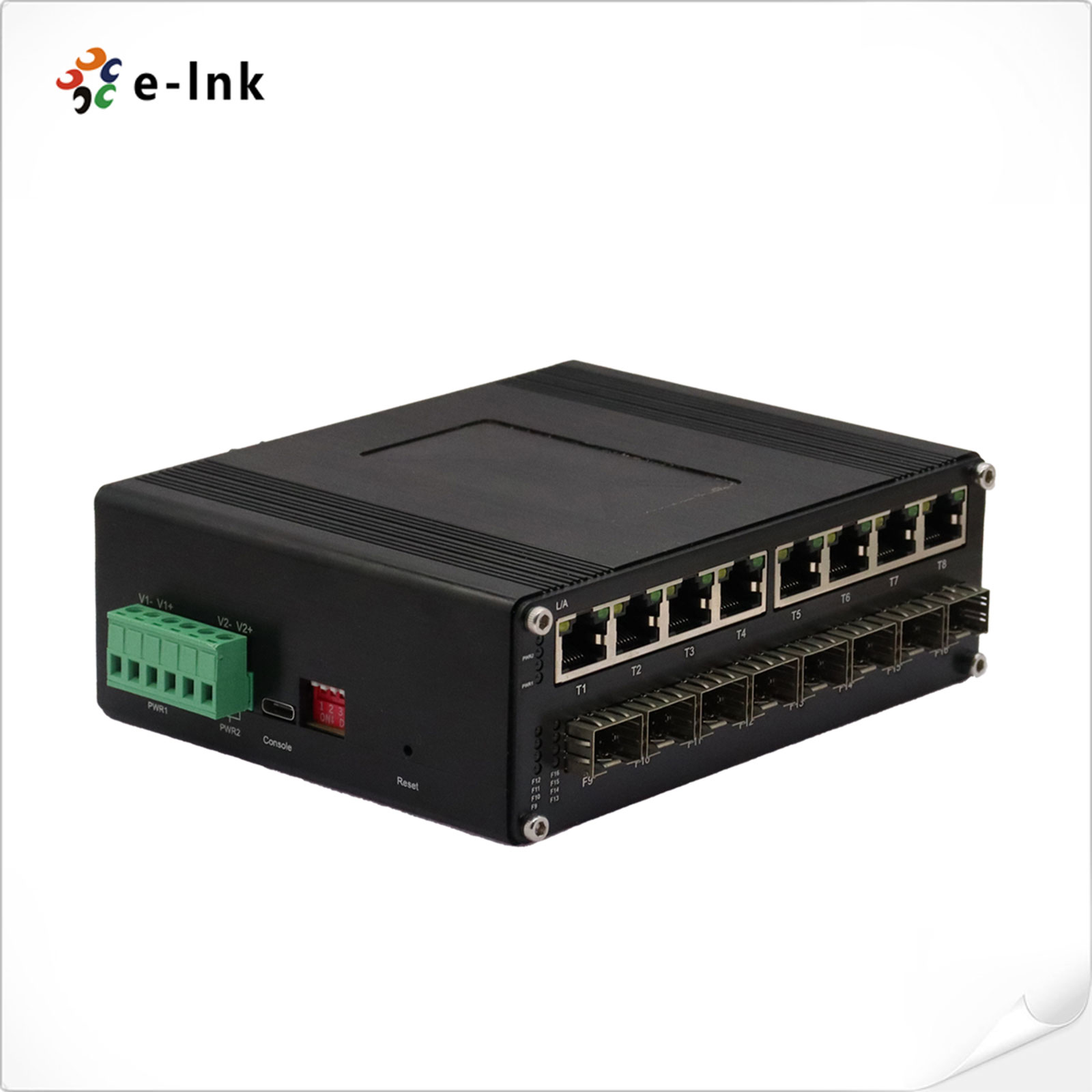

DIP Switch

4-digit DIP switch function

DIP

Function

Settings

SW 1

Reserved

ON - Reserved

OFF - Reserved

SW 2

Ring Management

ON - Disabled

OFF - Enabled

SW 3

Reserved

ON - Reserved

OFF - Reserved

SW 4

Reserved

ON - Reserved

OFF - Reserved

LED Indicators:

Power:

Power Status

Ethernet (Per Port):

Link/Activity, T1~T8

Fiber:

Gigabit SFP Port: F9~F16

Dimensions (WxDxH):

149 x 114 x 50 mm

Weight:

0.65Kg

Casing:

Aluminum Case

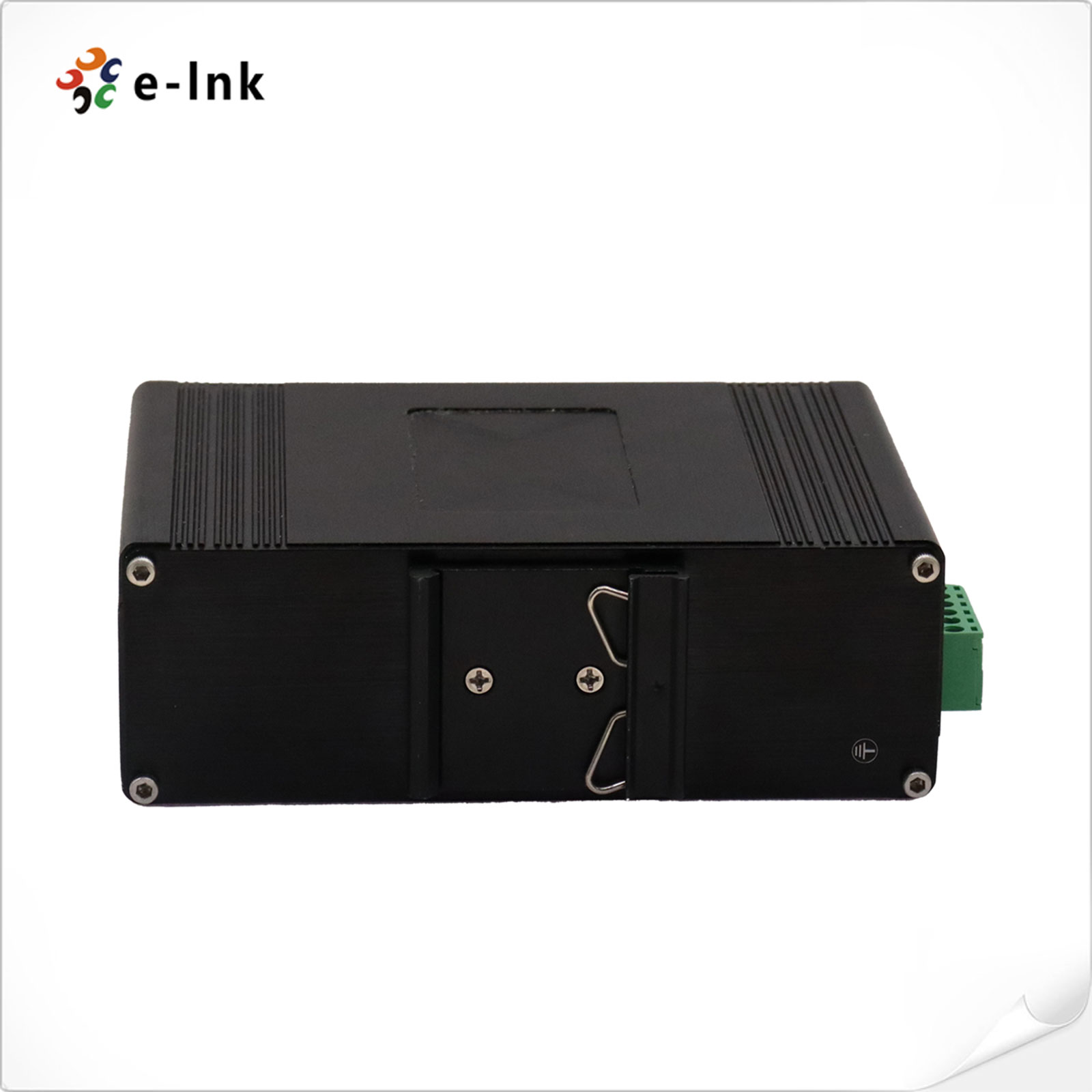

Mounting Options:

DIN-Rail mount

Management Features

System Status

Device Information, Device Status

Port Config

Port Config, DDM, Rate Control, Storm Control, PoE

Link Layer

QoS, VLAN, MAC VLAN, VLAN MAP, IP VLAN, Pro VLAN,

IGMP Snooping, Static Multicast List, LLDP,

Port Isolate, Port Protect,

MAC ACL, IP ACL, Black & White Lists

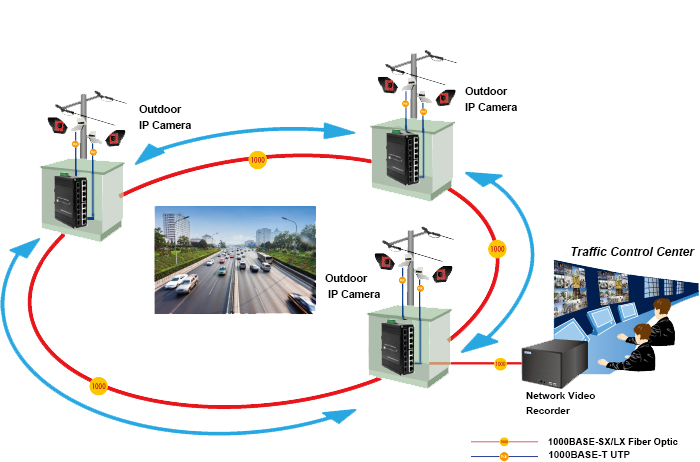

Link Backup

ERPS, Port Trunking, RSTP, LACP

Access Control

User Password, Access Control,

Port Authentication, Authentication DB,

MAC Port Locking, MAC Learn Limit

Remote Monitor

SNMP Config

Statistics

Receive Frame, Send Frame, Sum Statistics, MAC Address List

Network Diagnosis

Port Mirroring, Network Diagnosis

Management

Time Config, Device Address, System Information, System Log,

File Management

Default IP

192.168.40.253

Default User Name

admin

Default Password

admin

Regulatory Approvals

ISO9001, CE, RoHS, FCC

EN55022:2010+AC: 2011, Class A

EN 61000-3-2: 2006+A1: 2009+A2: 2009

EN 61000-3-3: 2013

EN55024:2010

IEC 61000-4-2: 2008 (ESD)

IEC 61000-4-3: 2010 (RS)

IEC 61000-4-4: 2012 (EFT)

IEC 61000-4-5: 2014 (Surge)

IEC 61000-4-6: 2013 (CS)

IEC 61000-4-8: 2009 (PFMF)
