Ethernet

Standards:

IEEE802.3 10BASE-T

IEEE802.3u 100BASE-TX/FX

IEEE802.3ab 1000BASE-T

IEEE802.3z 1000BASE-X

IEEE802.3af/at Power over Ethernet

Forward & Filtering Rate:

14,880pps (10Mbps)

148,800pps (100Mbps)

1,488,000pps (1000Mbps)

Packet Buffer Memory:

2.75M bits

Processing Type:

Store-and-Forward

Backplane bandwidth

32Gbps

Max Packet Length:

16K Bytes Jumbo Frame

Address Table Size:

16K MAC Addresses

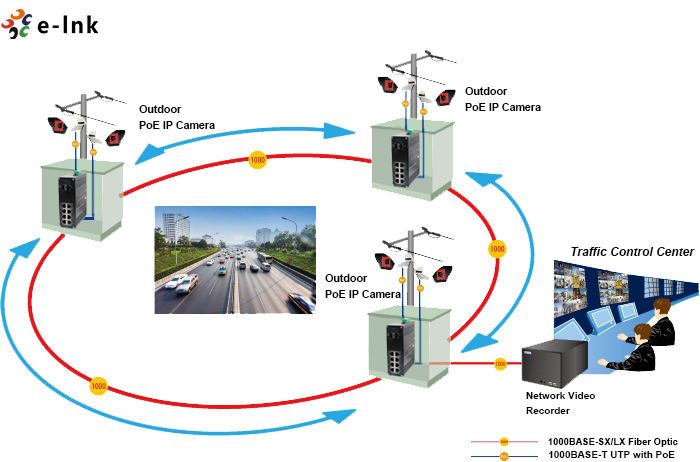

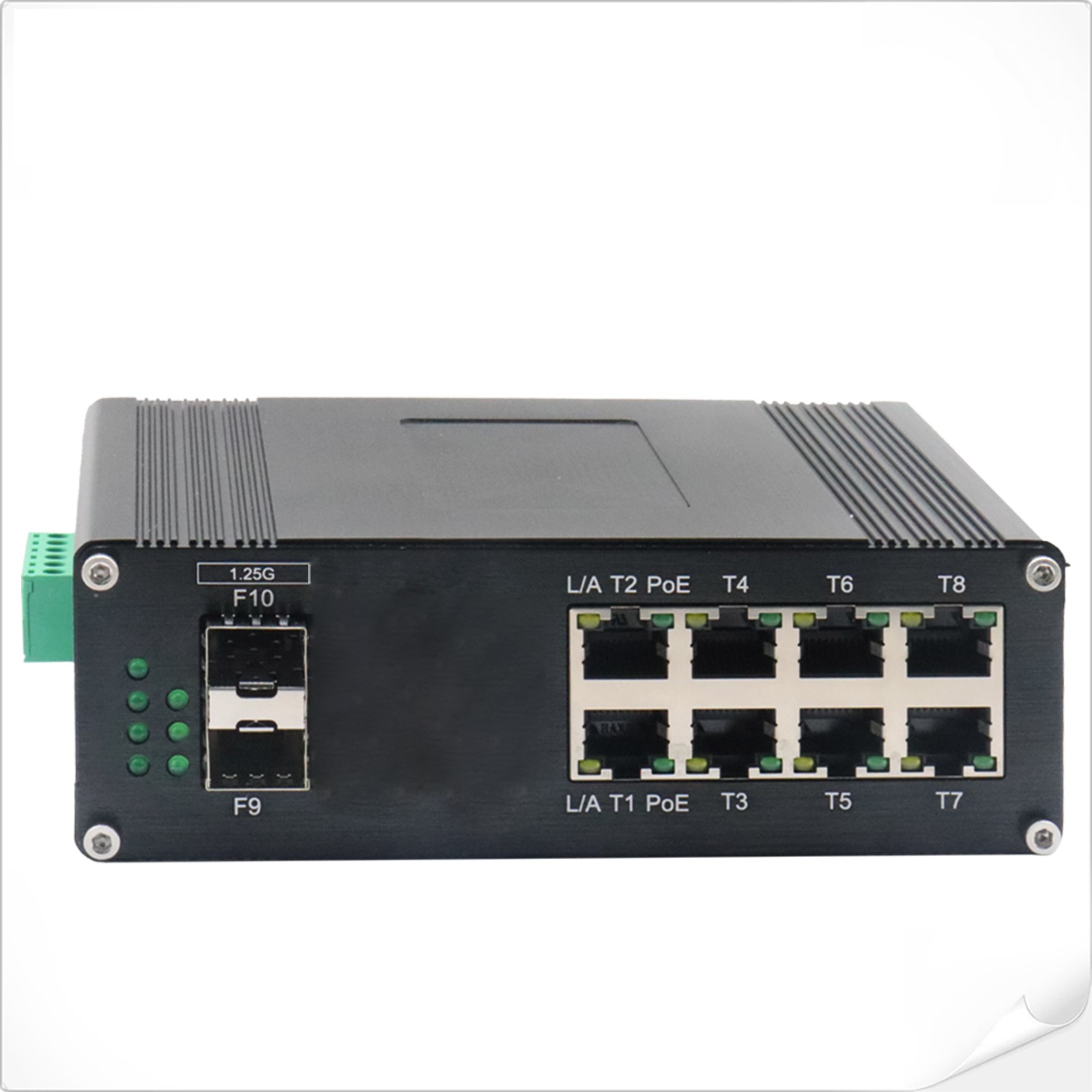

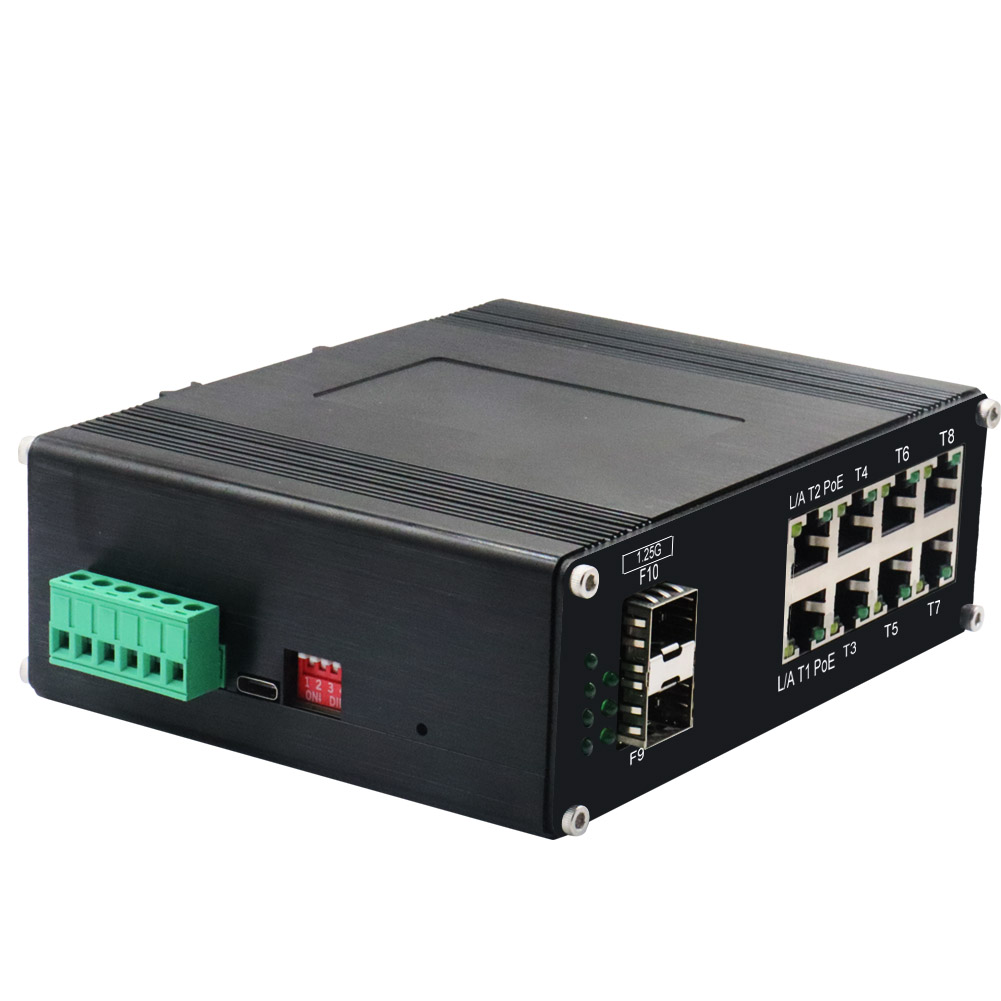

Interface

Ethernet Port:

8 x RJ45

Optical Port:

2 x SFP

PoE (Power over Ethernet)

Standard:

IEEE 802.3at Power over Ethernet Plus

IEEE 802.3af Power over Ethernet

Port:

RJ45

PoE output:

30W/port (max)

Power Pin Assignment

(1,2+, 3,6-) (4,5+, 7,8-)

PoE Budget:

Up to 240-watt PoE budget

Environmental

Operating Temperature:

-40°C to 80°C (-40°F to 176°F)

Storage Temperature:

-40°C to 85°C (-40°F to 185°F)

Relative Humidity:

5% to 95% non-condensing

MTBF

> 100,000 hrs

Electrical and Mechanical

Input Power:

48~57V DC,Redundant Power (6-pin Terminal Block)

Power Consumption:

PoE in Use<240W

Protection:

Power Input Overload:

Automatic Resettable

Reverse Polarity:

Present

DIP Switch

4-digit DIP switch function

DIP

Function

Settings

SW 1

Switch serial port mode

ON - Enabled

OFF - Disabled

SW 2

reserved

ON - Enabled

OFF - Disabled

SW 3

reserved

ON - Enabled

OFF - Disabled

SW 4

reserved

ON - Enabled

OFF - Disabled

LED Indicators:

PWR:

Power Status

Ethernet (Per Port):

Link/Activity

PoE:

PoE Status

Fiber:

Gigabit SFP Port: F9~F10

Dimensions (WxDxH):

149 x 114 x 50 mm

Weight:

0.55Kg

Casing:

Aluminum Case

Mounting Options:

DIN-Rail mount

WEB Management Functions

System Status

Device IP

Port Configuration

Port Settings, Port Isolation, Port Priority, Optical Power DDM, Port Rate Limiting, Storm Control, PoE

Layer 2 Features

VLAN Configuration, MAC Address Management, MAC Address Aging, 802.1p Priority Mapping, Queue Scheduling, ACL, MTU Configuration

Port Statistics

Port Counters

Link Backup

ERPS, Port Aggregation, Rapid Spanning Tree

Network Diagnostics

Port Mirroring

System Management

Device Address, User Password, File Management

Default IP Address

192.168.40.253

Default Username

admin

Default Password

admin

Regulatory Approvals

ISO9001, CE, RoHS, FCC

EN55022:2010+AC: 2011, Class A

EN 61000-3-2: 2006+A1: 2009+A2: 2009

EN 61000-3-3: 2013

EN55024:2010

IEC 61000-4-2: 2008 (ESD)

IEC 61000-4-3: 2010 (RS)

IEC 61000-4-4: 2012 (EFT)

IEC 61000-4-5: 2014 (Surge)

IEC 61000-4-6: 2013 (CS)

IEC 61000-4-8: 2009 (PFMF)
