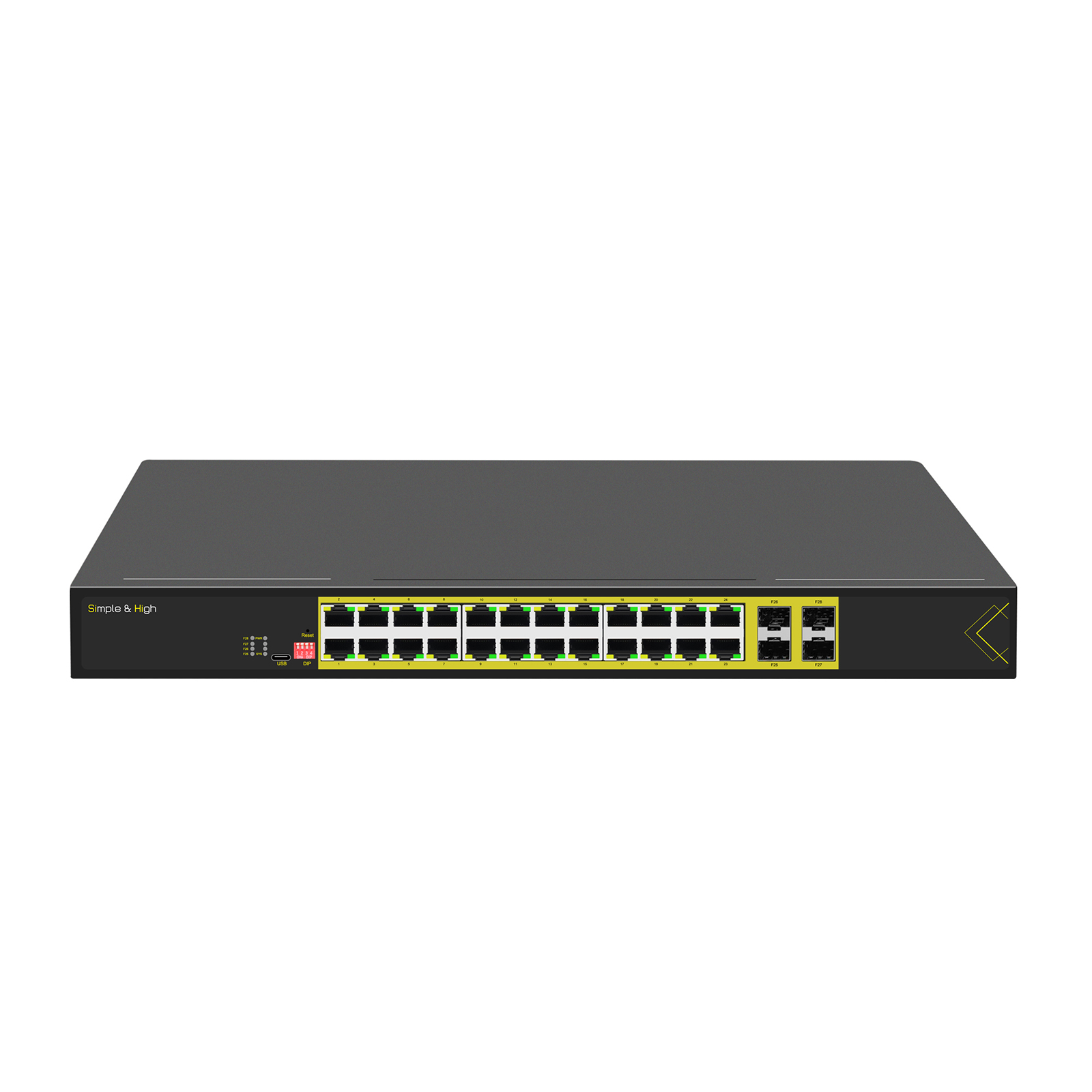

L2+ Managed Rack mount 24-Port 10/100/1000T 802.3at PoE + 4-Port 1000X SFP PoE Switch
Model:LNK-424MP-SFP
► Support 24x10/100/1000Base-T + 4x1000Base-X SFP
► 10/100/1000Mbps RJ45 Port supports Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX
► IEEE802.3af/at compliant
► Support connecting USB-C port for easy management, without the need to access the RS232 serial port at all
► 9K Bytes Jumbo Frame

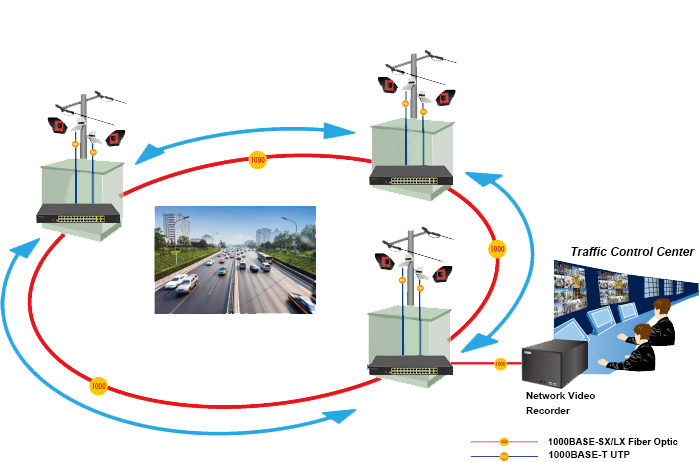

LNK-424M-SFP series is the L2+ managed rack mount 24-port 10/100/1000Base-T 802.3at PoE + 4-port 1000Base-X SFP Ethernet switch. The switch has 24 TP ports and 4 fiber ports. The TP (RJ45) supports 10/100/1000Base-T(X), Full/Half duplex mode, and auto MDI/MDI-X connection; the 1000Base-X SFP port supports 1 or 2 core Single-mode or Multi-mode fiber. With its reliable design and ease of use, the product is a great choice for integrating networks consisting of network devices such as IP cameras and wireless access points between remote locations.
► Support 24x10/100/1000Base-T + 4x1000Base-X SFP
► 10/100/1000Mbps RJ45 Port supports Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX
► IEEE802.3af/at compliant
► Support connecting USB-C port for easy management, without the need to access the RS232 serial port at all
► 9K Bytes Jumbo Frame
► IEEE 802.3az Energy Efficient Ethernet (EEE)
► Supports 1U 19” Rack mount installation
|
Ethernet |
||||
|
Standards: |
IEEE802.3 10BASE-T |
|||
|
IEEE802.3u 100BASE-TX/FX |
||||
|
IEEE802.3ab 1000BASE-T |
||||
|
IEEE802.3z 1000BASE-X |
||||
|
Forward&Filtering Rate: |
14,880pps (10Mbps) |
|||
|
148,800pps (100Mbps) |
||||
|
1,488,000pps (1000Mbps) |
||||
|
Packet Buffer Memory: |
12M bits |
|||
|
Processing Type: |
Store-and-Forward |
|||
|
Backplane bandwidth |
110Gbps |
|||
|
Max Packet Length: |
9K Bytes Jumbo Frame |
|||
|
Address Table Size: |
8K MAC Addresses |
|||
|
Interface |
||||
|
Ethernet Port: |
24 x 10/100/1000Base-T RJ45 |
|||
|
Optical Port: |
4 x 1000Base-X SFP |
|||
|
Management Port: |
1 x USB-C |
|||
|
PoE (Power over Ethernet) |
||||
|
Standard: |
IEEE 802.3at Power over Ethernet Plus |
|||
|
IEEE 802.3af Power over Ethernet |
||||
|
Port: |
RJ45 |
|||
|
Power Pin Assignment |
1/2(+), 3/6(-),4/5(+), 7/8(-) |
|||
|
PoE Budget: |
Up to800-watt PoE budget |
|||
|
Environmental |
||||
|
Operating Temperature: |
0°C to55°C (-40°F to 176°F) |
|||
|
Storage Temperature: |
-40°C to75°C (-40°F to 185°F) |
|||
|
Relative Humidity: |
5% to 95% non-condensing |
|||
|
MTBF |
> 200,000 hrs |
|||
|
Electrical and Mechanical |
||||
|
Input Power: |
AC 100~240V |
|||
|
Power Consumption: |
800W Max. |
|||
|
DIP Switch |
||||
|
4-digit DIP switchfunction
|
DIP |
Function |
Settings |
|
|
SW 1 |
Reserved |
ON - Reserved |
OFF - Reserved |
|
|
SW 2 |
Ring Management |
ON - Disabled |
OFF - Enabled |
|
|
SW 3 |
Reserved |
ON - Reserved |
OFF - Reserved |
|
|
SW 4 |
Reserved |
ON - Reserved |
OFF - Reserved |
|
|
LED Indicators: |
||||
|
PWR: |
Power Status |
|||
|
SYS |
System Status |
|||
|
PoE: |
Link/Activity, 1~24 |
|||
|
Fiber: |
Gigabit SFP Port: F25~F28 |
|||
|
Hardware: |
||||
|
Dimensions (L x W x H): |
440mm x 300mm x 45mm |
|||
|
Weight: |
4.5Kg |
|||
|
Casing: |
Metal Case |
|||
|
Mounting Options: |
Rackmount |
|||
|
Management Features |
||||
|
System Status |
Device Information, Device Status |
|||
|
Port Config |
Port Config, DDM, Rate Control, Storm Control, PoE |
|||
|
Link Layer |
QoS, VLAN, MAC VLAN, VLAN MAP, IP VLAN, Pro VLAN, IGMP Snooping, Static Multicast List, LLDP, Port Isolate, Port Protect, MAC ACL, IP ACL, Black & White Lists |
|||
|
Link Backup |
ERPS, Port Trunking, RSTP, LACP |
|||
|
Access Control |
User Password, Access Control, Port Authentication, Authentication DB, MAC Port Locking, MAC Learn Limit |
|||
|
Remote Monitor |
SNMP Config |
|||
|
Statistics |
Receive Frame, Send Frame, Sum Statistics, MAC Address List |
|||
|
Network Diagnosis |
Port Mirroring, Network Diagnosis |
|||
|
Management |
Time Config, Device Address, System Information, System Log, File Management |
|||
|
Default IP |
192.168.40.253 |
|||
|
Default User Name |
admin |
|||
|
Default Password |
admin |
|||
|
Regulatory Approvals |
||||
|
ISO9001, CE, RoHS, FCC |
||||
- Download FileName：E-link LNK-424MP-SFP L2+ Managed 24GE+4SFP Rackmount PoE Switch Datasheet V1.1.pdf Size： 505KB
|
Model |
Description |
|
LNK-424MP-SFP |
L2+ Managed Rack mount 24-Port 10/100/1000T 802.3at PoE + 4-Port 1000X SFPPoE Switch |
|
SFP Options |
► SFP option. Please select your SFP on our SFP Options Page |
|
► SFP module is to be purchased separately. |
|
|
Mounting Options |
► Rackmount, mounting clip is included. |
|
Power Options |
►Power Cord is included |
