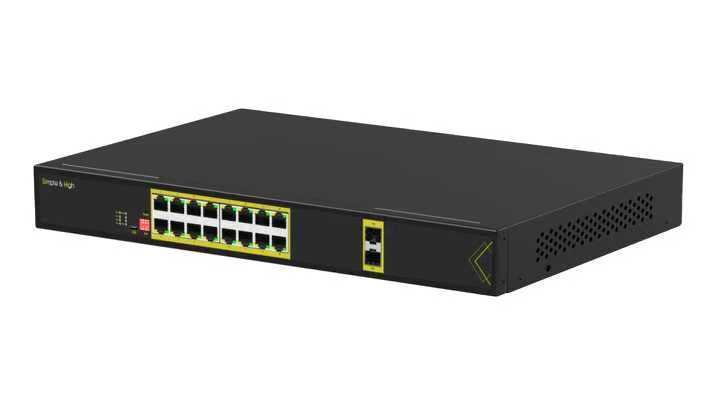

Ethernet

Standards:

IEEE802.3 10BASE-T

IEEE802.3u 100BASE-TX/FX

IEEE802.3ab 1000BASE-T

IEEE802.3z 1000BASE-X

Forward&Filtering Rate:

14,880pps (10Mbps)

148,800pps (100Mbps)

1,488,000pps (1000Mbps)

Packet Buffer Memory:

12M bits

Processing Type:

Store-and-Forward

Backplane bandwidth

110Gbps

Max Packet Length:

9K Bytes Jumbo Frame

Address Table Size:

8K MAC Addresses

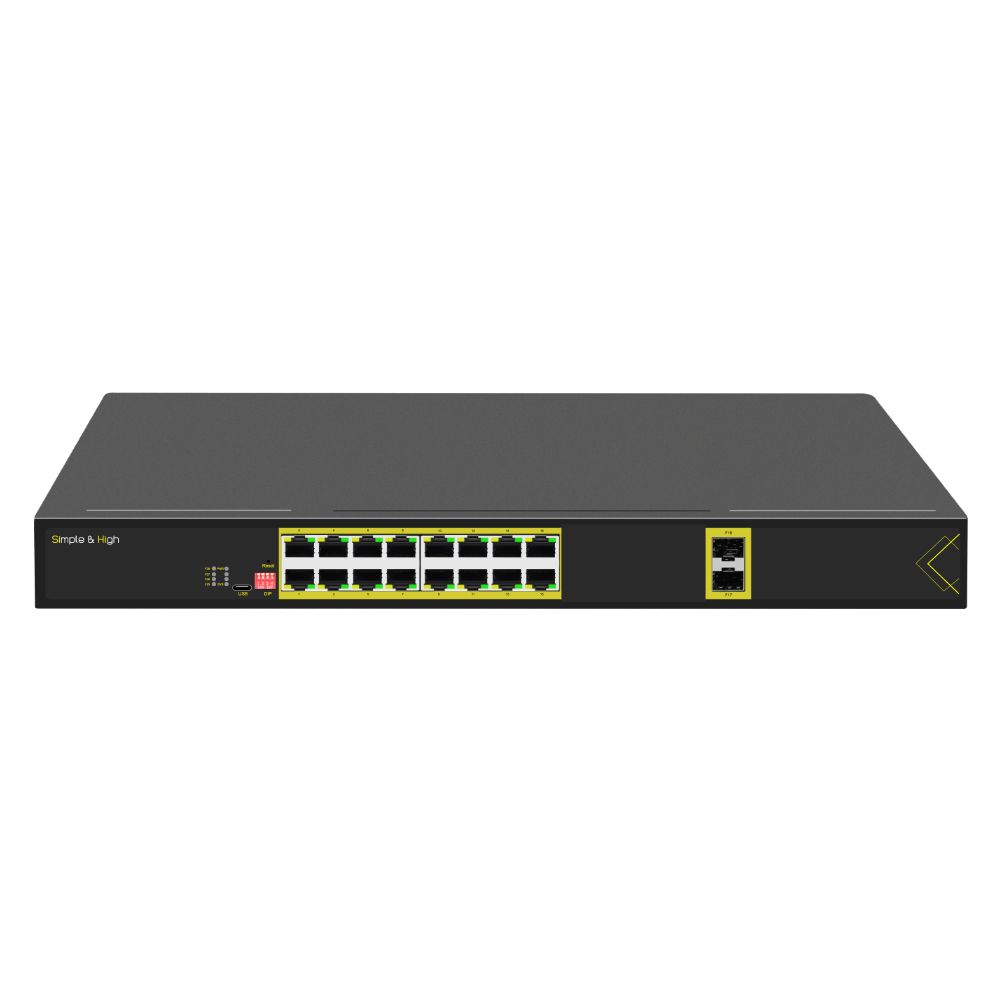

Interface

Ethernet Port:

16 x 10/100/1000Base-T RJ45

Optical Port:

2 x 1000Base-X SFP

Management Port:

1 x USB-C

PoE (Power over Ethernet)

Standard:

IEEE 802.3at Power over Ethernet Plus

IEEE 802.3af Power over Ethernet

Port:

RJ45

Power Pin Assignment

1/2(+), 3/6(-),4/5(+), 7/8(-)

PoE Budget:

Up to500-watt PoE budget

Environmental

Operating Temperature:

0°C to55°C (-40°F to 176°F)

Storage Temperature:

-40°C to75°C (-40°F to 185°F)

Relative Humidity:

5% to 95% non-condensing

MTBF

> 200,000 hrs

Electrical and Mechanical

Input Power:

AC 100~240V

Power Consumption:

500W Max.

DIP Switch

4-digit DIP switchfunction

DIP

Function

Settings

SW 1

Reserved

ON - Reserved

OFF - Reserved

SW 2

Ring Management

ON - Disabled

OFF - Enabled

SW 3

Reserved

ON - Reserved

OFF - Reserved

SW 4

Reserved

ON - Reserved

OFF - Reserved

LED Indicators:

PWR:

Power Status

SYS

System Status

PoE:

Link/Activity, 1~24

Fiber:

Gigabit SFP Port: F25~F28

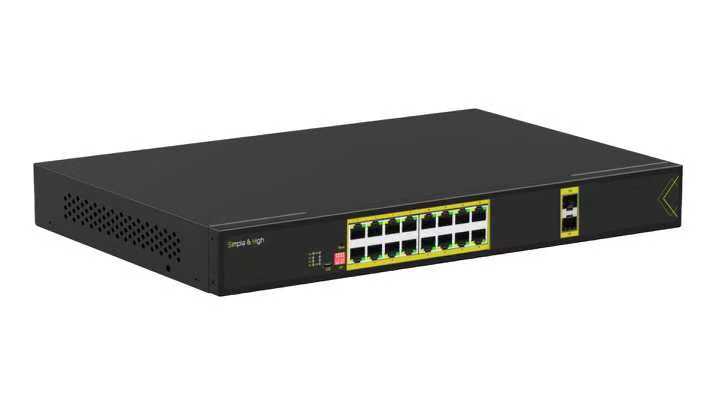

Hardware:

Dimensions (L x W x H):

440mm x300mm x 45mm

Weight:

2.5Kg

Casing:

Metal Case

Mounting Options:

Rackmount

Management Features

System Status

Device Information, Device Status

Port Config

Port Config, DDM, Rate Control, Storm Control, PoE

Link Layer

QoS, VLAN, MAC VLAN, VLAN MAP, IP VLAN, Pro VLAN,

IGMP Snooping, Static Multicast List, LLDP,

Port Isolate, Port Protect,

MAC ACL, IP ACL, Black & White Lists

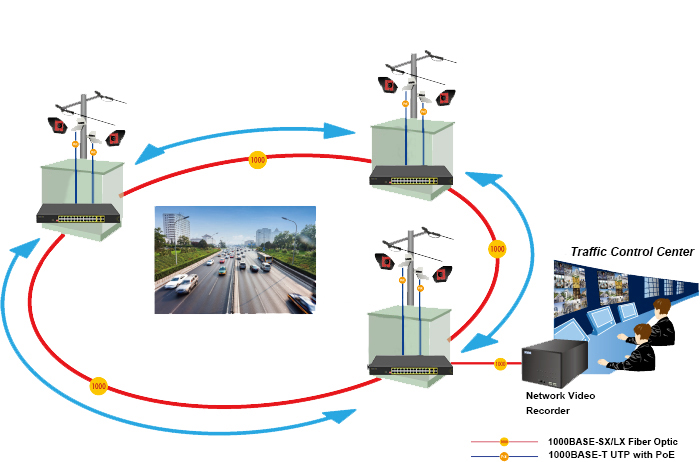

Link Backup

ERPS, Port Trunking, RSTP, LACP

Access Control

User Password, Access Control,

Port Authentication, Authentication DB,

MAC Port Locking, MAC Learn Limit

Remote Monitor

SNMP Config

Statistics

Receive Frame, Send Frame, Sum Statistics, MAC Address List

Network Diagnosis

Port Mirroring, Network Diagnosis

Management

Time Config, Device Address, System Information, System Log,

File Management

Default IP

192.168.40.253

Default User Name

admin

Default Password

admin

Regulatory Approvals

ISO9001, CE, RoHS, FCC
