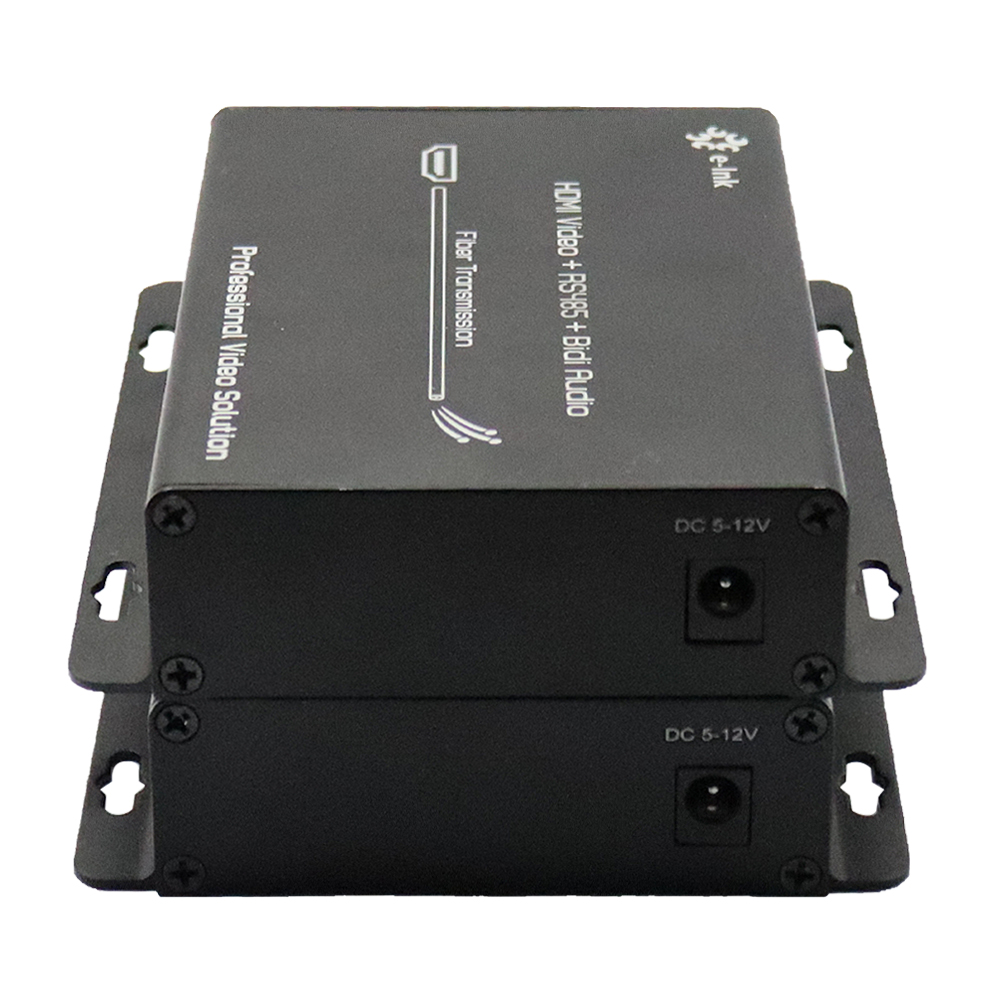

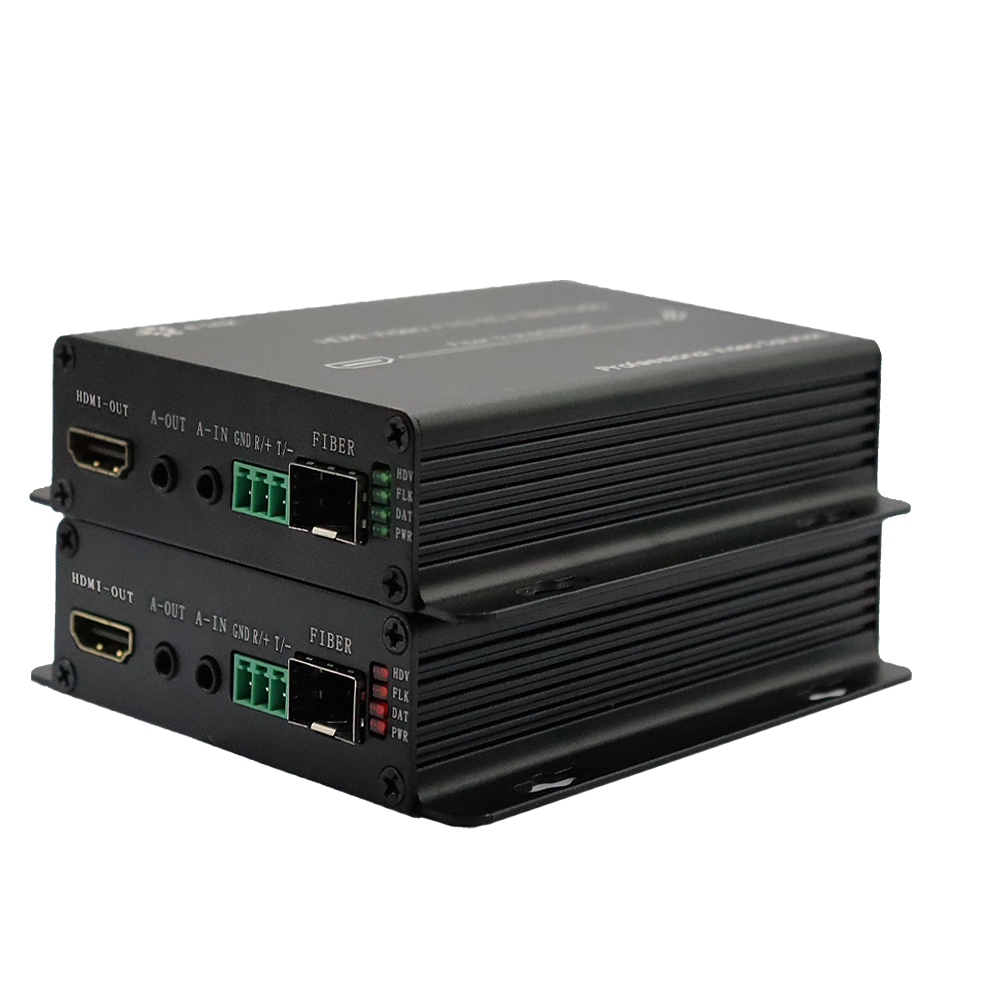

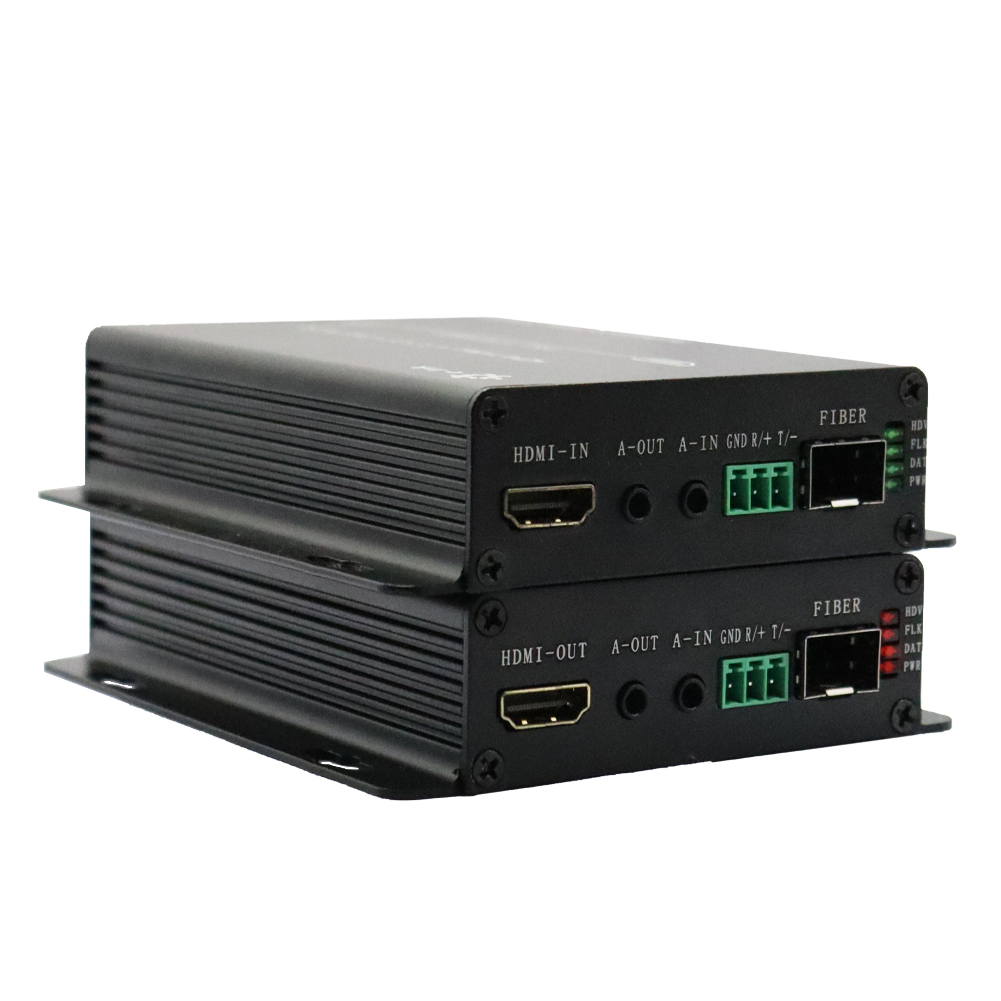

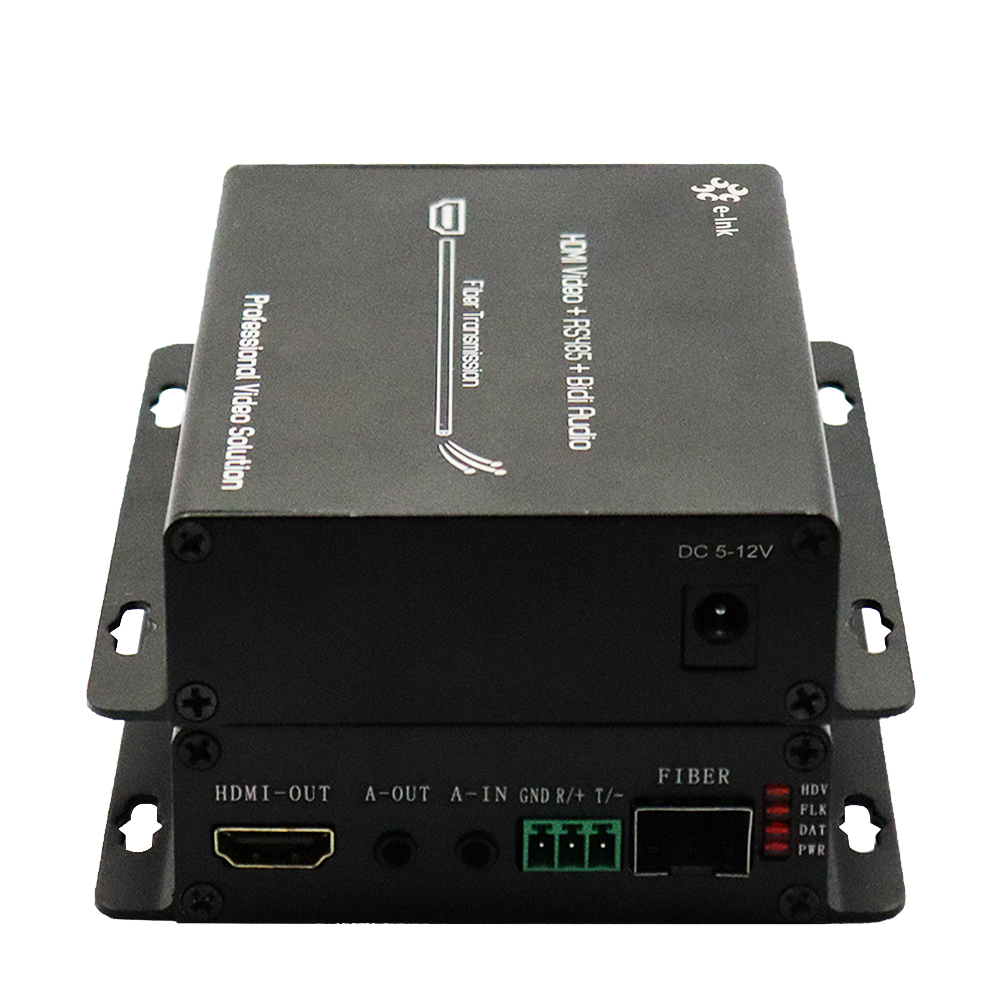

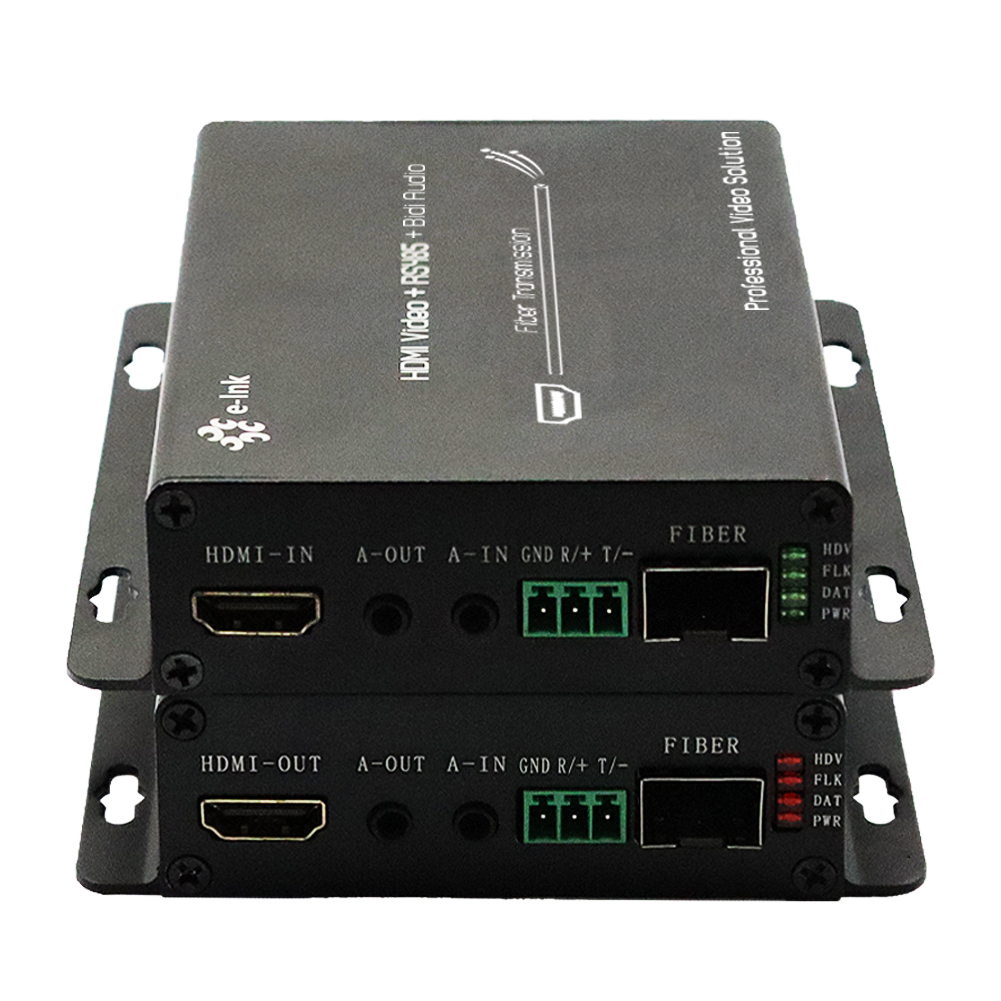

1Ch HDMI + 1Ch Bidirectional Stereo Audio + 1Ch RS232/RS485 over Fiber Optic Extender
Model:LNK-WHF100DA
► Transmits HDMI video signals, RS232/RS485 and audio up to 20km over a single fiber cable
► Support resolution up to 1920*1200@60Hz
► Special support 1600*1200 @60HZ
► Support external bidirectional stereo audio transmission
► Compliance with HDMI 1.4B 3D and HDCP 1.2 standard

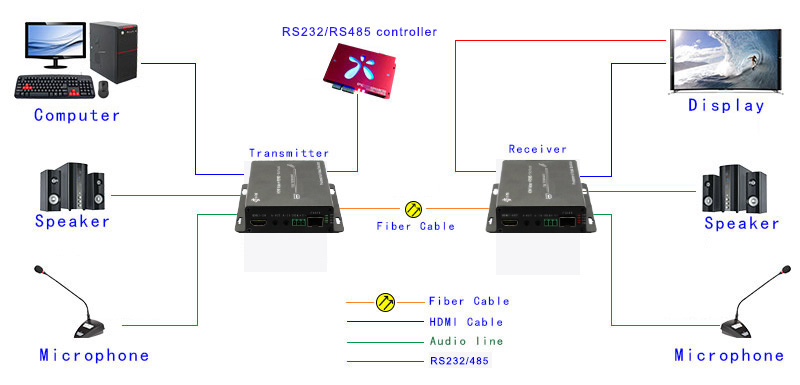

The LNK-WHF100DA Series HDMI Fiber optic extender provides extension of HDMI, bidirectional audio and RS232/RS485 over one fiber optic cable, it supports HDMI1.4 mode, it is fully compatible with HDMI 1.4b, HDMI 1.4b 3D and HDCP 1.4, high resolution up to 1920*1200@60Hz. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.
► Transmits HDMI video signals, RS232/RS485 and audio up to 20km over a single fiber cable;
► Support resolution up to 1920*1200@60Hz ;
► Special support 1600*1200 @60HZ
► Support external bidirectional stereo audio transmission;
► Compliance with HDMI 1.4B 3D and HDCP 1.2 standard;
► Single-port HDMI 1.4b receiver
► High compatibility, can auto-match source and display device;
► Built-in automatic adjustment system, make the image smooth, clear and stable;
► Built-in ESD protection system;
► Simple to install, plug and play;
► Support EDID
|
Parameter |
Description |
|
|
Video |
Standards |
HDMI1.4B 3D; HDCP1.4 |
|
Maximum pixel clock |
165MHz |
|
|
Maximum data rate |
6.75Gbps |
|
|
Compliant |
1080P@50/59.95/60Hz,( Max 1920*1200@60Hz)1080P@23.98/24/29.97/30Hz, 720P@23.98/24/29.97/30Hz, 720P@50/59.94/60Hz Special support 1600*1200 @60HZ |
|
|
Connector |
Female HDMI type A |
|
|
Impedance |
100Ω |
|
|
HDMI Cable Range |
||
|
Audio |
Interface |
3.5MM external stereo audio |
|
Transmitter |
1Ch Input + 1Ch Ouptut |
|
|
Receiver |
1Ch Input + 1Ch Ouptut |
|
|
RS232/RS485 |
Interface |
3-Pin Terminal Block |
|
Baud Rate |
≤115200bps |
|
|
Optical fiber |
Interface |
SFP model – LC connector |
|
Fiber type |
Single-mode |
|
|
Wavelength |
850nm/1310nm/1550nm |
|
|
Interface bandwidth |
3Gbps |
|
|
Transmission distance |
Transmission@1920*1200@60Hz Multi-mode fiber: <500M Single-mode fiber: 20km |
|
|
Other |
Power supply |
DC 5~12V |
|
Power dissipation |
MAX4W |
|
|
Temperature |
Operating: -20℃~ +70℃ |
|
|
Humidity |
Operating: 5% ~ 90% |
|
|
Dimension (LxWxH) |
92 x 57 x 23 (mm) |
|
|
Weight |
0.4KG/pair |
|
- Download FileName：E-link LNK-WHF100DA HDMI+Bidi Audio+RS232 or RS485 over Fiber Extender Datasheet V1.0.pdf Size： 1.98MB
