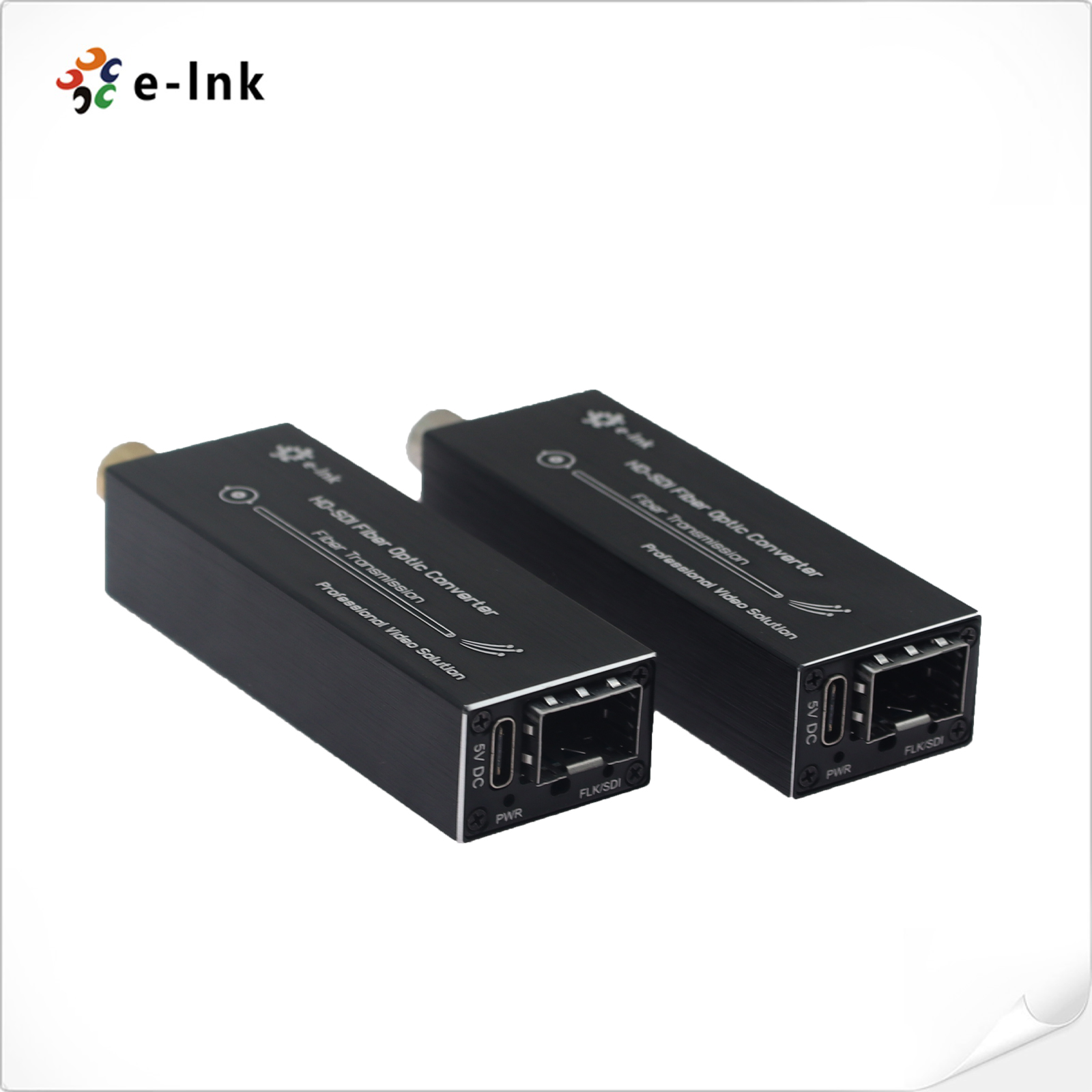

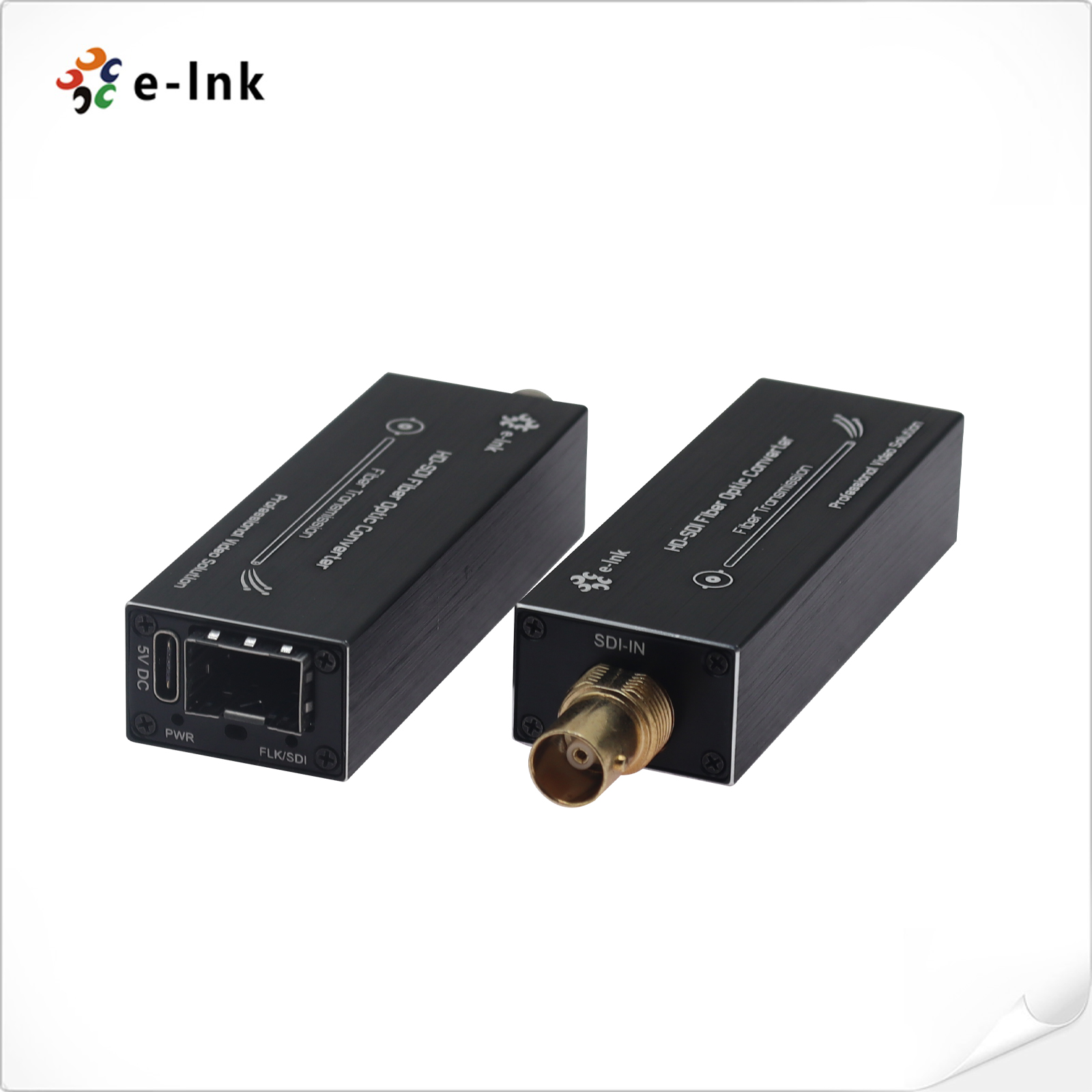

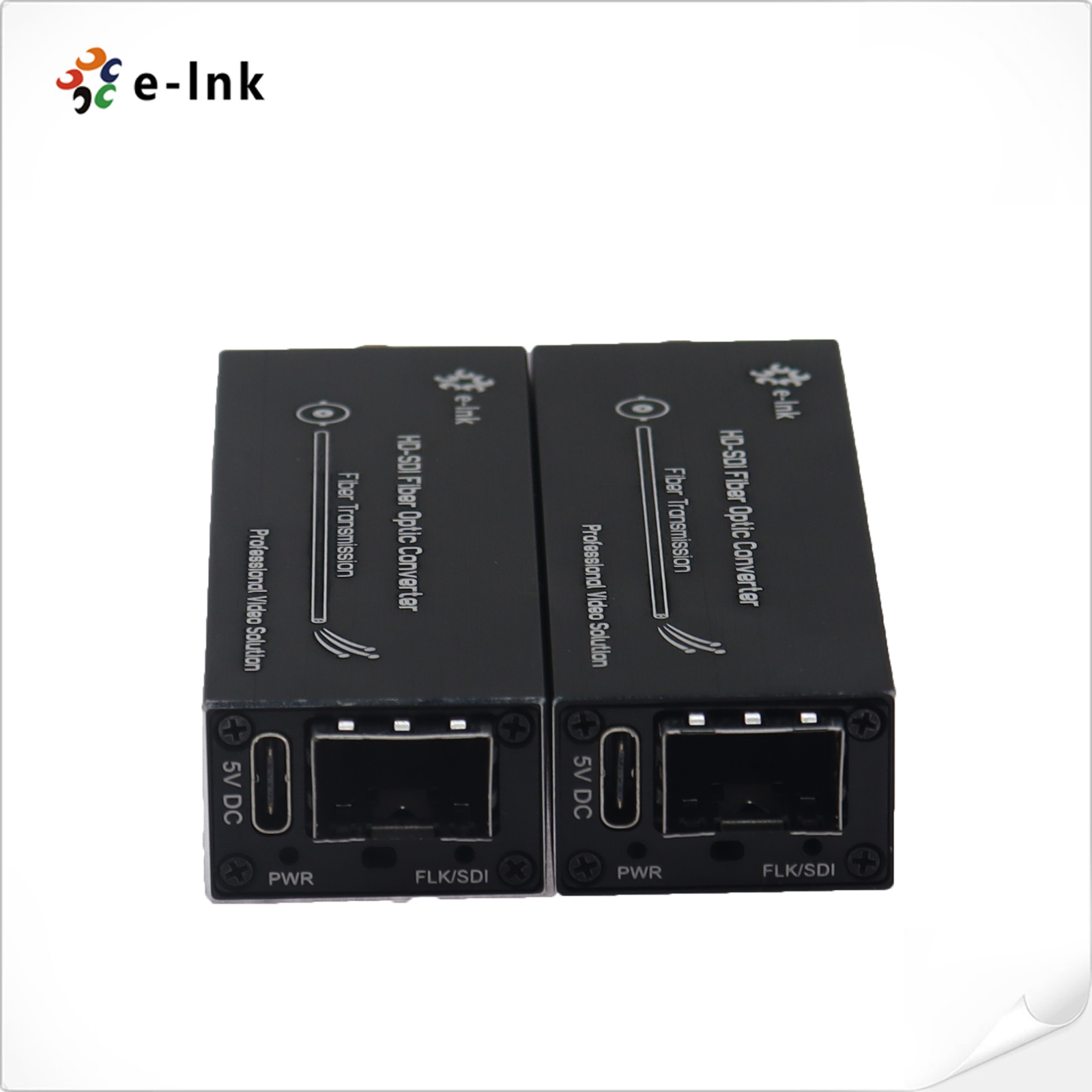

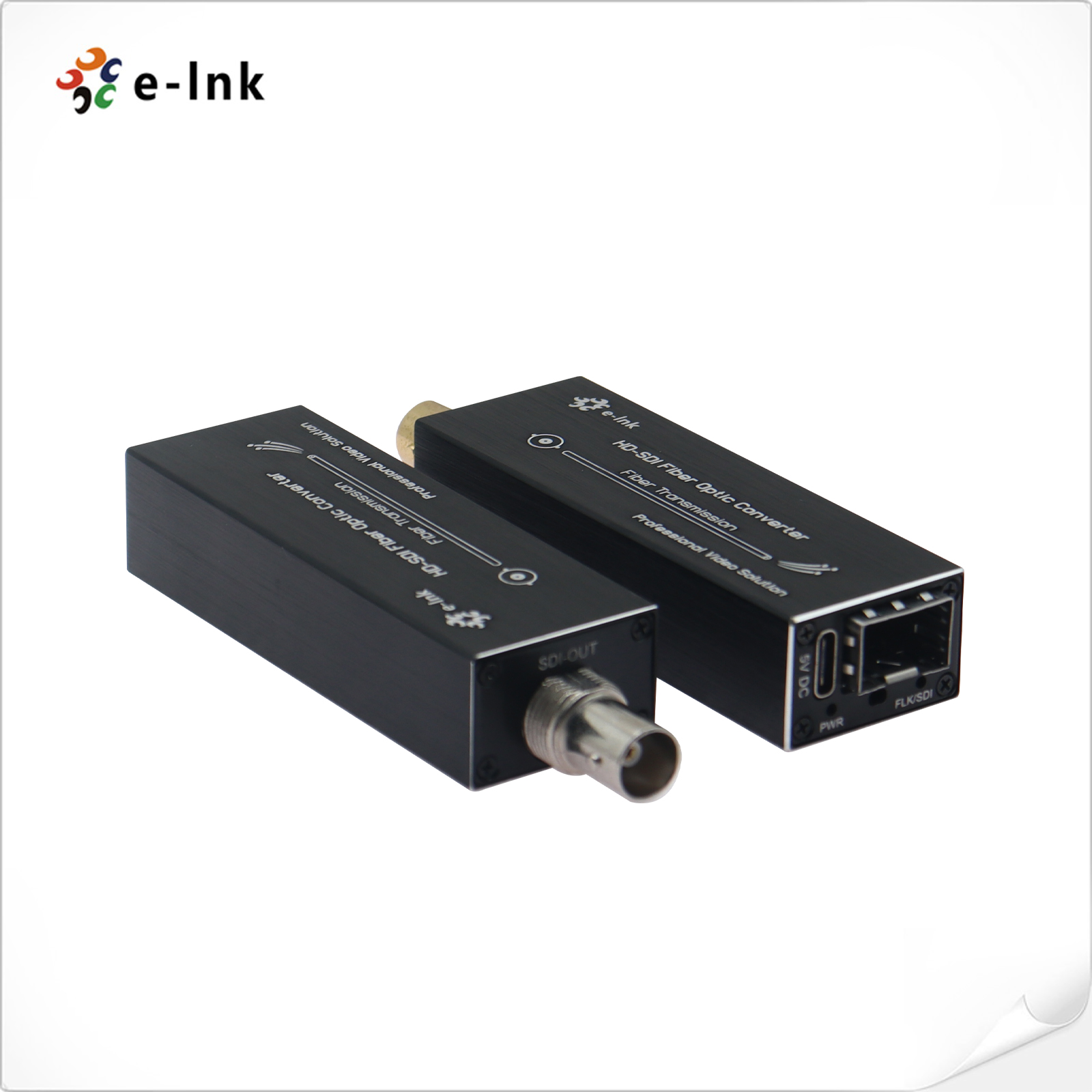

Mini 3G-SDI over Fiber Extender
Model:LNK-M3G Series
► Each channel includes 8-channel audio embedded
► Automatic cable equalization to ensure signal integrity
► Automatic reclocking 270Mbit/s - 1.48Gbit/s - 3Gbit/s
► Directly compatible with 3G-SDI camera systems
► Long transmission capability up to 80km

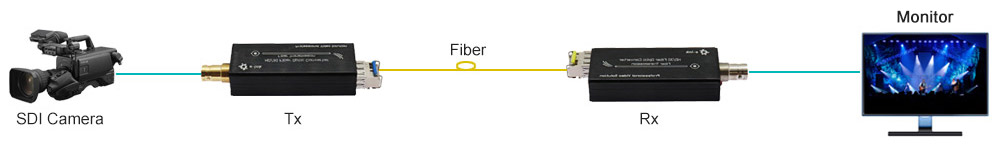

LNK-M3G Series Mini 3G-SDI Fiber Extender supports 1-channel 3G-SDI Video (audio embedded) signal transmitted via fiber optical cable. E-link 3G-SDI Video over Fiber Converters includes one transmitter and one receiver for 3G-SDI signal. With compact size, it can easily integrate in other devices. It’s widely used in surveillance and broadcasting area.
► Each channel includes 8-channel audio embedded
► Automatic cable equalization to ensure signal integrity
► Automatic reclocking 270Mbit/s - 1.48Gbit/s - 3Gbit/s
► Directly compatible with 3G-SDI camera systems
► Long transmission capability up to 80km
► Terminal block power input;
► Hot swap and hot plug;
► Full digital non-compression broadcast level transmission;
► Super optic dynamic range and free of adjustment;
► Fiber optic WDM/CWDM/DWDM technique;
► Industry level ultra-broad temperature range (-20℃~+70℃), adaptable to various environments;
|
Fiber |
|
|
Fiber interface |
LC |
|
Transmission distance |
MMF: 300-500M SMF: 20/40/60/80KM |
|
Video |
|
|
Video interface |
BNC |
|
Video input/output impedance |
75Ω |
|
Video input/output voltage |
Typical:1Vpp, Min 0.5Vpp, Max 1.5Vpp |
|
Video Bits Rate |
Max 3.2Gb/s |
|
Differential gain (10%～90% APL) |
<1% |
|
SDI format support |
625/25 PAL |
|
525/29.97 NTSC, 525/23.98 NTSC |
|
|
720p50, 720p59.94 |
|
|
1080i 23/24/30/50/59.94 |
|
|
1080P 23.98/24/30/50/60 |
|
|
Video SDI standard |
270Mbps (SD-SDI), 1.485Gbps/M(HD-SDI) |
|
SMPTE425M3Gb/s Mapping(3G-SDI) |
|
|
SMPTE424M 3Gb/s serial interface(3G-SDI) |
|
|
Electrical |
|
|
Power adaptor |
5V DC, Type-C Interface |
|
Power consumption |
<3W |
|
LED Indicator |
|
|
SDI |
SDI video |
|
P/T |
Power Supply |
|
Mechanical |
|
|
Dimensions (LxWxH) |
79 x 27 x 18 mm |
|
Weight |
0.25KG/pair |
|
Casing |
Aluminum Case |
|
Mounting Options |
Desktop |
|
Environmental |
|
|
Working Temperature |
-20℃～+70℃ |
|
Storage Temperature |
-40℃～+80℃ |
|
Operating humidity |
5%~90% non-condensing |
|
Storage humidity |
5% ~ 90% non-condensing |
|
MTBF |
≥100000 hours |
- Download FileName：E-link LNK-M3G Series Mini 3G-SDI Fiber Extender Datasheet V1.0.pdf Size： 1.49MB
|
Model |
Description |
|
LNK-M3G-MM |
Mini 3G-SDI to Fiber Converter, MMF, LC Fiber Connector, 500 meters, including Transmitter and Receiver, used by pairs |
|
LNK-M3G-20 |
Mini HD-SDI to Fiber Converter, SMF, LC Fiber Connector, 20KM, including Transmitter and Receiver, used by pairs |
