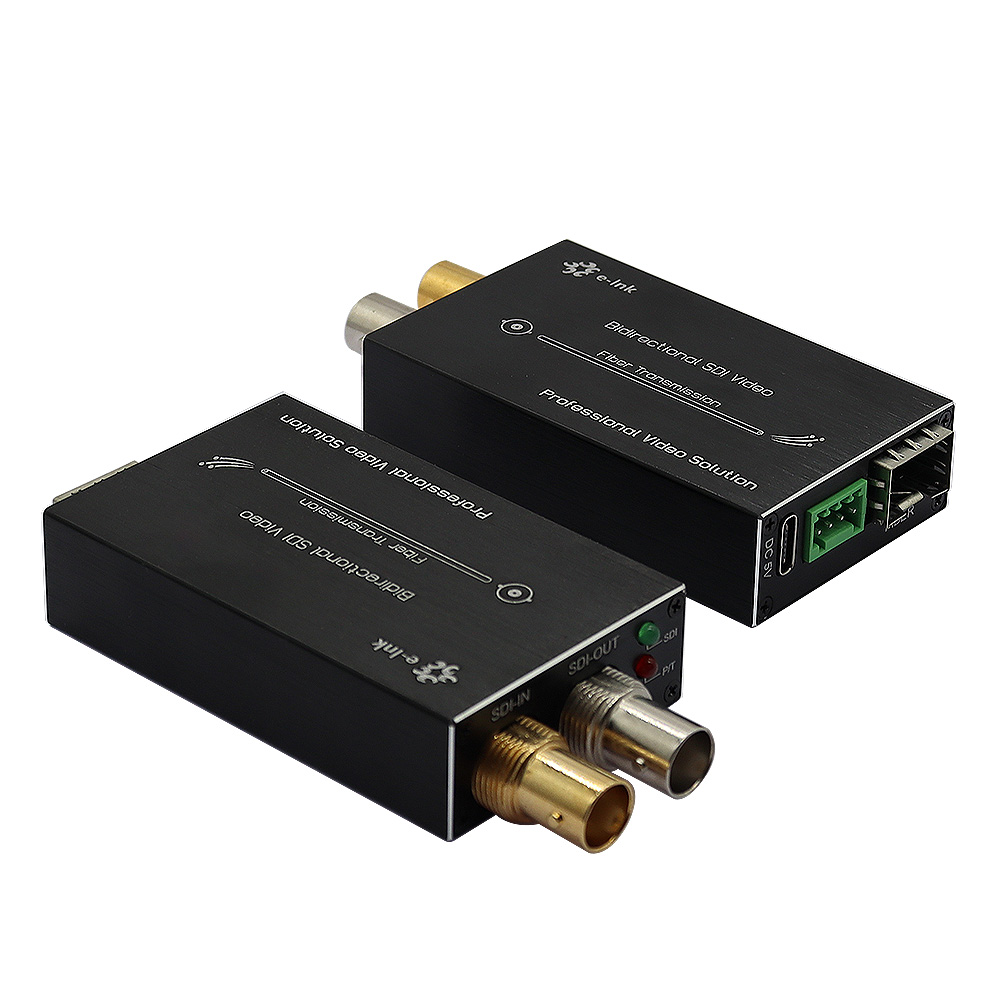

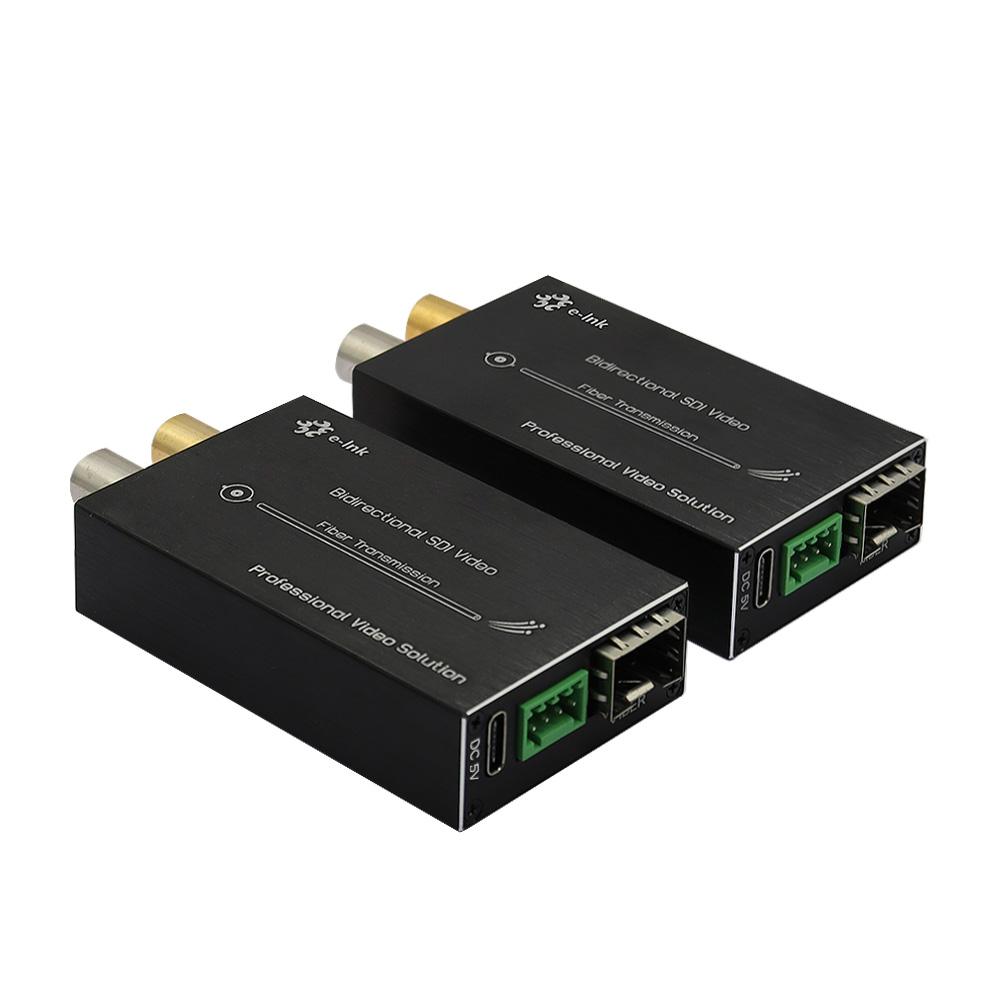

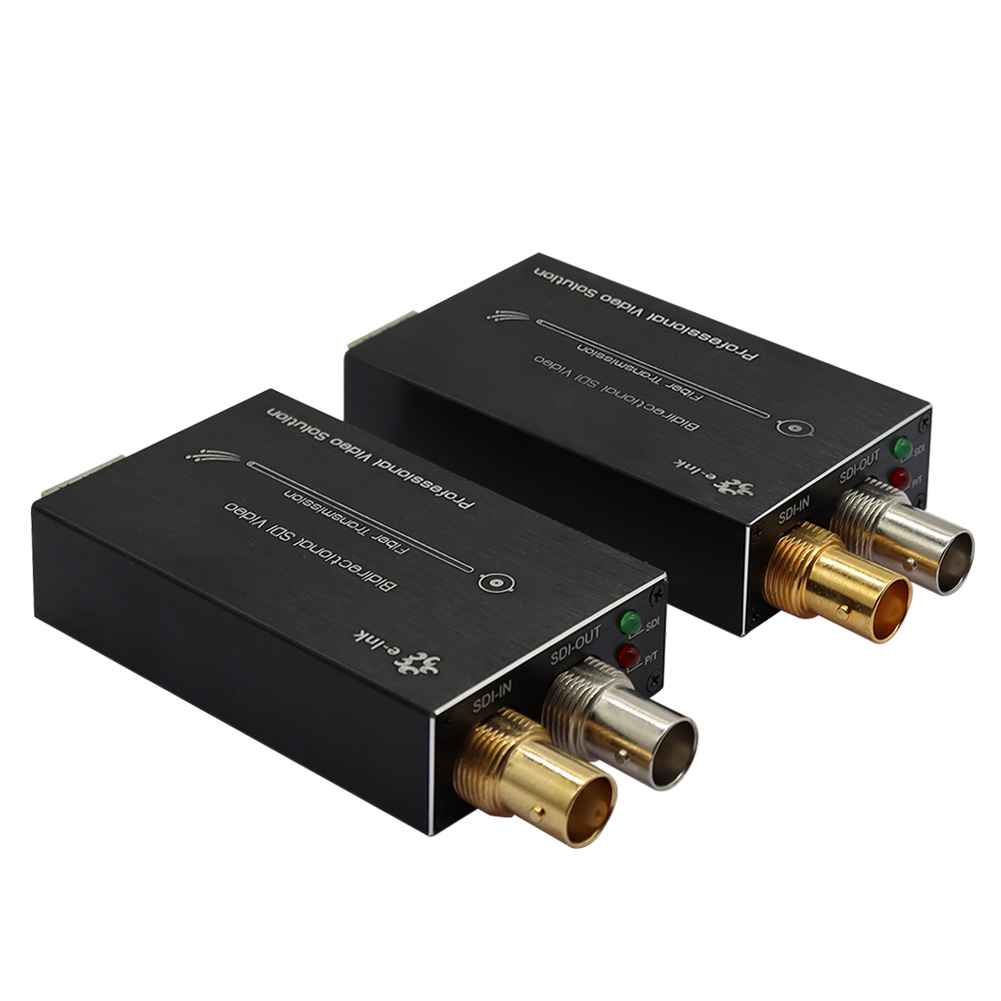

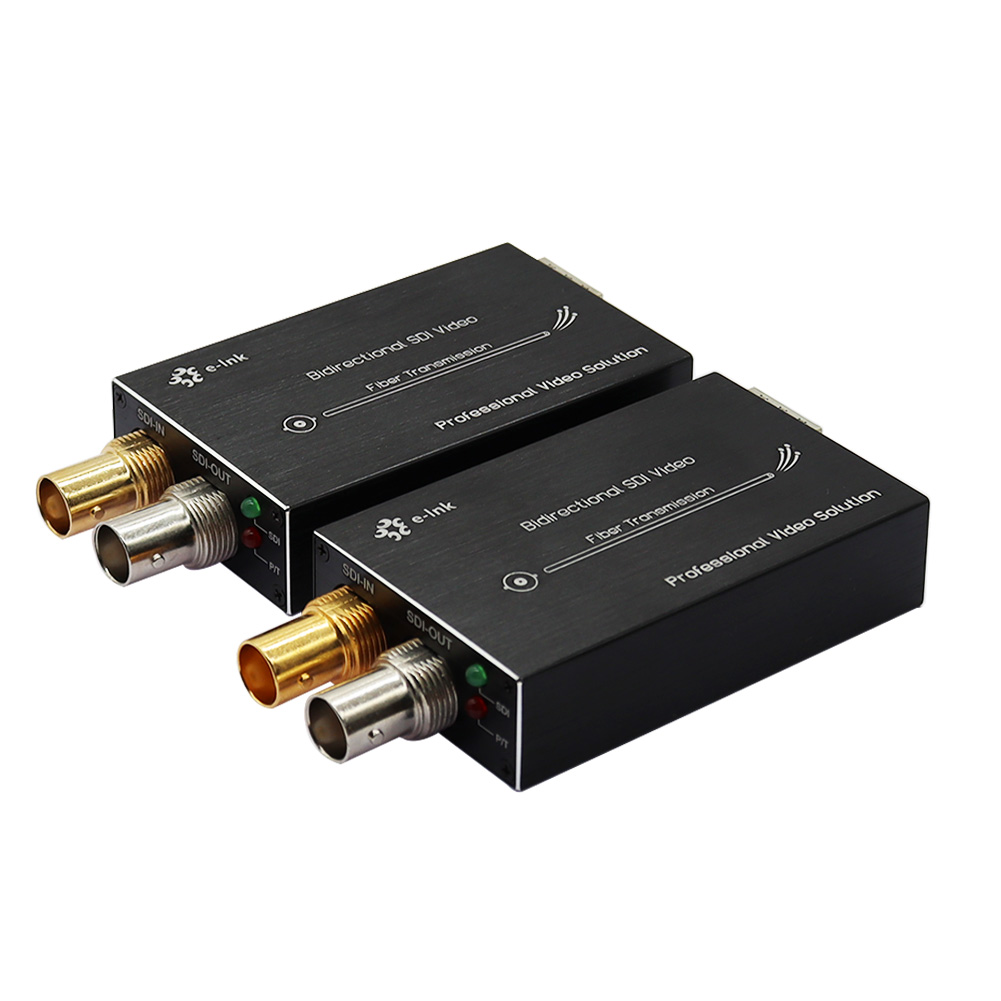

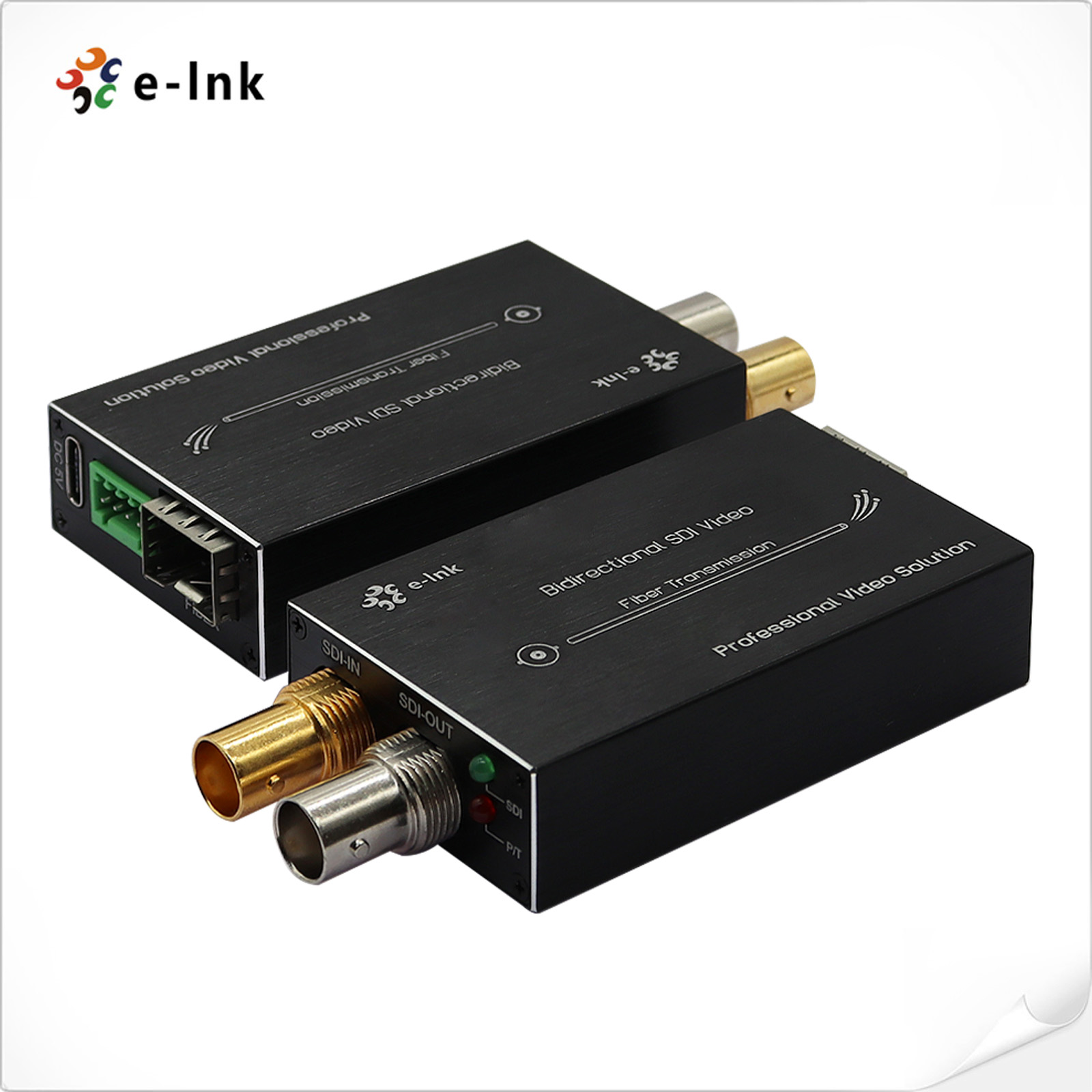

Mini Bi-directional HD-SDI to Fiber Converter
Model:LNK-MHD-BI Series
► Each channel includes 8-channel audio embedded;
► Automatic cable equalization, used for all rate below 1.5 Gb/s (Belden 1694A);
► Automatic reclocking 270Mbit/s - 1.48Gbit/s
► Directly compatible with HD-SDI camera systems
► Long transmission capability up to 80km

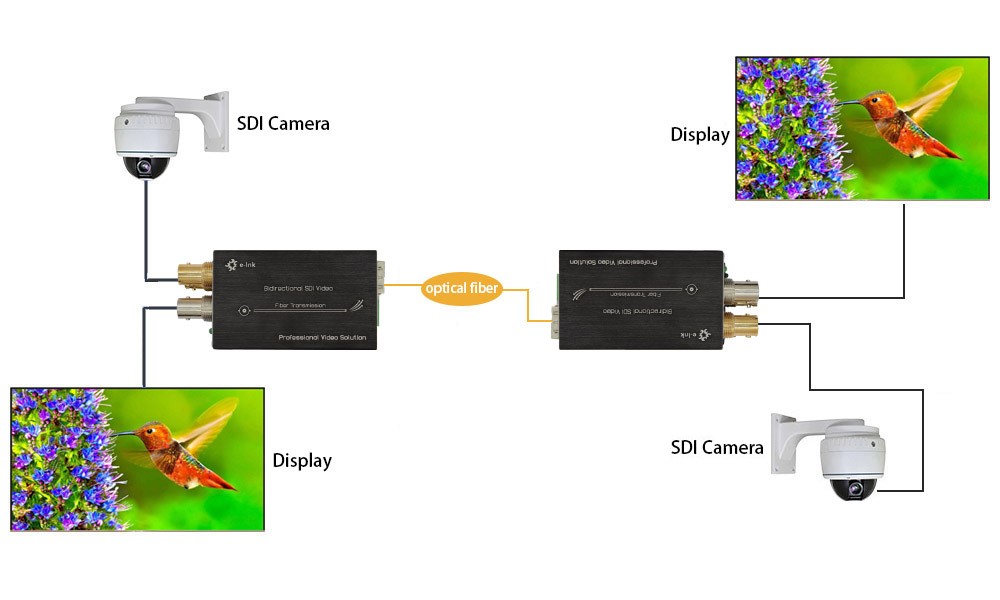

LNK-MHD-BI Series Mini-type HD-SDI Fiber Converter supports 1-Channel Bi-directional HD-SDI Video (audio embedded) via fiber optical cable. E-link HD-SDI Video over Fiber Converters includes one transmitter and one receiver for HD-SDI signal. Handle all Pathological patterns, fully digital non-compression broadcast level transmission. It’s widely used in security system, video conference, broadcasting and live Events etc.
► Each channel includes 8-channel audio embedded;
► Automatic cable equalization, used for all rate below 1.5 Gb/s (Belden 1694A);
► Automatic reclocking 270Mbit/s - 1.48Gbit/s
► Directly compatible with HD-SDI camera systems
► Long transmission capability up to 80km
► Hot swap and hot plug;
► Handle all Pathological patterns, fully digital non-compression broadcast level transmission;
► LED Status Indication to monitor the working conditions;
► Super optic dynamic range and free of adjustment;
► Industry level ultra-broad temperature range (-20℃~+70℃), adaptable to various environments;
|
Fiber |
|
|
Fiber interface |
LC |
|
Transmission distance |
Multi mode fiber up to 300M Single mode fiber up to 80KM |
|
Video |
|
|
Video interface |
BNC |
|
Video input/output impedance |
75Ω |
|
Video input/output voltage |
Typical:1Vpp, Min 0.5Vpp, Max 1.5Vpp |
|
Video Bits Rate |
Max 1.48Gb/s |
|
Differential gain (10%～90% APL) |
<1% |
|
SDI format support |
625/25 PAL |
|
525/29.97 NTSC, 525/23.98 NTSC |
|
|
720p50, 720p59.94 |
|
|
1080i 23/24/30/50/59.94 |
|
|
Video SDI standard |
270Mbps (SD-SDI), 1.485Gbps/M(HD-SDI) |
|
Electrical |
|
|
Power input |
DC 5V, USB-C power port |
|
Power consumption |
<5W |
|
LED Indicator |
|
|
SDI |
SDI video |
|
P/T |
Power Supply |
|
Mechanical |
|
|
Dimensions (LxWxH) |
73 x 44 x 17 mm |
|
Weight |
0.45KG/pair |
|
Casing |
Aluminum Case |
|
Mounting Options |
Desktop |
|
Environmental |
|
|
Working Temperature |
-20℃～+70℃ |
|
Storage Temperature |
-40℃～+80℃ |
|
Working Humidity |
0~95% |
|
MTBF |
≥100000 hours |
- Download FileName：E-link Mini-type Bi-di HD-SDI to Fiber Converter Datasheet V1.0.pdf Size： 1.36MB
|
Model |
Description |
|
LN K-MHD-BIMM |
Mini-type Bi-directional HD-SDI to Fiber Converter,MMF, LC Fiber Connector, 500 meters, including Transmitter and Receiver, used by pairs |
|
LNK-MHD-BI20 |
Mini-type Bi-directional HD-SDI to Fiber Converter,SMF, LC Fiber Connector, 20KM, including Transmitter and Receiver, used by pairs |
