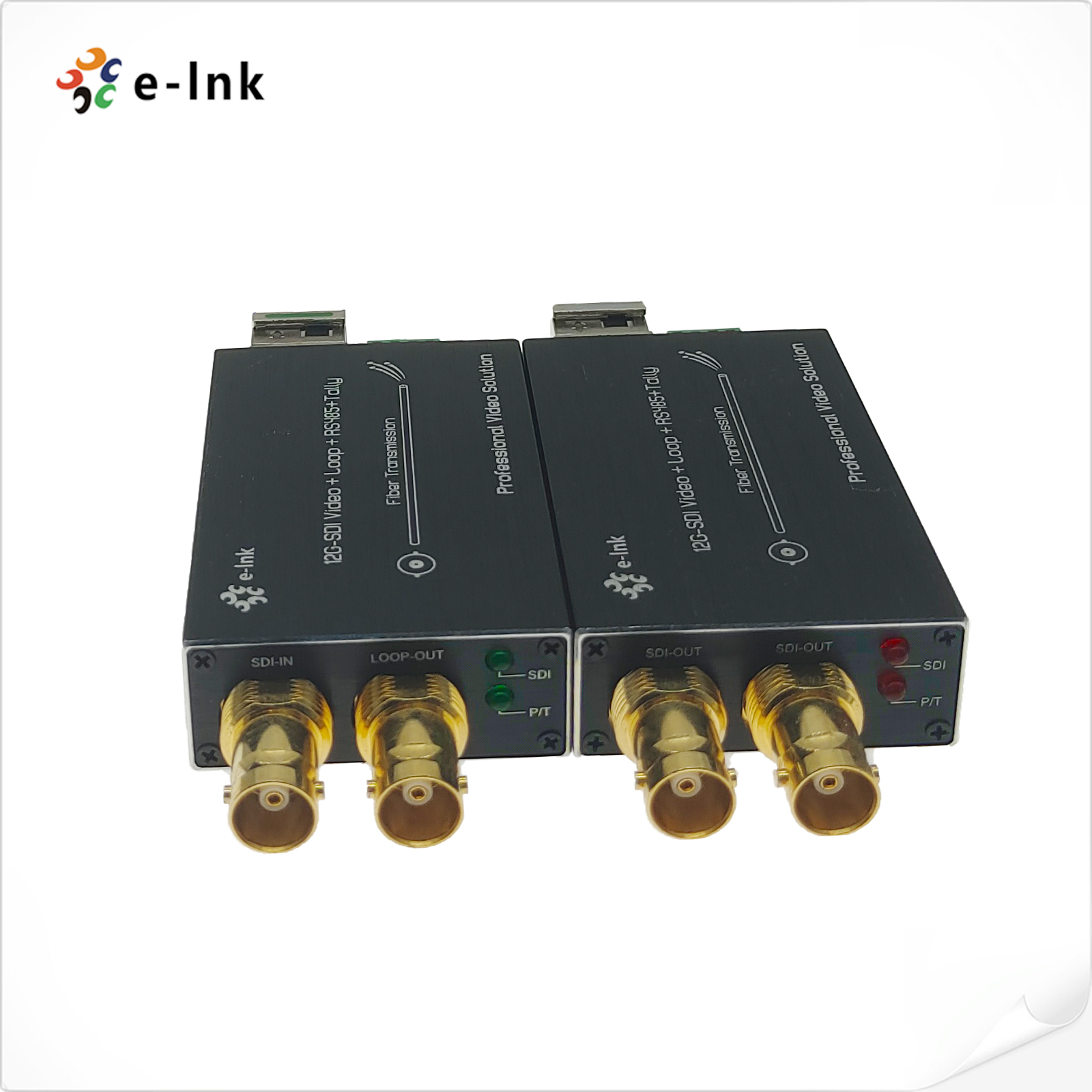

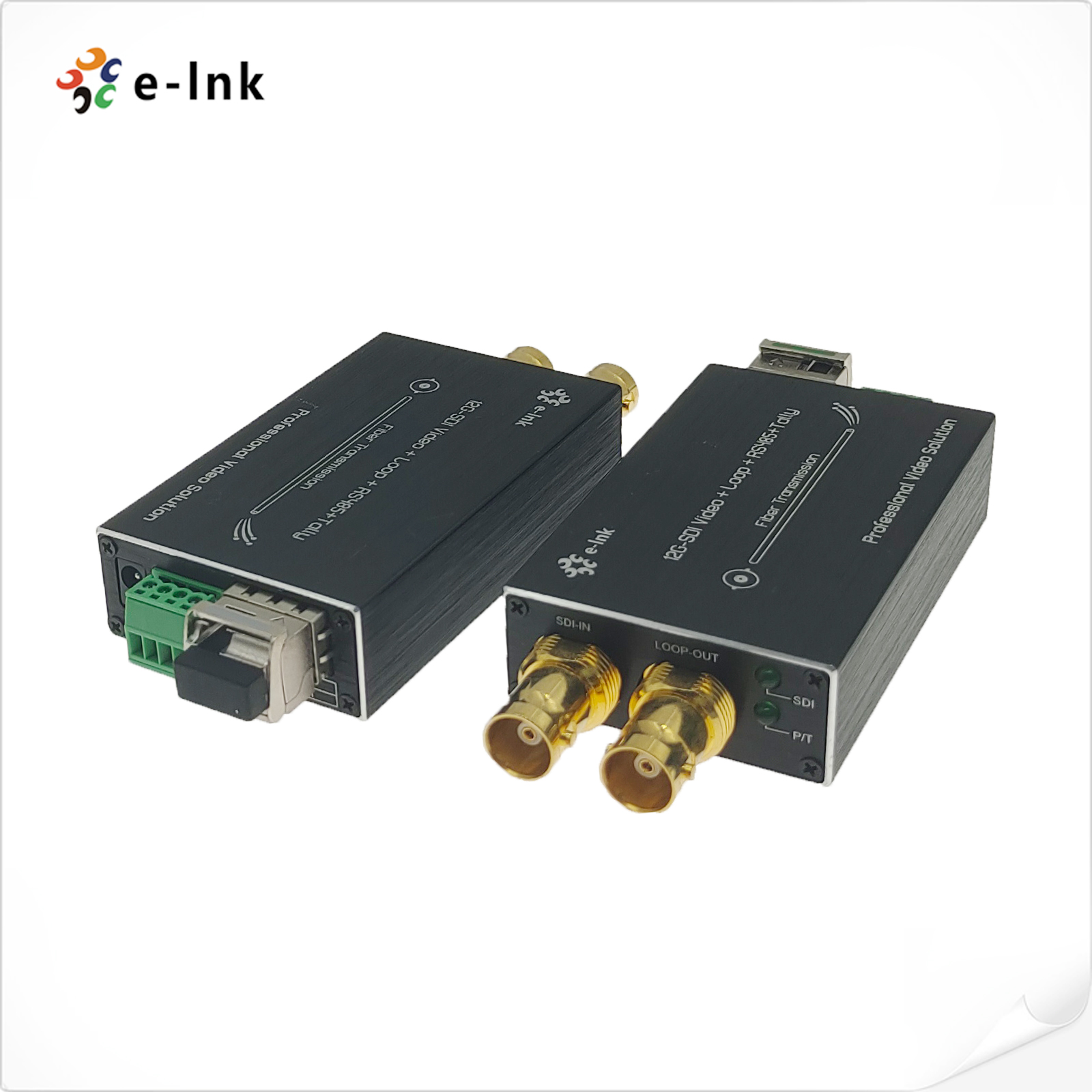

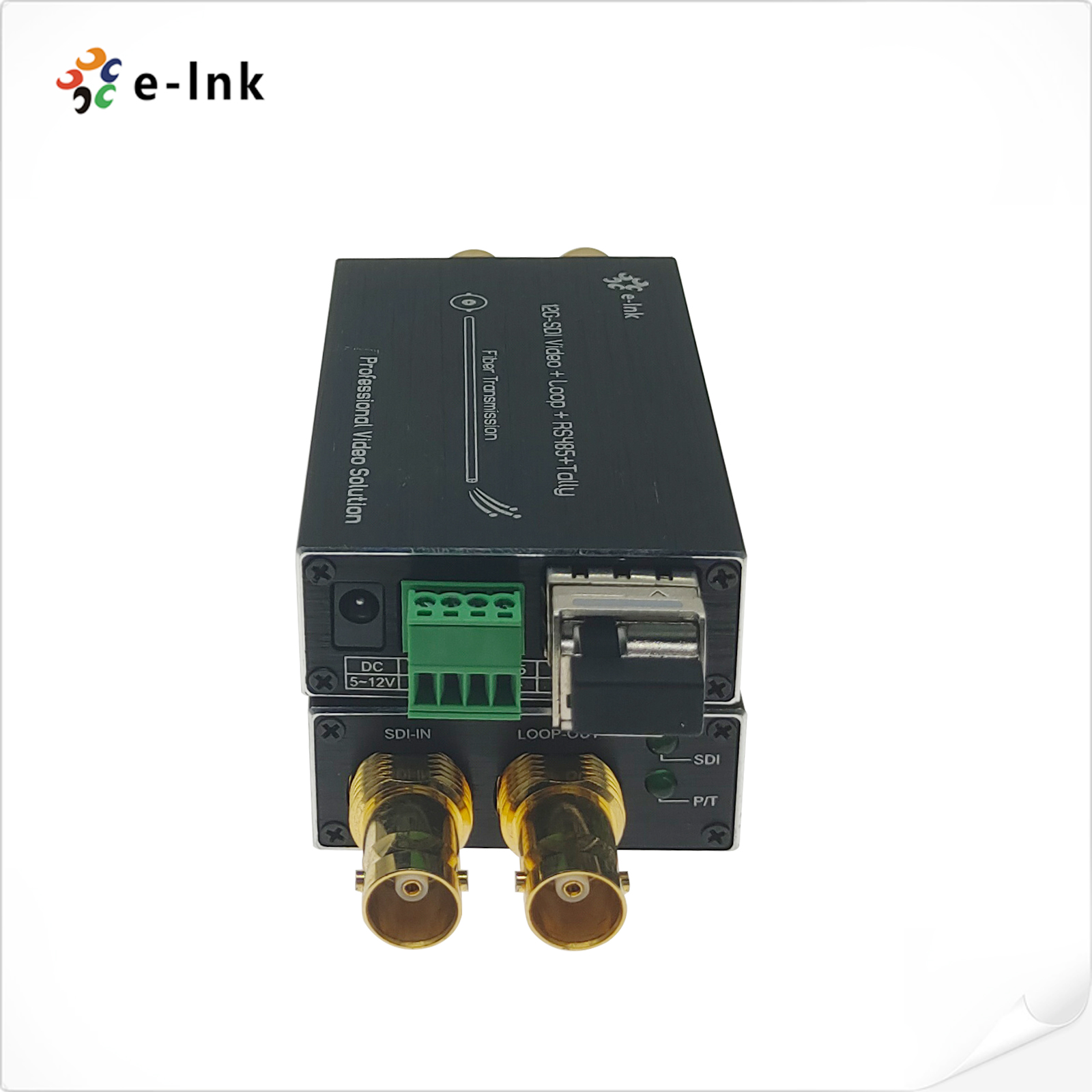

Mini Bi-directional 12G-SDI to Fiber Converter
Model:LNK-M12G-BI Series
► Each channel includes 8-channel audio embedded;
► Automatic cable equalization to ensure signal integrity
► Integrated Reclocker Locks to SMPTE Rates of 11.88Gbps, 5.94Gbps, 2.97Gbps, 1.485Gbps or Divide-by-1.001 Subrates and 270 Mbps
► Directly compatible with 12G-SDI camera systems
► Long transmission capability up to 20km

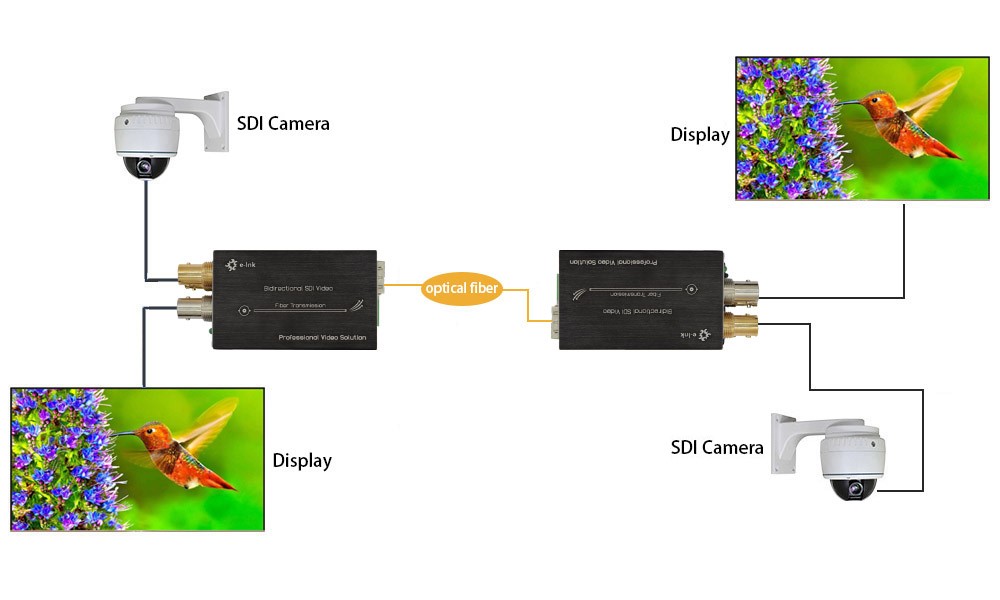

LNK-M12G-BI Series Mini-type 12G-SDI Fiber Converter supports 1-Channel Bi-directional 12G-SDI Video (audio embedded) via fiber optical cable. E-link 12G-SDI Video over Fiber Converters includes one transmitter and one receiver for 12G-SDI signal. Handle all Pathological patterns, fully digital non-compression broadcast level transmission. It’s widely used in security system, video conference, broadcasting and live events etc.
► Each channel includes 8-channel audio embedded;
► Automatic cable equalization to ensure signal integrity
► Integrated Reclocker Locks to SMPTE Rates of 11.88Gbps, 5.94Gbps, 2.97Gbps, 1.485Gbps or Divide-by-1.001 Subrates and 270 Mbps
► Directly compatible with 12G-SDI camera systems
► Long transmission capability up to 20km
► Hot swap and hot plug;
► Handle all Pathological patterns, fully digital non-compression broadcast level transmission;
► LED Status Indication to monitor the working conditions;
► Super optic dynamic range and free of adjustment;
► Industry level ultra-broad temperature range (-20℃~+70℃), adaptable to various environments;
|
Fiber |
|
|
Fiber interface |
Simplex LC |
|
Transmission distance |
0-20Km (Other distance available) |
|
Video |
|
|
Video interface |
BNC |
|
Video input/output impedance |
75Ω |
|
Video input/output voltage |
Typical:1Vpp, Min 0.5Vpp, Max 1.5Vpp |
|
Video Bits Rate |
Max 11.88Gbps /s |
|
Differential gain (10%～90% APL) |
<1% |
|
SDI format support |
625/25 PAL |
|
525/29.97 NTSC, 525/23.98 NTSC |
|
|
720p50, 720p59.94 |
|
|
1080i 23/24/30/50/59.94 |
|
|
1080P 23.98/24/30/50/60 |
|
|
HDTV 4K*2K 3840*2160@60Hz |
|
|
Video SDI standard |
ST-2082-1(12G), ST-2081-1(6G), ST-424(3G), ST-292(HD) And ST-259(SD) |
|
Electrical |
|
|
Power input |
DC 5V |
|
Power consumption |
<5W |
|
LED Indicator |
|
|
SDI |
SDI video |
|
P/T |
Power Supply |
|
Mechanical |
|
|
Dimensions (LxWxH) |
73 x 44 x 17 mm |
|
Weight |
0.45KG/pair |
|
Casing |
Aluminum Case |
|
Mounting Options |
Desktop |
|
Environmental |
|
|
Working Temperature |
-20℃～+70℃ |
|
Storage Temperature |
-40℃～+80℃ |
|
Working Humidity |
0~95% |
|
MTBF |
≥100000 hours |
- Download FileName：E-link Mini-type Bi-di 12G-SDI to Fiber Converter Datasheet V1.0.pdf Size： 2.08MB
|
Model |
Description |
|
LNK-M12G-BI20 |
Mini-type Bi-directional 12G-SDI to Fiber Converter,SMF, LC Fiber Connector,20KM, including Transmitter and Receiver, used by pairs |
