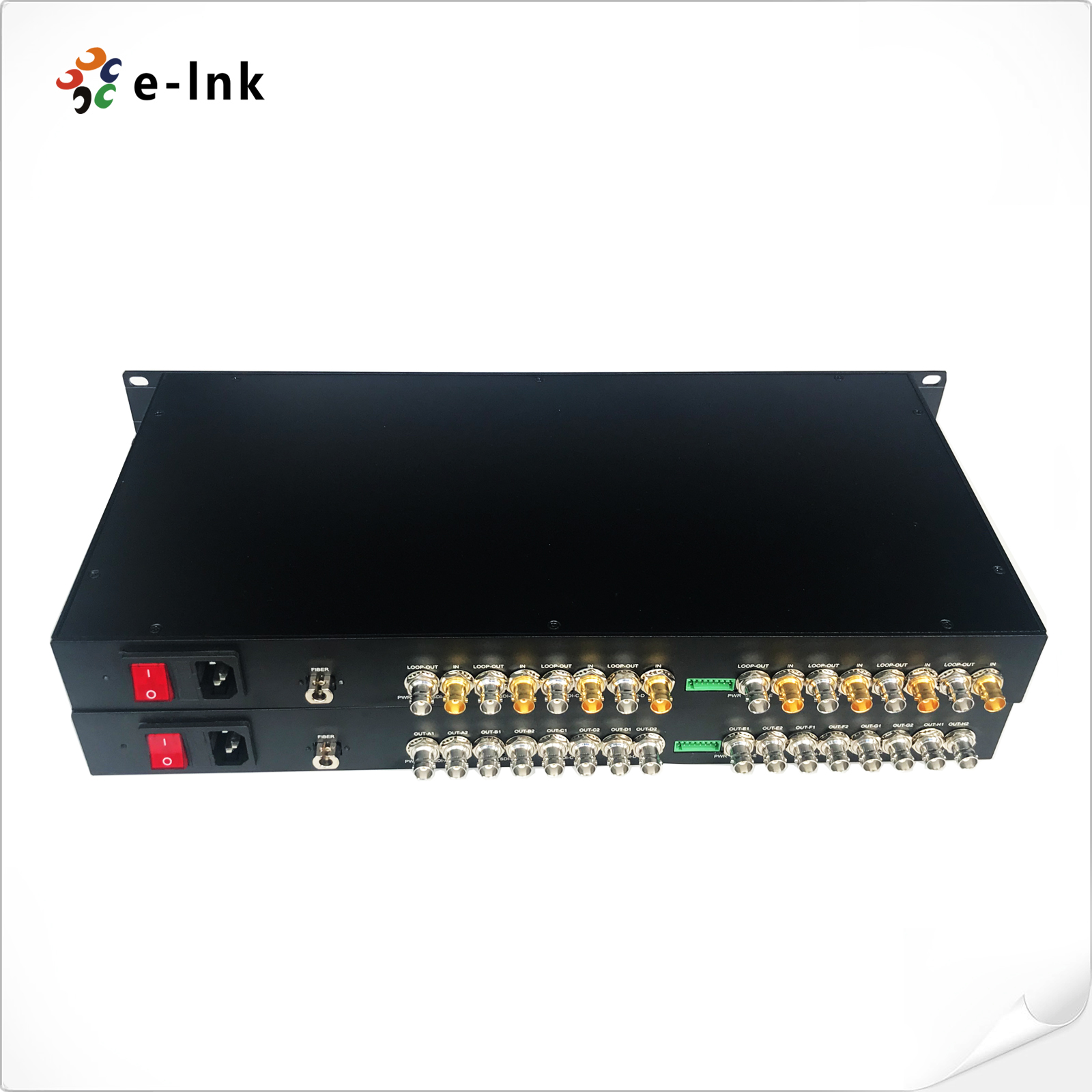

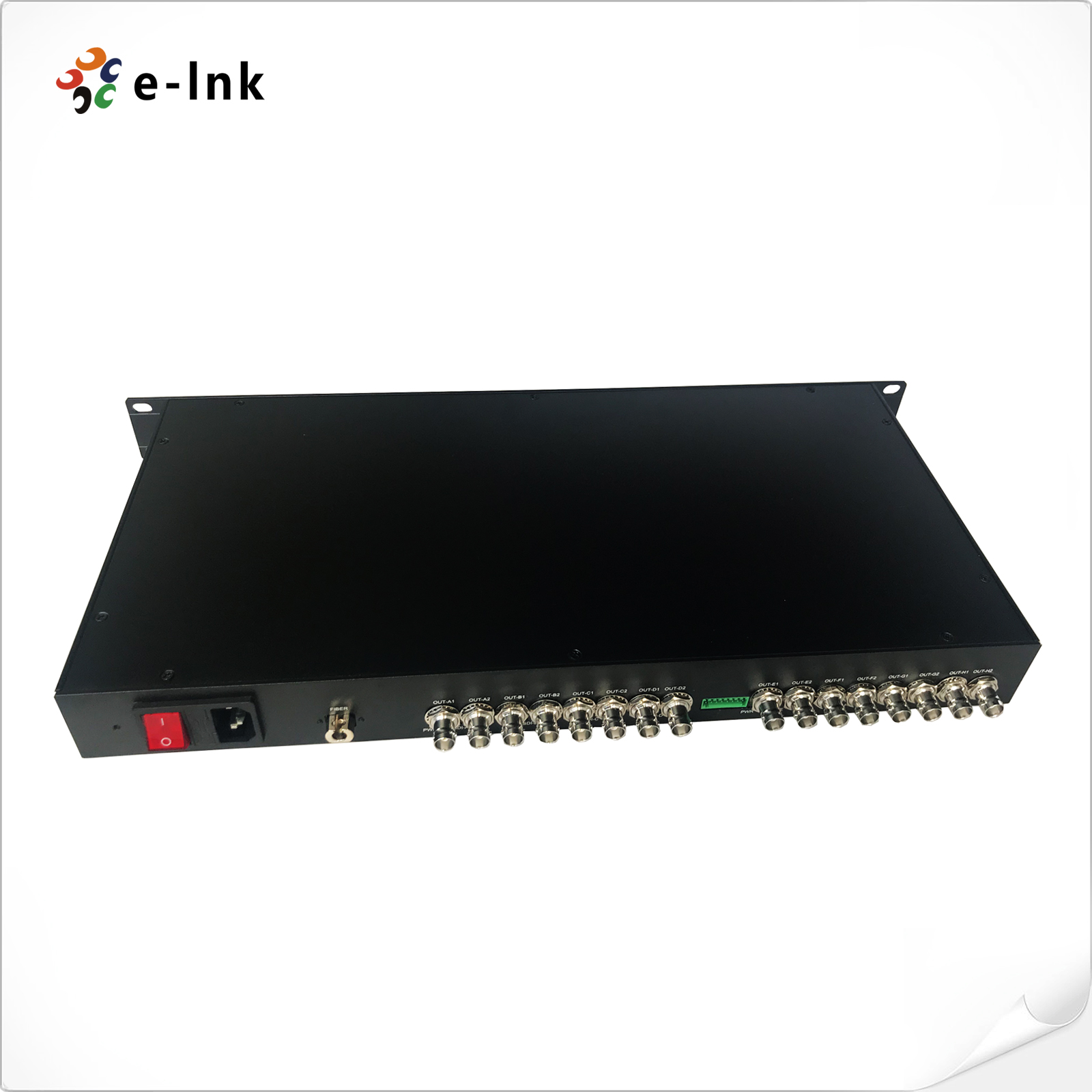

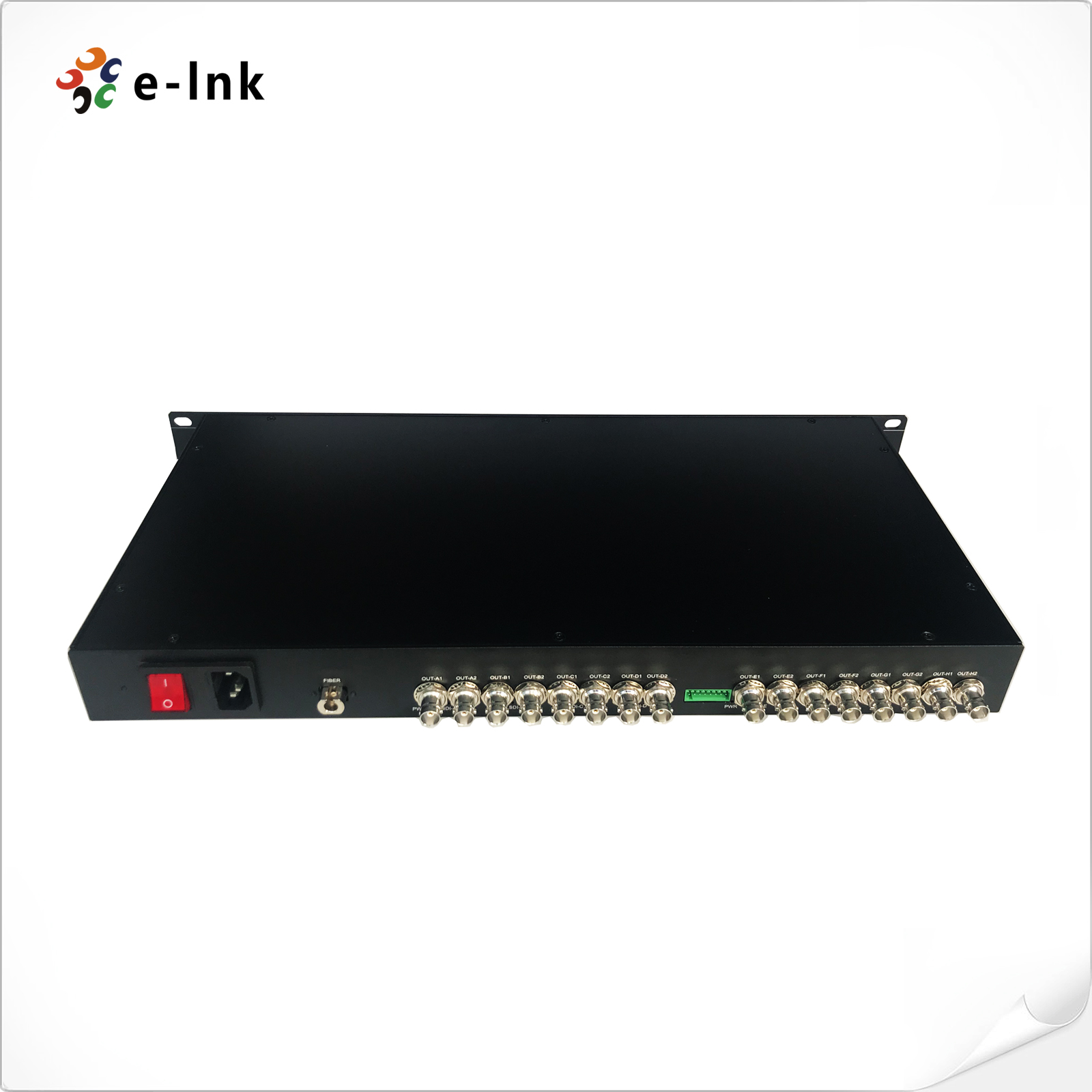

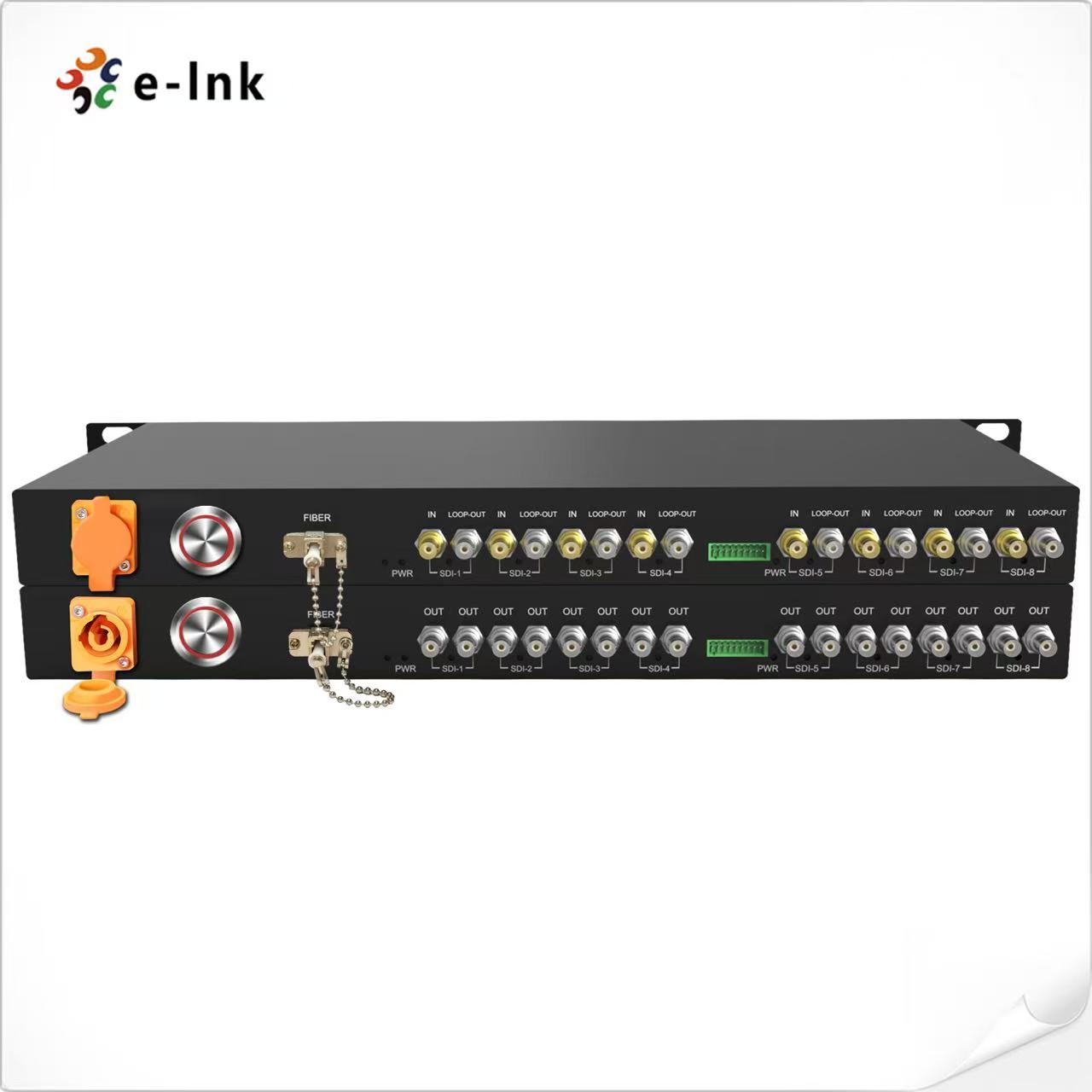

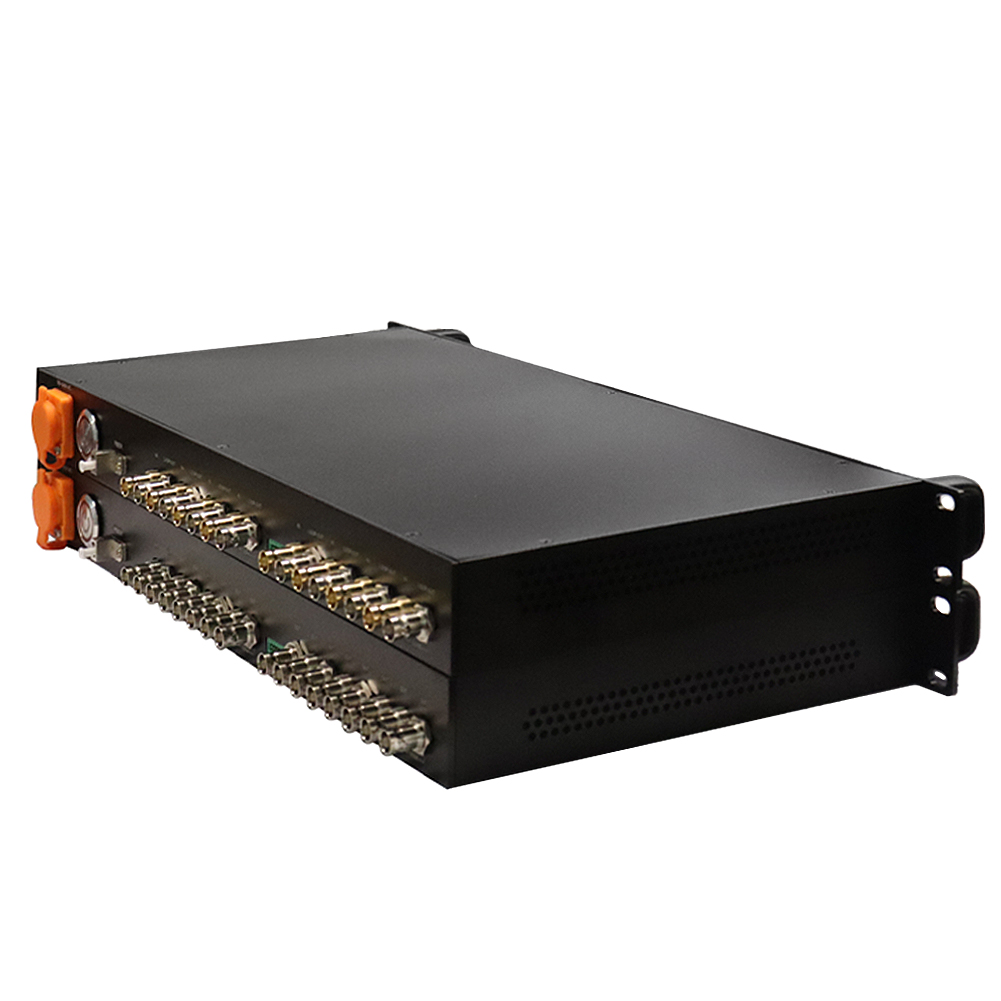

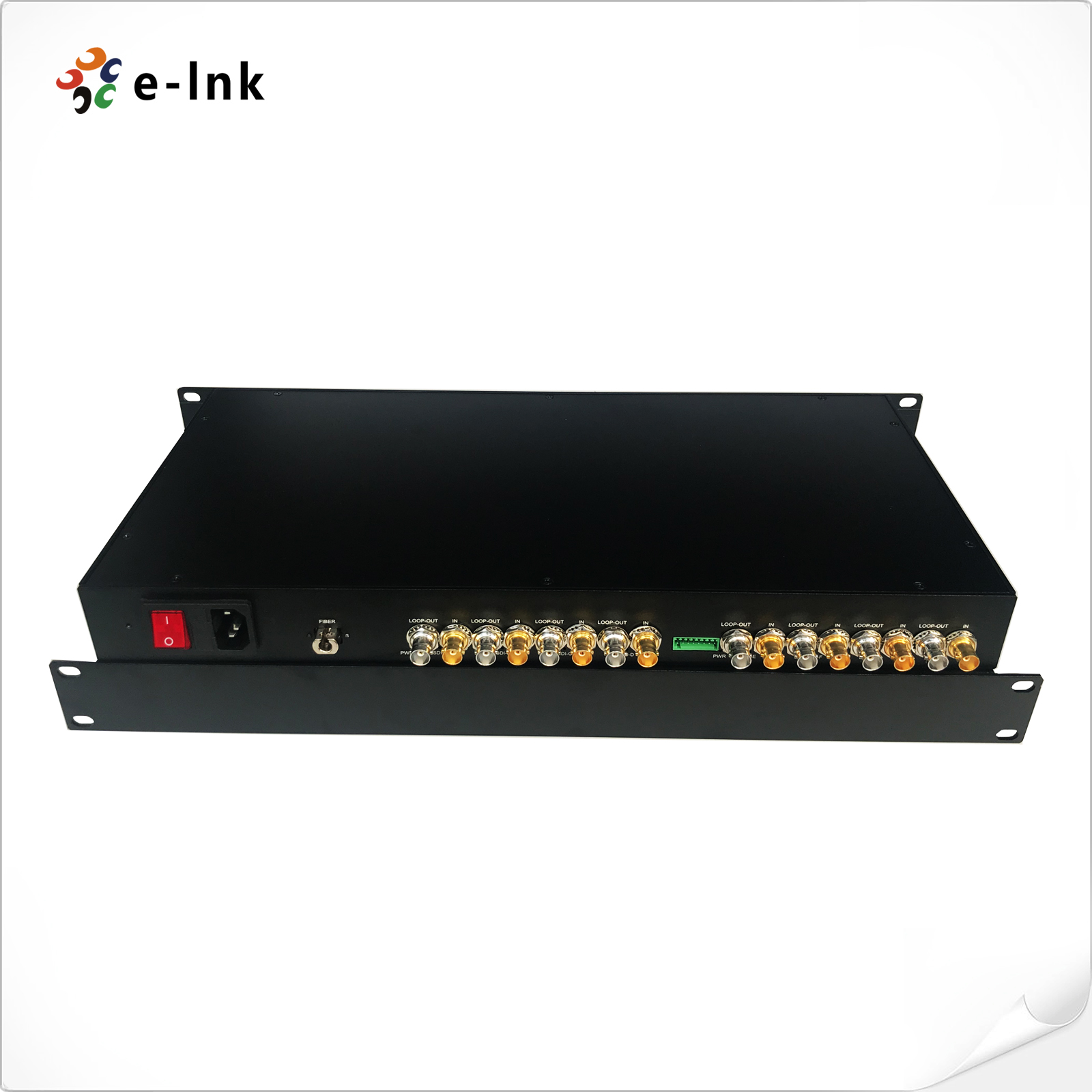

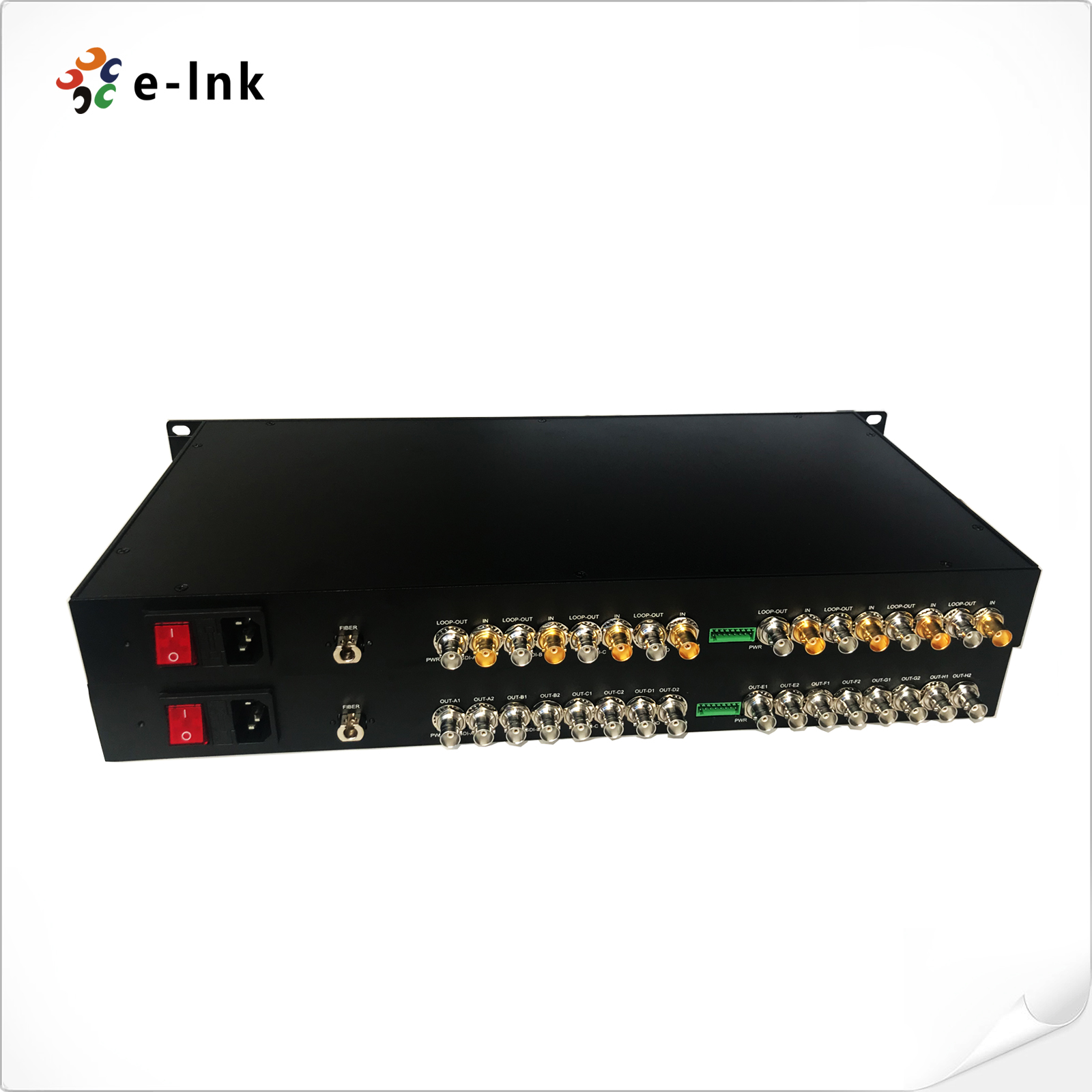

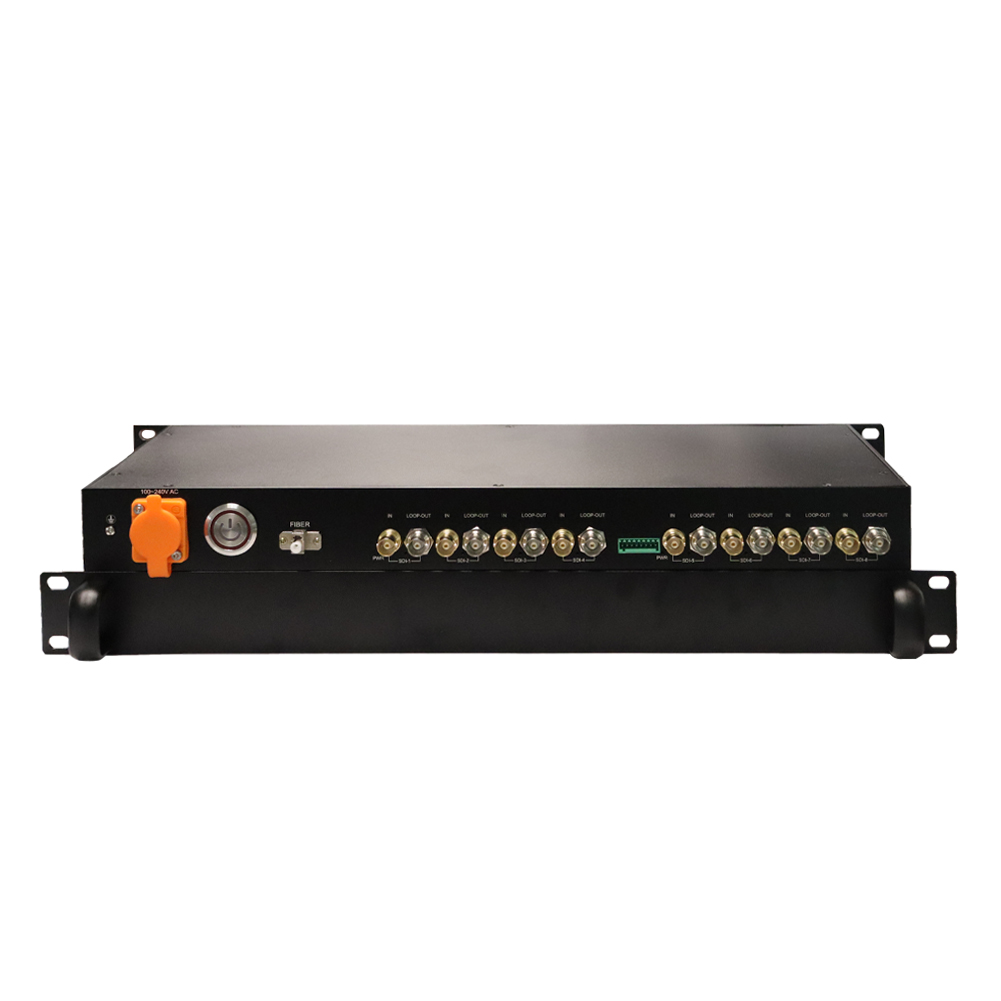

1U Rack-Mountable 8-Channel 12G-SDI Fiber Converter
Model:LNK-12GSDI-8V Series

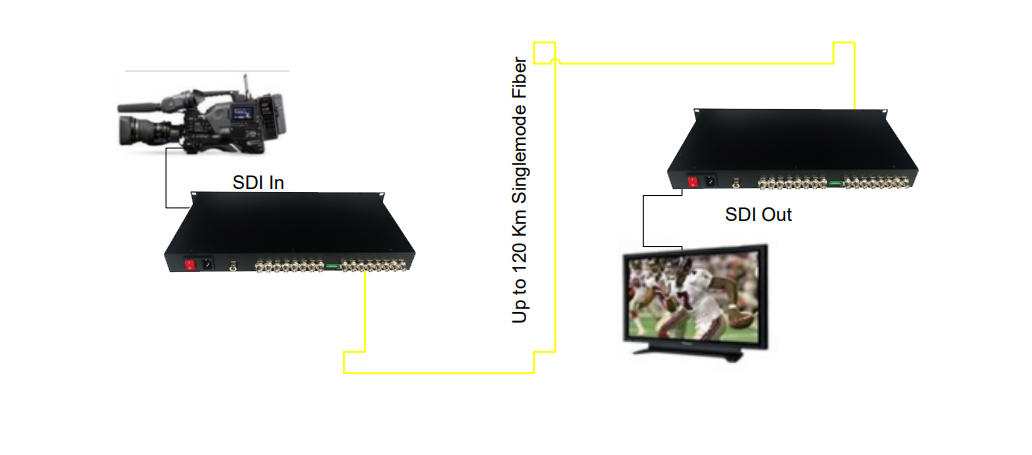

► 8 channel 12G-SDI video transmission over optic fiber
► Automatic cable equalization to ensure signal integrity
► Integrated Reclocker Locks to SMPTE Rates of 11.88Gbps, 5.94Gbps, 2.97Gbps, 1.485Gbps or Divide-by-1.001 Subrates and 270 Mbps
► Directly compatible with 12G-SDI camera systems and support Reverse RS-485 data protocols
► 8 channel 12G-SDI video transmission over optic fiber
► Automatic cable equalization to ensure signal integrity
► Integrated Reclocker Locks to SMPTE Rates of 11.88Gbps, 5.94Gbps, 2.97Gbps, 1.485Gbps or Divide-by-1.001 Subrates and 270 Mbps
► Directly compatible with 12G-SDI camera systems and support Reverse RS-485 data protocols
► Long transmission capability at 20km
► Supports hot swapping and hot plugging
► Full digital non-compression broadcast level transmission;
► super optic dynamic range and free of adjustment prior to use;
► fiber optic WDM/CWDM/DWDM technique;
► Real-time status LED indicators for troubleshooting and monitoring
► Industry level ultra-broad temperature range, adaptable to various environments;
|
Fiber |
|
|
Fiber interface |
LC/FC/ST/SC |
|
Transmission distance |
20Km |
|
Video |
|
|
Video interface |
BNC |
|
Video input/output impedance |
75Ω |
|
Video input/output voltage |
Typical:1Vpp, Min 0.5Vpp, Max 1.5Vpp |
|
Video Bits Rate |
Max 11.88Gb/s |
|
Differential gain (10%～90% APL) |
<1% |
|
SDI format support |
625/25 PAL |
|
525/29.97 NTSC, 525/23.98 NTSC |
|
|
720p50, 720p59.94 |
|
|
1080i 23/24/30/50/59.94 |
|
|
1080P 23.98/24/30/50/60 |
|
|
HDTV 4K*2K 3840*2160@60Hz |
|
|
Video SDI standard |
ST-2082-1(12G), ST-2081-1(6G), ST-424(3G), ST-292(HD) And ST-259(SD) |
|
Data |
|
|
Physical interface |
Industrial standard screw terminal |
|
Data type |
Reverse RS485 |
|
Frequency/Rate support |
Max. 57600bps for RS485 |
|
BER |
<10ˉ9 |
|
Ethernet (optional) |
|
|
Connector |
RJ45 |
|
Data Rate |
10/100/1000M |
|
Electrical |
|
|
Power adaptor |
AC 110~220V |
|
Power consumption |
<15W |
|
LED Indicator |
|
|
SDI A/B/C/D/E/F/G/H |
SDI video |
|
PWR |
Power Supply |
|
Mechanical |
|
|
Dimensions (LxWxH) |
19inch 1U (483 x 220 x 44.45mm ) |
|
Weight |
7KG/pair |
|
Casing |
Aluminum Case |
|

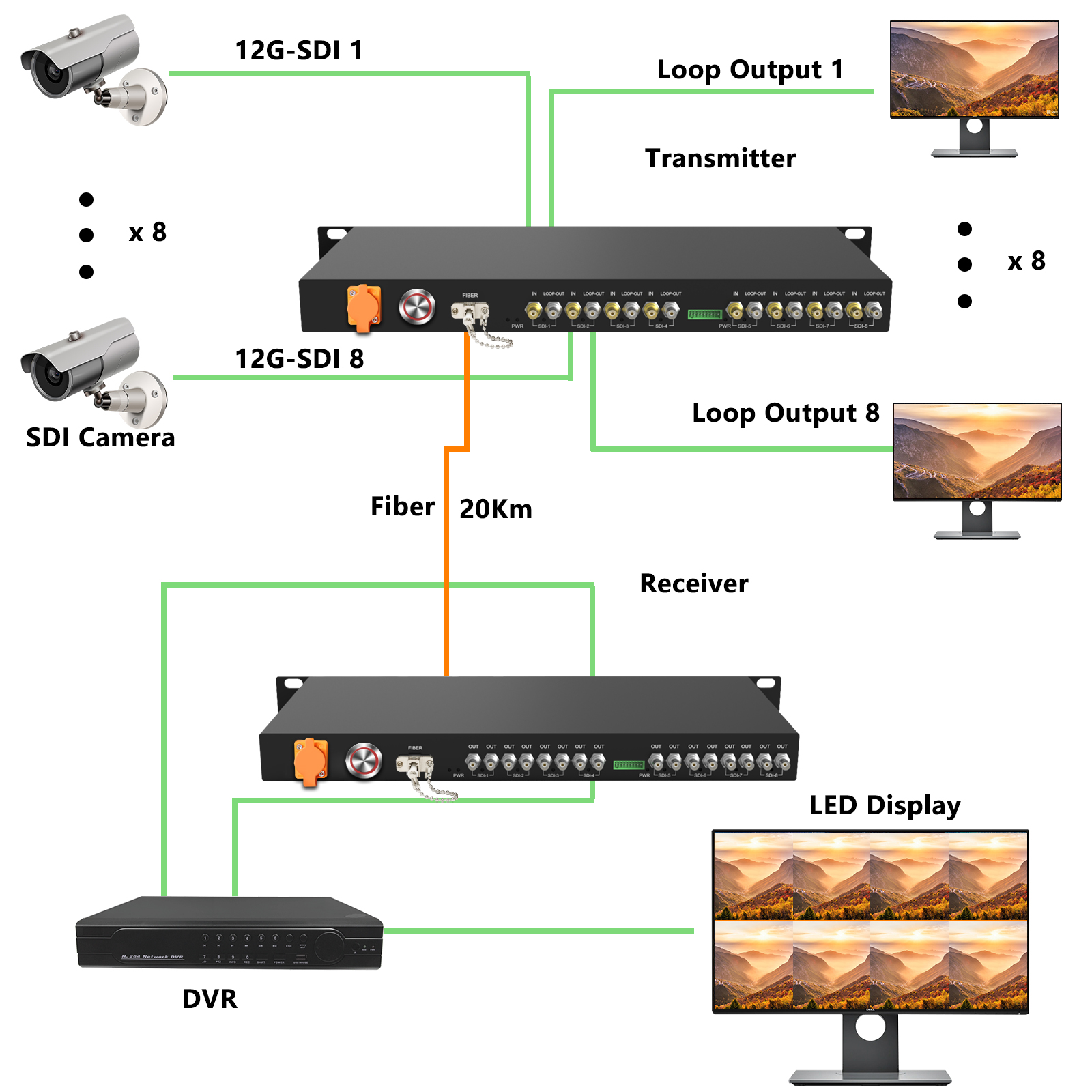

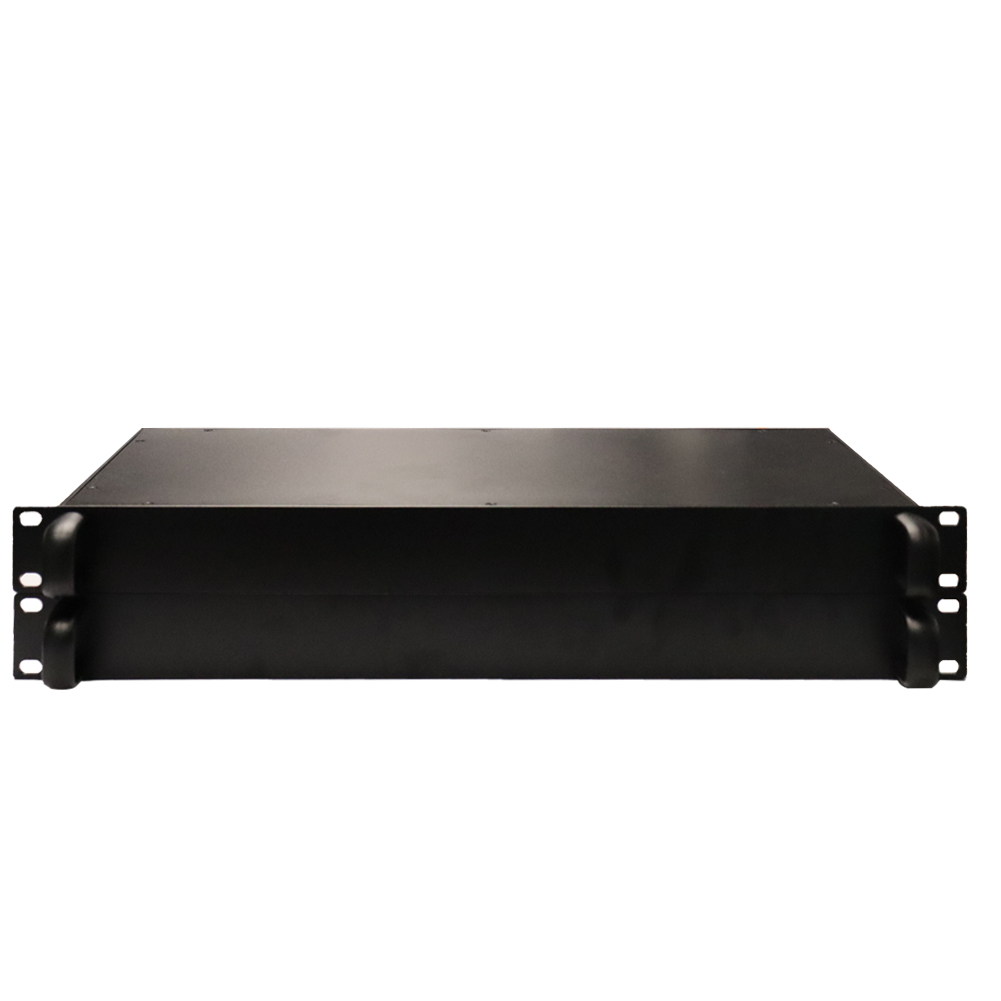

Mounting Options |
Rackmount |
|
Environmental |
|
|
Working Temperature |
-20℃～+70℃ |
|
Storage Temperature |
-40℃～+80℃ |
|
Working Humidity |
0~95% |
|
MTBF |
≥100000 hours |
- Download FileName：E-link LNK-12GSDI-8V 8Ch 12G-SDI Fiber Converter Datasheet V1.0.pdf Size： 2MB
|
Model |
Description |
|
LNK-12GSDI-8V |
19" 1U 8-Ch 12G-SDI Video with Loop-out, 20km, SM,LC, including 1 transmitter & 1 receiver, used by pairs |
