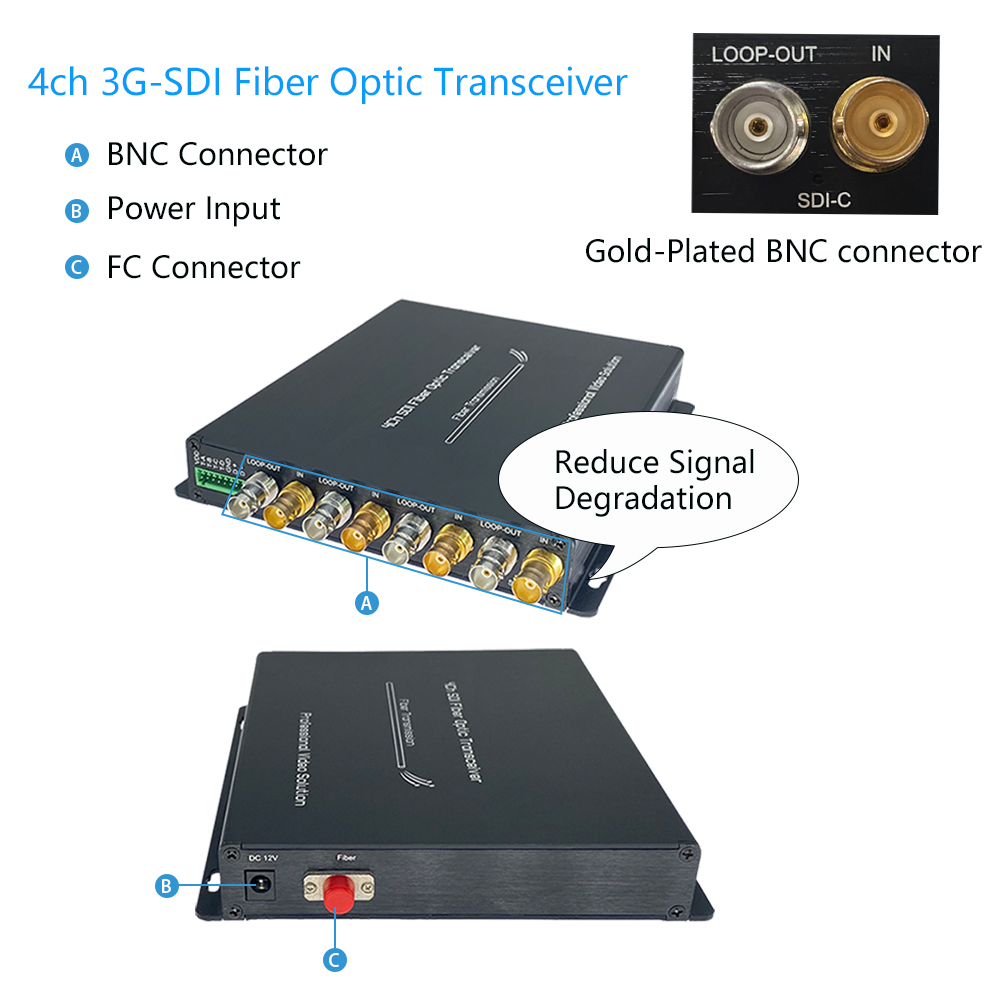

4-Channel 3G-SDI Fiber Converter with RS485 & Tally
Model:LNK-3GSDI-4V1DT
► 4 channel 3G/HD-SDI video transmission over optic fiber
► Automatic reclocking 270Mbit/s - 1.48Gbit/s-3Gbit/s
► Directly compatible with 3G/HD-SDI camera systems and support 4Ch Loop output
► Long transmission up to 20 km (12.5miles) (Other distance Optional)
► Support 1Ch backward RS485 and 4Ch Tally
Overview

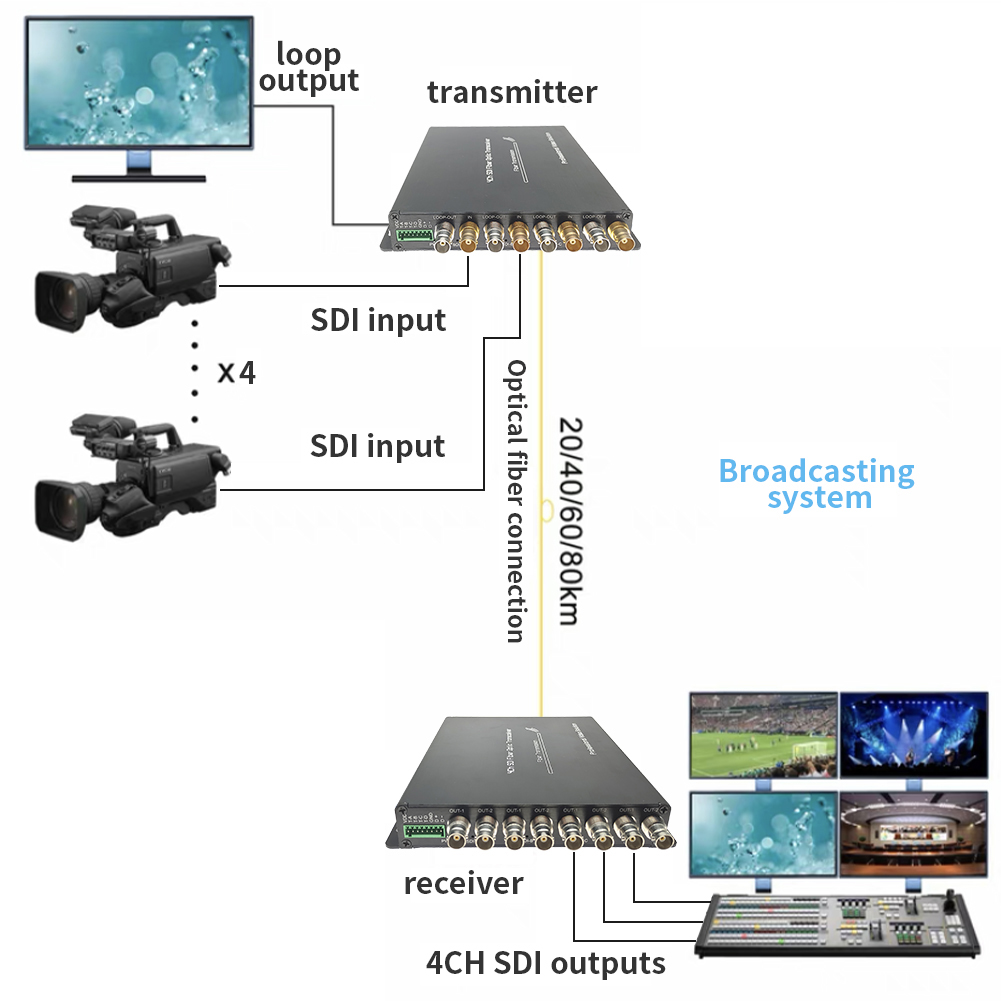

LNK-3GSDI-4V1DT Series supports 4-channel HD/3G-SDI standard high-definition video signal and RS485 and Tally signal transmitted via single fiber optical cable. E-link 3G-SDI Video over Fiber Converters includes one transmitter and one receiver for 1080P 3G-SDI signal. E-link 3G-SDI Fiber Converters can transmit 4-Ch 3G-SDI Video signal through a single optical fiber, and it support Loop output, 4Ch Tally and backwards RS485. The video quality is non-compressed broadcast level. It’s widely used in broadcast field.
► 4 channel 3G/HD-SDI video transmission over optic fiber
► Automatic cable equalization to ensure signal integrity
► Automatic reclocking 270Mbit/s - 1.48Gbit/s-3Gbit/s
► Directly compatible with 3G/HD-SDI camera systems and support 4Ch Loop output
► Long transmission up to 20 km (12.5miles) (Other distance Optional)
► Full digital non-compression broadcast level transmission
► Support 1Ch backward RS485 and 4Ch Tally
► Working temperature range (-10℃~+55℃)

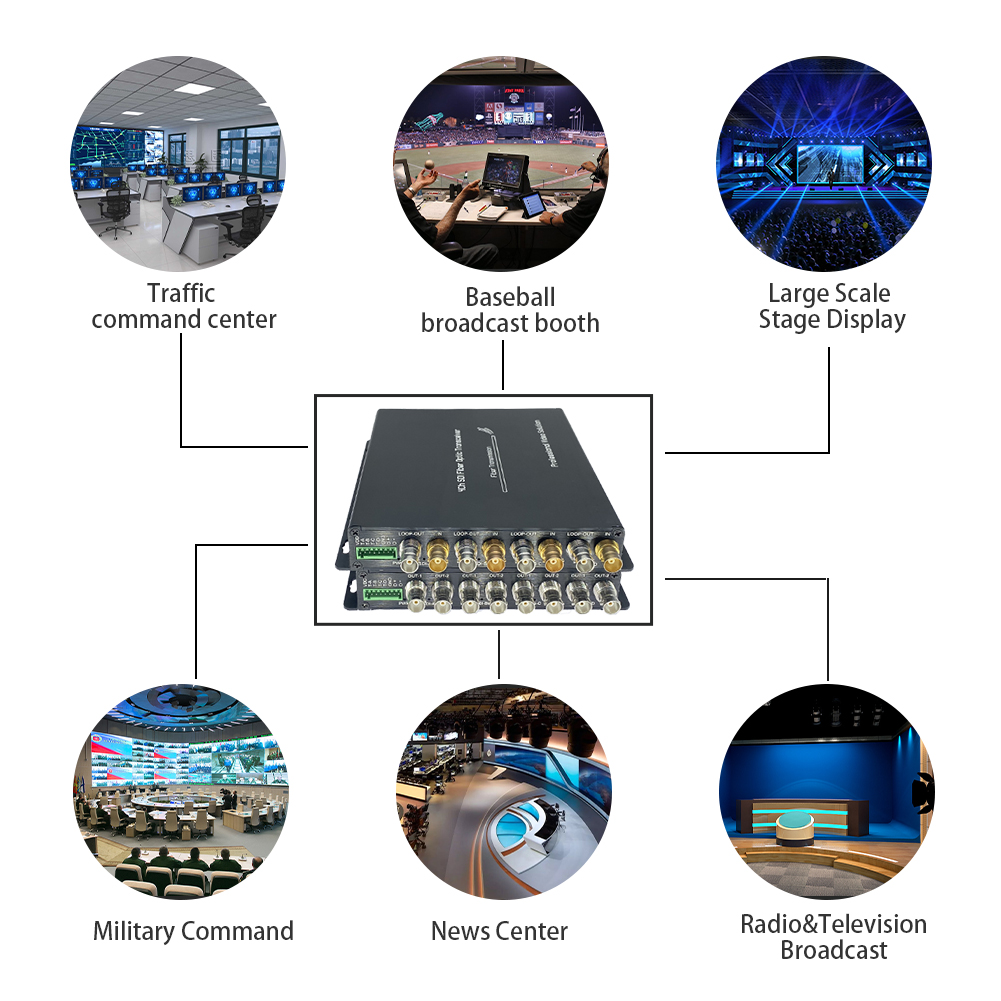

Application
Technical Indexes
|
SDI Input |
SMPTE 424M, SMPTE 292M, SMPTE 259M, DVB-ASI, DVB-SSI and Telecom/Datacom |
|
|
270Mbit/s - 1.48Gbit/s – 3Gbit/s |
||
|
Input number: 4 |
||
|
Reflection loss: >15DB |
||
|
Equilibrium: 0-150m @3Gb/s |
||
|
Connector: BNC |
||
|
Optics |
Channel: 1 |
|
|
Type: single-mode |
||
|
Transmission distance: 20km (Other distance Optional) |
||
|
Reflection loss: > 15dB |
||
|
Dithering: < 0.2UI |
||
|
Connector: FC/UPC (SC, LC, ST optional) |
||
|
SDI Output |
Output number:4 |
|
|
Signal level: 800mV nominal |
||
|
Rise/fall time: 200ps indication |
||
|
Overshoot: < 10% amplitude |
||
|
Reflection loss: >15dB |
||
|
Dithering: < 0.2UI |
||
|
Connector: 75Ω BNC |
||
|
Data |
1Ch RS-485 (full/half duplex) and support NRZ, RZI and Manchester |
|
|
Max. 57600bps for RS485 |
||
|
Connector: Industrial standard screw terminal |
||
|
4Ch Tally: A, B , C, D |
||
|
Power and environmental indication |
Operating temperature: -10℃～＋55℃ |
|
|
Power Input: 1A@12VDC |
||
|
EMI/RFI: meet FCC Part 15 Class A, EU EMC standard |
||
|
Average time trouble-free: >100000 hours |
||
|
SDI video format supports |
625/25PAL; 525/29.97NTSC; 525/23.98NTSC; 720p50; 720p59.94; 1080P23.98/24/30/50/60; 1080i 23/24/30/50/59.94; |
|
Ordering Information
|
LNK-HDSDI-4V1D4T |
4-Ch HD-SDI Video with Loop output + 1Ch backward RS485 + 4Ch Tally, SM 20km, FC, including 1 transmitter & 1 receiver, used by pairs |
|
LNK-3GSDI-4V1D4T |
4-Ch 3G-SDI Video with Loop output + 1Ch backward RS485 + 4Ch Tally, SM 20km, FC, including 1 transmitter & 1 receiver, used by pairs |
