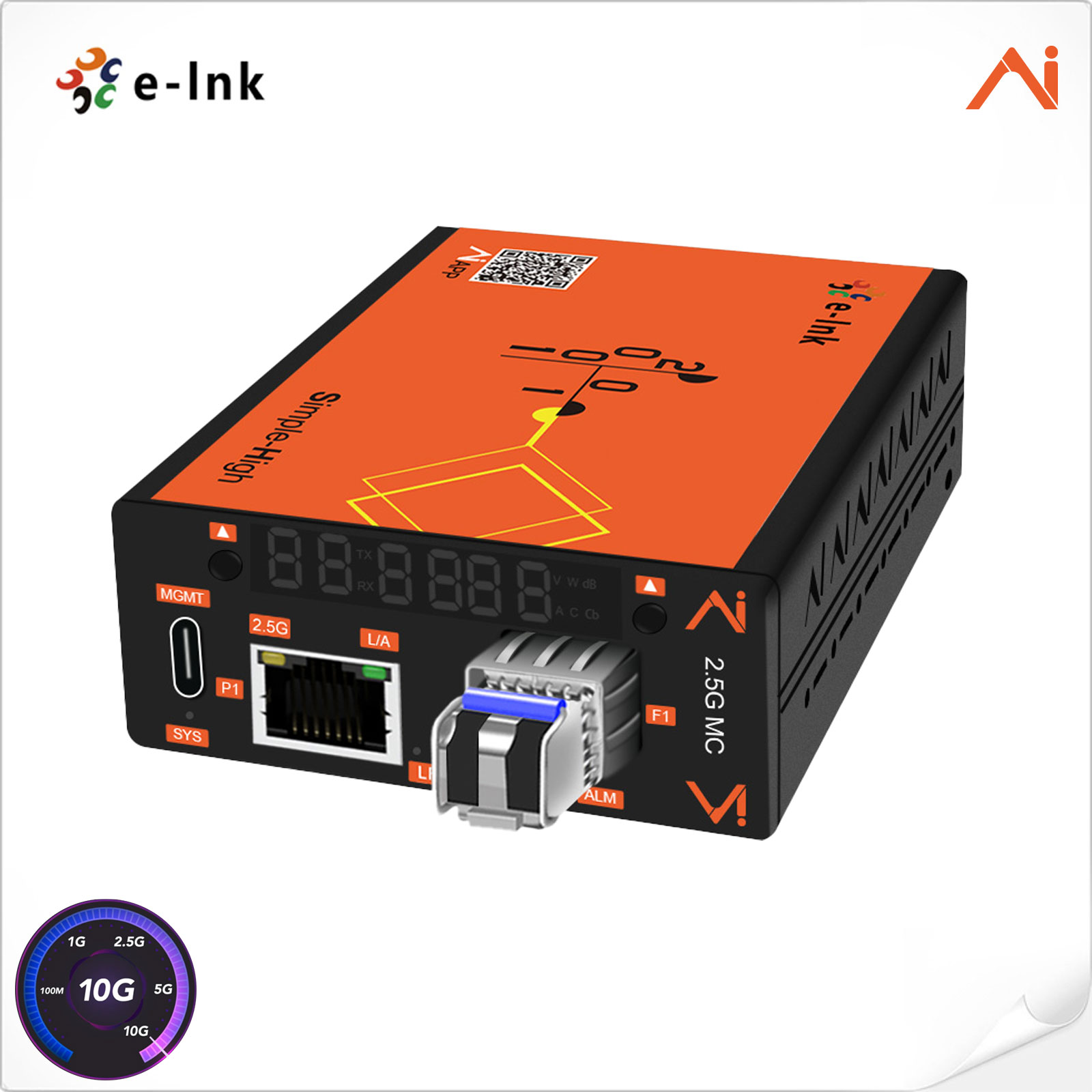

AI Smart Managed 10/100/1000/2500Mbps Fiber Media Converter
Model:LNK-AI2500M-SFP
► E-link's newly self-developed mobile APP and PC-based intelligent Web management.

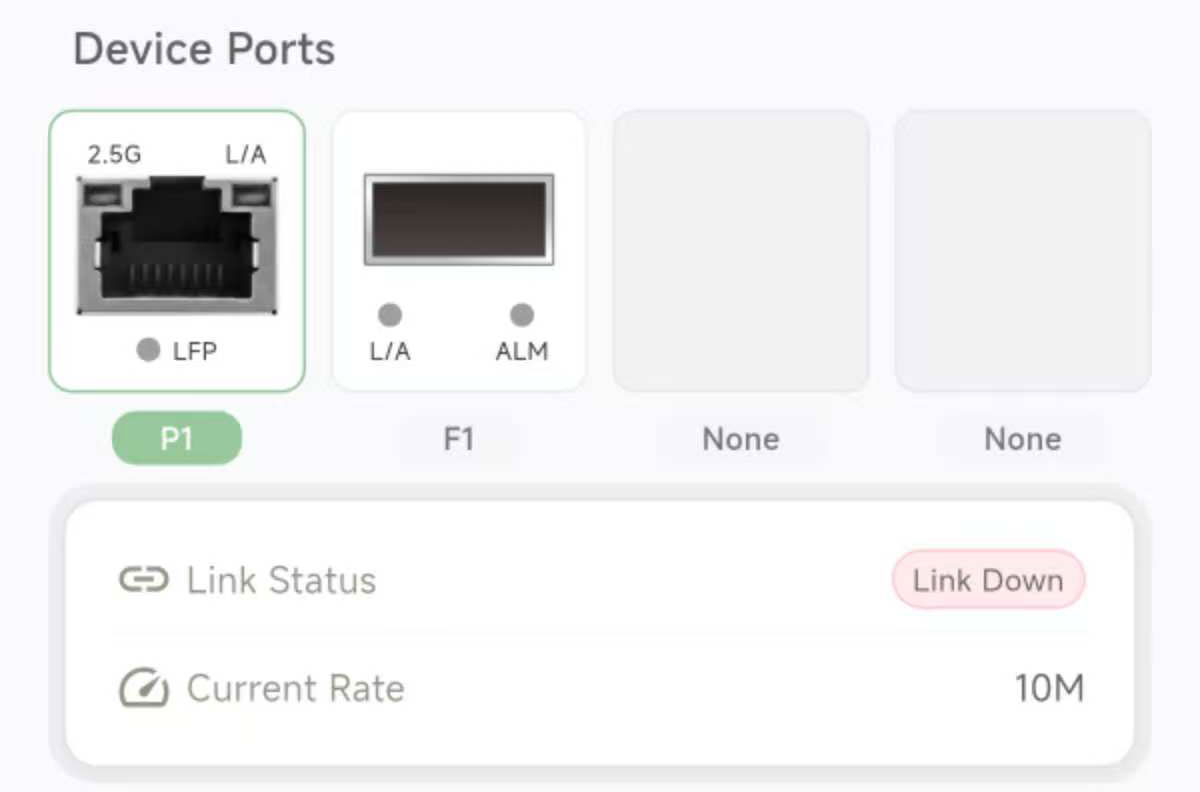

► One-click screen display: System current, voltage, temperature; Optical module transmit power, receive power; Ethernet/Fiber port rates, etc.

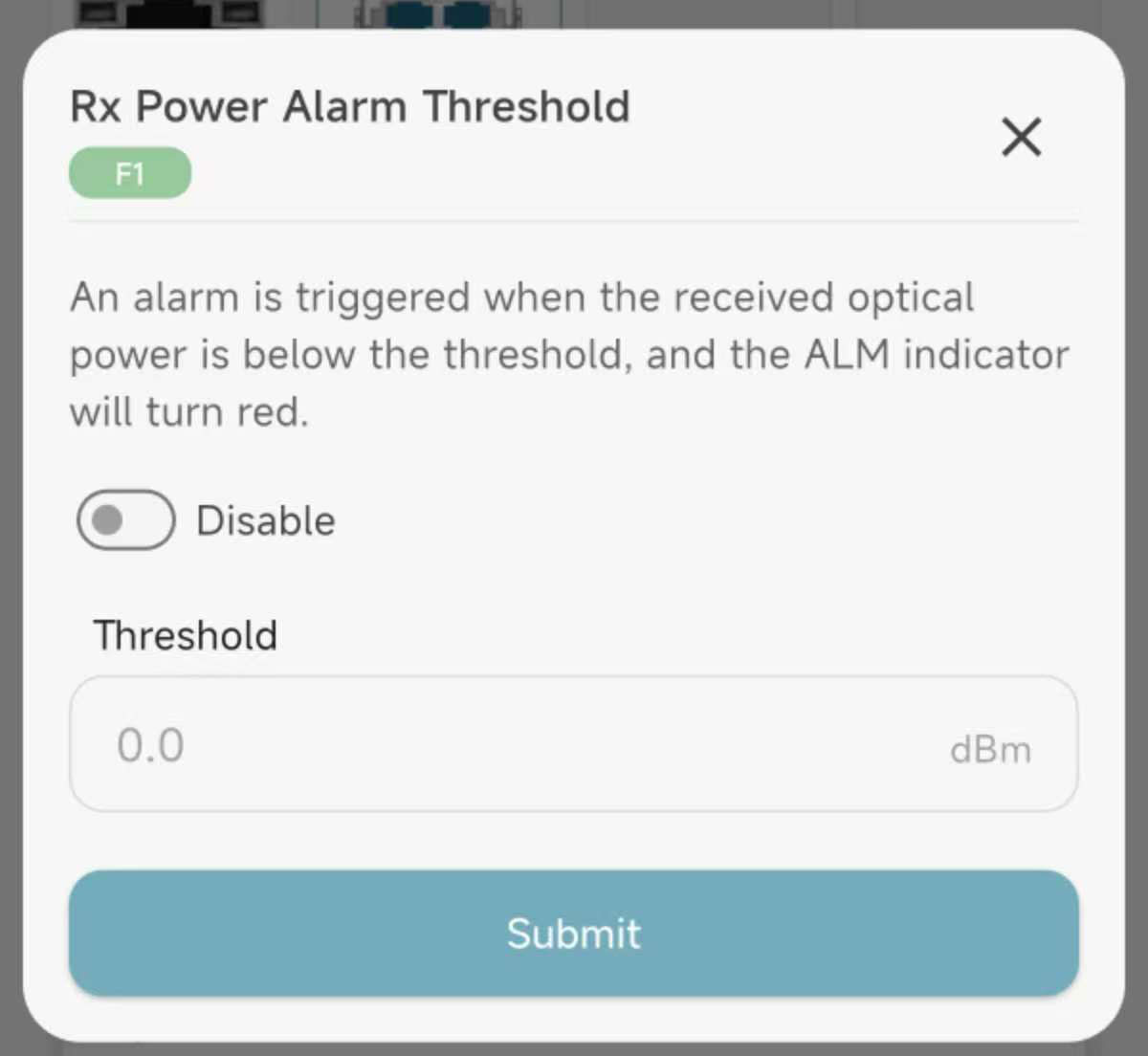

► APP/Web management functions: Graphical interface presenting detailed device information; SFP module information and DDM data; User-defined optical power thresholds; User-defined scheduled reboot, etc.

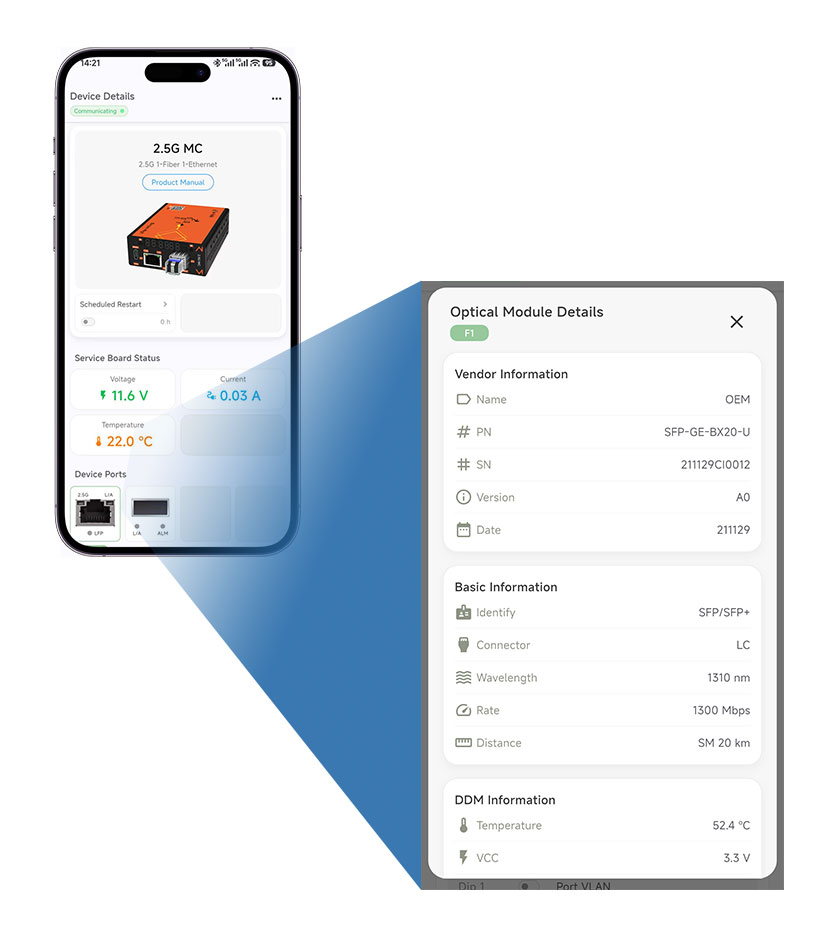

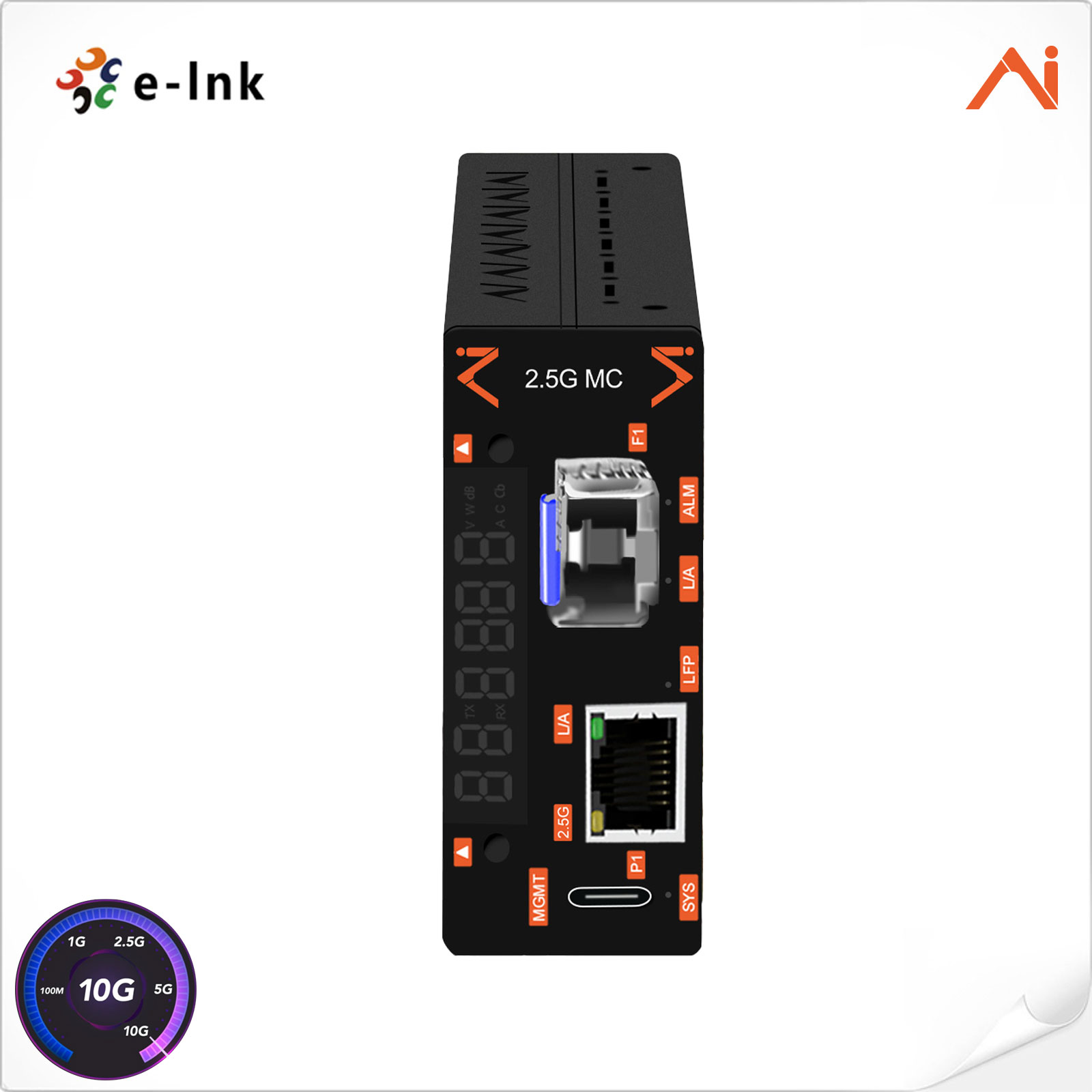

The LNK-AI2500M-SFP AI Smart Managed Media Converter is an innovative, independently developed AI-managed device from E-link. Designed for intuitive operation, it enables easy configuration and real-time monitoring via a mobile app or web interface without the need for additional test equipment. Users can access vital information such as power status, SFP and Ethernet port conditions, and detailed SFP module diagnostics including optical power, wavelength, distance, data rate, and temperature.
Combining comprehensive features, streamlined operation, multiple real-time alarm systems, and efficient maintenance capabilities, this converter significantly reduces both installation and ongoing operational costs. It offers a high-performance, cost-effective line management solution well-suited for the AI era.

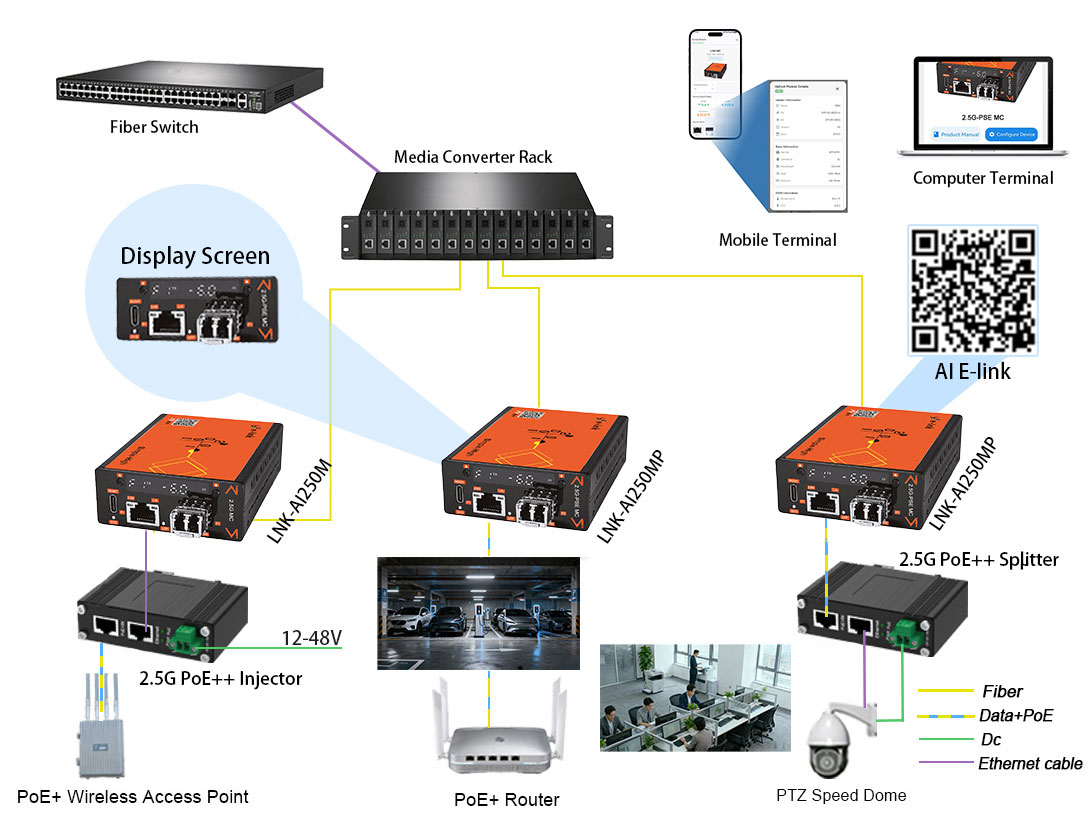

Widely applicable across various critical environments, the LNK-AI2500M-SFP is ideal for use in forest fire prevention systems, water area monitoring, highways, urban roads, rail transit networks, high-end office buildings, petrochemical facilities, and automated equipment communication and monitoring.
► E-link's newly self-developed mobile APP and PC-based intelligent Web management.
► One-click screen display: System current, voltage, temperature; Optical module transmit power, receive power; Ethernet/Fiber port rates, etc.
► APP/Web management functions: Graphical interface presenting detailed device information; SFP module information and DDM data; User-defined optical power thresholds; User-defined scheduled reboot, etc.
► It moves away from traditional complex management interfaces by featuring a lightweight interface with highlighted key parameters, facilitating on-site debugging and maintenance by non-professionals.
► Ethernet port: 1 x 10/100/1000/2500M RJ45.
► Fiber port: 1 x 1.25G/2.5G SFP.
► Power supply with 5-58V DC ultra-wide voltage input.
► Support installed in 14-slot traditional media converter chassis.
|
AI Smart Managed 10/100/1000/2500Mbps Gigabit Fiber Media Converter |
||||
|
Access Mode |
1000/2500BASE-X SFP to 10/100/1000/2500BASE-T RJ45 |
|||
|
Ethernet |
||||
|
Standards: |
Standards Compliance IEEE 802.3 Ethernet |
|||
|
IEEE 802.3u Fast Ethernet |
||||
|
IEEE 802.3ab Gigabit Ethernet |
||||
|
IEEE 802.3az (Energy Efficient Ethernet) |
||||
|
IEEE 802.3bz(2.5GBASE-T) |
||||
|
IEEE802.3x |
||||
|
Processing Type |
Store-and-Forward |
|||
|
Forward Filter Rate |
14,880pps (10Mbps) |
|||
|
148,800pps (100Mbps) |
||||
|
1,488,000pps (1000Mbps) |
||||
|
2,976,000pps (2500Mbps) |
||||
|
Packet Buffer Memory |
1 Mbit |
|||
|
Max Packet Length |
9K Bytes |
|||
|
AI Smart Managed Functions |
||||
|

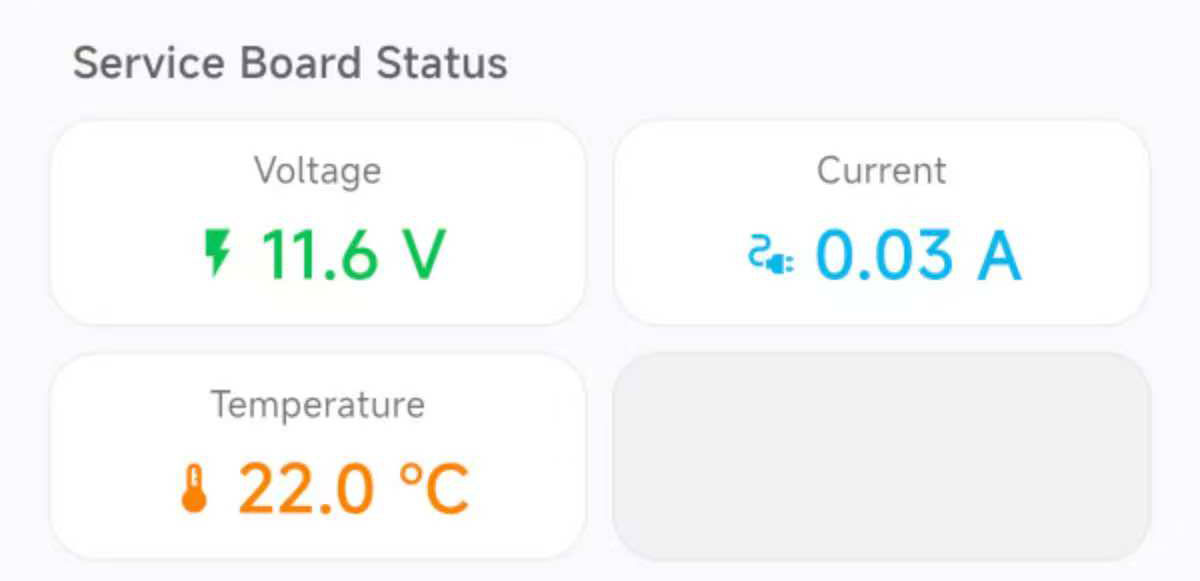

Service Board Status |
Temperature |
|
||
|
Voltage |
||||
|
Current |
||||
|
RJ45 Port Status |
Link Status |
|
||
|
Rate |
||||
|
LFP Status |
||||
|

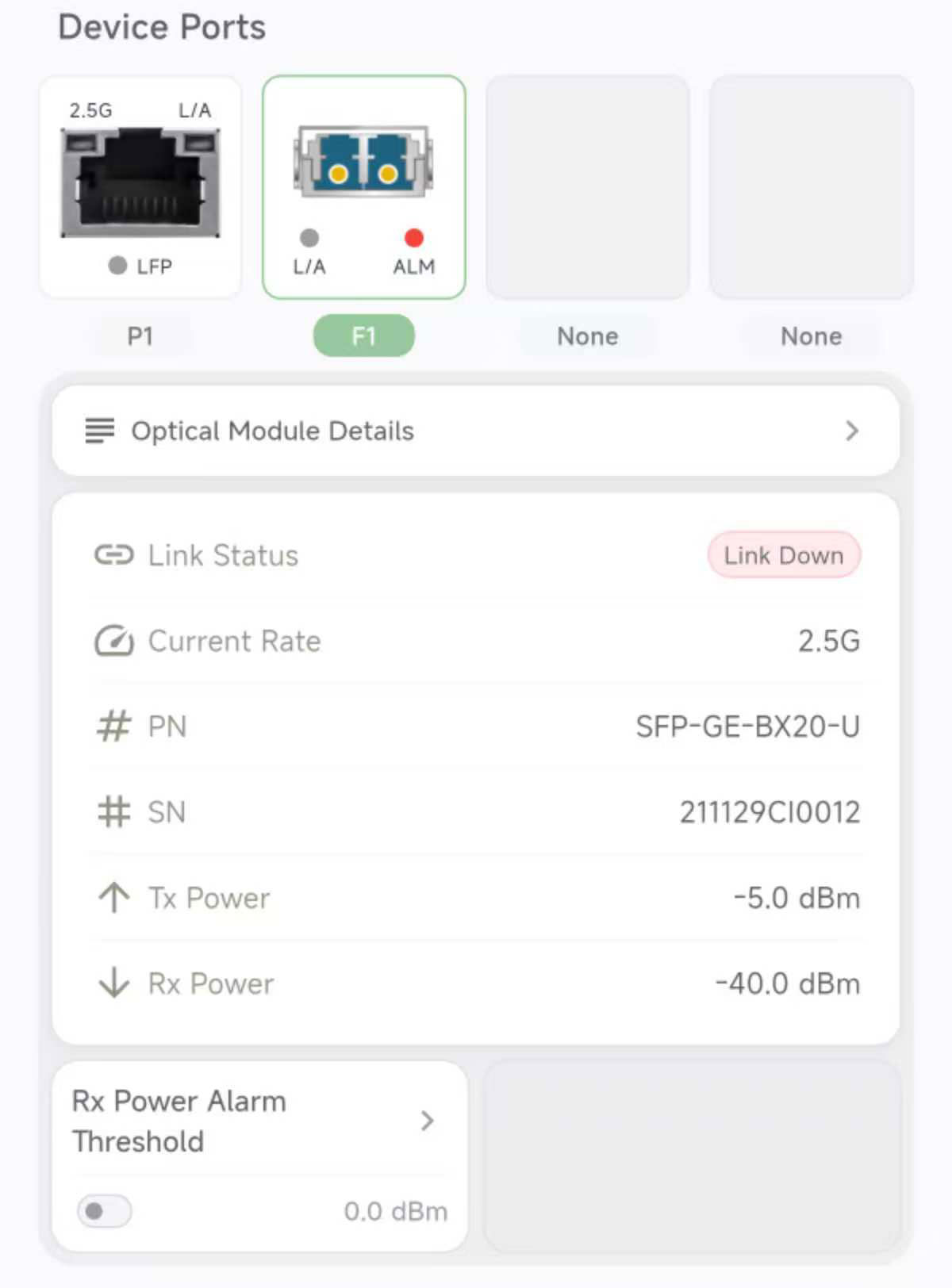

SFP Port Status |
Link Status |
|
||
|
PN/SN |
||||
|
TX Power |
||||
|
RX Power |
||||
|
All DDM Information |
||||
|

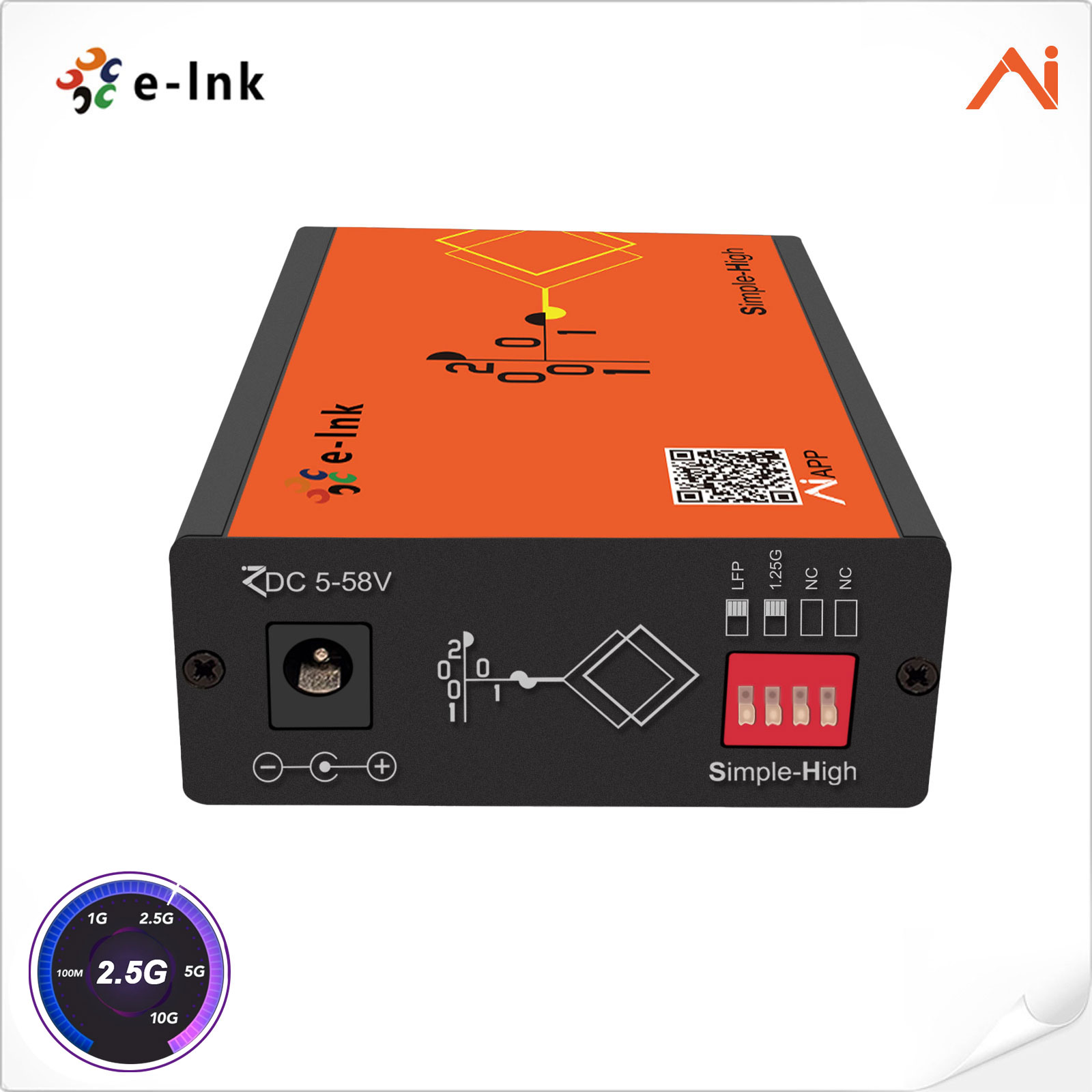

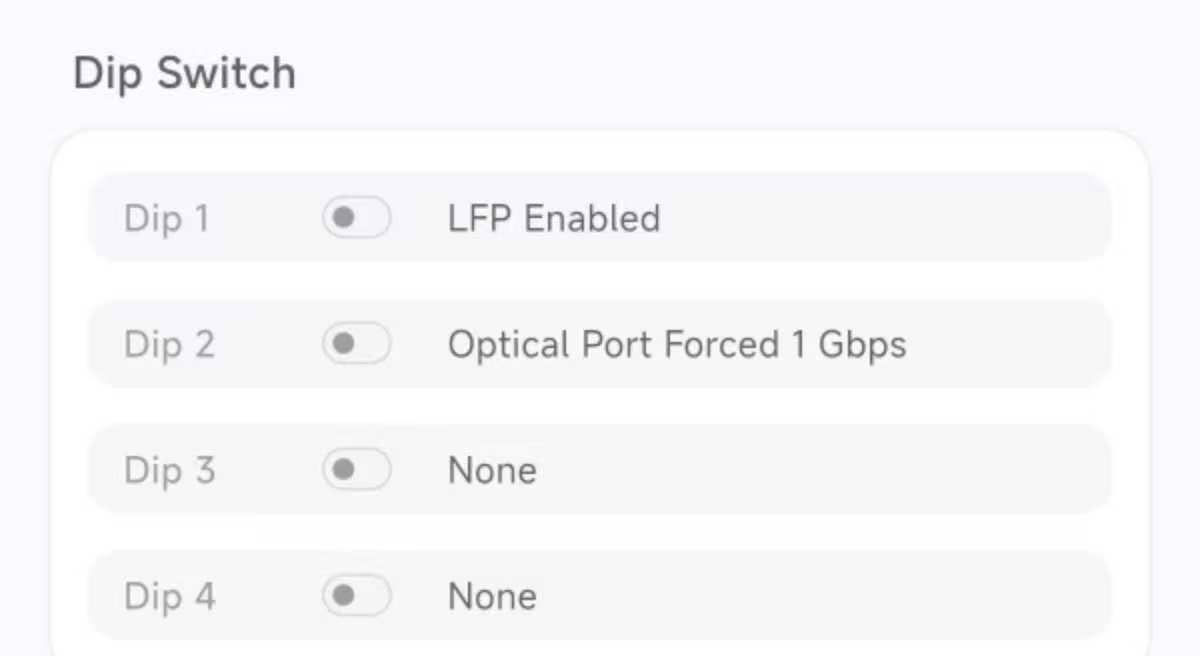

DIP Switch |
Dip1 |
LFP |
|
|
|
Dip2 |
Force fiber port to 1.25G |
|||
|
Dip3 |
NC |
|||
|
Dip4 |
NC |
|||
|
Fiber Port Alarm |
Support |
|
||
|

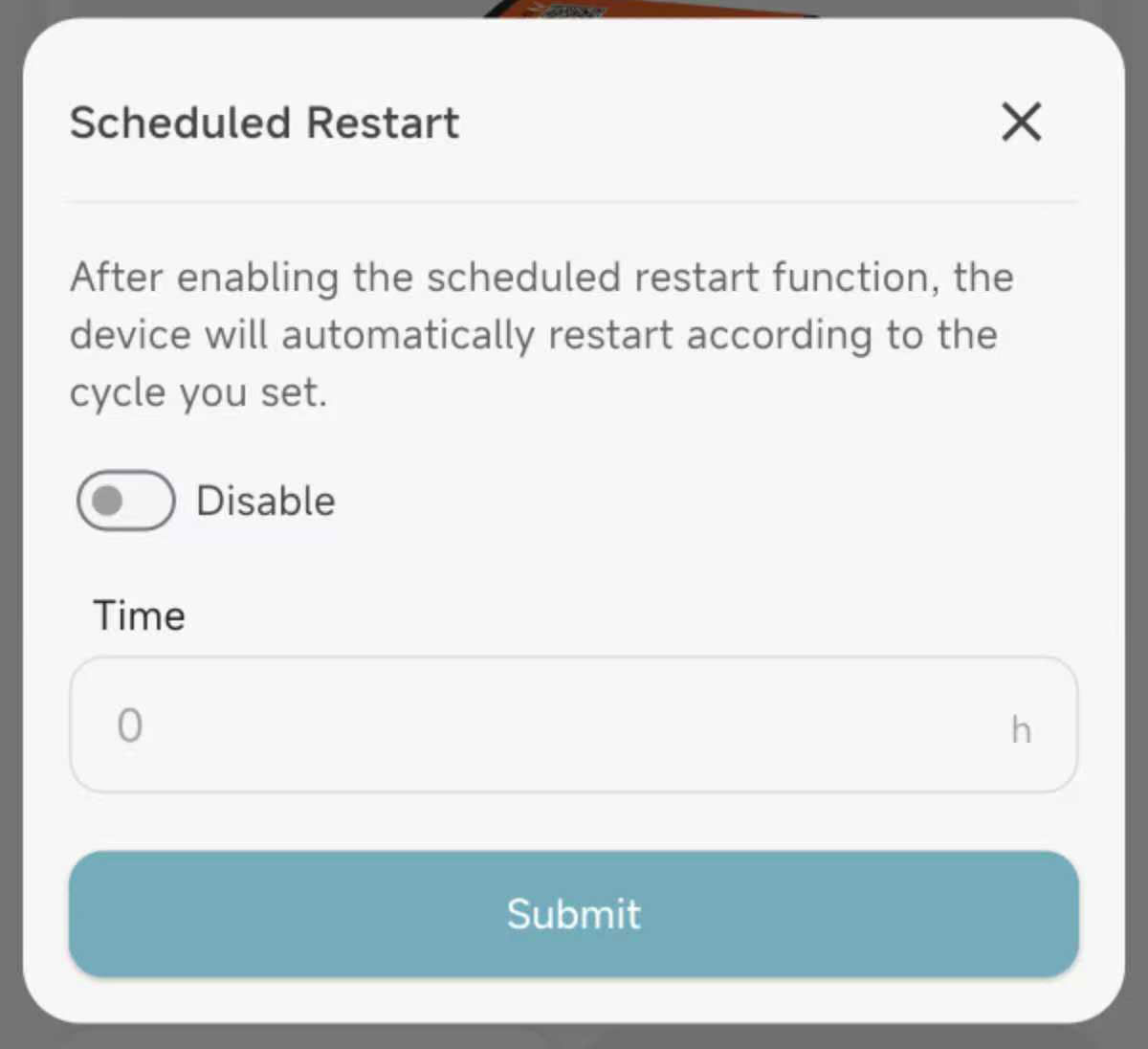

Scheduled Reset |
Support |
|
||
|
Interface Port |
||||
|
Ethernet Port |
10/100/1000/2500BASE-T Ethernet RJ45 interface Auto-negotiation, auto MDI/MDI-X |
|||
|
Cable: Cat 3/4/5/6/7 UTP Cable |
||||
|
SFP Port |
1 x 1.25G/2.5G SFP |
|||
|
Cable: Multi-Mode: 50/125um or 62.5/125um fiber optic cable, distance: 550m/2km; Single Mode: 9/125um fiber optic cable, distance: 20/40/80/100/120/160/200km |
||||
|
Electrical and Mechanical |
||||
|
Input Power |
5~58V DC, 5.5 x 2.1 mm Power Socket |
|||
|
External AC-to-DC Adapter |
||||
|
Power Consumption |
3W Max. |
|||
|
Dimensions (W x D x H) |
93 x 71 x 29 mm |
|||
|
Weight |
100g |
|||
|
Casing |
Aluminum Case |
|||
|
Mounting Options |
Desktop or mounted on standard 14 slots rack |
|||
|
LED Indicators |
||||
|
SYS |
Green LED Slow Blink: Operating normally |
|||
|
Orange LED Blink: Data communication in progress |
||||
|
P1 1G |
Solid On: Ethernet port link rate is 2.5G |
|||
|
Off: Ethernet port no link or link rate is 10M/100M/1000M |
||||
|
P1 L/A |
Solid On: Ethernet port link established |
|||
|
Blinking: Data transmission |
||||
|
Off: Ethernet port no link |
||||
|
F1 L/A |
Solid On: SFP port link established |
|||
|
Blinking: Data transmission |
||||
|
Off: SFP port no link |
||||
|
F1 ALM |
Red LED Solid On: Received optical power below threshold |
|||
|
Orange LED Solid On: Received optical power near threshold |
||||
|
Off: Received optical power normal |
||||
|
LFP |
Solid On: LFP function enabled |
|||
|
Blinking: SFP port or Ethernet port forcibly closed or connection interrupted |
||||
|
Off: LFP function not enabled |
||||
|
Environmental |
||||
|
Operating Temperature |
-20°C to 70°C (-20°F to 162°F) |
|||
|
Storage Temperature |
-40°C to 85°C (-40°F to 185°F) |
|||
|
Relative Humidity |
5% to 95% non-condensing |
|||
|
MTBF |
> 200,000 hrs |
|||
|
Regulatory Approvals |
||||
|
ISO9001, CE, FCC Part 15 Class A, RoHS |
||||
- Download FileName：E-link LNK-AI2500M-SFP AI Smart Managed Media Converter Datasheet V1.0 20260124.pdf Size： 2.55MB
|
Model |
Description |
|
LNK-AI2500M-SFP |
1-Port 1000/2500Base-X SFP to 1-Port 10/100/1000/2500BASE-T AI Smart Managed Fiber Media Converter, Include AC-DC Power Adapter |
|
SFP Options |
► SFP option. Please select your SFP on our SFP Options Page. |
|
► SFP module is to be purchased separately. |
