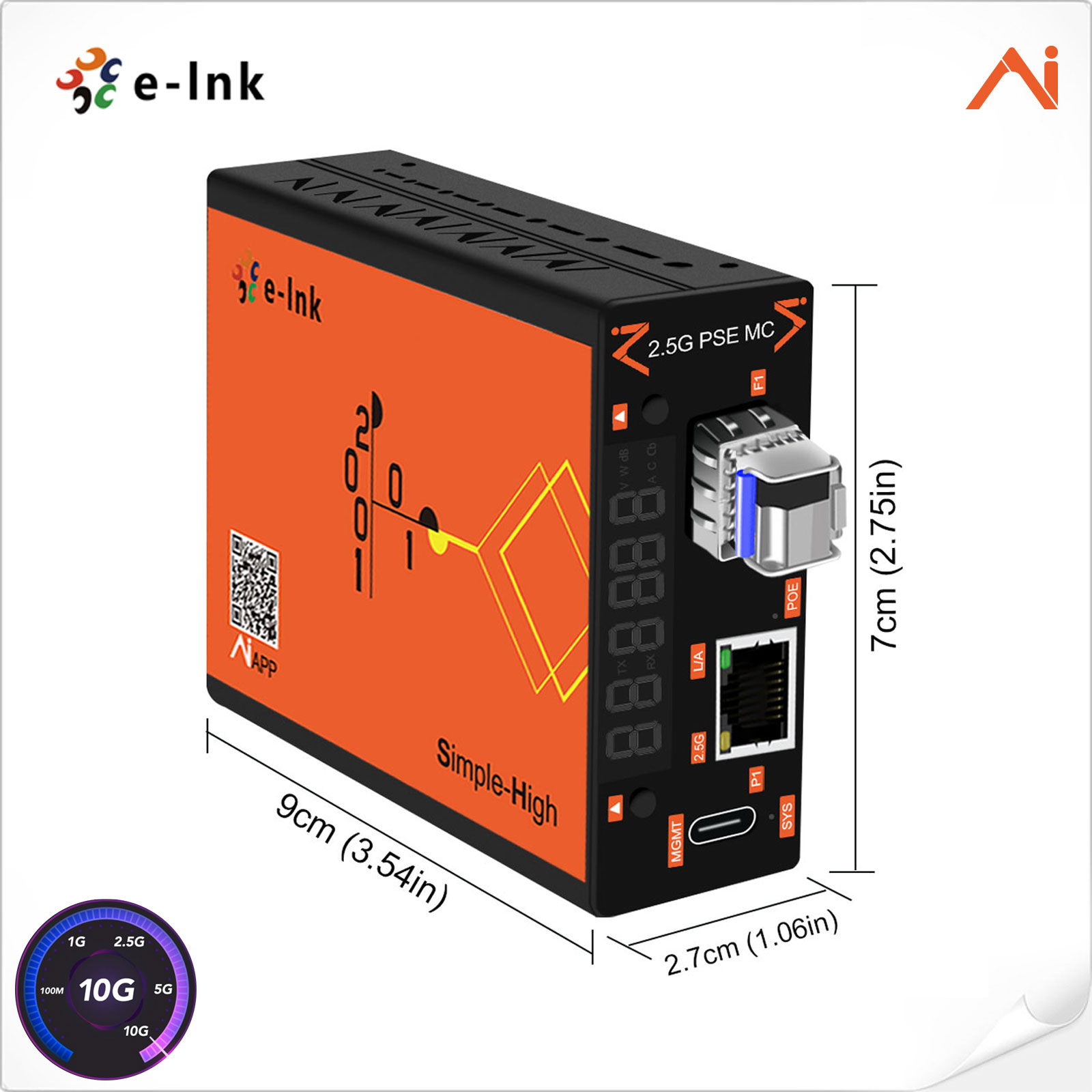

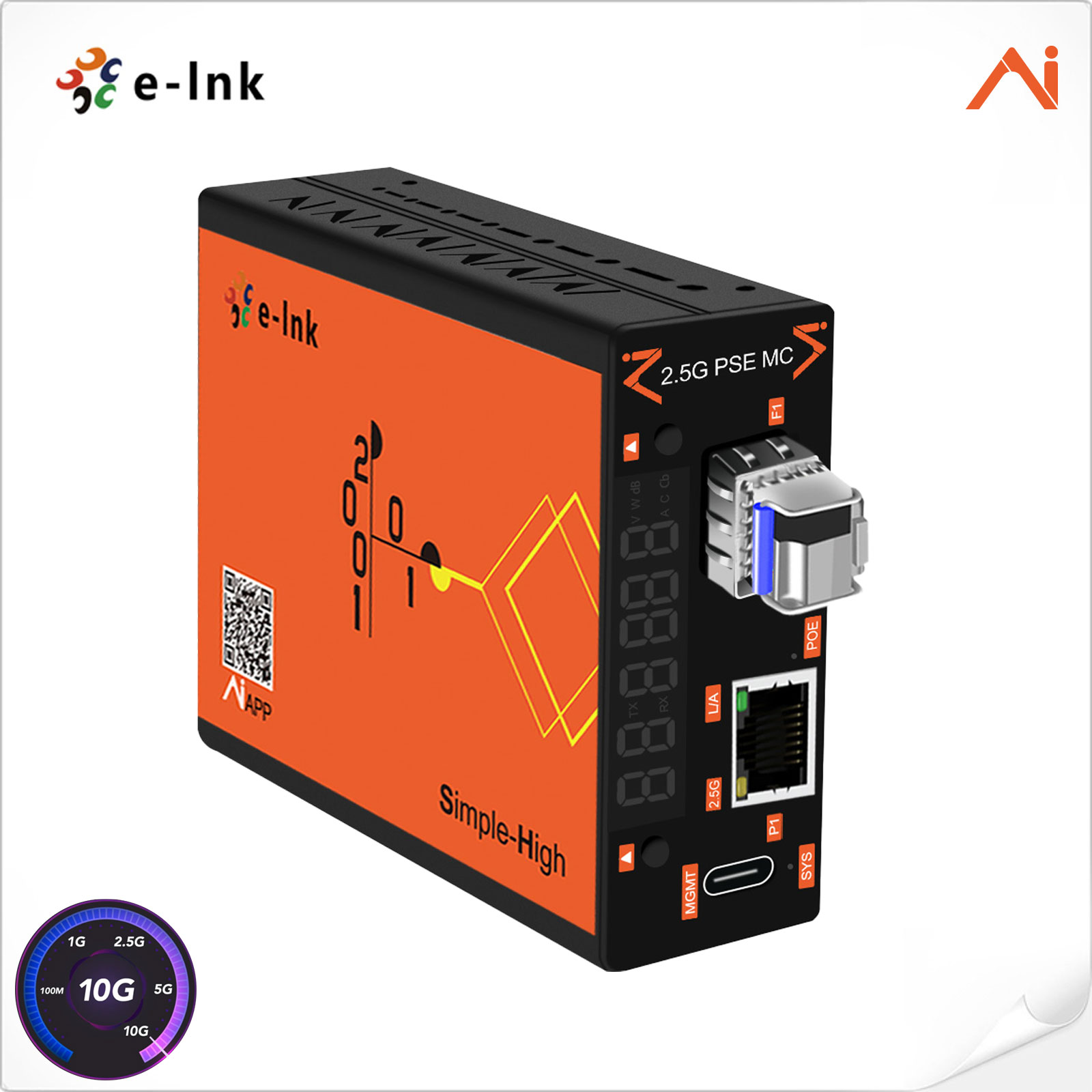

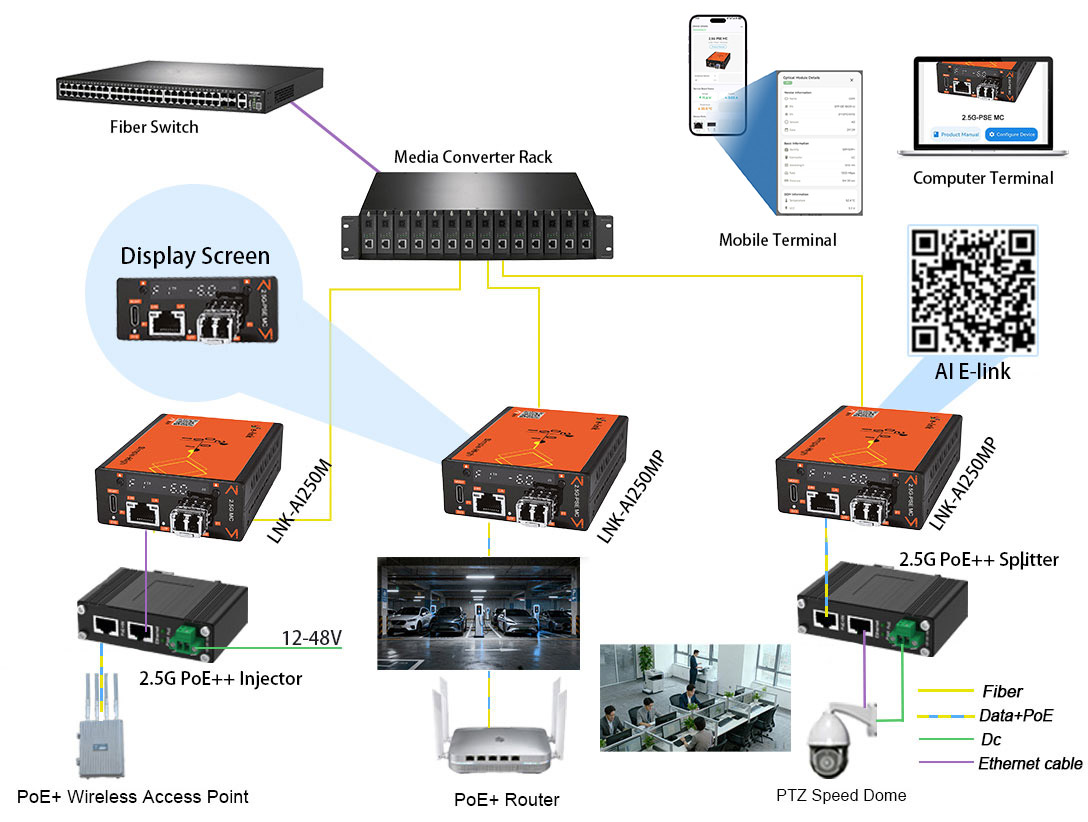

AI Smart Managed 10/100/1000/2500Mbps Gigabit Fiber PoE Media Converter

Access Mode

1000/2500BASE-X SFP/SFP+ to 10/100/1000/2500BASE-T RJ45 PSE IEEE802.3af/at/bt 95W

Ethernet

Standards:

Standards Compliance IEEE 802.3 Ethernet

IEEE 802.3u Fast Ethernet

IEEE 802.3ab Gigabit Ethernet

IEEE 802.3az (Energy Efficient Ethernet)

IEEE 802.3bz(2.5GBASE-T)

IEEE802.3x

Processing Type

Store-and-Forward

Forward Filter Rate

14,880pps (10Mbps)

148,800pps (100Mbps)

1,488,000pps (1000Mbps)

2,976,000pps (2500Mbps)

Packet Buffer Memory

1 Mbit

Max Packet Length

9K Bytes

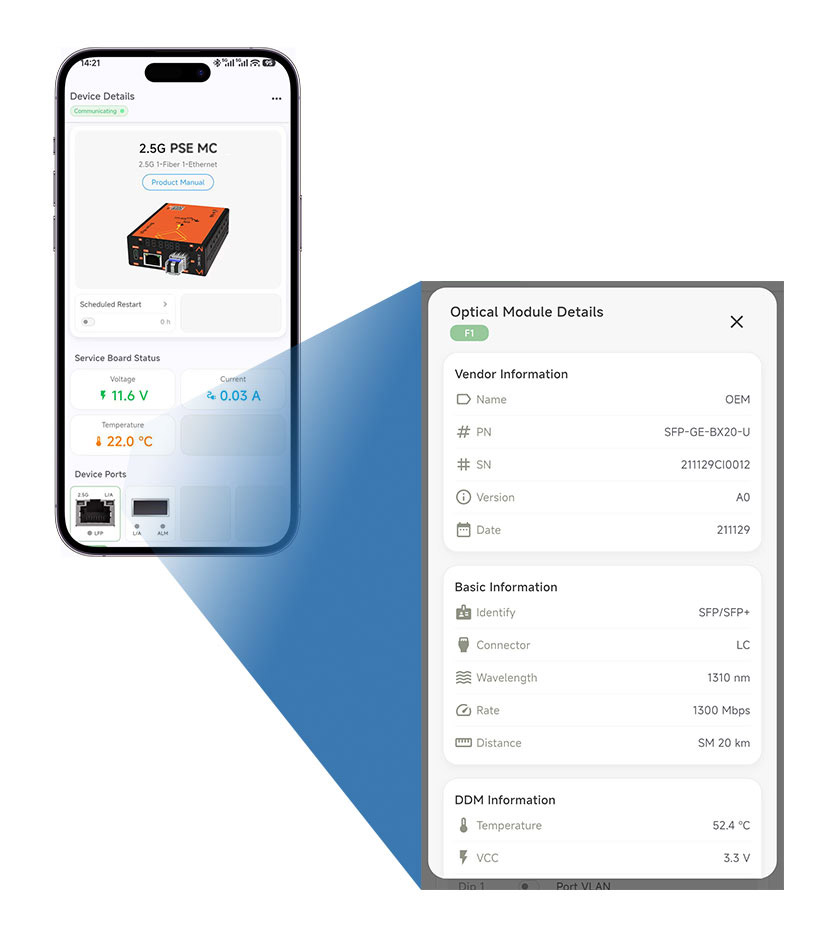

AI Smart Managed Functions

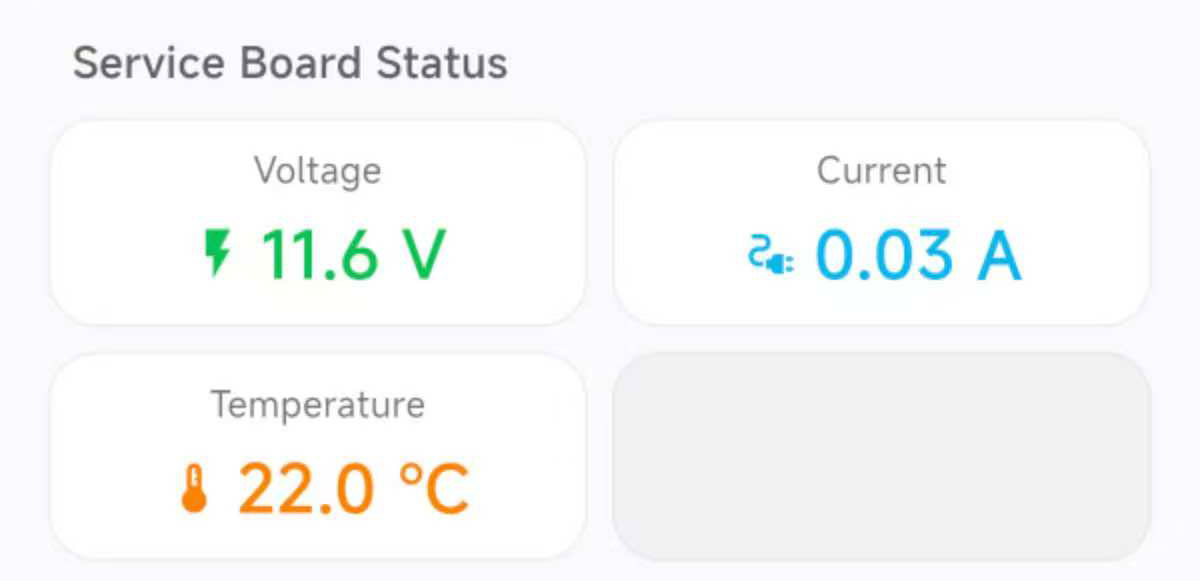

Service Board Status

Temperature

Voltage

Current

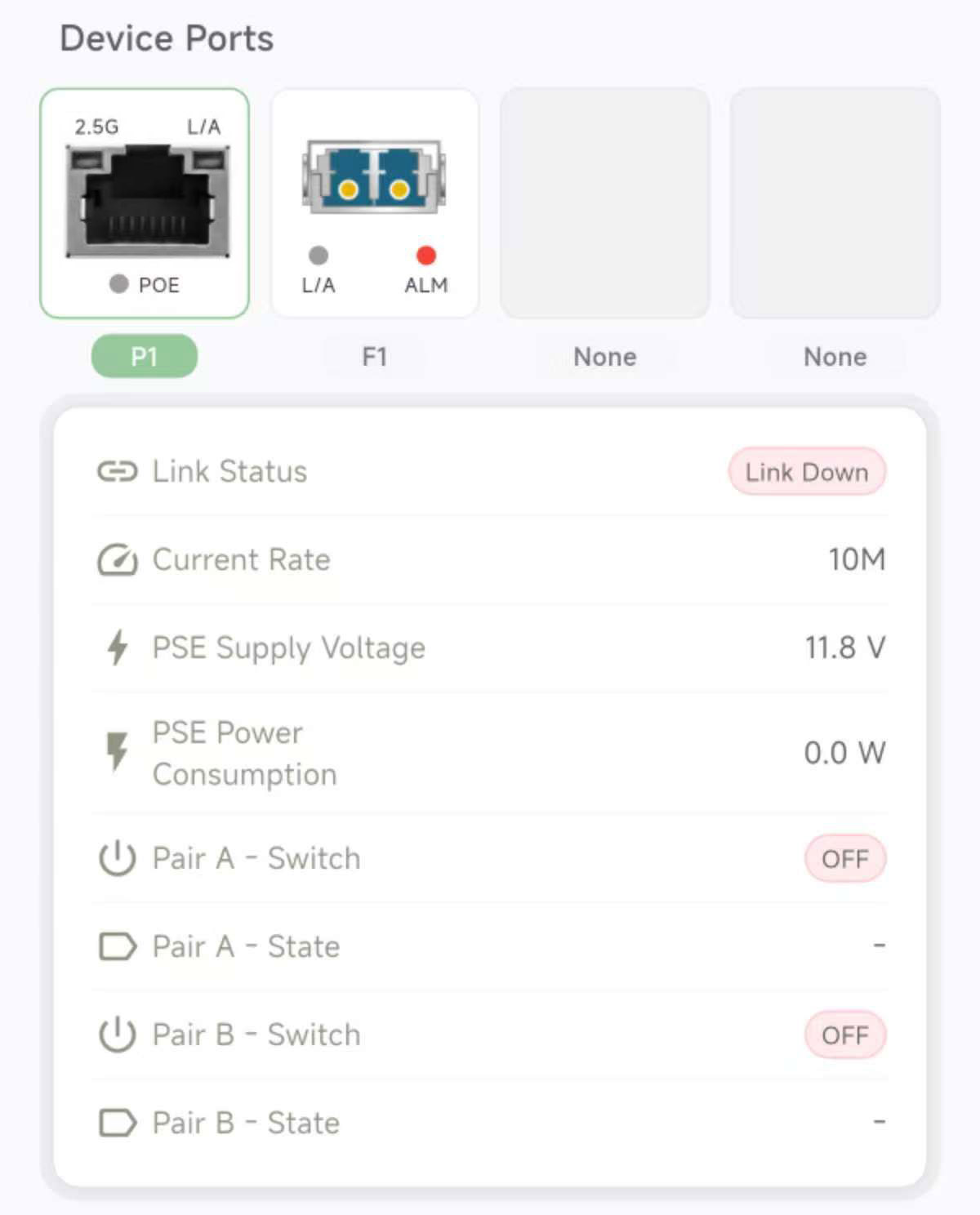

RJ45 Port Status

Link Status

Rate

LFP Status

PSE Supply Voltage

PSE Power Consumption

Power Pin Assignment

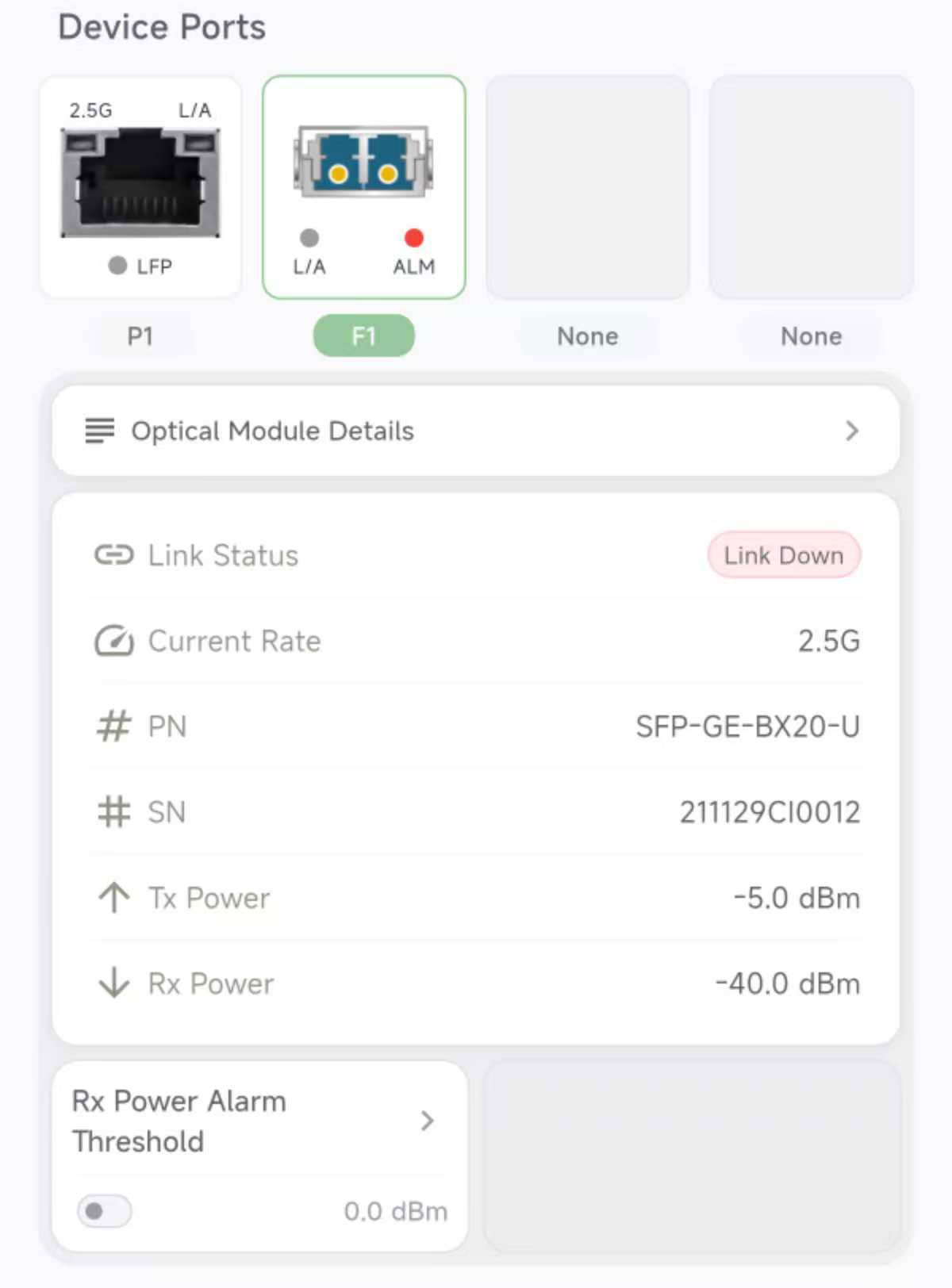

SFP Port Status

Link Status

PN/SN

TX Power

RX Power

All DDM Information

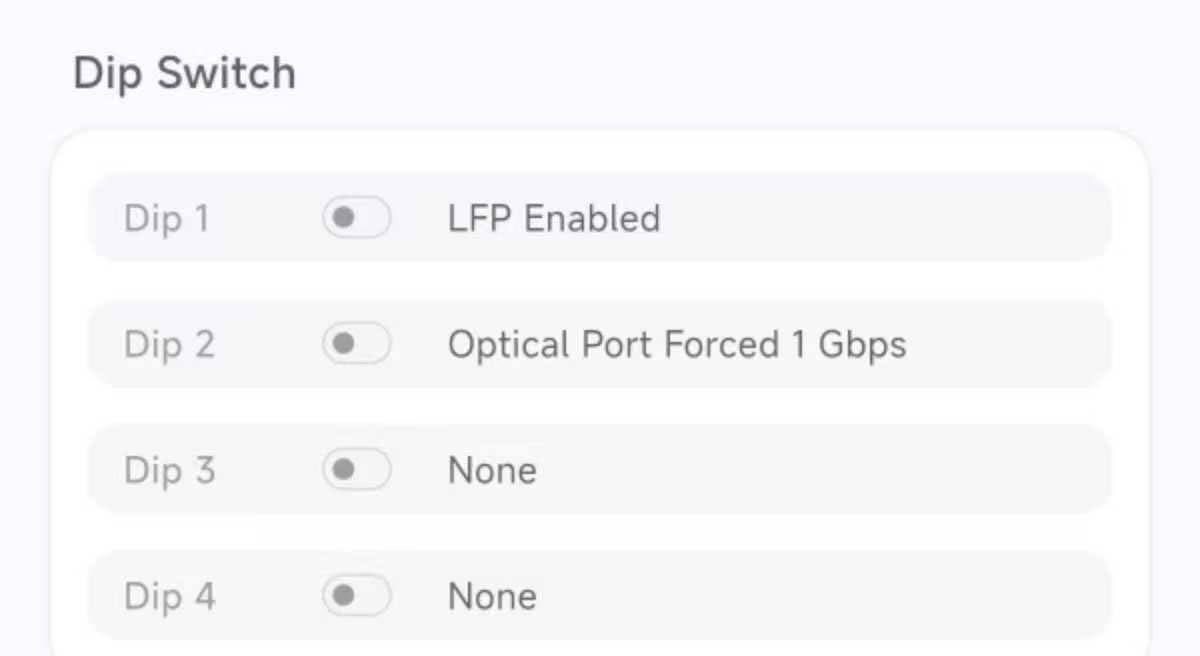

DIP Switch

Dip1

LFP

Dip2

Force fiber port 1.25G

Dip3

NC

Dip4

NC

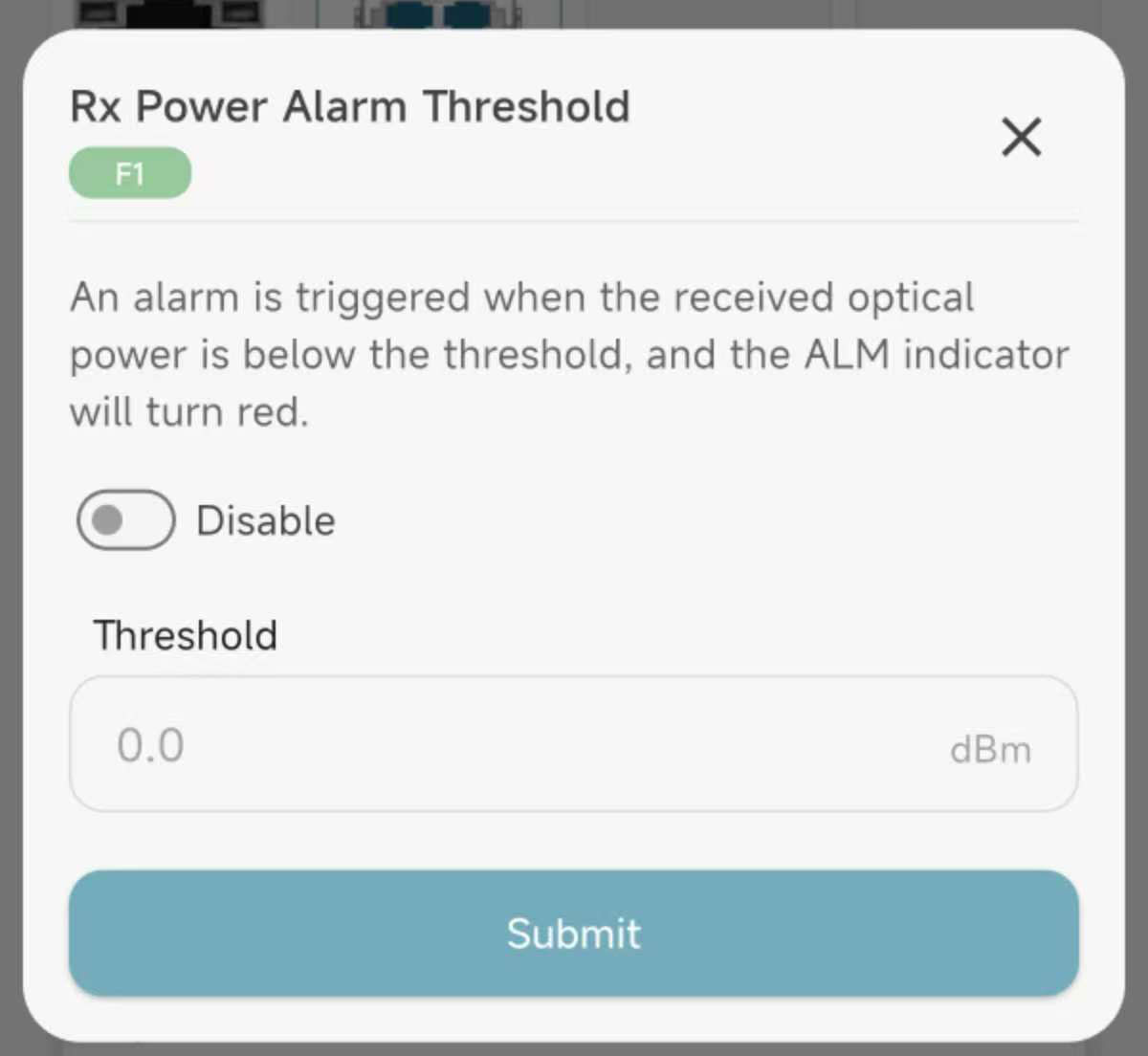

Fiber Port Alarm

Support

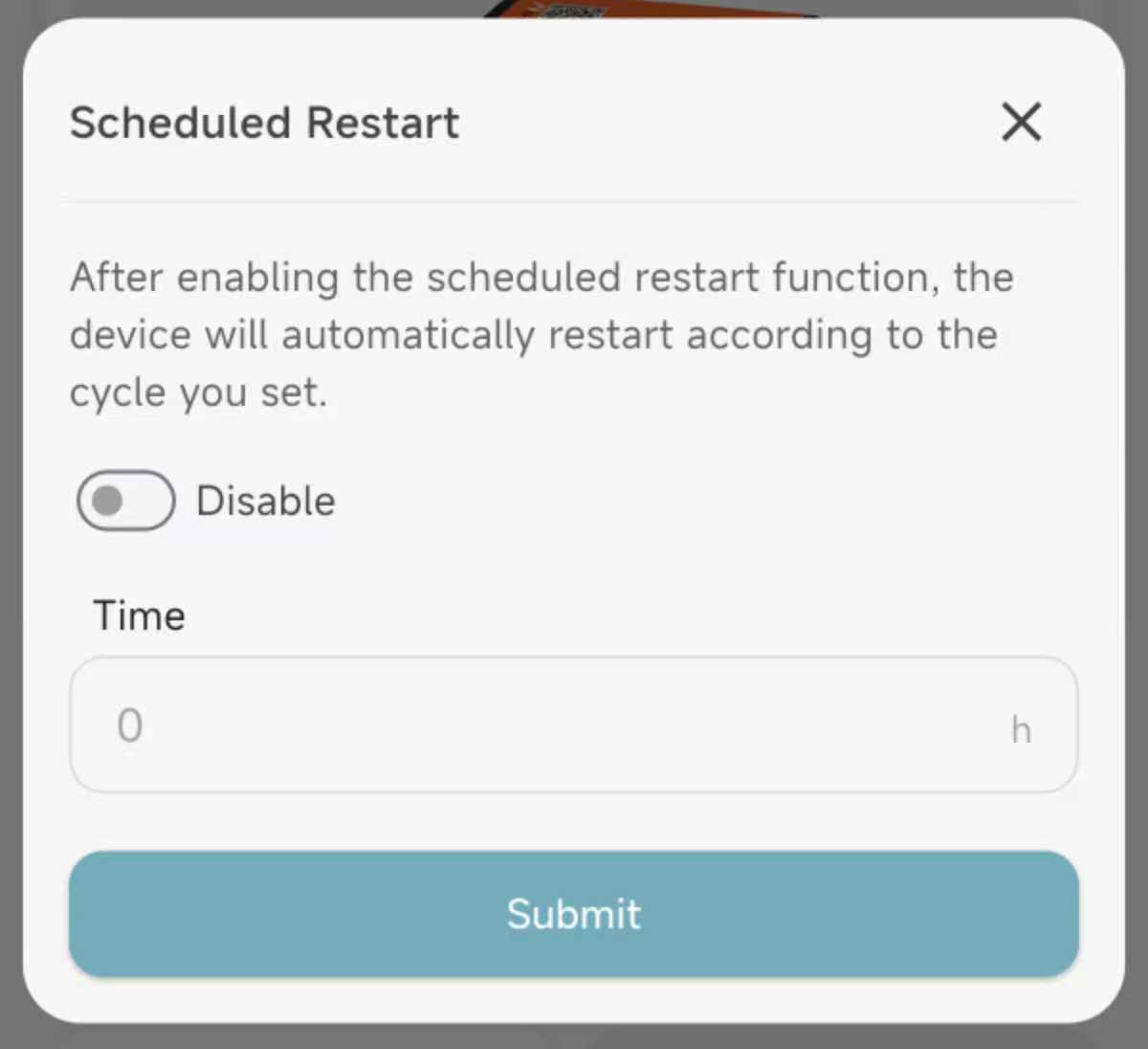

Scheduled Reset

Support

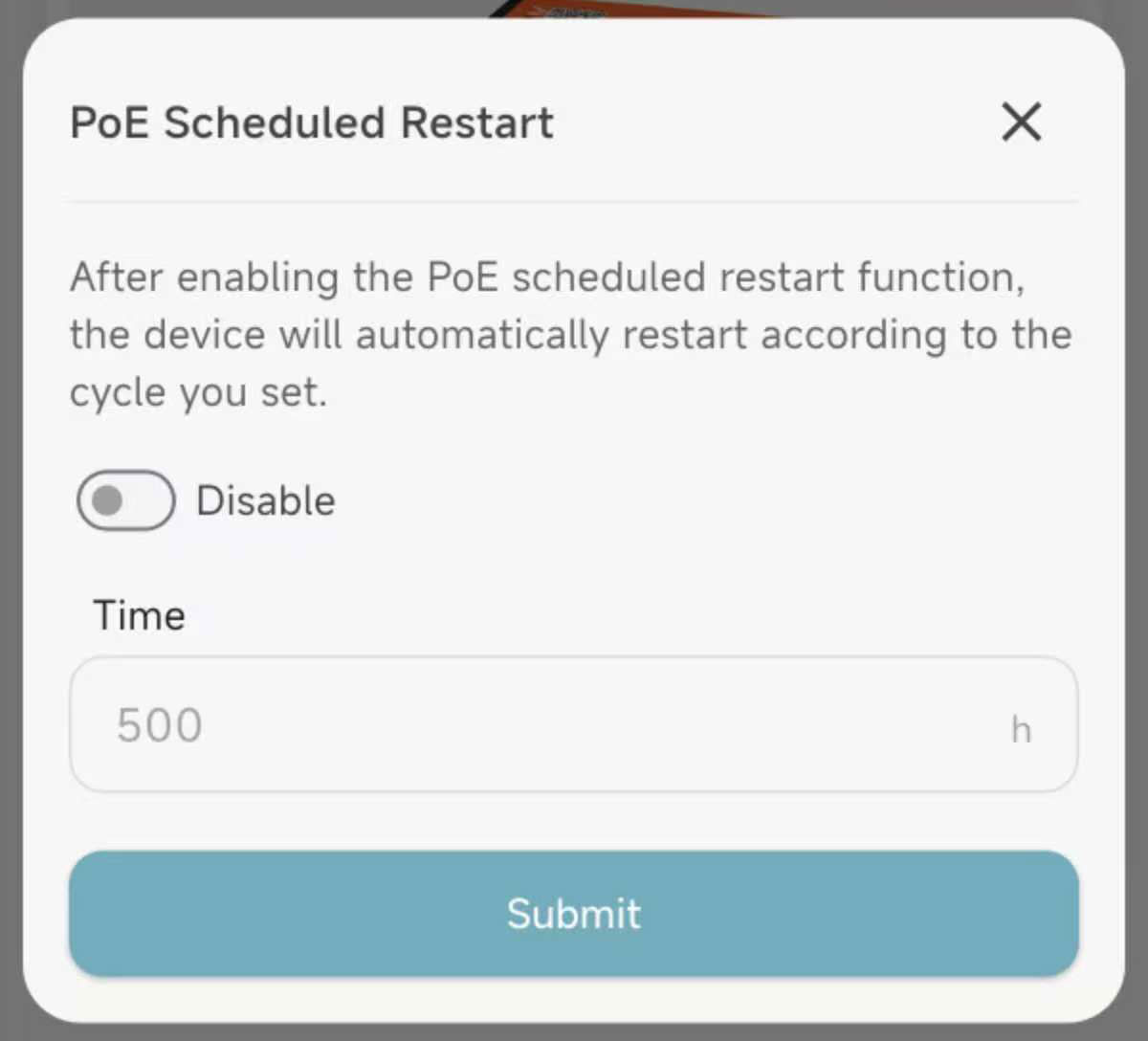

PoE Power Scheduled

Support

Interface Port

Ethernet Port

10/100/1000/2500BASE-T Ethernet RJ45 interface Auto-negotiation, auto MDI/MDI-X

Cable: Cat 3/4/5/6/7 UTP Cable

SFP Port

1 x 1.25G/2.5G SFP

Cable:

Multi-Mode: 50/125um or 62.5/125um fiber optic cable, distance: 550m/2km;

Single Mode: 9/125um fiber optic cable, distance: 20/40/80/100/120/160/200km

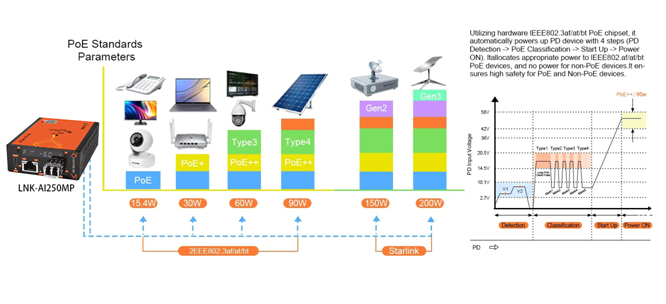

PoE (Power over Ethernet)

Standard

IEEE 802.3af/at/bt PoE++ PSE (af: 15.4W, at: 30W, bt Type3: 60W, bt Type4: 95W)

PoE Power Output

95W max.

Power Pin Assignment

End-span and Mid-span: 1/2(+), 3/6(-), 4/5(+), 7/8(-)

PoE Budget

Up to 95W PoE budget (44-58VDC)

PoE Power Supply Type

802.3bt, End-span + Mid-span (Please contact customer service)

PoE Mode

95W IEEE802.3bt compatible with Mode A, Mode B.

30W IEEE802.3at compatible with Mode B. (if need Mode A please contact customer service)

Electrical and Mechanical

Input Power

44~58V DC, 5.5 x 2.1 mm Power Socket

External AC-to-DC Adapter

Power Consumption

3W Max.

Dimensions (W x D x H)

93 x 71 x 29 mm

Weight

100g

Casing

Aluminum Case

Mounting Options

Desktop or mounted on standard 14 slots rack

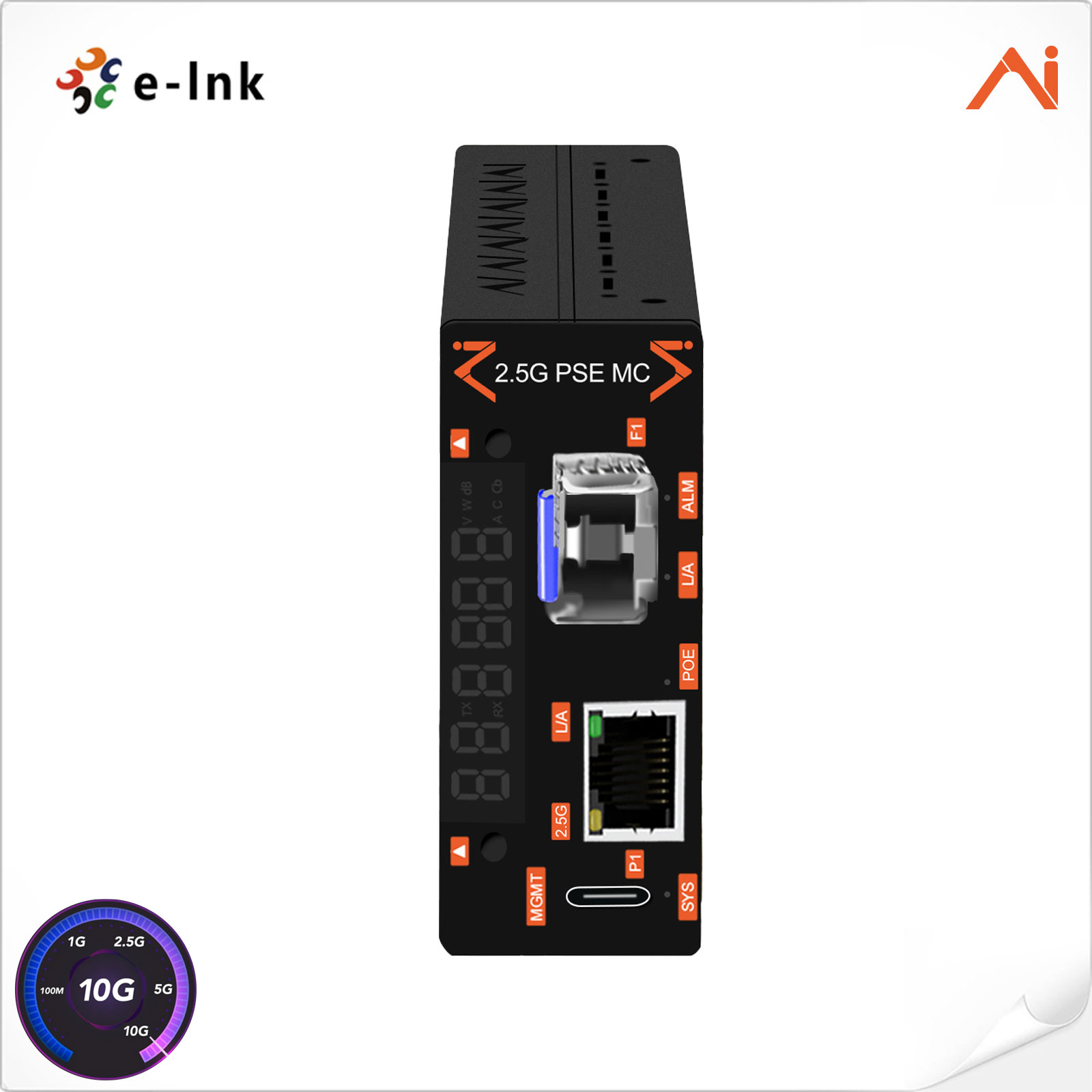

LED Indicators

SYS

Green LED Slow Blink: Operating normally

Orange LED Blink: Data communication in progress

P1 2.5G

Solid On: Ethernet port link rate is 2.5G

Off: Ethernet port no link or link rate is 10M/100M/1000M

P1 L/A

Solid On: Ethernet port link established

Blinking: Data transmission

Off: Ethernet port no link

F1 L/A

Solid On: SFP port link established

Blinking: Data transmission

Off: SFP port no link

F1 ALM

Red LED Solid On: Received optical power below threshold

Orange LED Solid On: Received optical power near threshold

Off: Received optical power normal

POE

Green LED Slow Blink: Connected to a PD

Red LED Solid On: Abnormal

Off: Not connected PD

Environmental

Operating Temperature

-20°C to 70°C (-20°F to 162°F)

Storage Temperature

-40°C to 85°C (-40°F to 185°F)

Relative Humidity

5% to 95% non-condensing

MTBF

> 200,000 hrs

Regulatory Approvals

ISO9001, CE, FCC Part 15 Class A, RoHS
