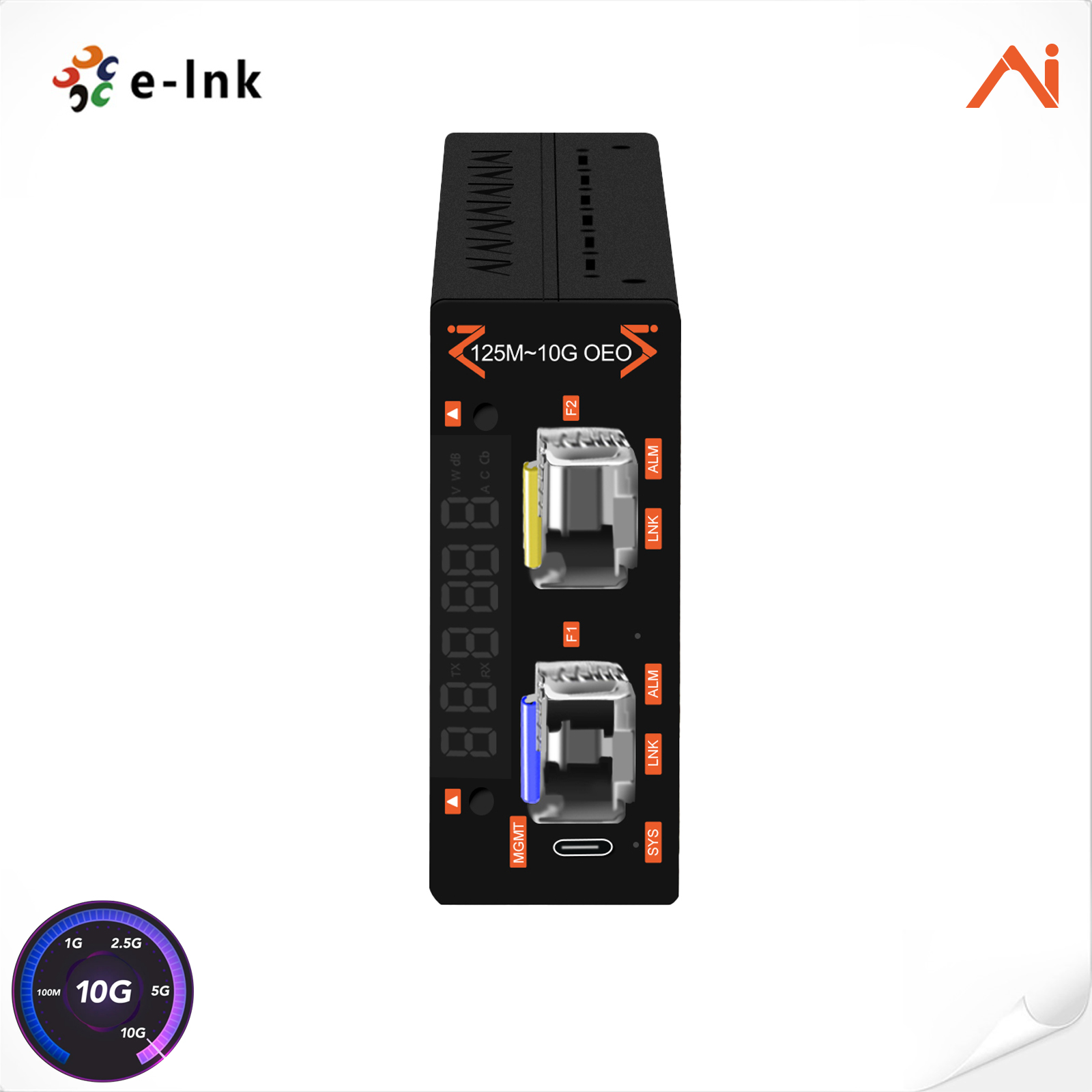

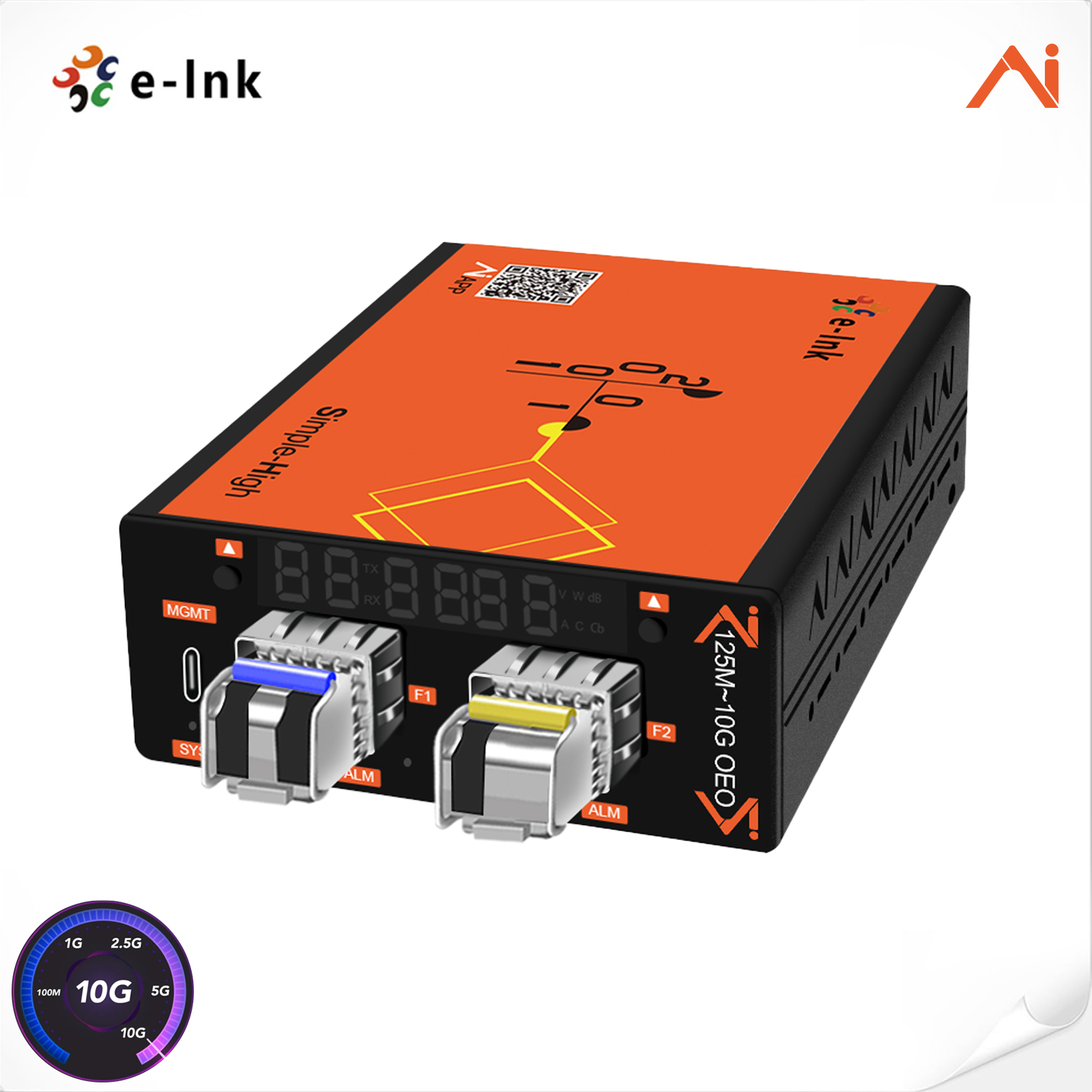

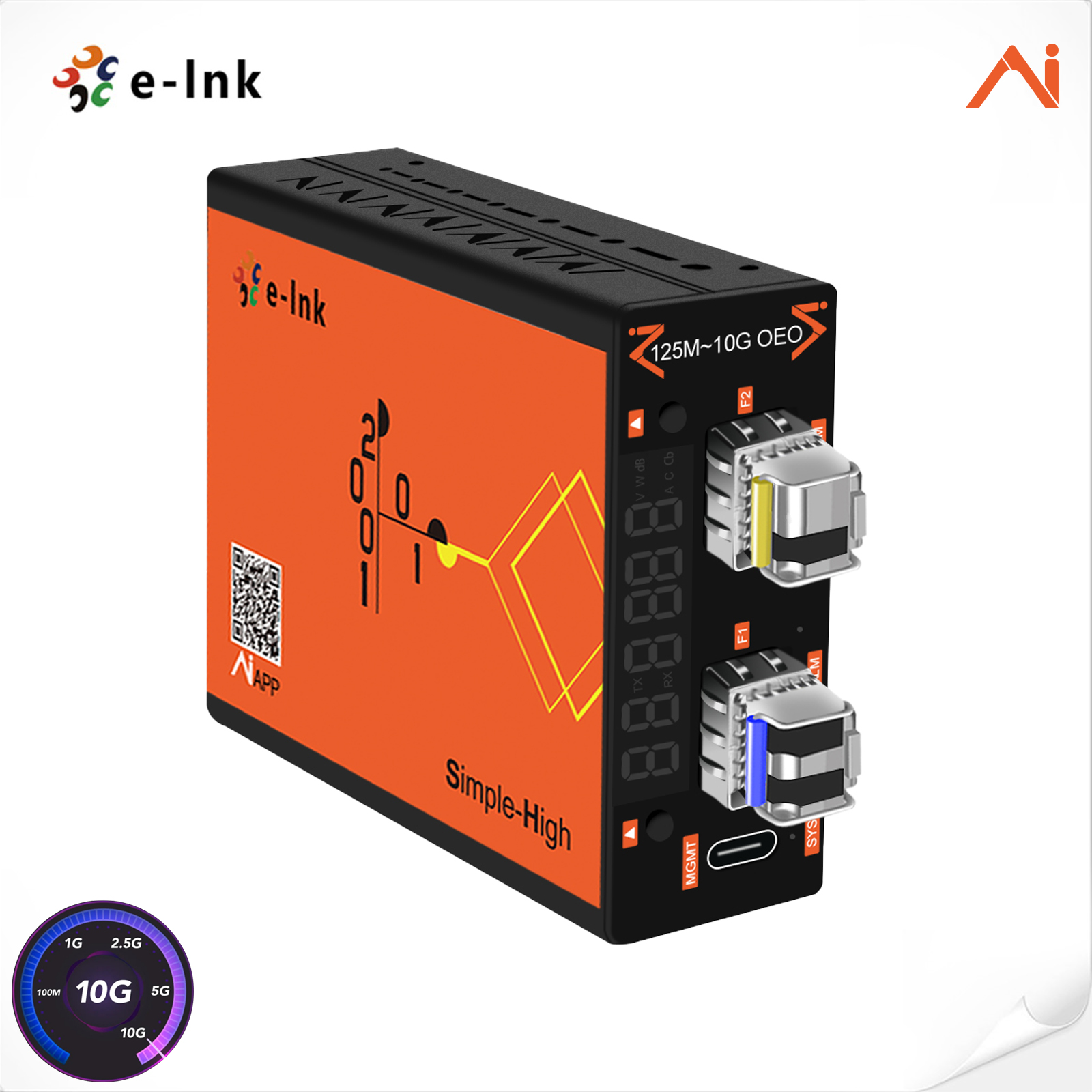

AI Smart Managed 125M-10G Repeater OEO Converter
Model:LNK-AI2402-OEO

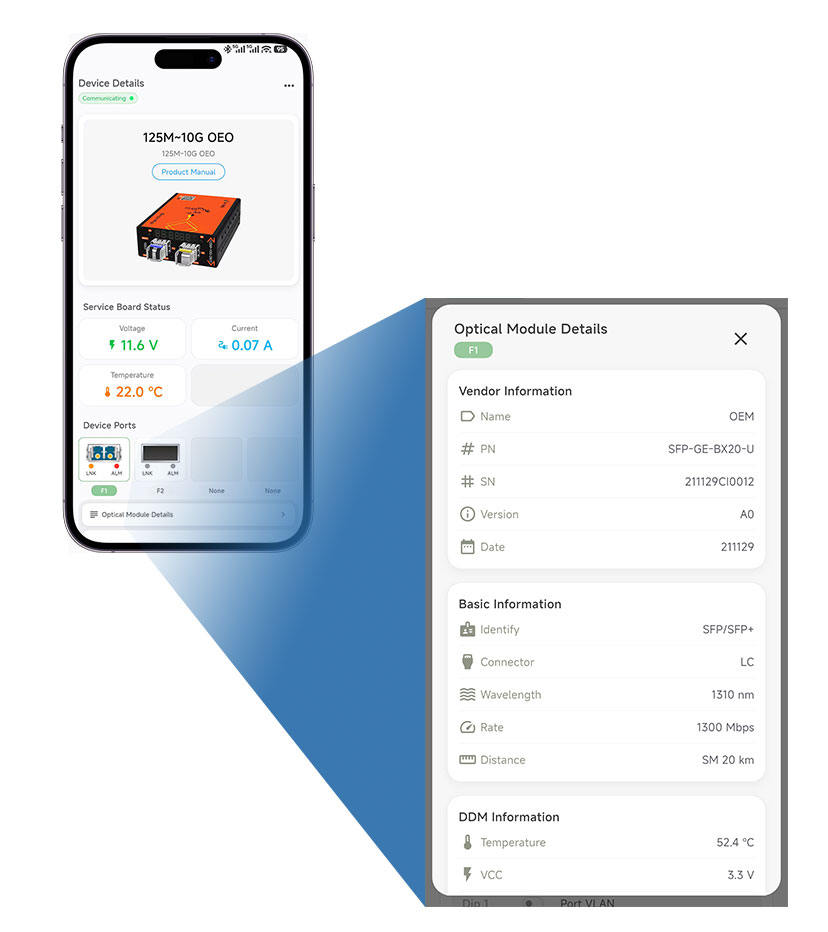

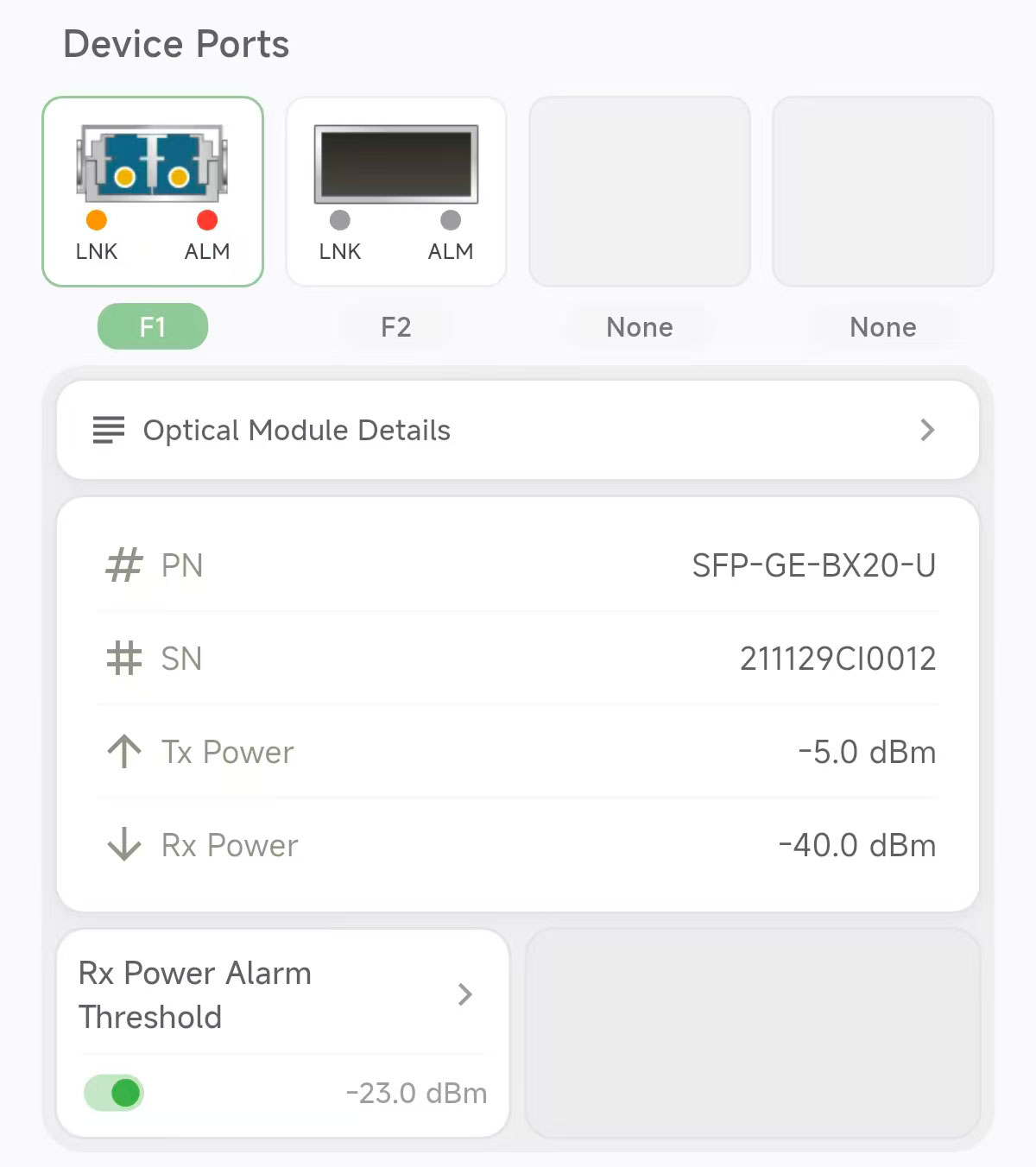

► Mobile APP / Web Management: Monitoring and control via self-developed Mobile APP or Web interface.
► Build-in Front Panel Screen Display: Front panel screen with buttons displays page by page the real-time information including current, voltage, temperature, TX/RX optical power, data rate.
► 125M/1.25G/2.5G/3.125G/5G/8.5G/10.3125G/11.3G/14.5G
The LNK-AI2402-OEO series 125M-10G OEO Converter, part of E-link's independently developed AI NETWORK series, redefines device management through intelligent features designed for enhanced efficiency and cost savings. By eliminating the need for dedicated test equipment, this converter allows users to configure devices and monitor real-time status—including power, port conditions, and detailed SFP module data such as optical power, wavelength, transmission distance, data rate, and temperature—directly via a mobile app or its built-in display. Engineered for ease of use, it incorporates multi-alert systems and streamlined maintenance workflows that significantly reduce both installation and operational costs, delivering a highly cost-effective line management solution tailored to modern network demands.

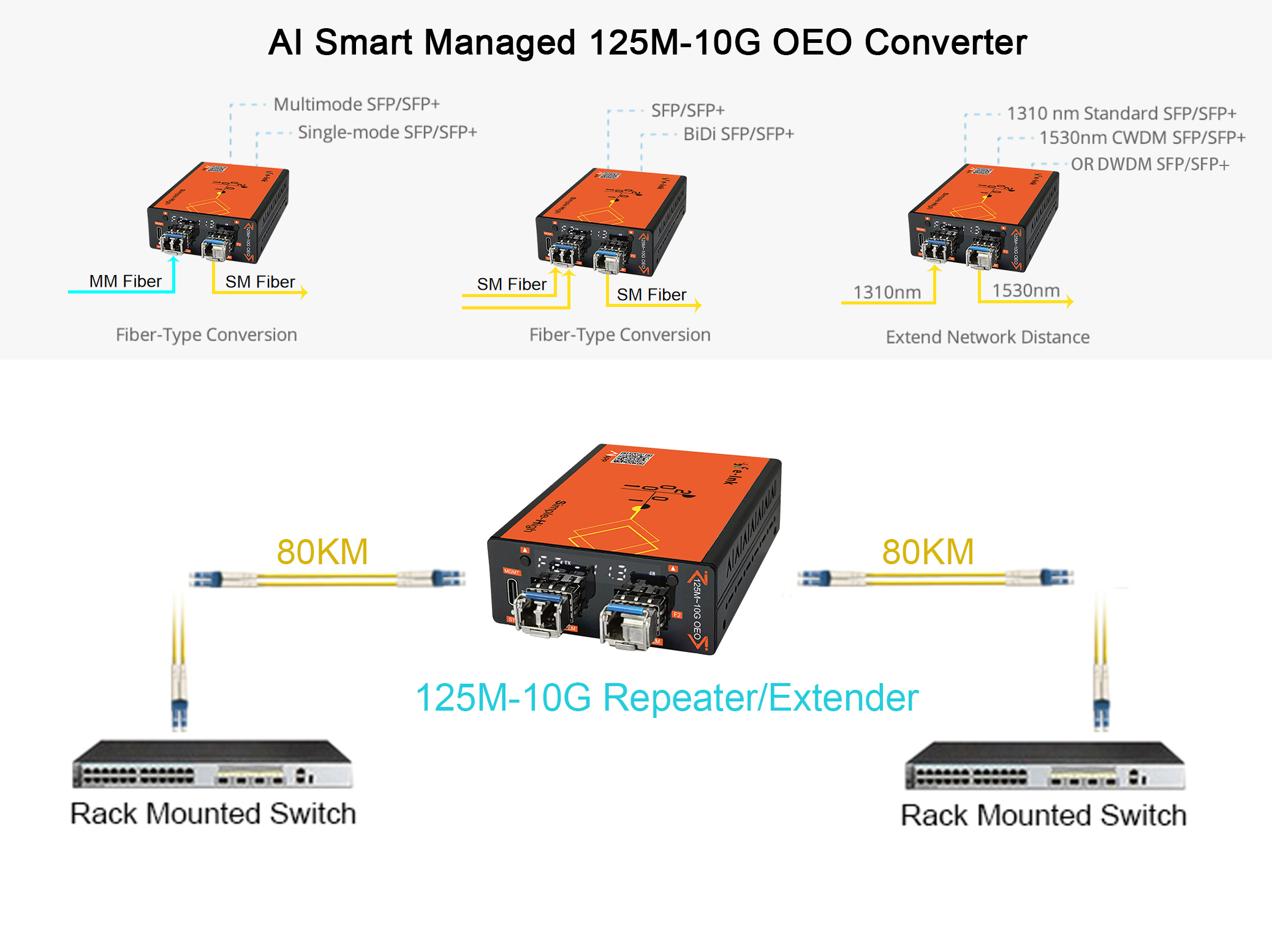

Specifically designed for network backbone applications—including SAN, LAN, and MAN—the converter supports SDH/SONET STM-64/OC-192, 10G Fiber Channel, and 10G Ethernet standards. It is suitable for deployment in R&D laboratories, data centers, and telecommunication rooms. Additionally, the device offers optical wavelength conversion for 1310 nm, 1550 nm, CWDM, and DWDM, and supports loopback testing for comprehensive diagnostics and maintenance.
► Mobile APP / Web Management: Monitoring and control via self-developed Mobile APP or Web interface.
► Build-in Front Panel Screen Display: Front panel screen with buttons displays page by page the real-time information including current, voltage, temperature, TX/RX optical power, data rate.
► User-Friendly Interface, simplified and visual design, with highlighting key parameters, make it easy for even non professionals to operate and maintain devices.
► Type-C port for easy access to device.
► Support loop-back test
► Support 125M/1.25G/2.5G/3.125G/5G/8.5G/10.3125G/11.3G/14.5G
|
Access Mode |
Multi-rate 125M/1.25G/2.5G/3.125G/5G/8.5G/10.3125G/11.3G/14.5G SFP+ to SFP+ slot 10G OEO Converter |
||
|
Fiber Ports |
|||
|
Transmission Speed |
10G: 125Mb/s- 10.3125Gb/s-14.5Gb/s |
||
|
Protocols |
8.5G Fiber Channel |
||
|
SONET OC-192, SDH STM-64 (9.95Gbps) |
|||
|
10G WAN (10Gbps) |
|||
|
10G LAN (10.31Gbps) |
|||
|
OTN OTU-2 (G.709) (10.70Gbps) |
|||
|
10G LAN with 255/237 FEC coding (11.09Gbps) |
|||
|
10G Fiber Channel (11.32Gbps) |
|||
|
10G POS |
|||
|
Optical Port F1 |
1 x SFP/SFP+ 125M/1.25G/2.5G/3.125G/5G/8.5G/10.3125G/11.3G/14.5G (Software Option Acceptable) |
||
|
Optical Port F2 |
1 x SFP/SFP+ 125M/1.25G/2.5G/3.125G/5G/8.5G/10.3125G/11.3G/14.5G (Software Option Acceptable) |
||
|
Max Packet Forwarding Rate |
14,880,950/s |
||
|
Interface port |
|||
|
Management Port |
Standard Type-C port for easy access to device |
||
|
Display Screen |
Display voltage, current, temperature and two optical modules’ TX/RX power, data rate |
||
|
AI Smart Managed Functions |
|||
|

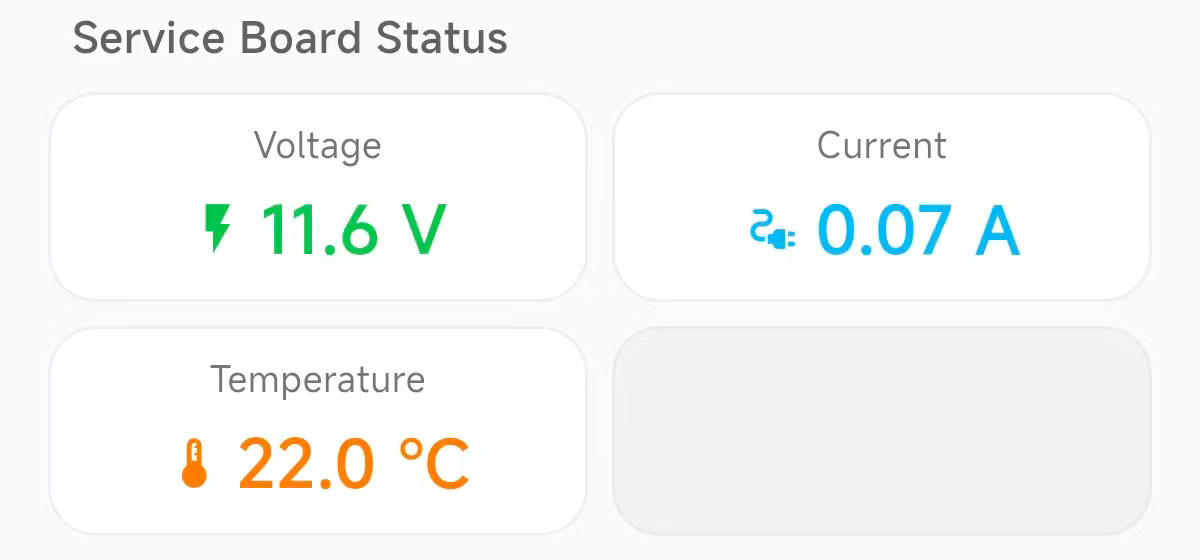

Service Board Status |
Temperature |
|
|
|
Voltage |
|||
|
Current |
|||
|

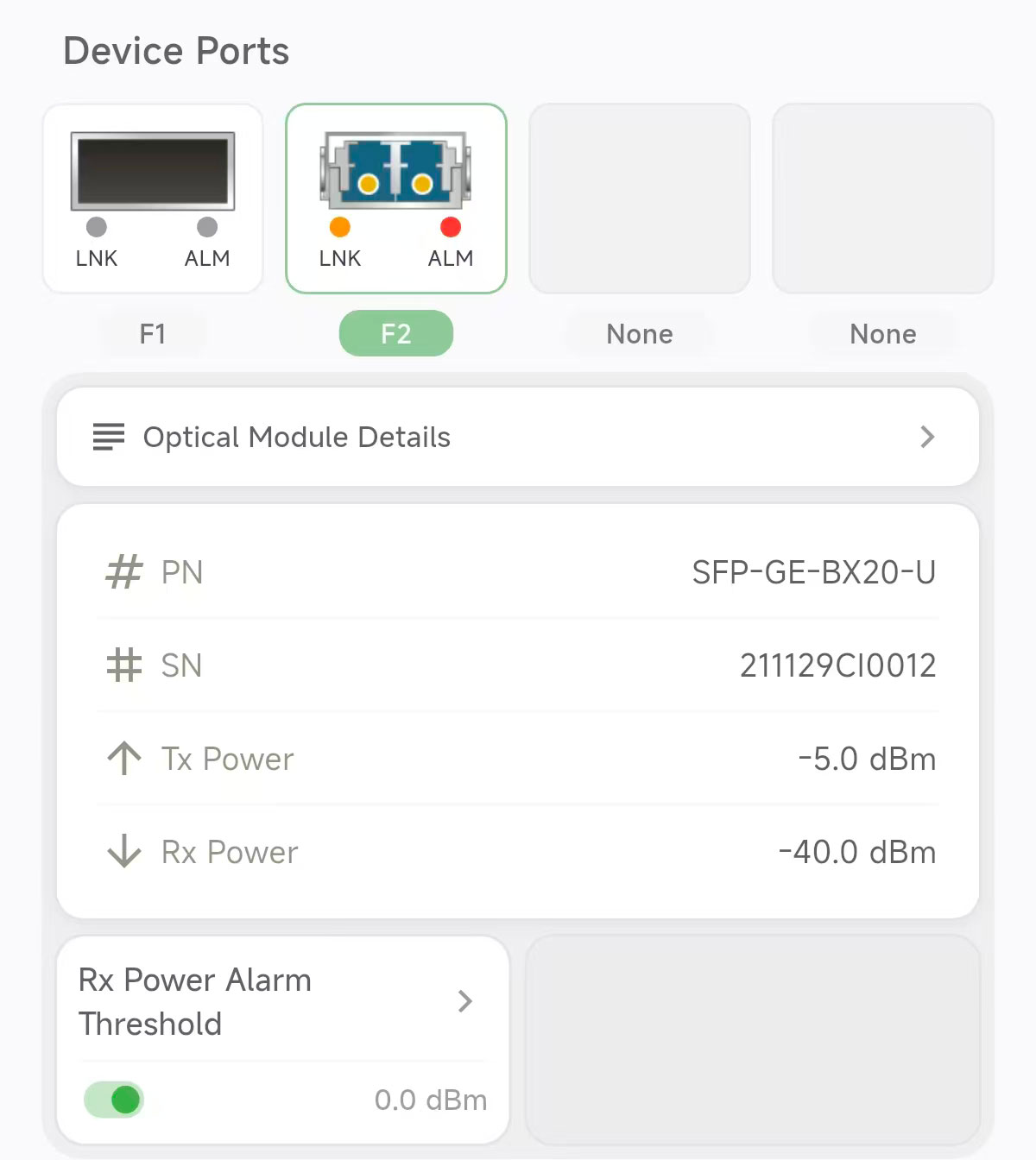

SFP Port F1 |
Link Status |
|
|
|
PN/SN |
|||
|
TX Power |
|||
|
RX Power |
|||
|
All DDM Information |
|||
|
SFP Port F2 |
Link Status |
|
|
|
PN/SN |
|||
|
TX Power |
|||
|
RX Power |
|||
|
All DDM Information |
|||
|

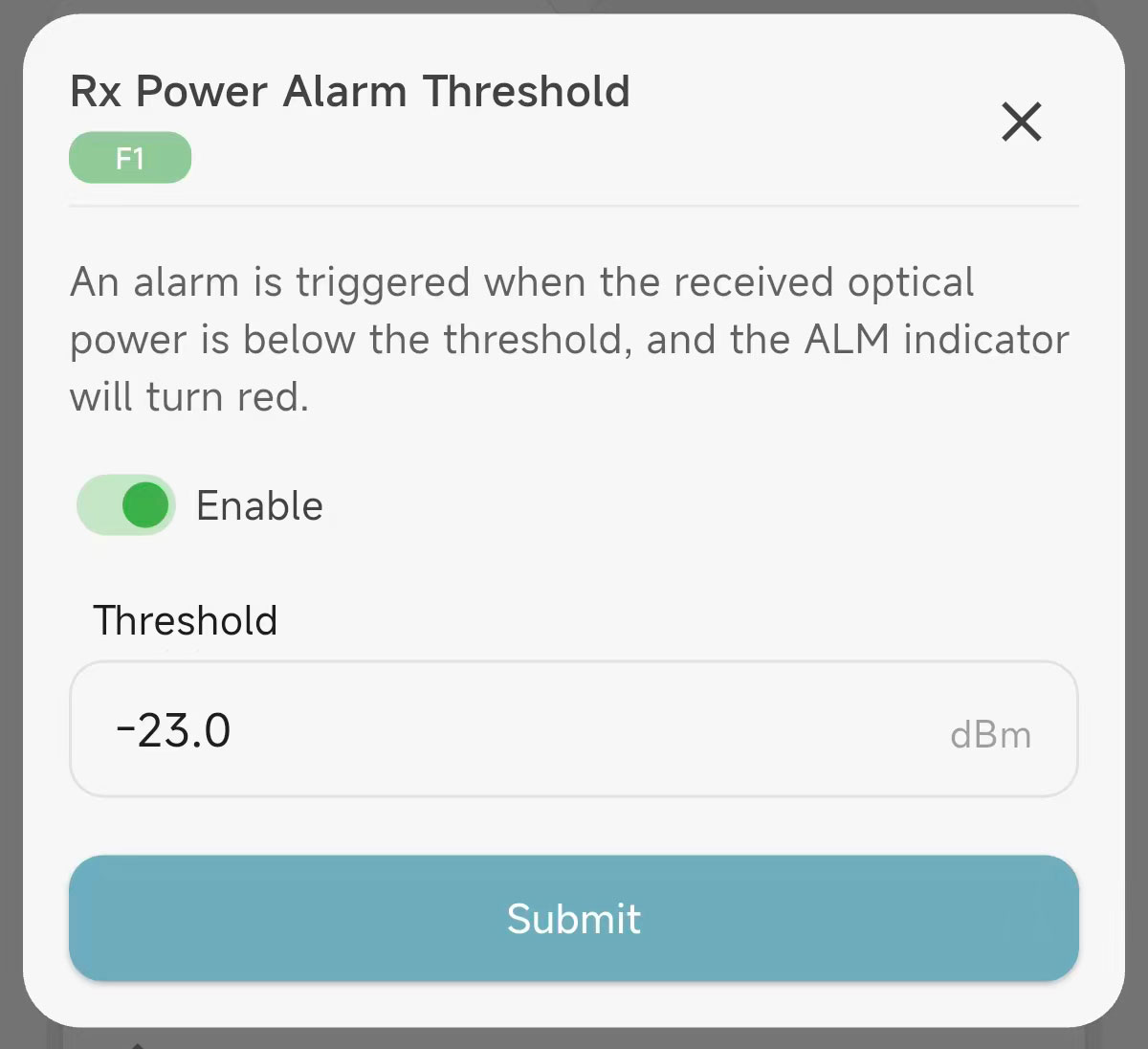

Fiber Port Alarm |
Support |
|
|
|
Scheduled Reset |
Support |
|
|
|
Electrical and Mechanical |
|||
|
Input Power |

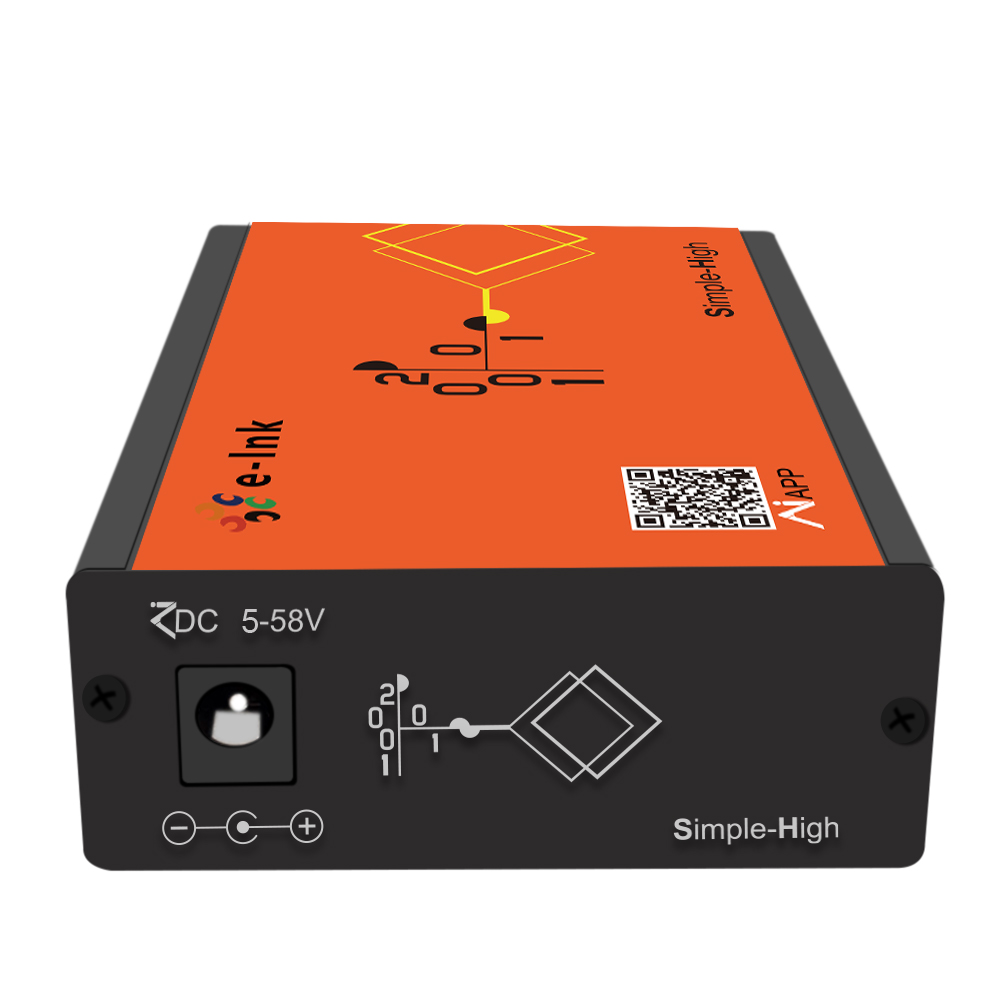

5~58V DC, 5.5 x 2.1 mm Power Socket |
||
|
External AC-to-DC Adapter |
|||
|
Power Consumption |
1W (Not Including SFP modules). |
||
|
Dimensions (W x D x H) |
93 x 71 x 29 mm |
||
|
Weight |
100g |
||
|
Casing |
Aluminum Case |
||
|
Mounting Options |
Desktop or mounted on standard 14 slots rack |
||
|
LED Indicators |
|||
|
SYSF1 (ALM) |
Green LED Slow Blink: Operating normally |
||
|
Orange LED Blink: USB data transmission |
|||
|
F1 (LNK) |
On: Signal Lock |
||
|
Off: No Signal or Signal unlock |
|||
|
F1 (ALM) |
On: Signal Lock |
||
|
Off: No Signal or Signal unlock |
|||
|
On(red): Optical power alarm |
|||
|
F2 (LNK) |
On: Signal Lock |
||
|
Off: No Signal or Signal unlock |
|||
|
F2 (ALM) |
On: Signal Lock |
||
|
Off: No Signal or Signal unlock |
|||
|
On(red): Optical power alarm |
|||
|
Environmental |
|||
|
Operating Temperature |
-20°C to 70°C (-20°F to 162°F) |
||
|
Storage Temperature |
-40°C to 85°C (-40°F to 185°F) |
||
|
Relative Humidity |
5% to 95% non-condensing |
||
|
MTBF |
> 200,000 hrs |
||
|
Regulatory Approvals |
|||
|
ISO9001, CE, FCC Part 15 Class A, RoHS |
|||
- Download FileName：E-link LNK-AI2402-OEO AI Smart Managed 10G OEO Converter Datasheet V1.0 20260124.pdf Size： 3.17MB
|
Model |
Description |
|
LNK-AI2402-OEO |
AI Smart Managed 125M-10G OEO Converter 125M/1.25G/2.5G/3.125G/5G/8.5G/10.3125G/11.3G/14.5G |
|
SFP Options |
► SFP option. Please select your SFP on our SFP Options Page. |
|
► SFP module is to be purchased separately. |
