AI Smart Managed 10G (3R) Repeater OEO Converter
Model:LNK-AI2402-OEO-3R

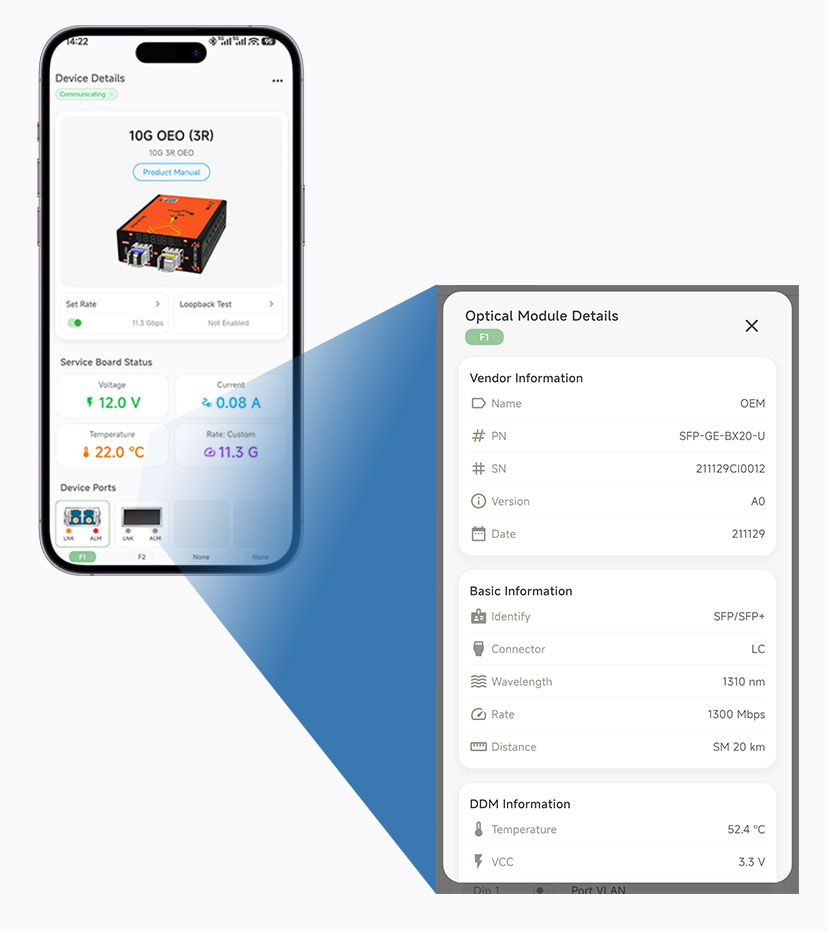

► Mobile APP / Web Management: Monitoring and control via self-developed Mobile APP or Web interface.
► Build-in Front Panel Screen Display: Front panel screen with buttons displays page by page the real-time information including current, voltage, temperature, TX/RX optical power, data rate.
► Support 1.25G/2.5G/3.125G/5G/8.5G/10.3125G/11.3G/12.5G (Software Option Acceptable)
The LNK-AI2402-OEO series 10G (3R) OEO Converter — part of E-link’s independently developed AI NETWORK series — redefines intelligent device management. It integrates built-in monitoring and remote configuration, eliminating the need for dedicated external test equipment.

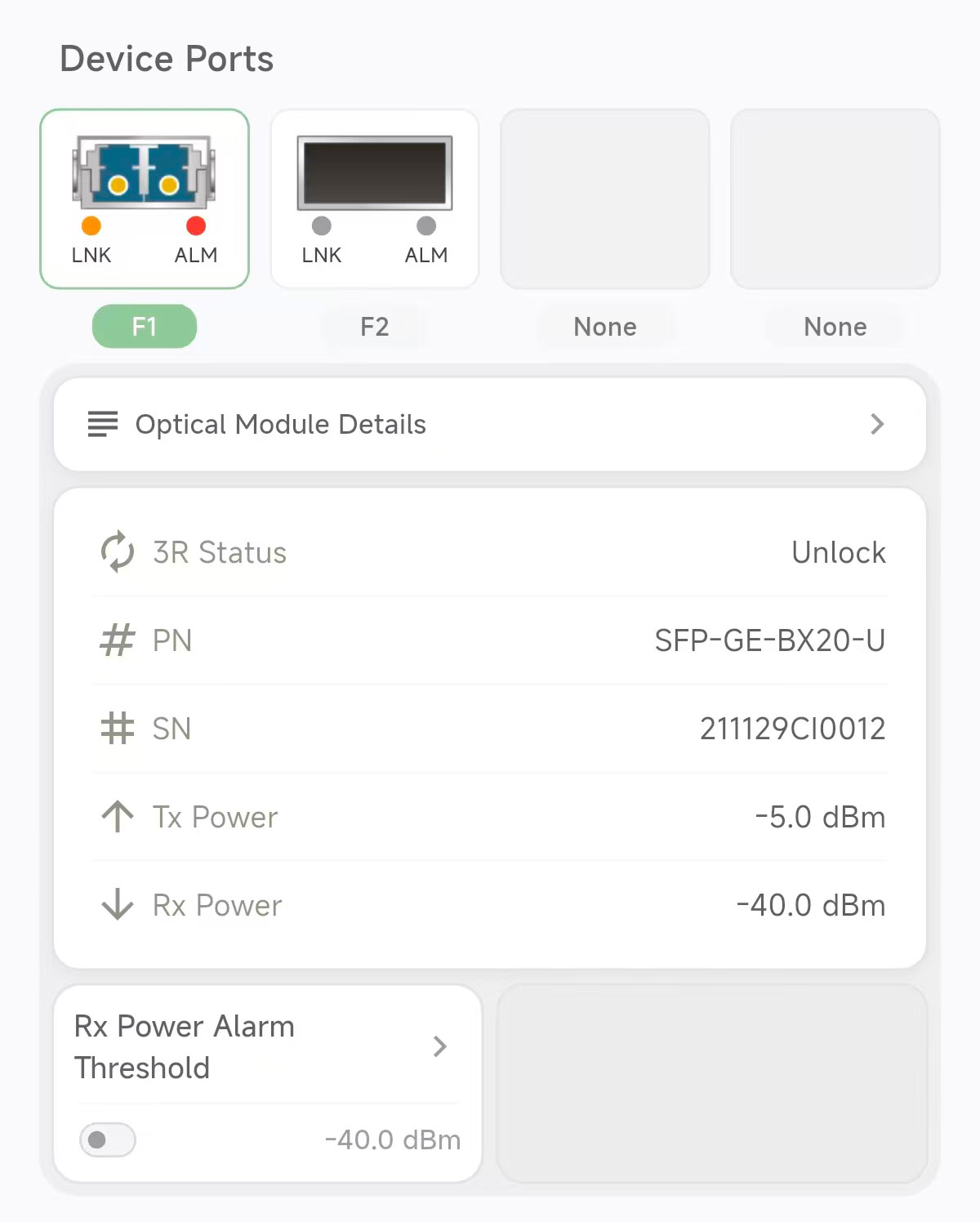

This converter is engineered for operational simplicity and cost efficiency. It enables real-time status monitoring — including power, port conditions, and comprehensive SFP module diagnostics (optical power, wavelength, transmission distance, data rate, temperature) — directly via a mobile app or the local display. Multi-level alert systems and streamlined maintenance workflows significantly reduce both installation effort and long-term operational expenses, delivering a highly cost-effective line management solution for modern network demands.

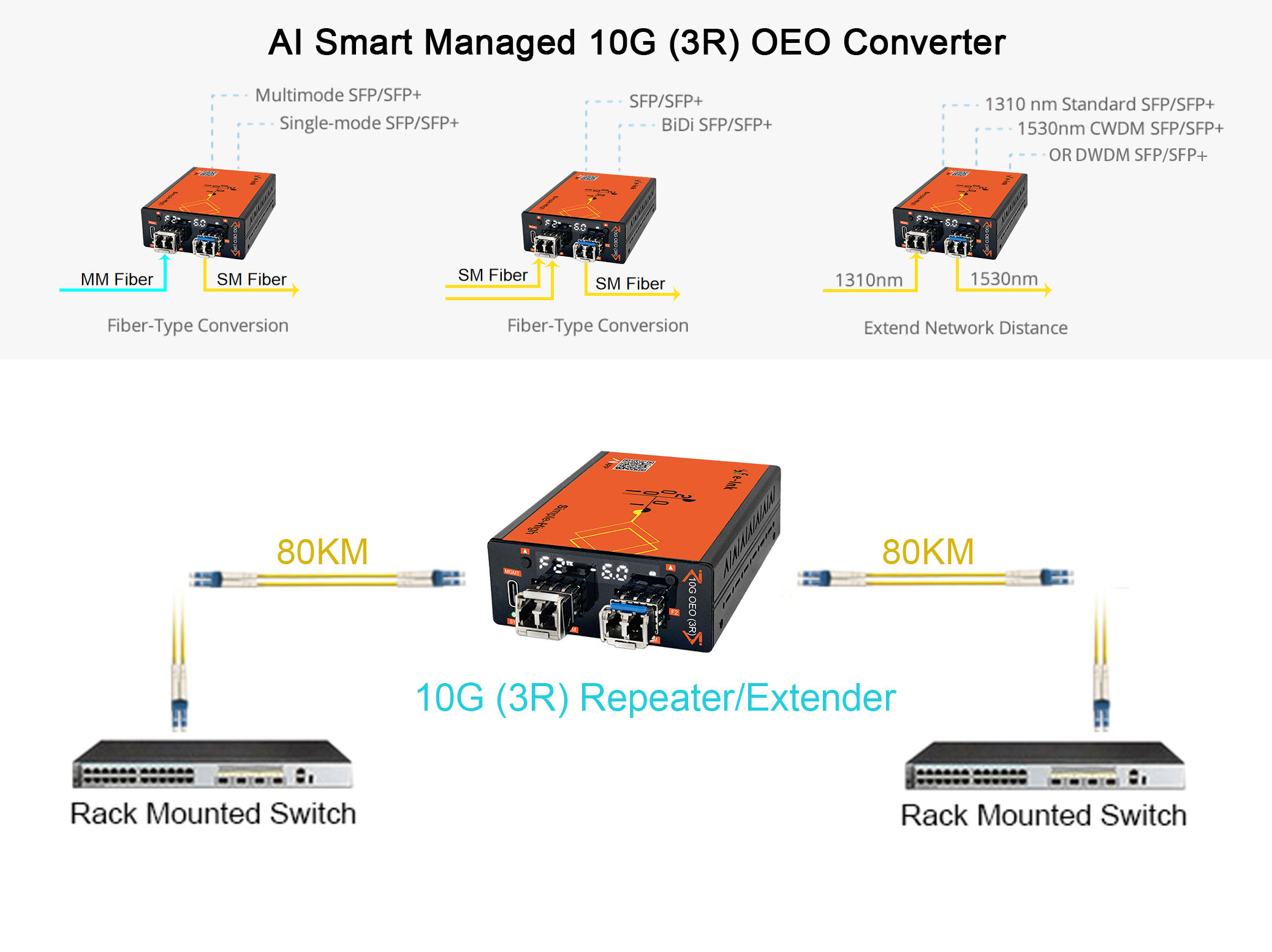

Designed for network backbone applications (SAN, LAN, MAN), the LNK-AI2402-OEO supports multiple 10G protocols, including SDH/SONET STM-64/OC-192, 10G Fiber Channel, and 10G Ethernet. It is suitable for deployment in R&D laboratories, data centers, and telecommunication rooms. The unit also supports optical wavelength conversion (1310nm/1550nm/CWDM/DWDM) and features loop-back capability for testing and troubleshooting.
► Mobile APP / Web Management: Monitoring and control via self-developed Mobile APP or Web interface.

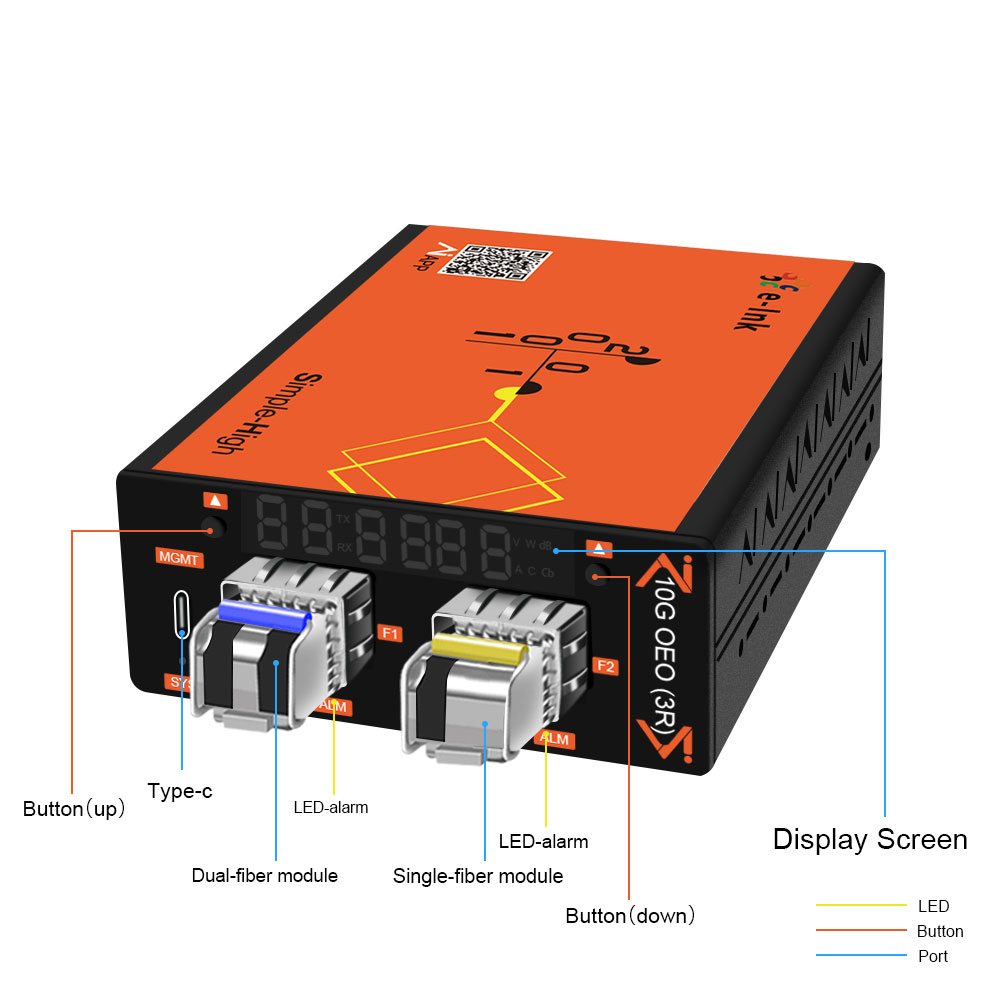

► Build-in Front Panel Screen Display: Front panel screen with buttons displays page by page the real-time information including current, voltage, temperature, TX/RX optical power, data rate.
► User-Friendly Interface: The simplified and visual design, as well as highlighting key parameters, makes it easy for even non professionals to operate and maintain devices.
► Type-C port for easy access to device.
► Support loop-back test.
► Support 1.25G/2.5G/3.125G/5G/8.5G/10.3125G/11.3G/12.5G (Software Option Acceptable)
► Support 3R function (Re-amplify, Re-shape and Re-time).
|
Access Mode |
Multi-rate 1.25G/2.5G/3.125G/5G/8.5G/10.3125G/11.3G/12.5G (Software Option Acceptable) SFP+ to SFP+ slot 10G(3R) OEO Converter Support 3R function |
|||
|
Fiber Ports |
||||
|
Transmission Speed |
10G: 1.25Gb/s- 10.3125Gb/s-/12.5Gb/s |
|||
|
Protocols |
1.25G |
|||
|
2.5G |
||||
|
3.125G |
||||
|
5G |
||||
|
8.5G |
||||
|
10.3125G |
||||
|
11.3G |
||||
|
12.5G |
||||
|
Optical Port F1 |
1 x SFP/SFP+1.25G/2.5G/3.125G/5G/8.5G/10.3125G/11.3G/12.5G(Software Option Acceptable) Support 3R function |
|||
|
Optical Port F2 |
1 x SFP/SFP+1.25G/2.5G/3.125G/5G/8.5G/10.3125G/11.3G/12.5G(Software Option Acceptable) Support 3R function |
|||
|
Max Packet Forwarding Rate |
14,880,950/s |
|||
|
Interface port |
||||
|
Management Port |
Standard Type-C port for easy access to device |
|||
|
Display Screen |
Display voltage, current, temperature and two optical modules TX/RX power, data rate |
|||
|
AI Smart Managed Functions |
||||
|

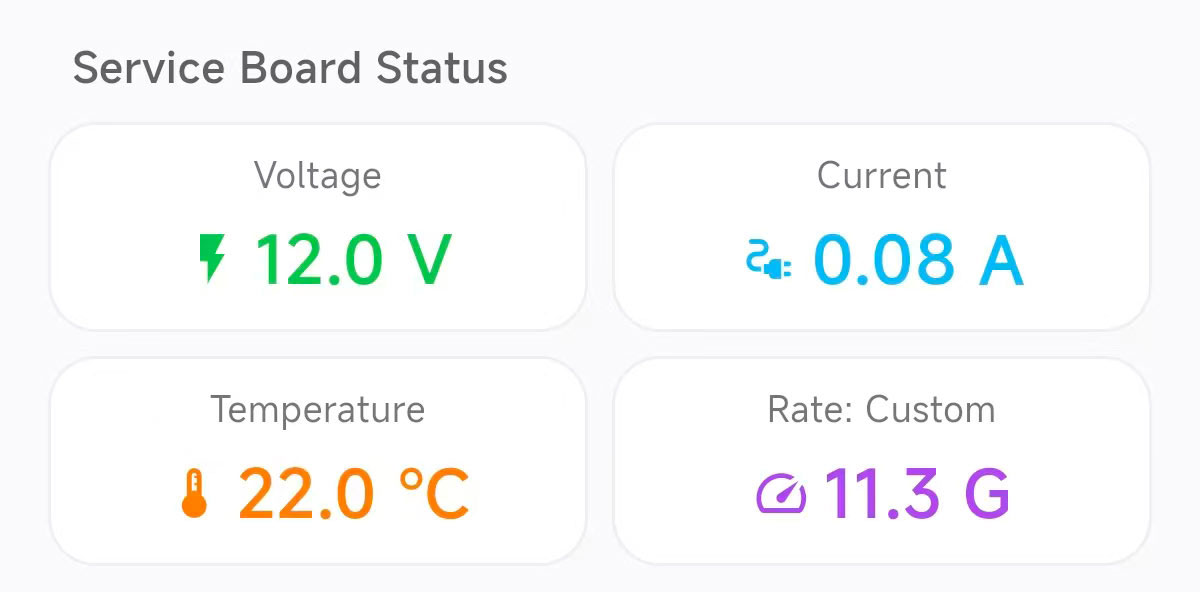

Service Board Status |
Temperature |
|
||
|
Voltage |
||||
|
Current |
||||
|
SFP Port F1 (Support 3R function) |
Link Status |
|
||
|
PN/SN |
||||
|
TX Power |
||||
|
RX Power |
||||
|
All DDM Information |
||||
|

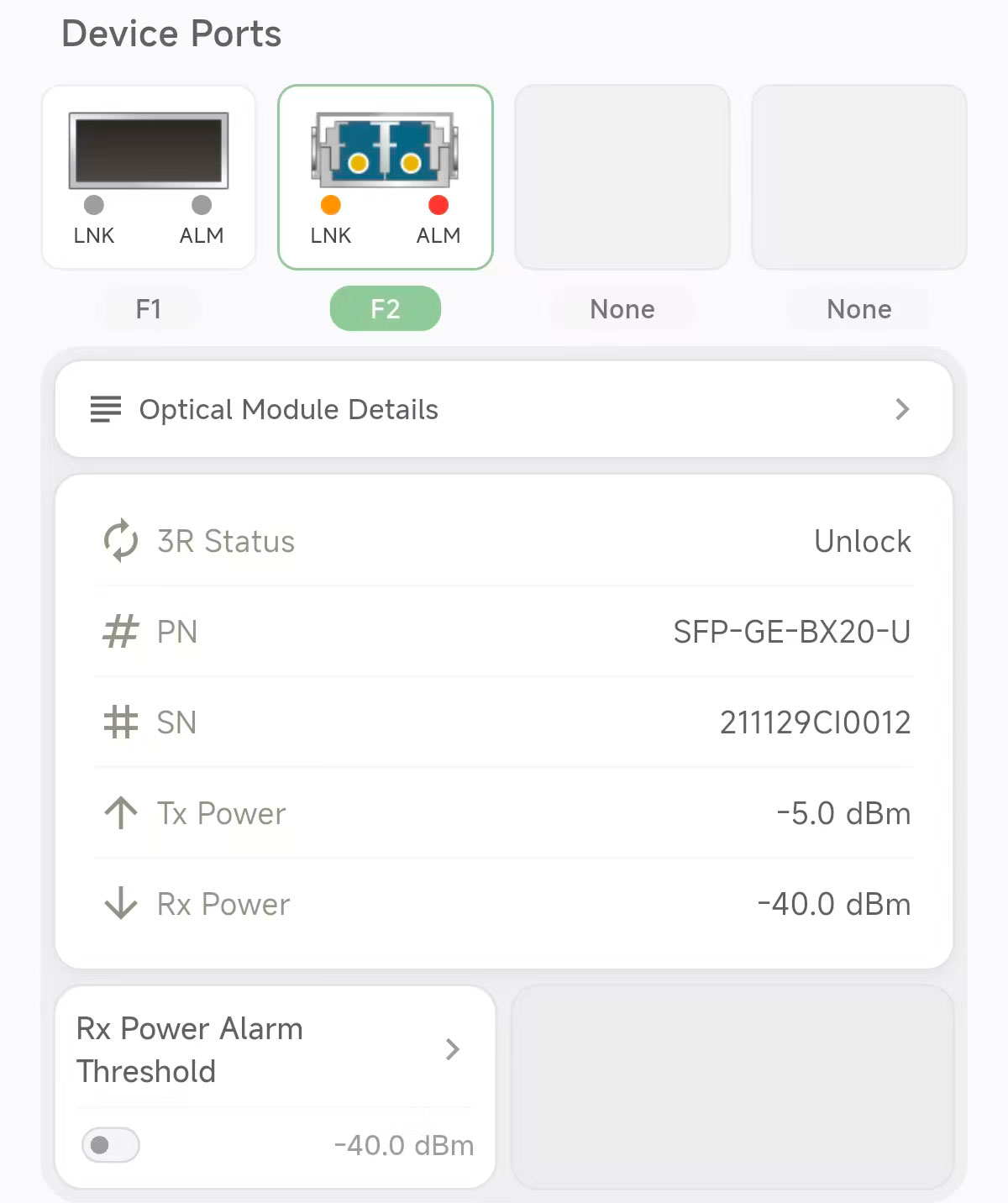

SFP Port F2 (Support 3R function) |
Link Status |
|
||
|
PN/SN |
||||
|
TX Power |
||||
|
RX Power |
||||
|
All DDM Information |
||||
|

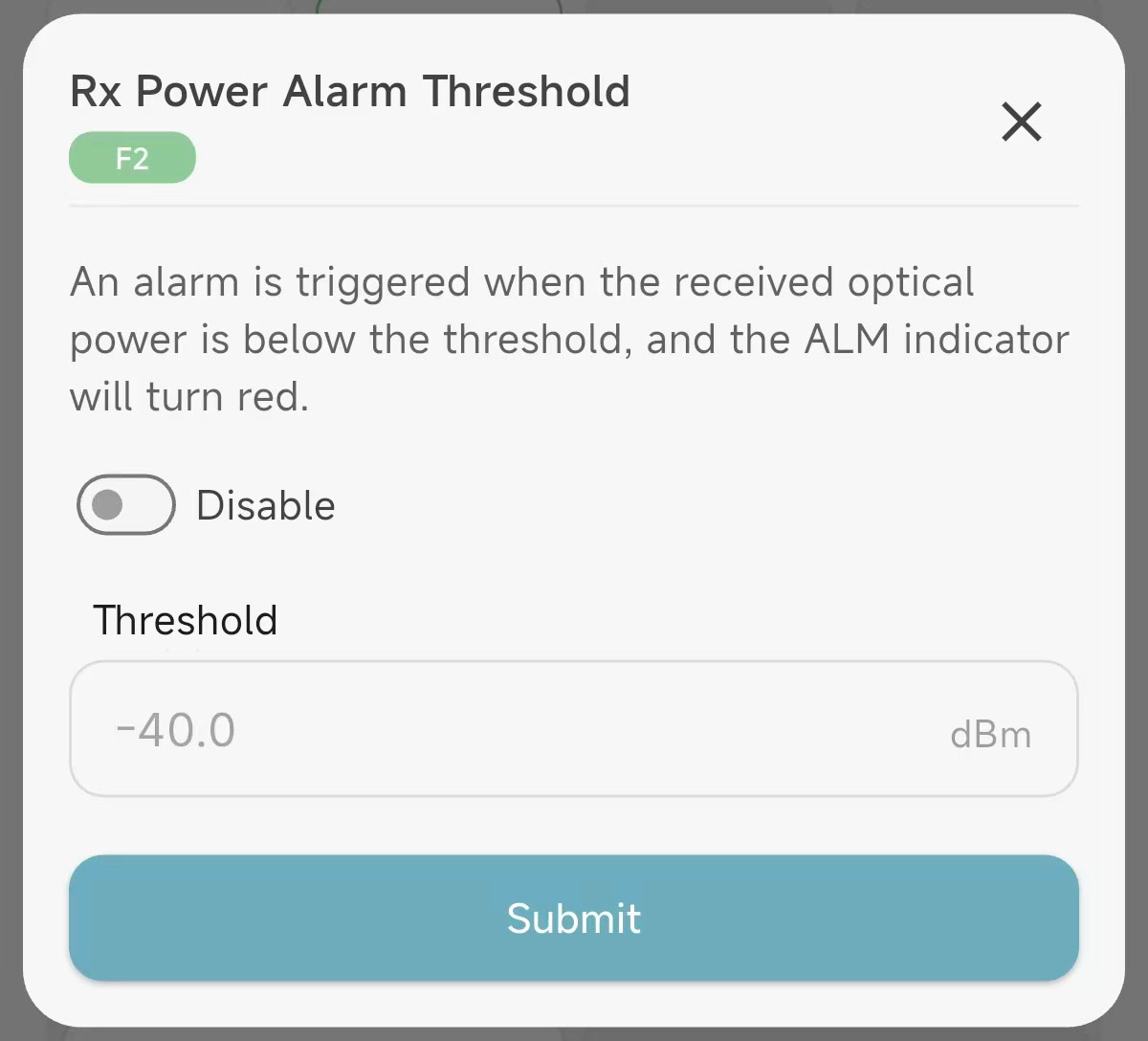

Fiber Port Alarm |
Support |
|
||
|

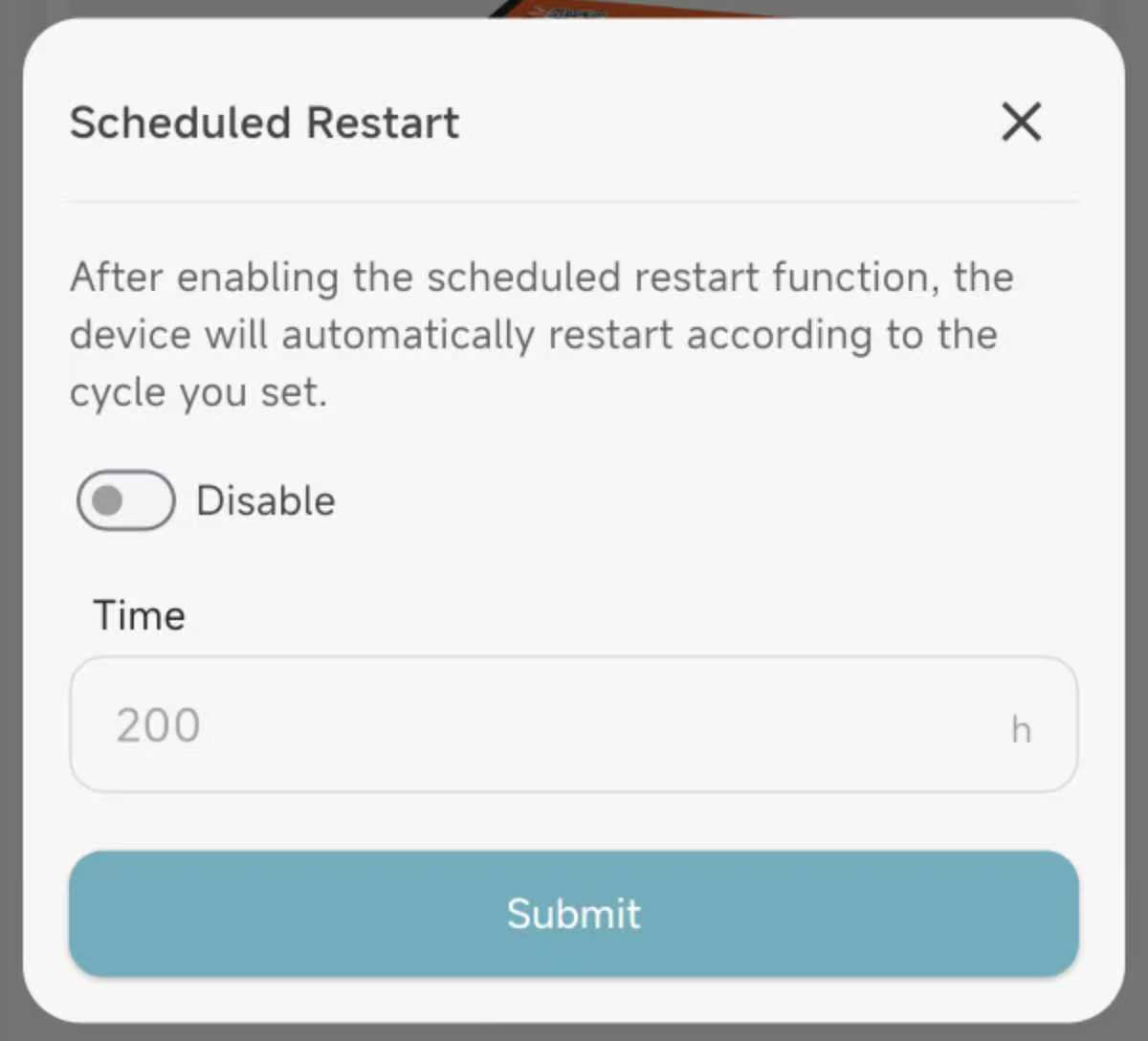

Scheduled Reset |
Support |
|
||
|

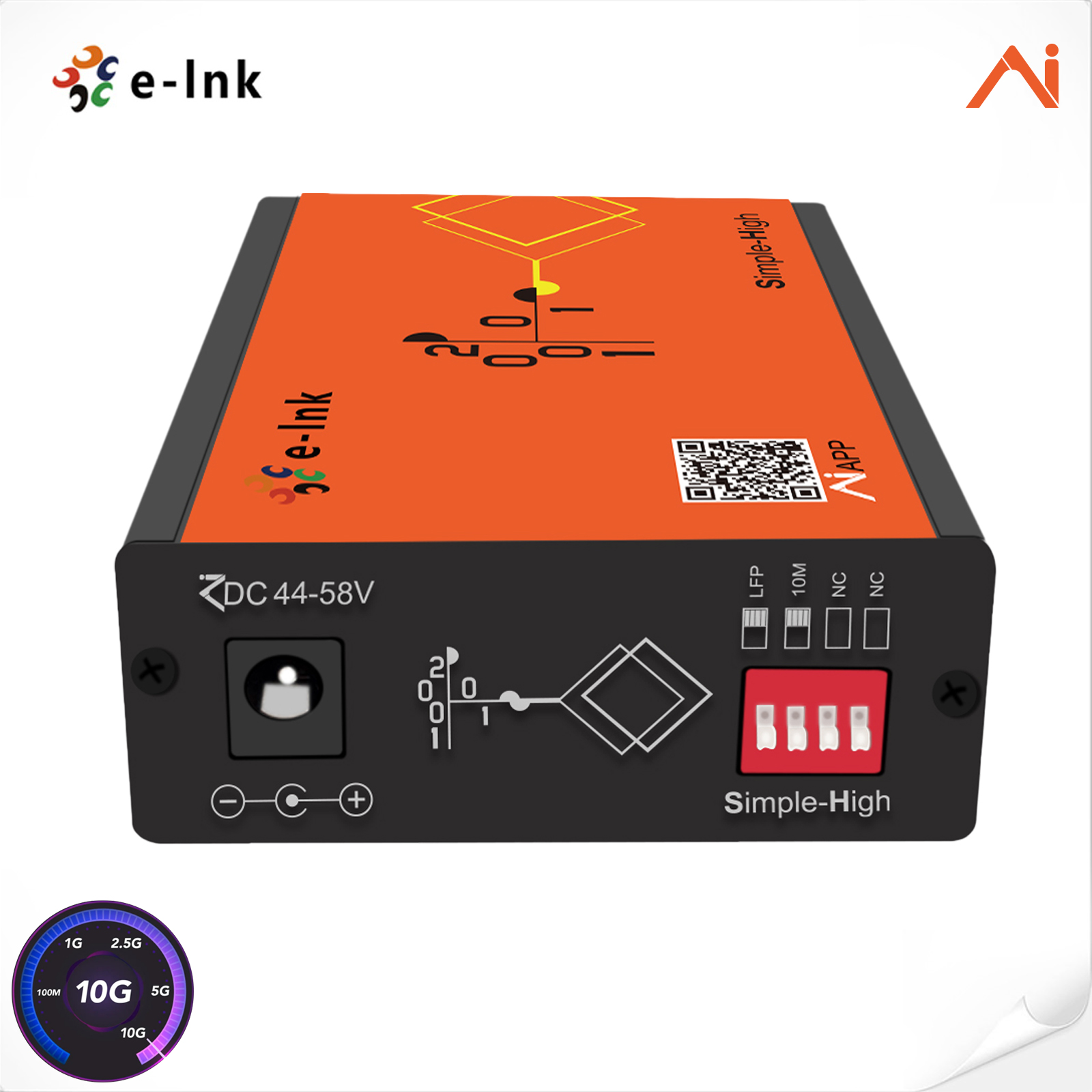

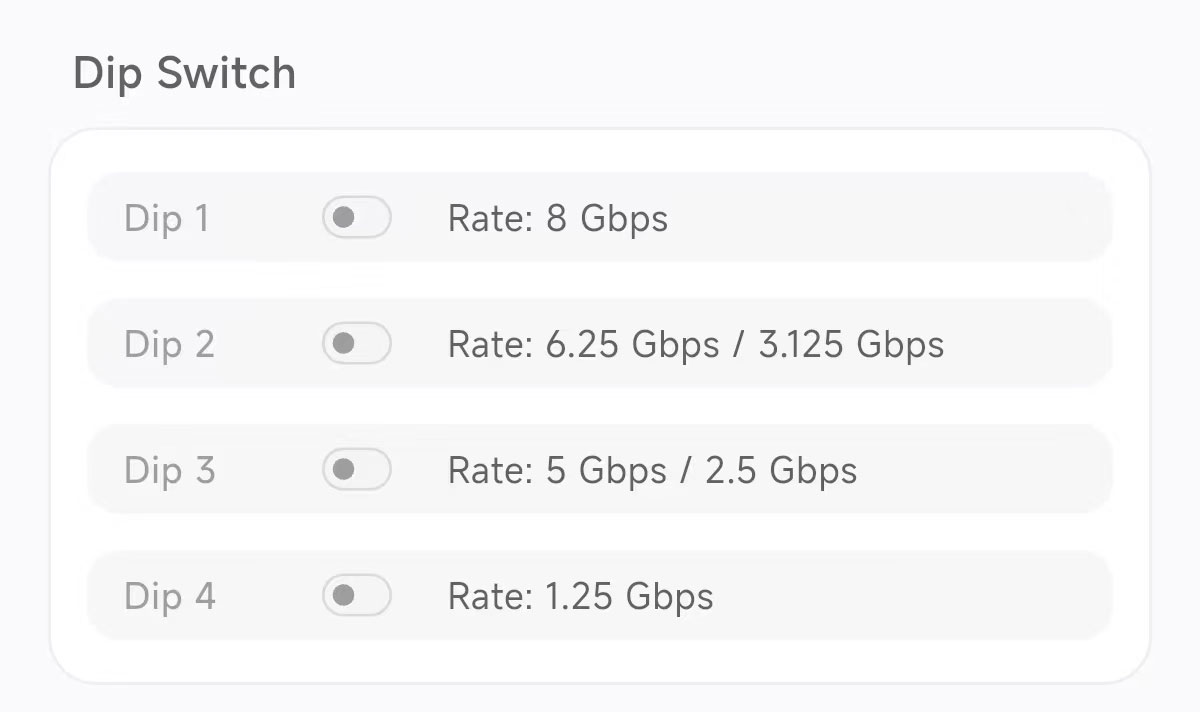

DIP Switch |
Dip1 |
8.5G |
|
|
|
Dip2 |
3.125G |
|||
|
Dip3 |
2.5G |
|||
|
Dip4 |
1.25G |
|||
|
Electrical and Mechanical |
||||
|
Input Power |

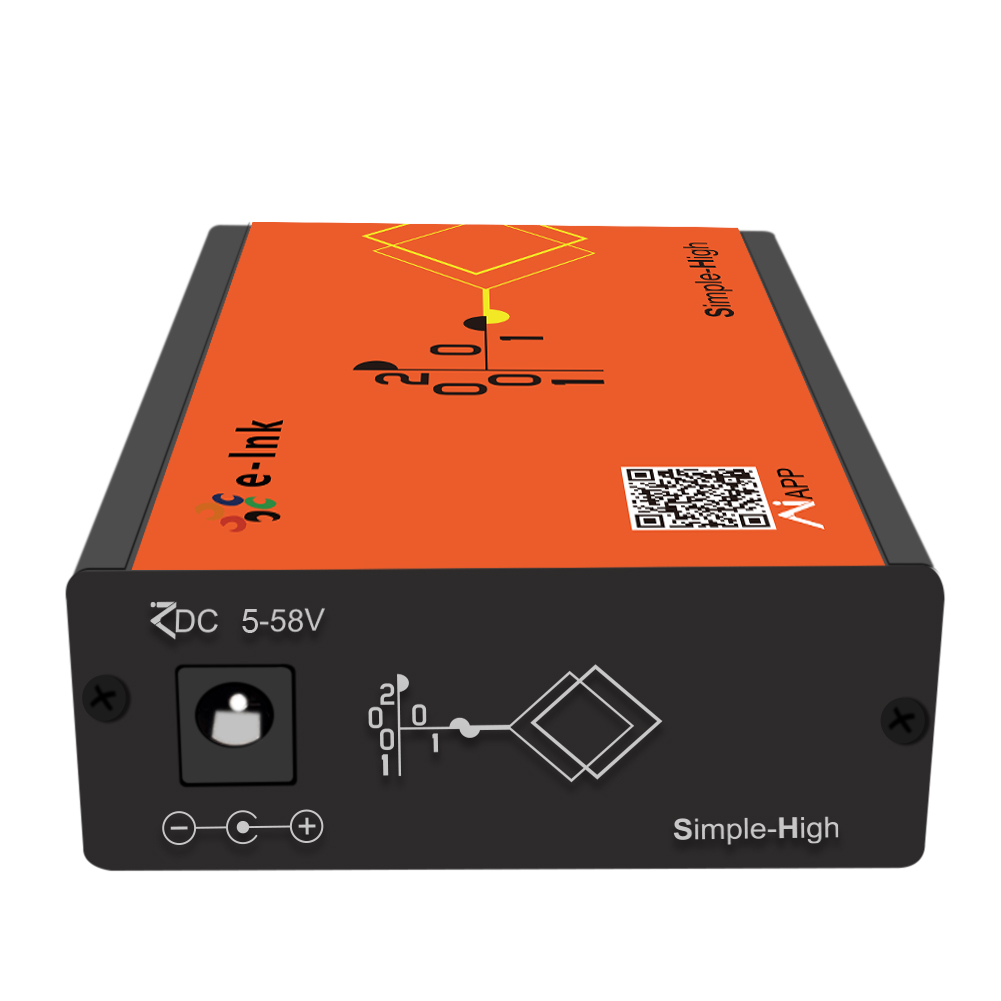

5~58V DC, 5.5 x 2.1 mm Power Socket |
|||
|
External AC-to-DC Adapter |
||||
|
Power Consumption |
1W (Not Including SFP modules). |
|||
|

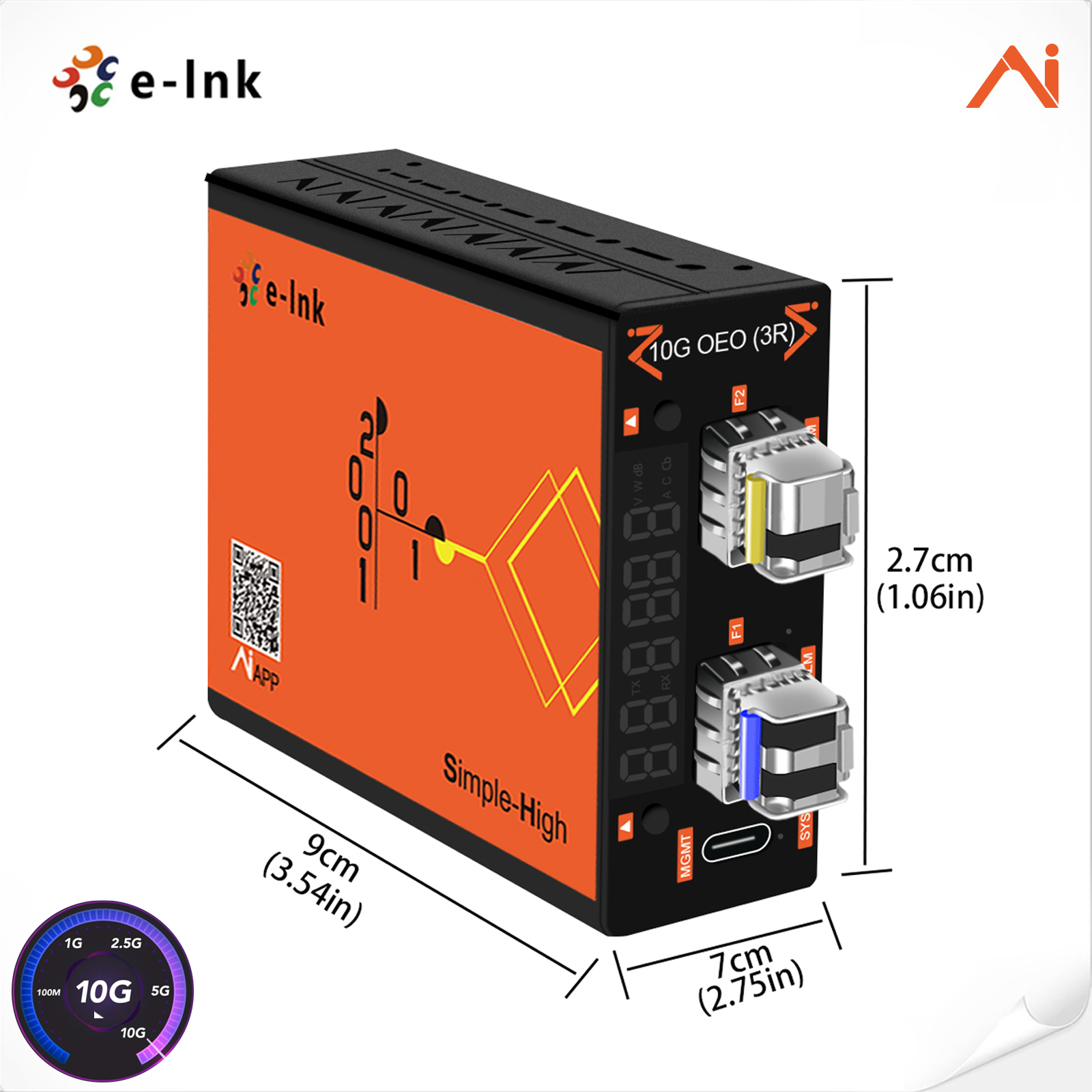

Dimensions (W x D x H) |
93 x 71 x 29 mm |
|||
|
Weight |
100g |
|||
|
Casing |
Aluminum Case |
|||
|
Mounting Options |
Desktop or mounted on standard 14 slots rack |
|||
|
LED Indicators |
||||
|
SYSF1 (ALM) |
Green LED Slow Blink: Operating normally |
|||
|
Orange LED Blink: USB data transmission |
||||
|
F1 (LNK) |
On: Signal Lock |
|||
|
Off: No Signal or Signal unlock |
||||
|
F1 (ALM) |
On: Signal Lock |
|||
|
Off: No Signal or Signal unlock |
||||
|
On(red): Optical power alarm |
||||
|
F2 (LNK) |
On: Signal Lock |
|||
|
Off: No Signal or Signal unlock |
||||
|
F2 (ALM) |
On: Signal Lock |
|||
|
Off: No Signal or Signal unlock |
||||
|
On(red): Optical power alarm |
||||
|
Environmental |
||||
|
Operating Temperature |
-20°C to 70°C (-20°F to 162°F) |
|||
|
Storage Temperature |
-40°C to 85°C (-40°F to 185°F) |
|||
|
Relative Humidity |
5% to 95% non-condensing |
|||
|
MTBF |
> 200,000 hrs |
|||
|
Regulatory Approvals |
||||
|
ISO9001, CE, FCC Part 15 Class A, RoHS |
||||
- Download FileName：E-link LNK-AI2402-OEO-3R AI Smart Managed 10G OEO Converter (3R Repeater) Datasheet V1.0 20260124.pd Size： 3.27MB
|
Model |
Description |
|
LNK-AI2402-OEO-3R |
AI Smart Managed 10G(3R) OEO Converter 1.25G/2.5G/3.125G/5G/8.5G/10.3125G/11.3G/12.5G (Software Option Acceptable) Support 3R function |
|
SFP Options |
► SFP option. Please select your SFP on our SFP Options Page. |
|
► SFP module is to be purchased separately. |
