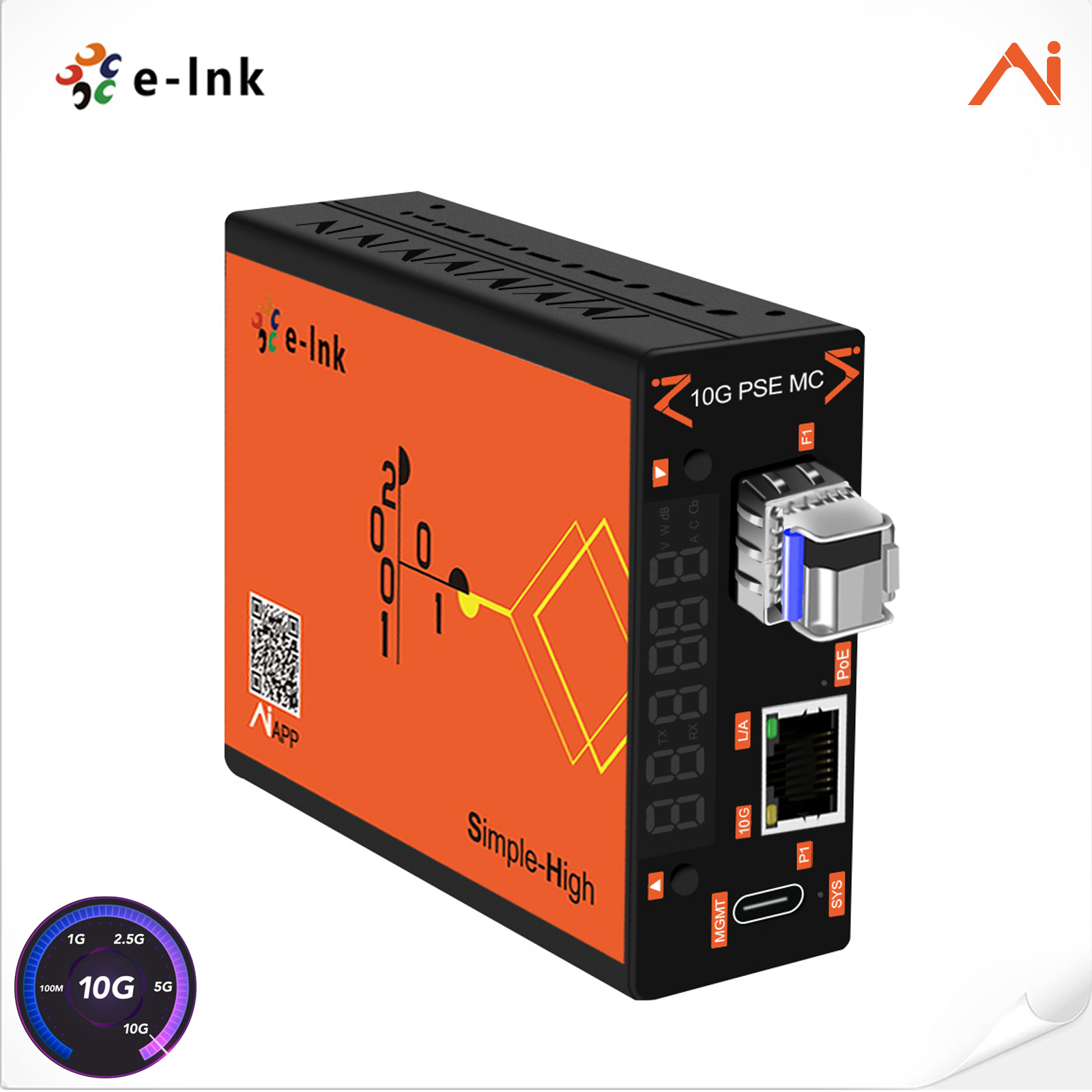

AI Smart Managed 10G/5G/2.5G/1G/100M RJ45 to 10G SFP+ PoE Fiber Media Converter

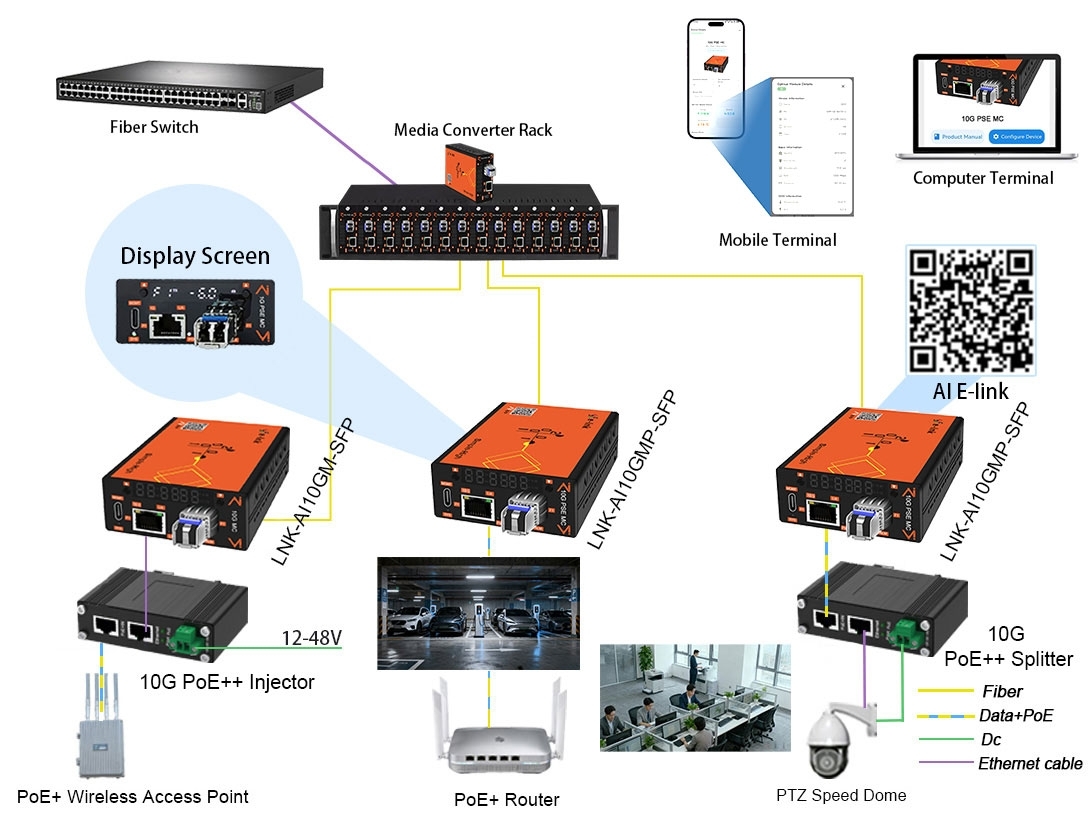

Access Mode

10G/5G/2.5G/1G/100M RJ45 to 10G SFP+PSE IEEE802.3af/at/bt 95W

Ethernet

Standards:

IEEE 802.3u 100BASE-TX Ethernet standard compliant

IEEE 802.3ab 1000BASE-T Ethernet standard compliant

IEEE 802.3bz 2.5G/5GBASE-T Ethernet standard compliant

IEEE 802.3an 10GBASE-T Ethernet standard compliant

IEEE 802.3ae 10Gbps Ethernet standard compliant

Supports auto-negotiation and 100Mbps half/full duplex and 1/2.5/5/10Gbps full duplex mode

Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)

Processing Type

Store-and-Forward

Forward Filter Rate

14,880pps (10Mbps)

148,800pps (100Mbps)

1,488,000pps (1000Mbps)

3,720,000pps (2500Mbps)

7,440,000pps (5GMbps)

14,880,000pps (10GMbps)

Fabric

20Gbps

Max Packet Length

16K Bytes

Address Table

9K entries, automatic source address learning and aging

AI Smart Managed Functions

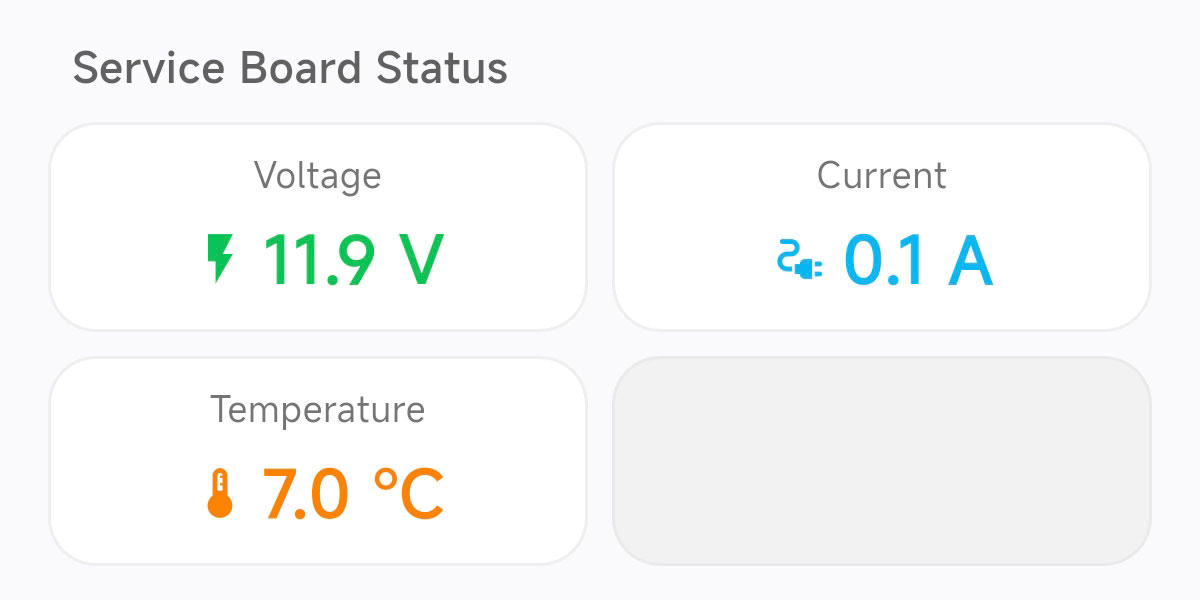

Service Board Status

Temperature

Voltage

Current

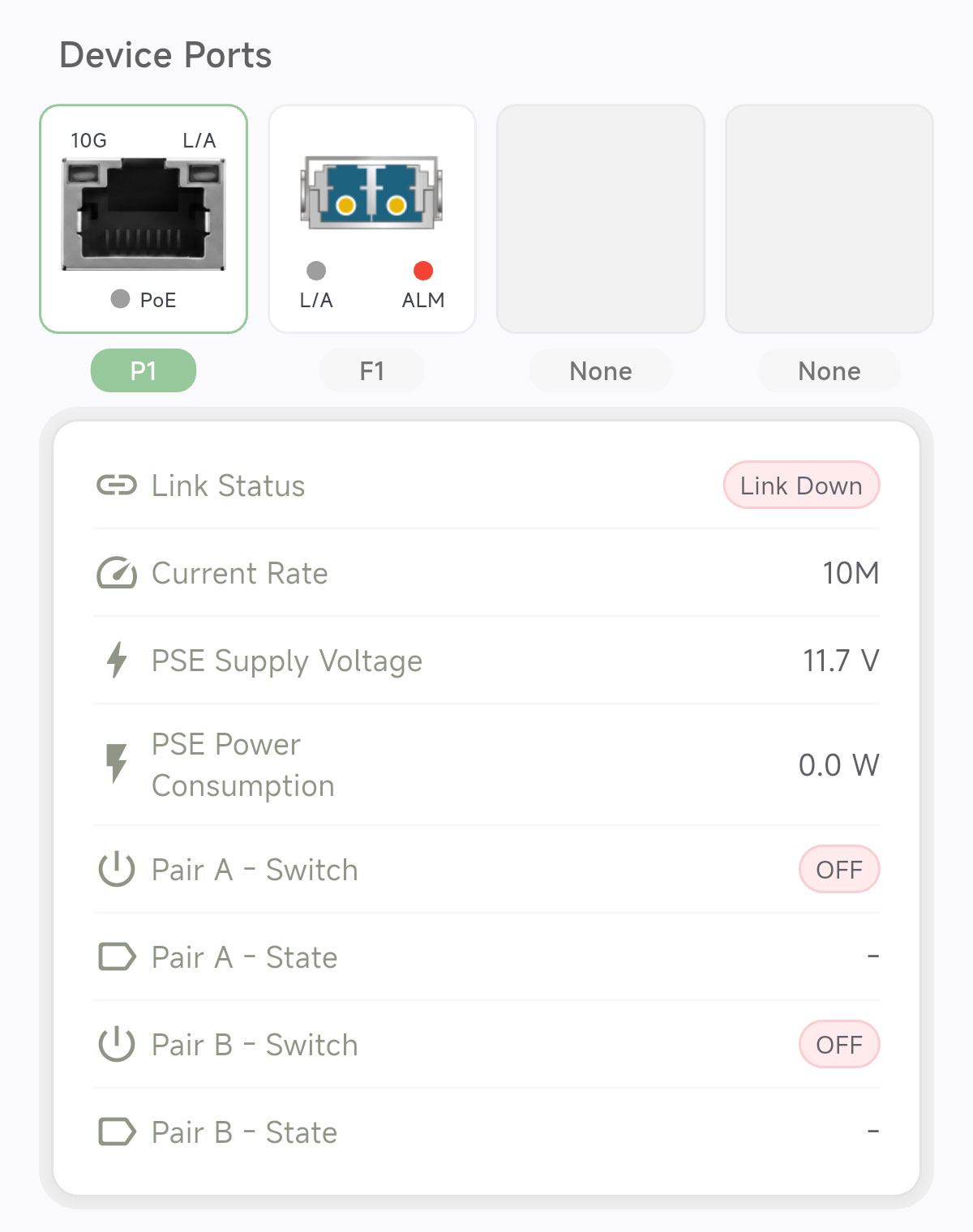

RJ45 Port Status

Link Status

Rate

LFP Status

PSE Supply Voltage

PSE Power Consumption

Power Pin Assignment

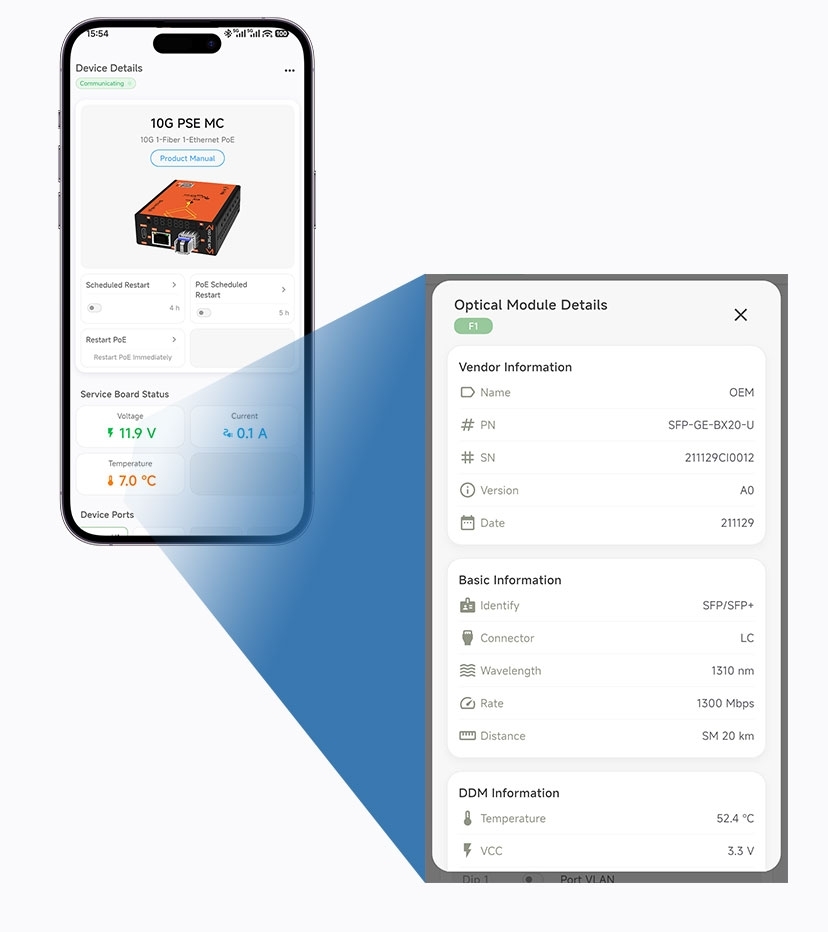

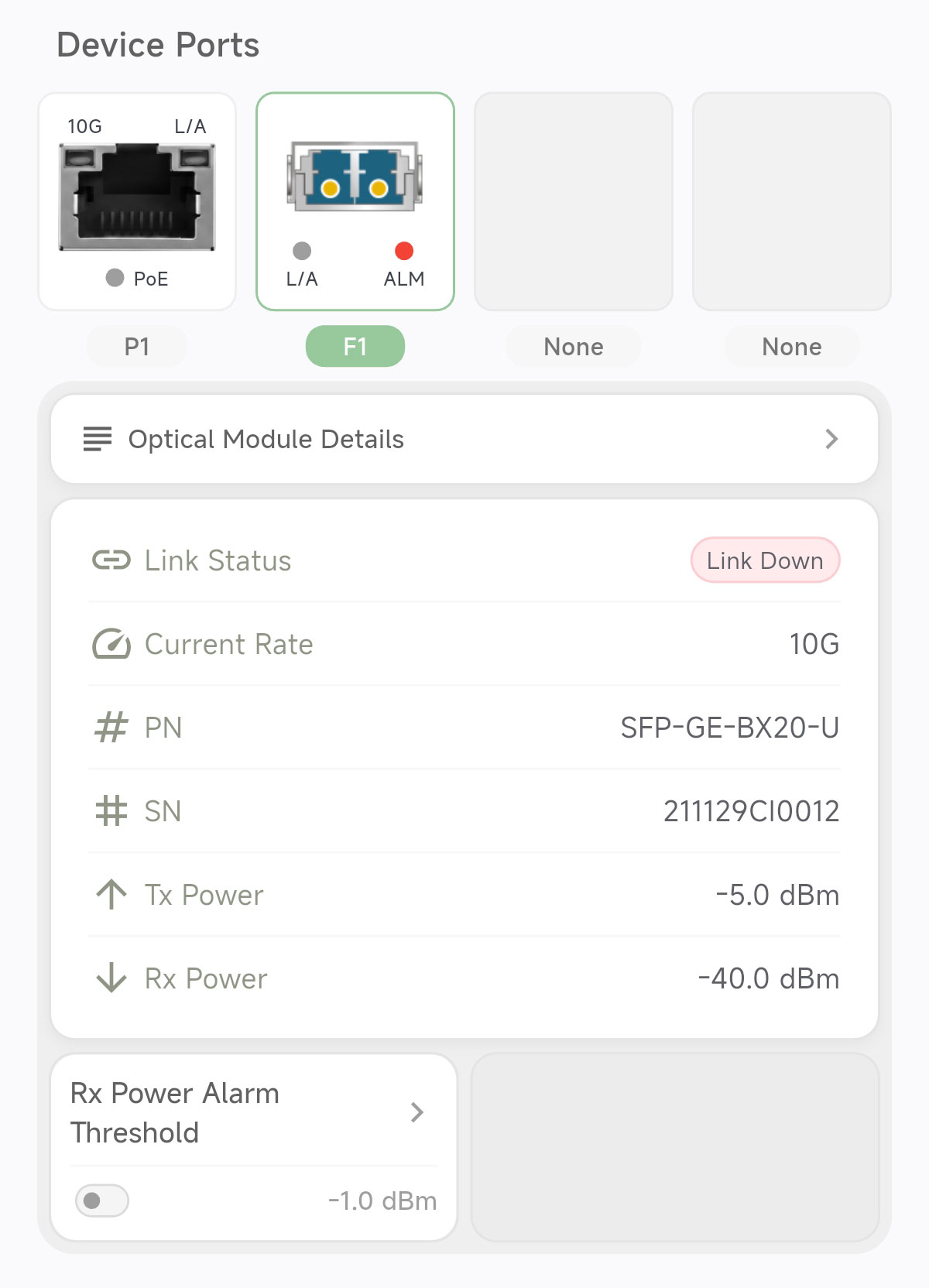

SFP Port Status

Link Status

PN/SN

TX Power

RX Power

All DDM Information

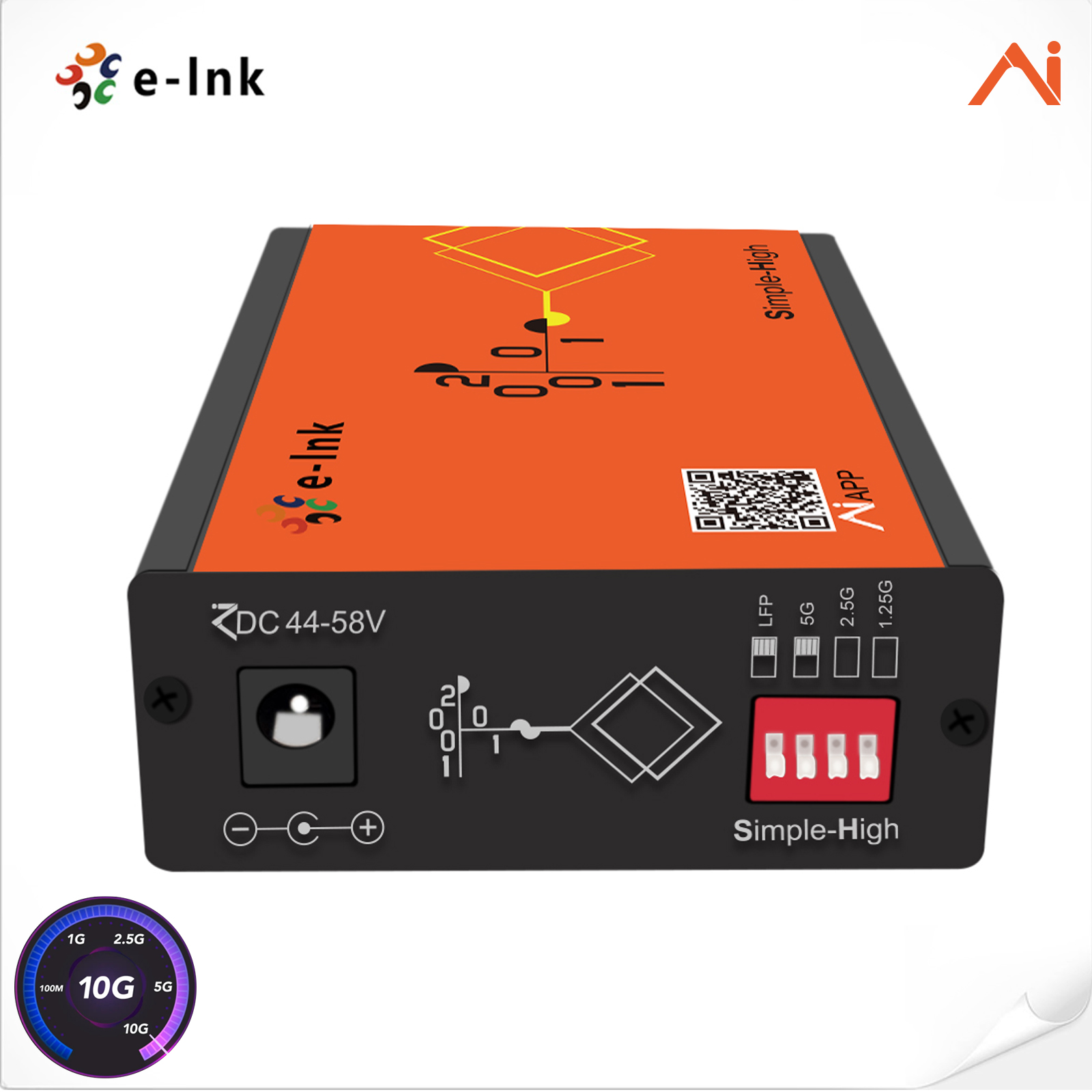

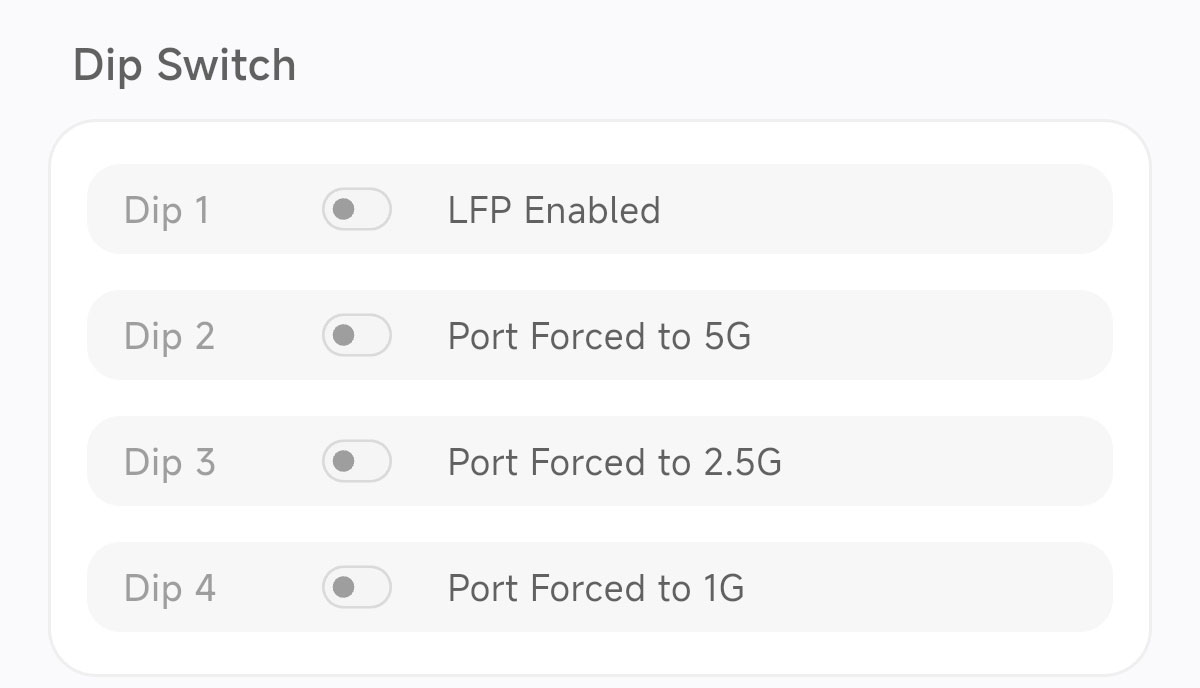

DIP Switch

Dip1

LFP

Dip2

5G

Dip3

2.5G

Dip4

1.25G

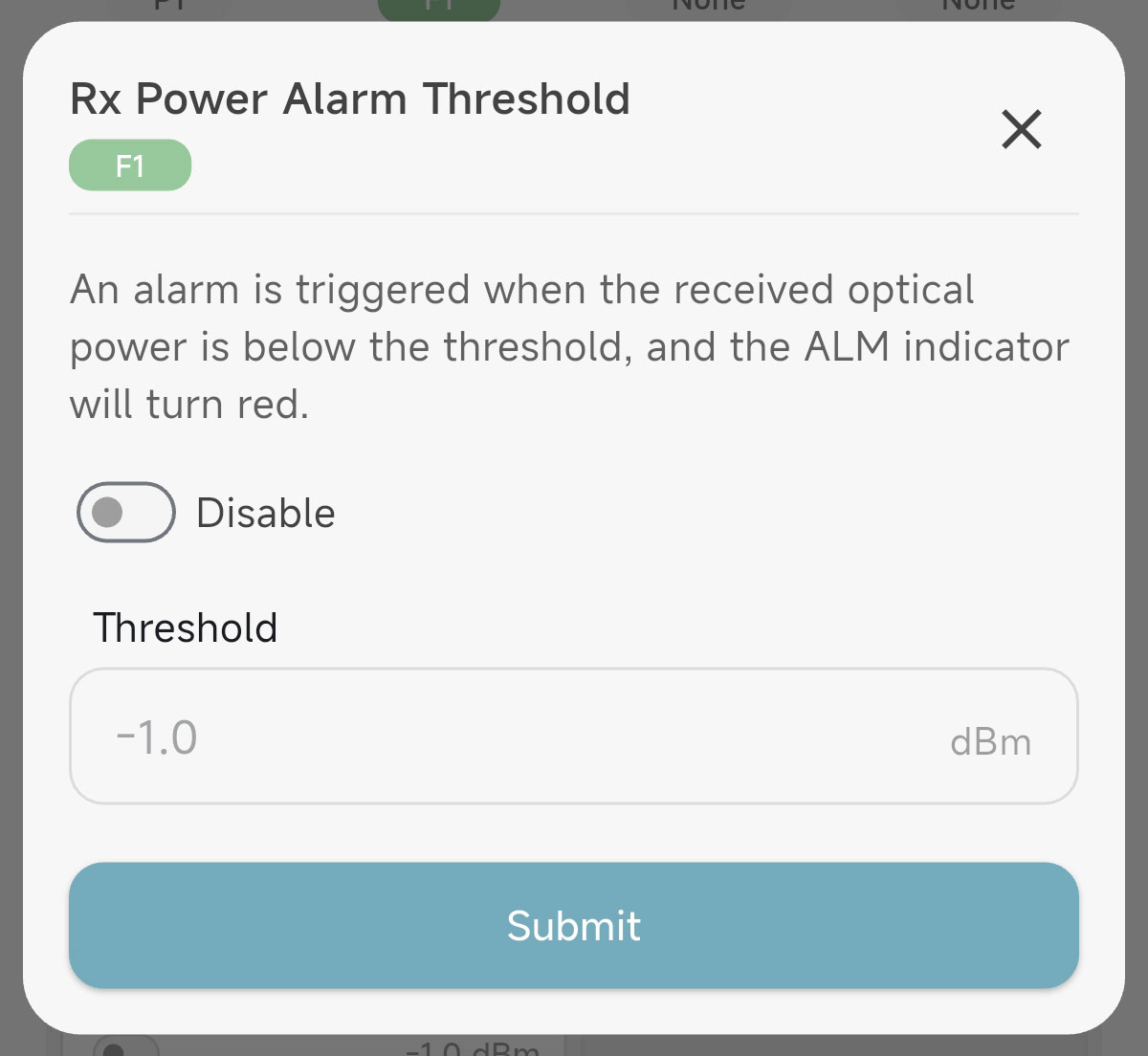

Fiber Port Alarm

Support

Scheduled Reset

Support

PoE Power Scheduled

Support

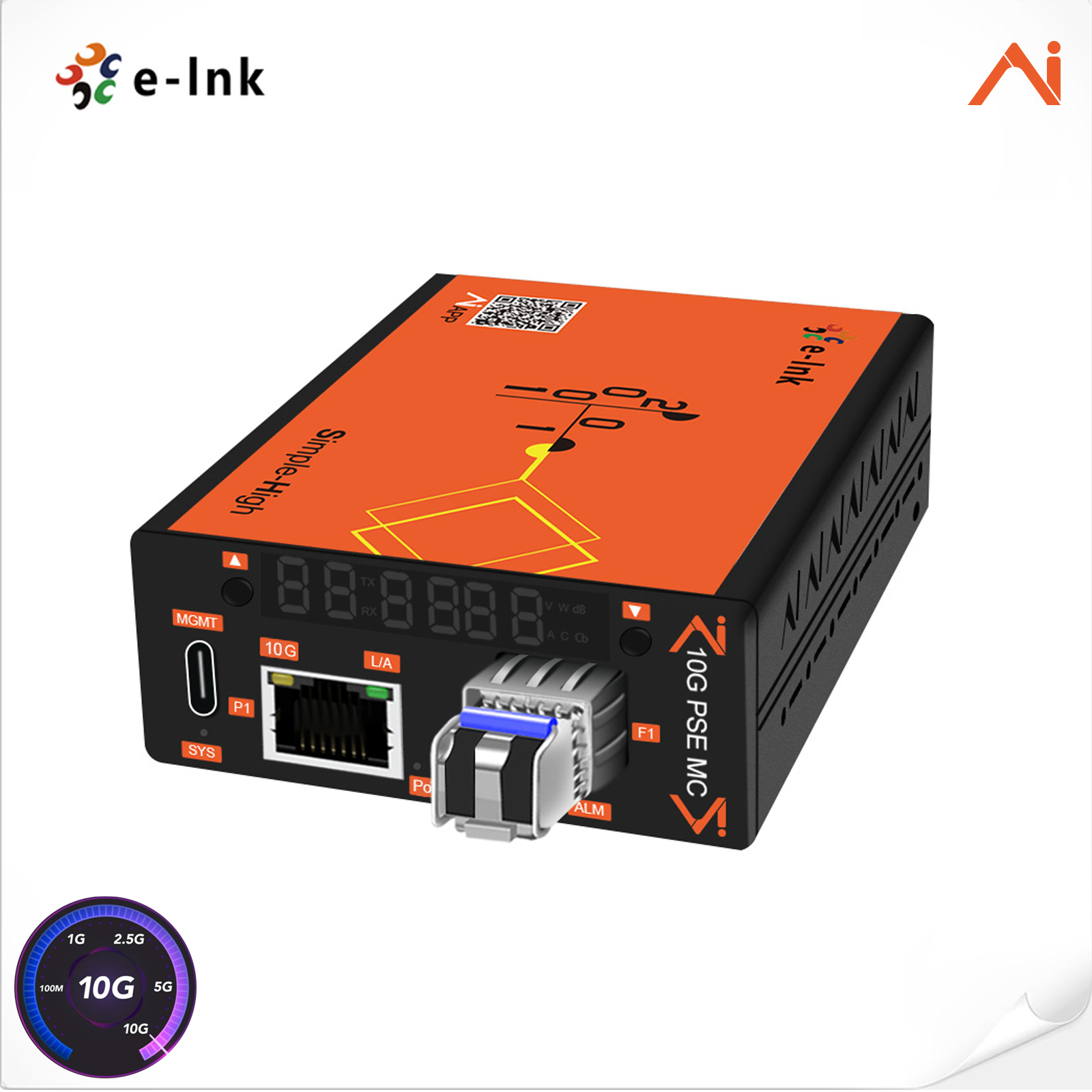

Interface port

Ethernet Port

10G/5G/2.5G/1G/100M/10M BASE-T Ethernet RJ45interface Auto-negotiation, auto MDI/MDI-X

Cable: Cat 3/4/5/6/7 UTP Cable

SFP Port

1 x 1000M/2.5G/5G/10G SFP/SFP+

Cable:

Multi-Mode: 50/125um or 62.5/125um fiber optic cable, distance: 550m/2km;

Single Mode: 9/125um fiber optic cable, distance: 20/40/80/100/120/160/200km

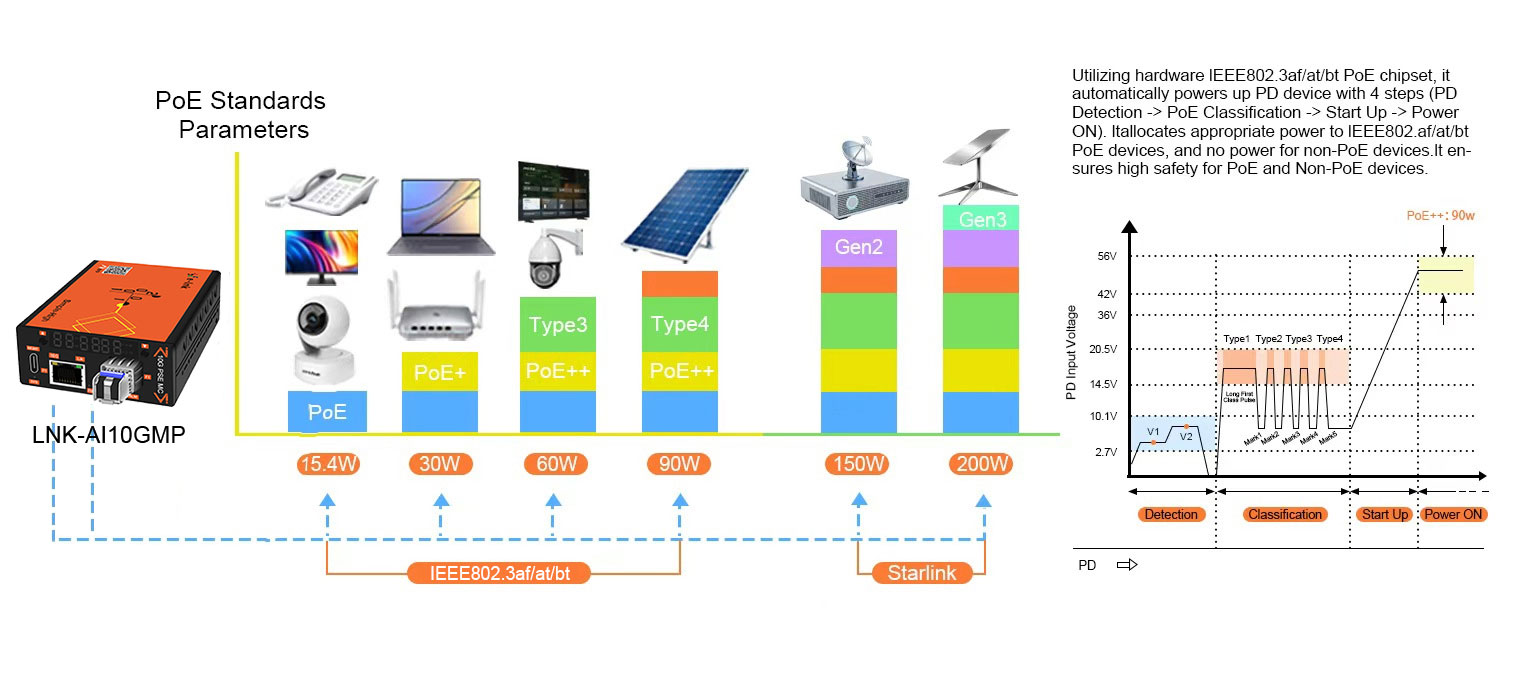

PoE (Power over Ethernet)

Standard

IEEE 802.3af/at/bt PoE++ PSE (af: 15.4W, at: 30W, bt type3: 60W, bt type4: 95W

PoE Power Output

95W max.

Power Pin Assignment

End-span + Mid-span:1/2(+), 4/5(+), 3/6(-), 7/8(-)

PoE Budget

Up to 95W PoE budget (44-58V DC)

PoE Power Supply Type

802.3bt, End-span + Mid-span (Please contact customer service)

PoE Mode

90W IEEE802.3bt compatible with Mode A, Mode B.

30W IEEE802.3at compatible with Mode B, if need Mode A please contact customer service)

Electrical and Mechanical

Input Power

44~58V DC, 5.5 x 2.1 mm Power Socket

External AC-to-DC Adapter

Power Consumption

3W Max.

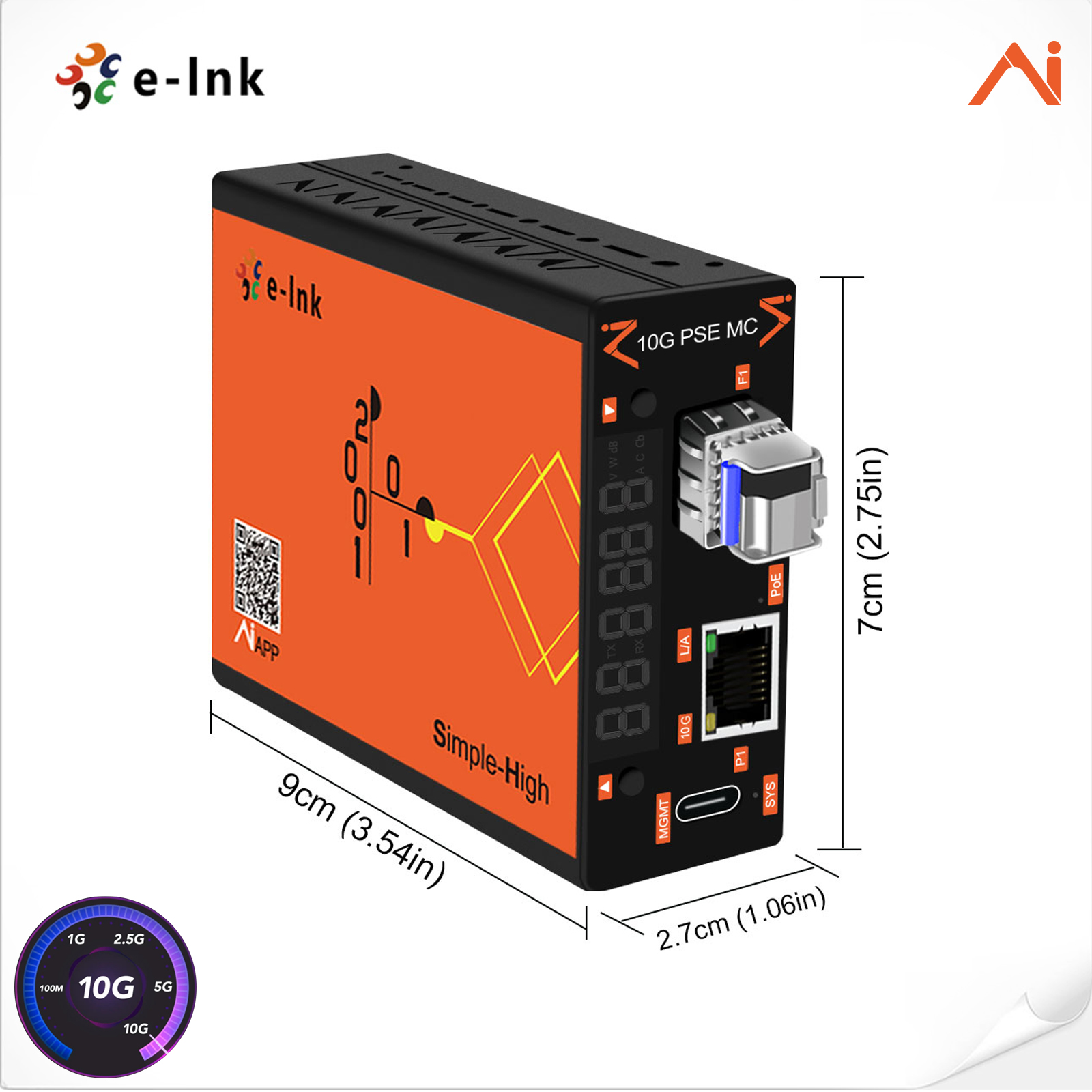

Dimensions (W x D x H)

93 x 71 x 29 mm

Weight

100g

Casing

Aluminum Case

Mounting Options

Desktop or mounted on standard 14 slots rack

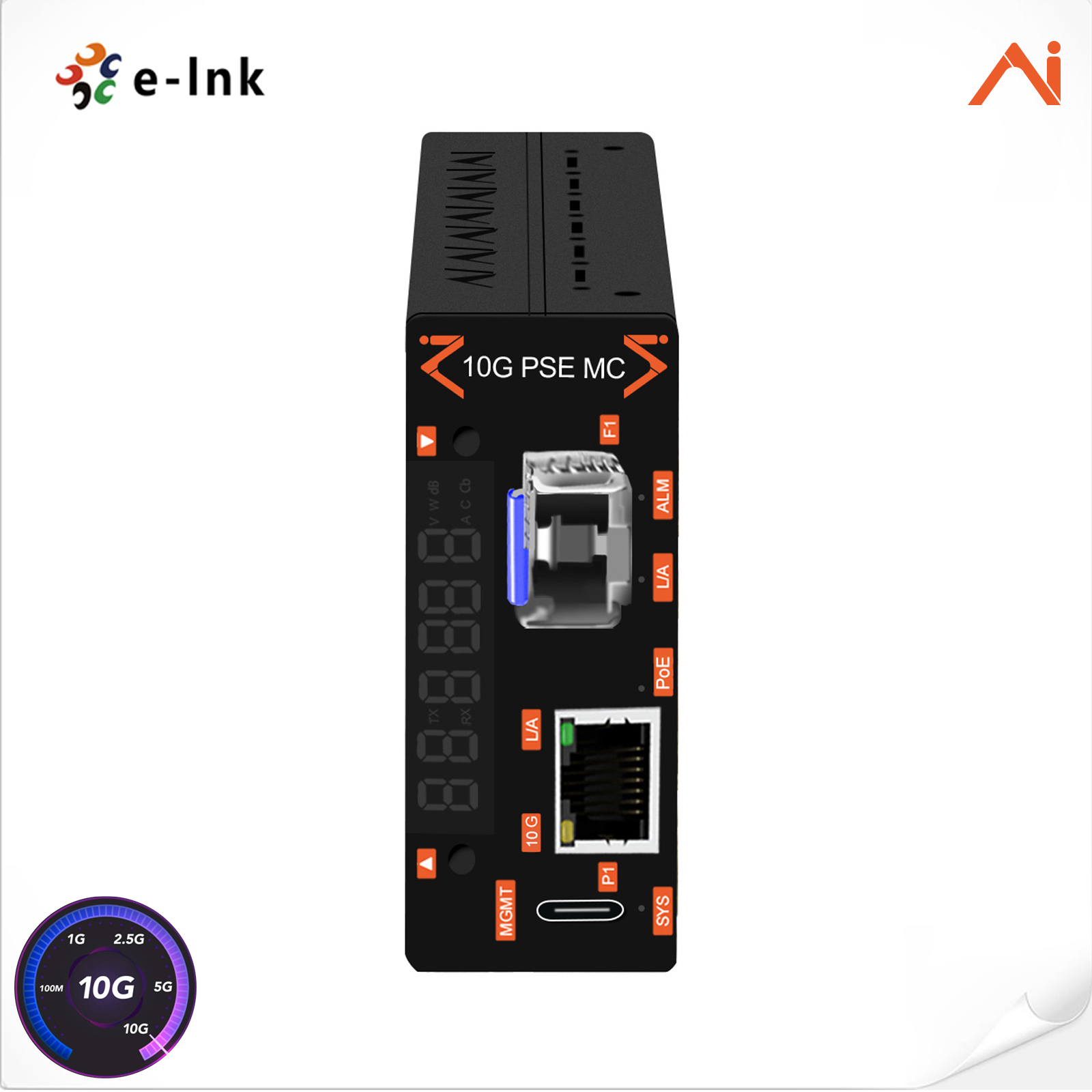

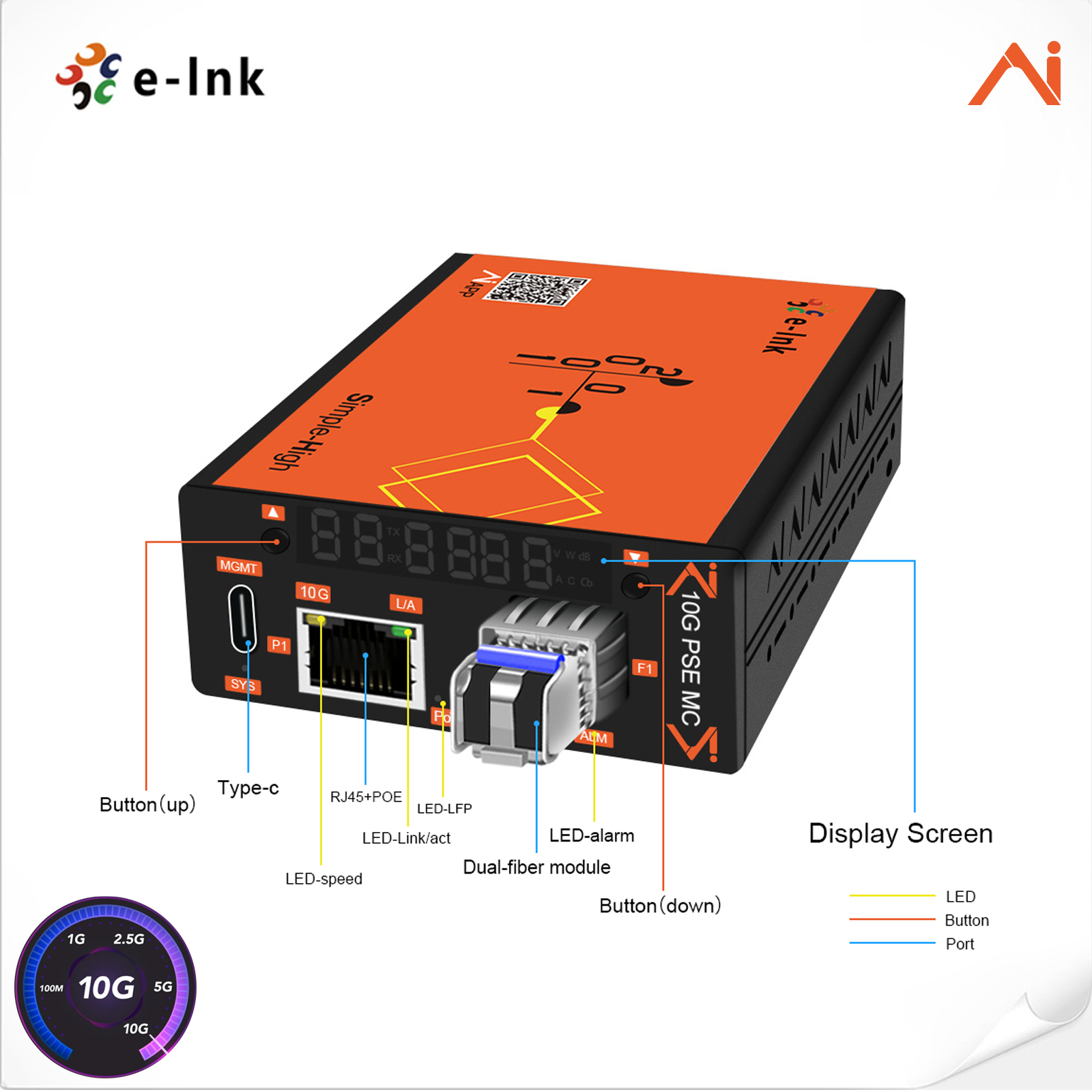

LED Indicators

SYS

Blink(green): Running

Blink(orange): USB data transmission

P1 10G

On: Link up 10G

Off: No link or Link up 10M/100M/1000M/2.5G/5G

P1 L/A

Solid On: Ethernet port link established

Blinking: Data transmission

Off: Ethernet port no link

F1 L/A

Solid On: SFP port link established

Blinking: Data transmission

Off: SFP port no link

F1 ALM

Red LED Solid On: Received optical power below threshold

Orange LED Solid On: Received optical power near threshold

Off: Received optical power normal

POE

Green LED Slow Blink: Connected PD

Red LED Solid On: Abnormal

Off: Not connected PD

Environmental

Operating Temperature

-20°C to 70°C (-20°F to 162°F)

Storage Temperature

-40°C to 85°C (-40°F to 185°F)

Relative Humidity

5% to 95% non-condensing

MTBF

> 200,000 hrs

Regulatory Approvals

ISO9001, CE, FCC Part 15 Class A, RoHS
