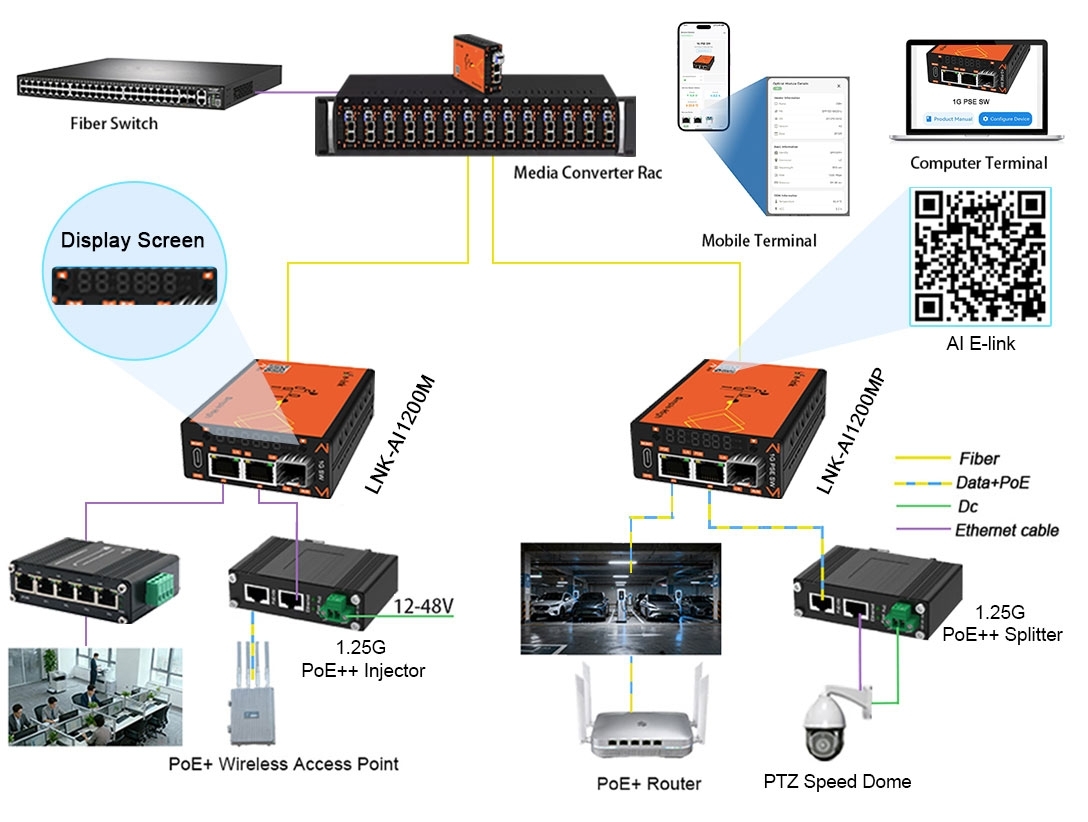

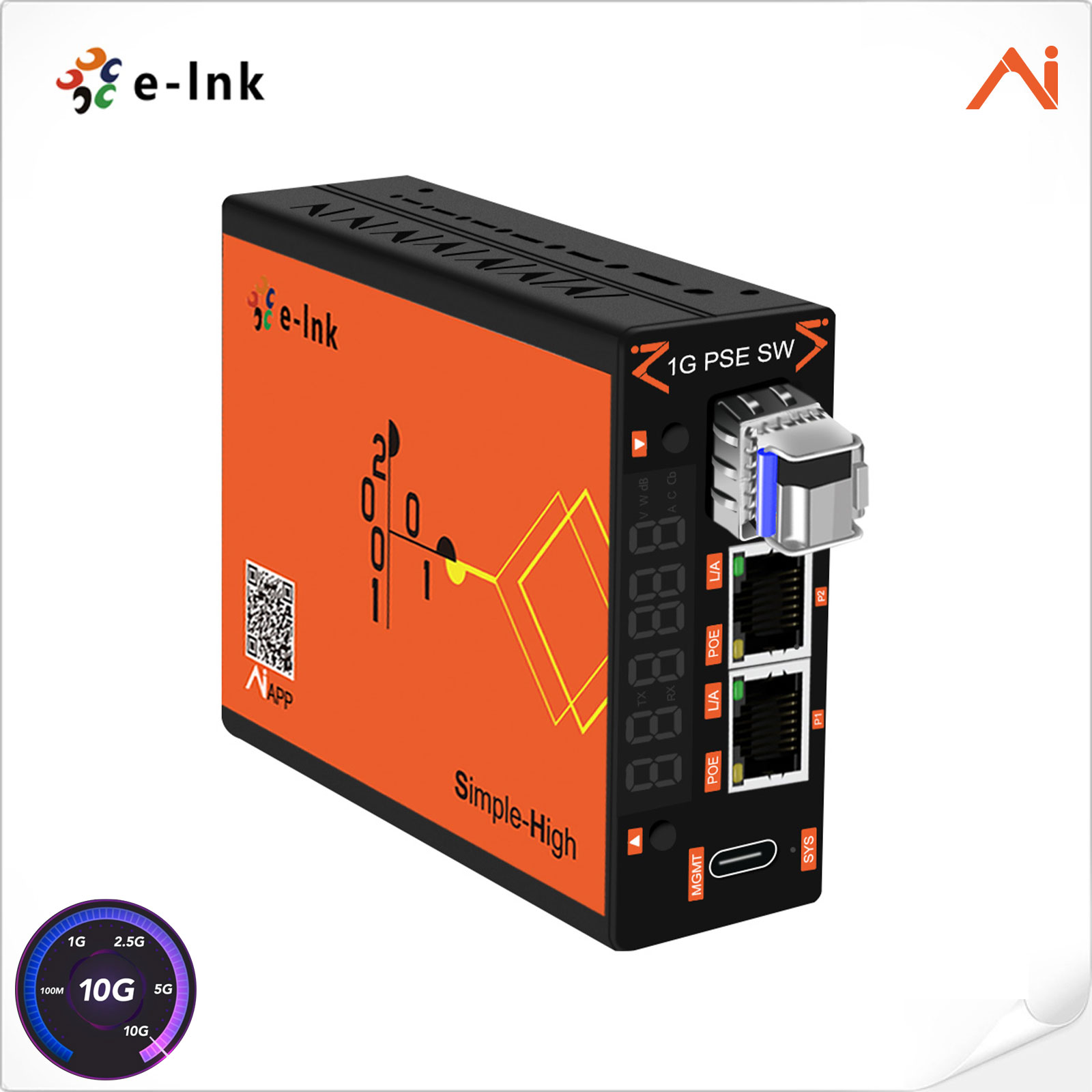

AI Smart Managed 1-port 100/1000X SFP to 2-port 10/100/1000T PoE Fiber Media Converter

Access Mode

1 x 100/1000BASE-X SFP to 2 x 10/100/1000BASE-T RJ45 PSE IEEE802.3af/at/bt 95W

Ethernet

Standards:

Standards Compliance IEEE 802.3 Ethernet

IEEE 802.3u Fast Ethernet

IEEE 802.3ab Gigabit Ethernet

Processing Type

Store-and-Forward

Forward Filter Rate

14,880pps (10Mbps)

148,800pps (100Mbps)

1,488,000pps (1000Mbps)

Packet Buffer Memory

1 Mbit

Max Packet Length

9K Bytes

AI Smart Managed Functions

Service Board Status

Temperature

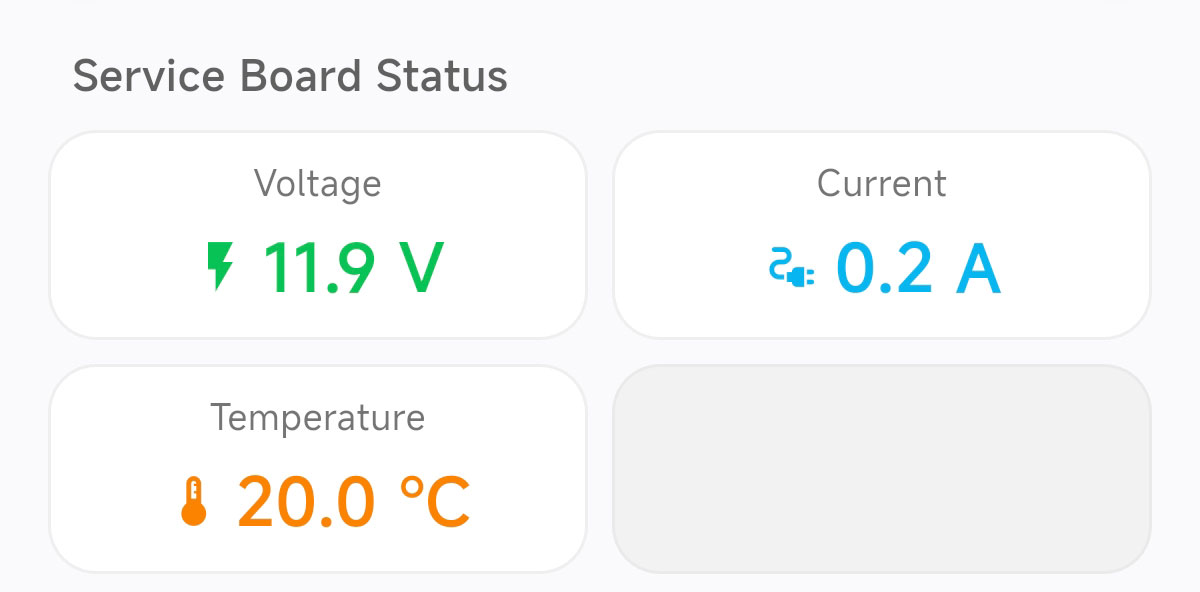

Voltage

Current

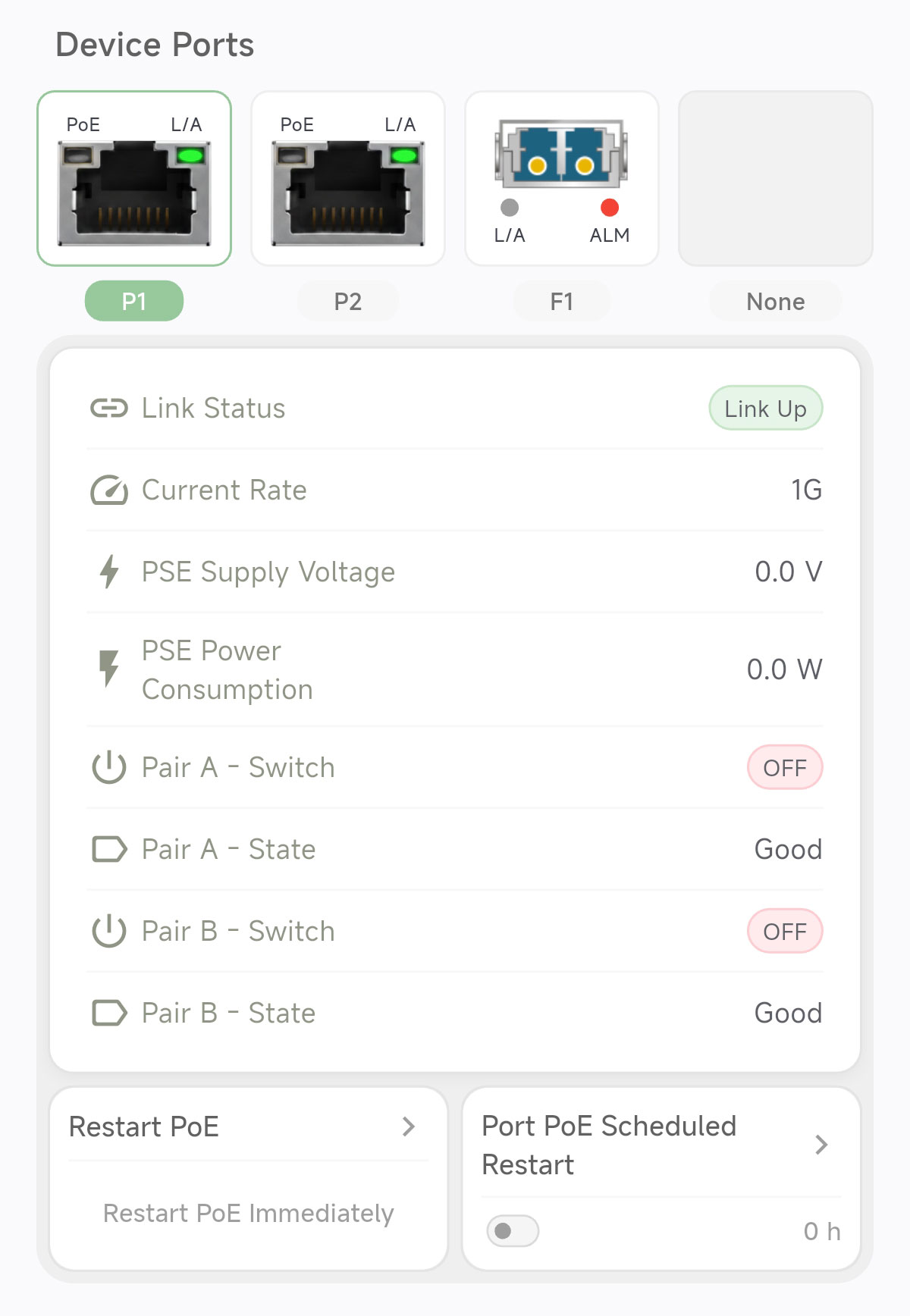

RJ45 Port Status

Link Status

Rate

LFP Status

PSE Supply Voltage

PSE Power Consumption

Power Pin Assignment

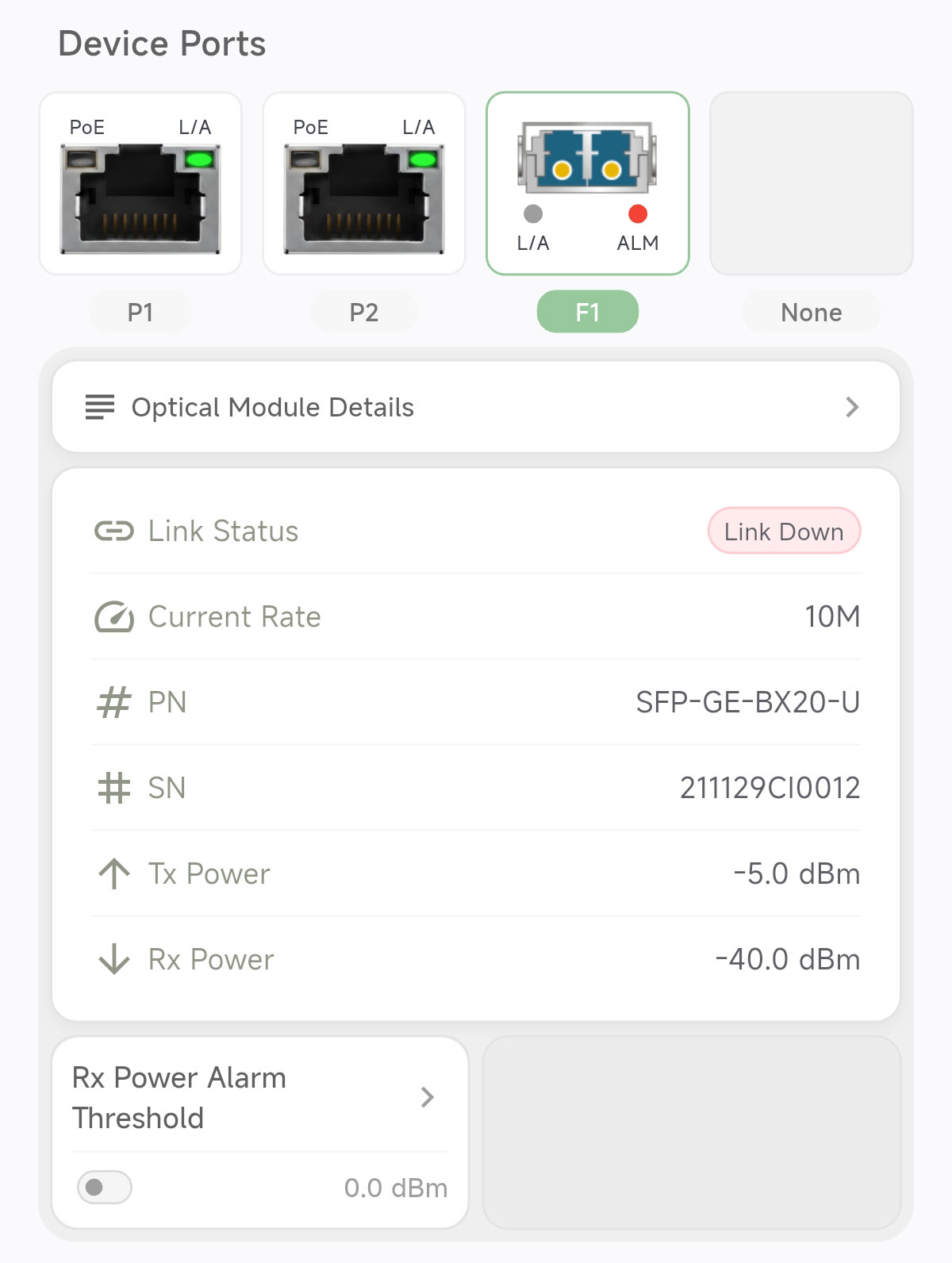

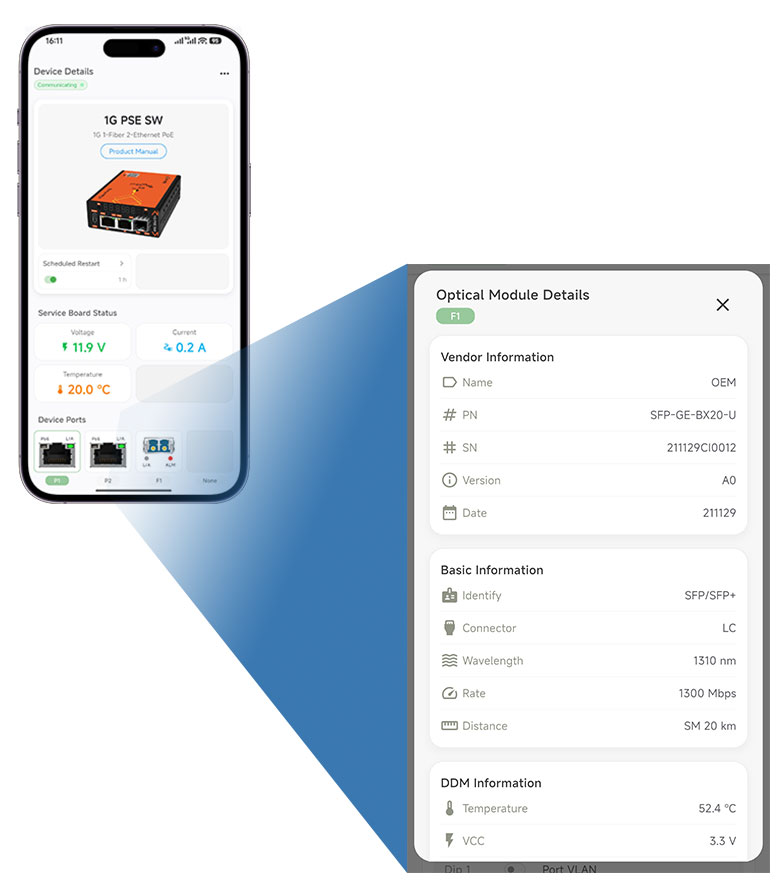

SFP Port Status

Link Status

PN/SN

TX Power

RX Power

All DDM Information

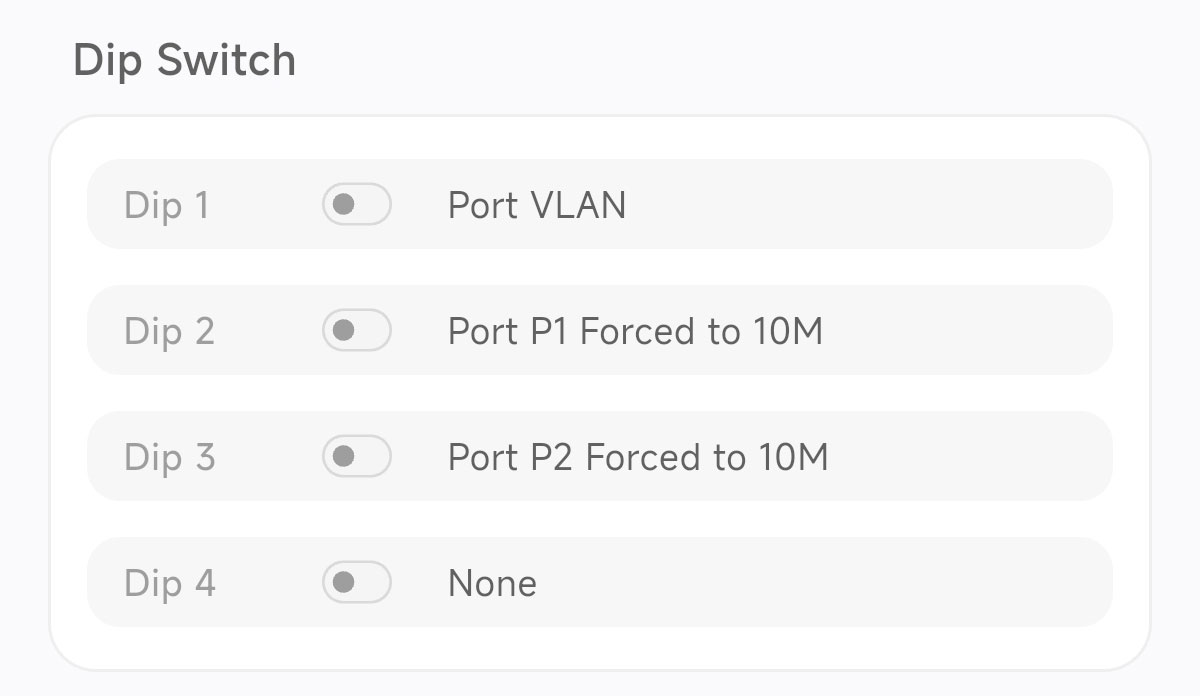

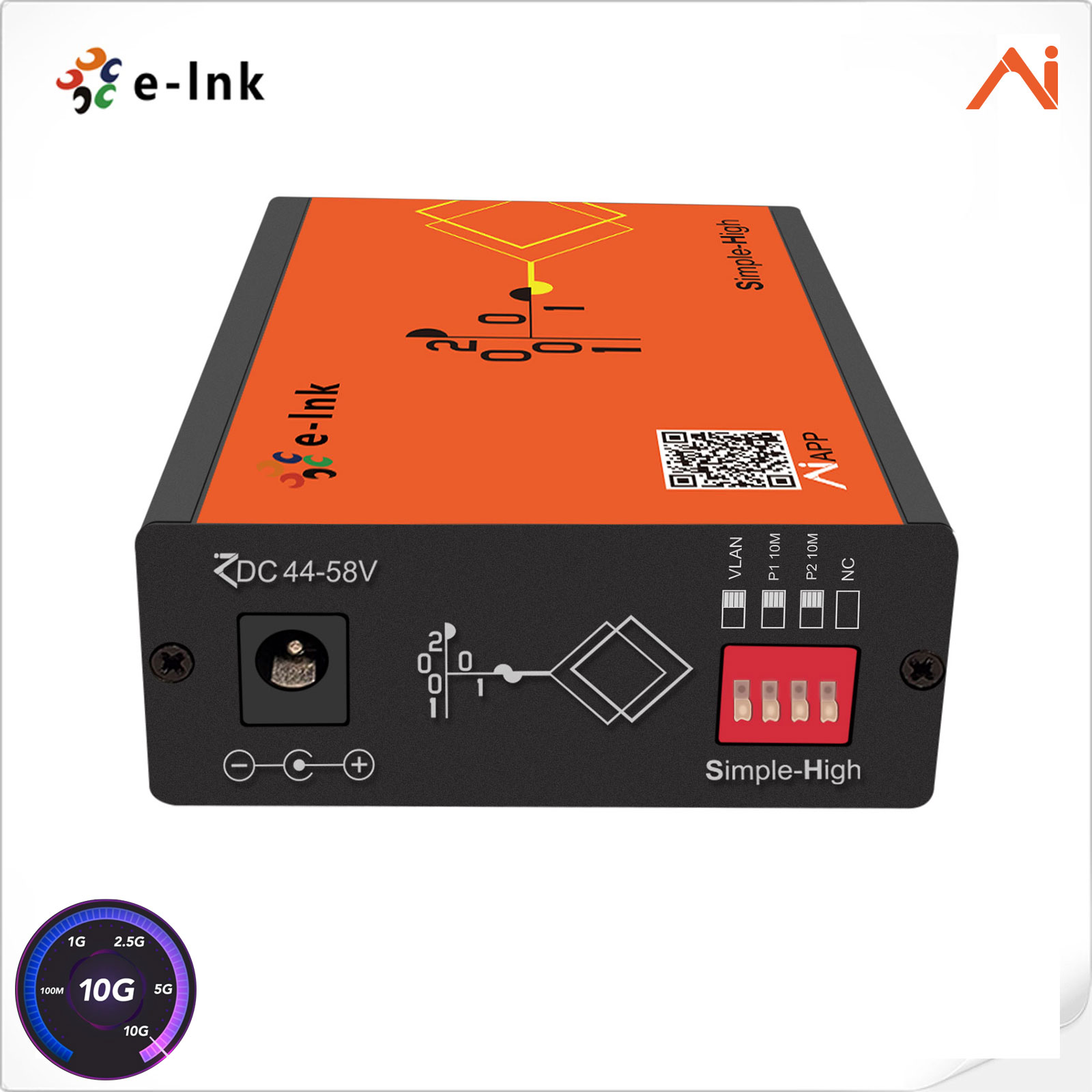

DIP Switch

Dip1

VLAN

Dip2

P1 10M

Dip3

P2 10M

Dip4

NC

Fiber Port Alarm

Support

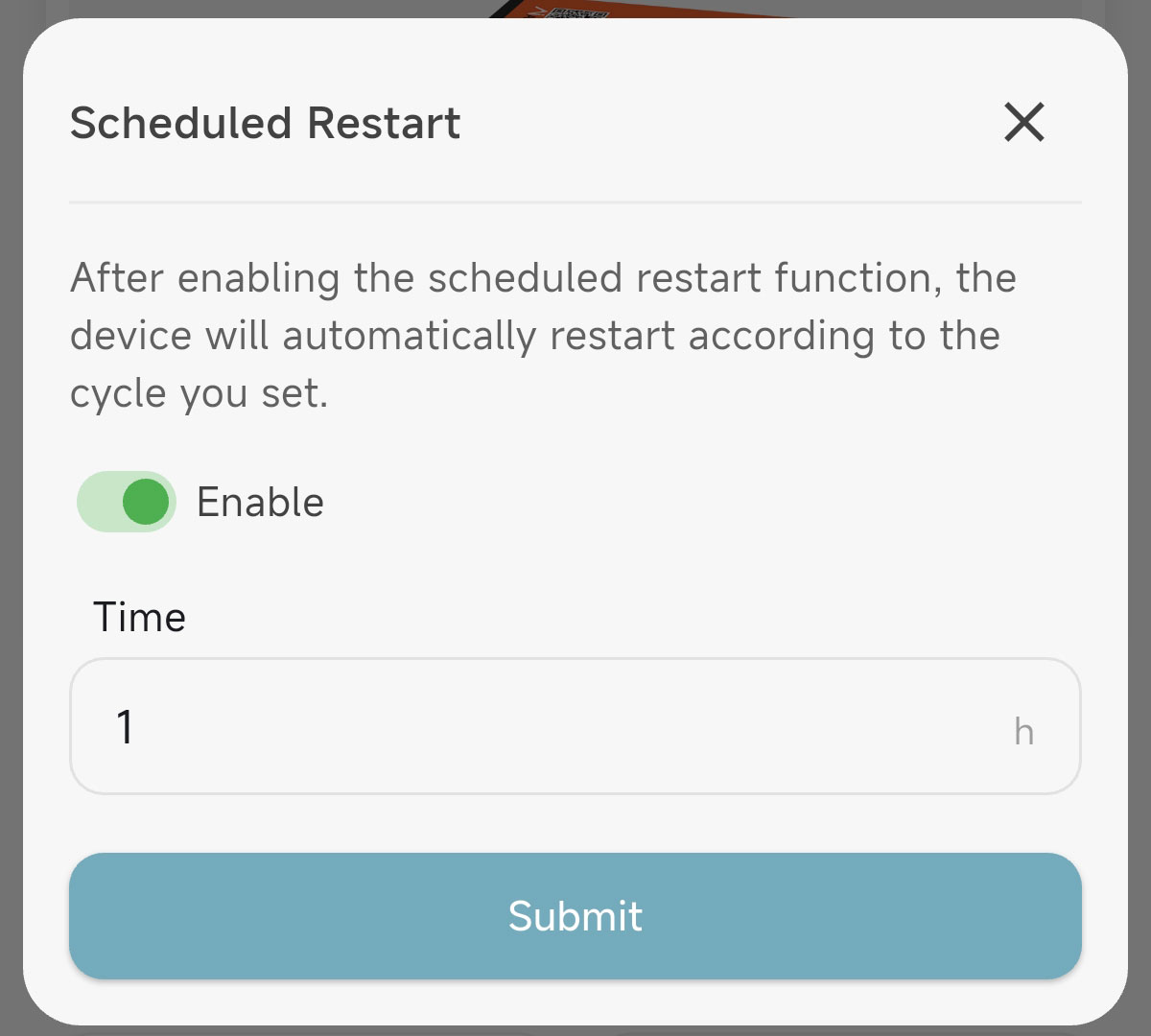

Scheduled Reset

Support

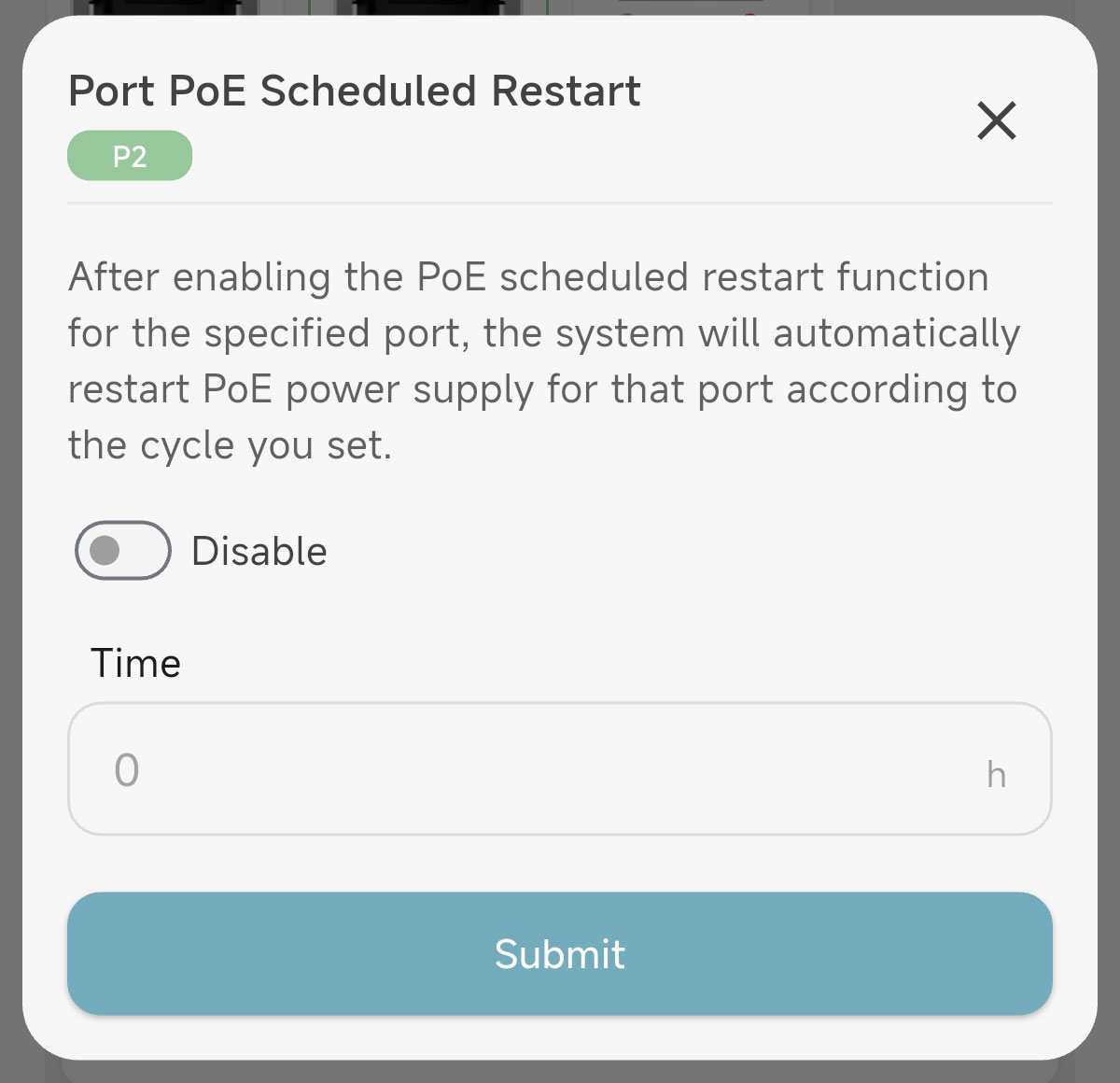

PoE Power Scheduled

Support

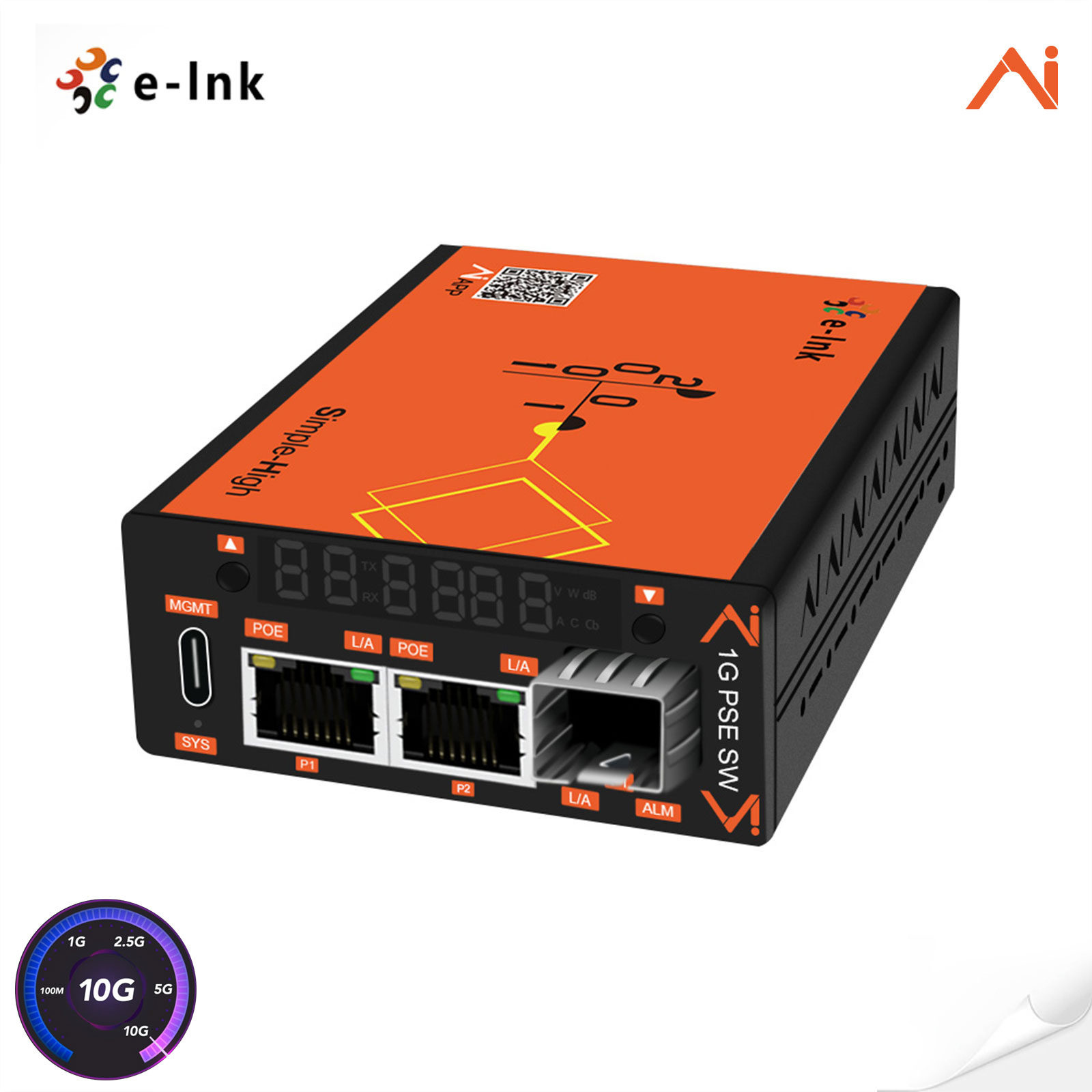

Interface port

Ethernet Port

2 x 10/100/1000BASE-T Ethernet RJ45 interface Auto-negotiation, auto MDI/MDI-X

Cable: Cat 3/4/5/6/7 UTP Cable

SFP Port

1 x 100/1000M SFP (auto detection)

Cable:

Multi-Mode: 50/125um or 62.5/125um fiber optic cable, distance: 550m/2km;

Single Mode: 9/125um fiber optic cable, distance: 20/40/80/100/120/160/200km

PoE (Power over Ethernet)

Standard

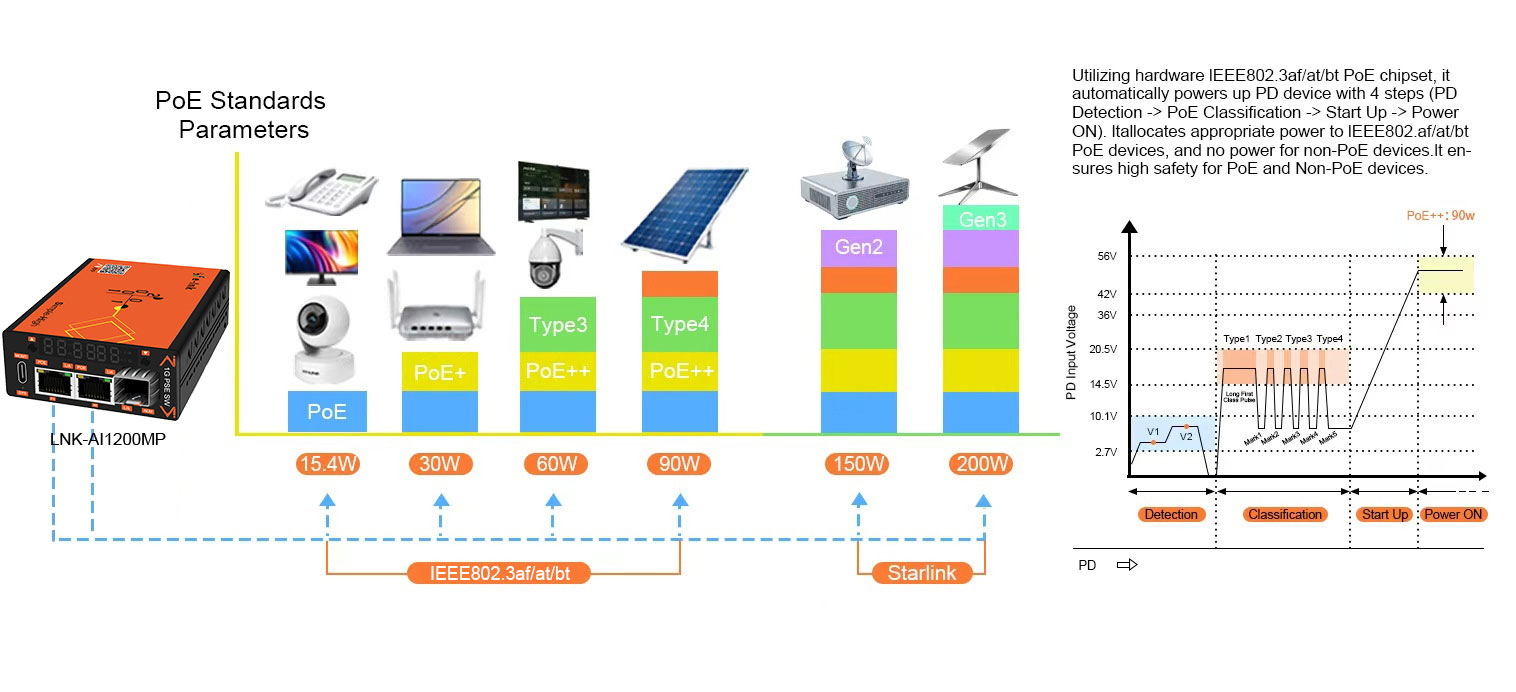

IEEE 802.3af/at/bt PoE++ PSE (af: 15.4W, at: 30W, bt type3: 60W, bt type4: 95W

PoE Power Output

95W max.

Power Pin Assignment

End-span + Mid-span:1/2(+), 4/5(+), 3/6(-), 7/8(-)

PoE Budget

Up to 95W PoE budget (44-58V DC)

PoE Power Supply Type

802.3bt, End-span + Mid-span (Please contact customer service)

PoE Mode

90W IEEE802.3bt compatible with Mode A, Mode B.

30W IEEE802.3at compatible with Mode B, if need Mode A please contact customer service)

Electrical and Mechanical

Input Power

44~58V DC, 5.5 x 2.1mm Power Socket

External AC-to-DC Adapter

Power Consumption

3W Max.

Dimensions (W x D x H)

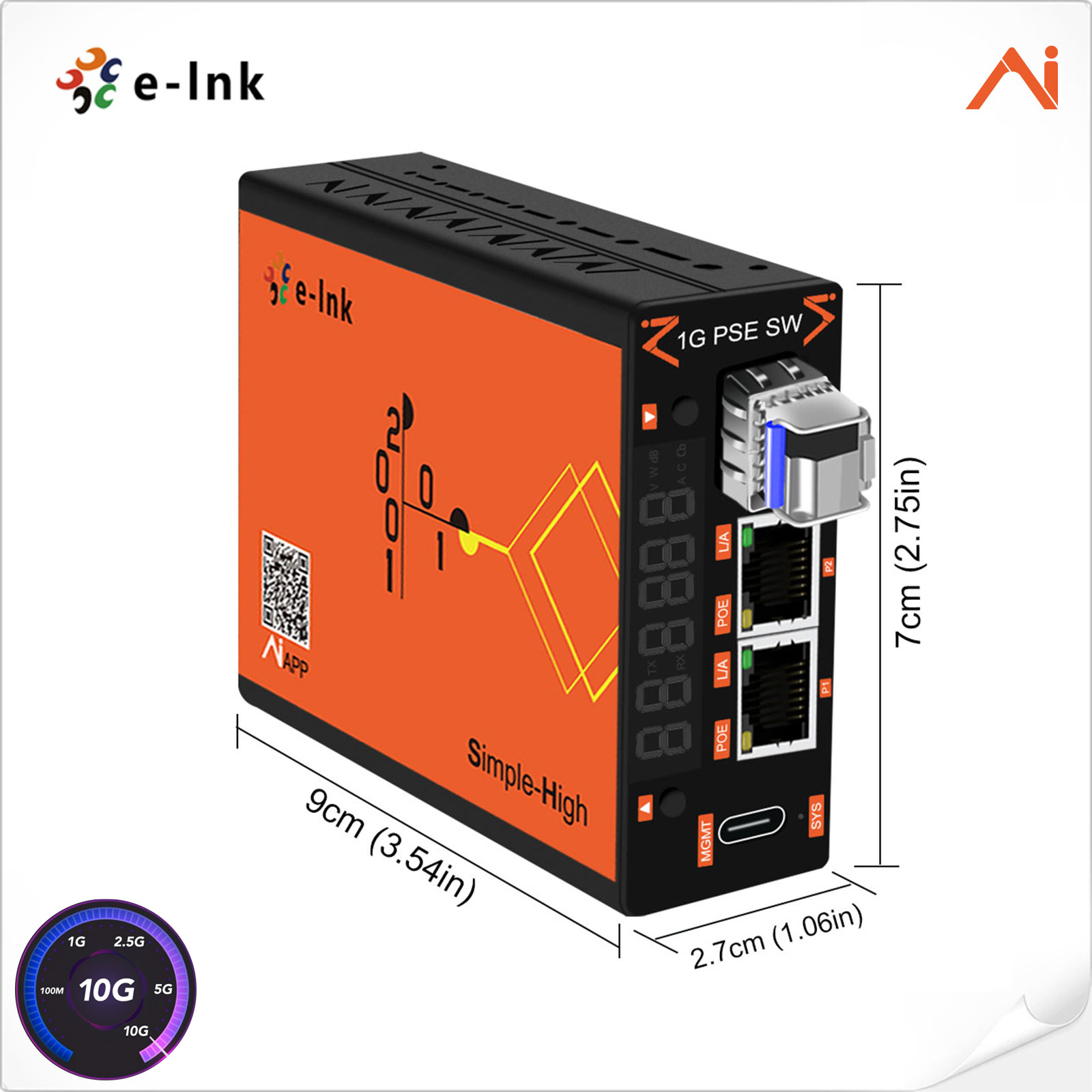

93 x 71 x 29 mm

Weight

100g

Casing

Aluminum Case

Mounting Options

Desktop or mounted on standard 14 slots rack

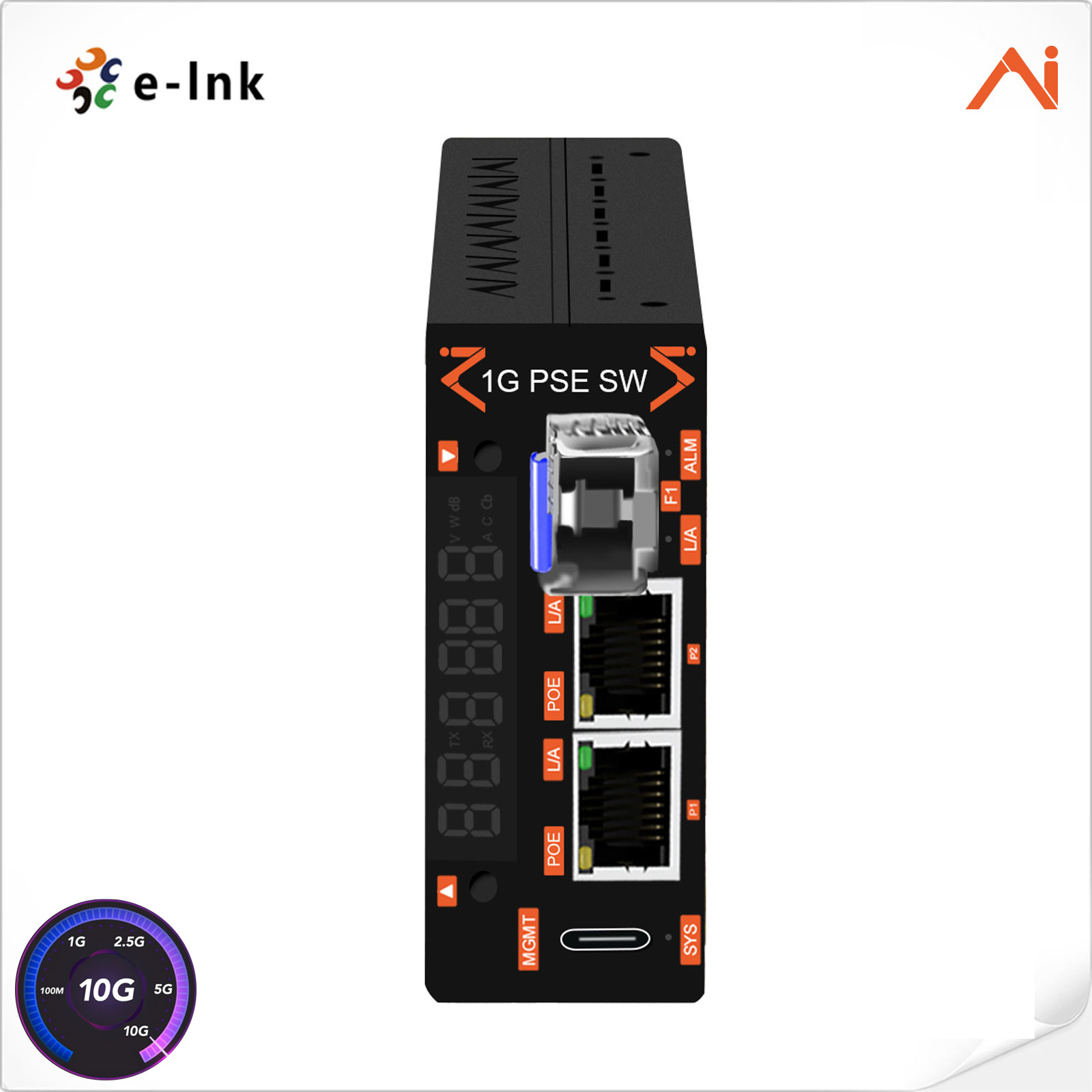

LED Indicators

SYS

Blink(green): Running

Blink(orange): USB data transmission

P1 PoE

On: Connected PD

Off: Not connected PD

P1 L/A

On: Link up

Blink: Data activity

Off: No link

P2 PoE

On: Connected PD

Off: Not connected PD

P2 L/A

On: Link up

Blink: Data activity

F1 L/A

On: Link up

Blink: Data activity

Off: No link

F1 (ALM)

On(red): Optical power alarm

On(orange): Optical power warning

Off: Optical power normal

Environmental

Operating Temperature

-20°C to 70°C (-20°F to 162°F)

Storage Temperature

-40°C to 85°C (-40°F to 185°F)

Relative Humidity

5% to 95% non-condensing

MTBF

> 200,000 hrs

Regulatory Approvals

ISO9001, CE, FCC Part 15 Class A, RoHS
