AI Smart Managed 25G SFP28/SFP+ (3R) Repeater OEO Converter
Model:LNK-AI2802-OEO-3R
► E-link's newly self-developed mobile APP and PC-based intelligent Web management.
► One-click screen display: System current, voltage, temperature; Optical module transmit power, receive power; Ethernet/Fiber port rates, etc.

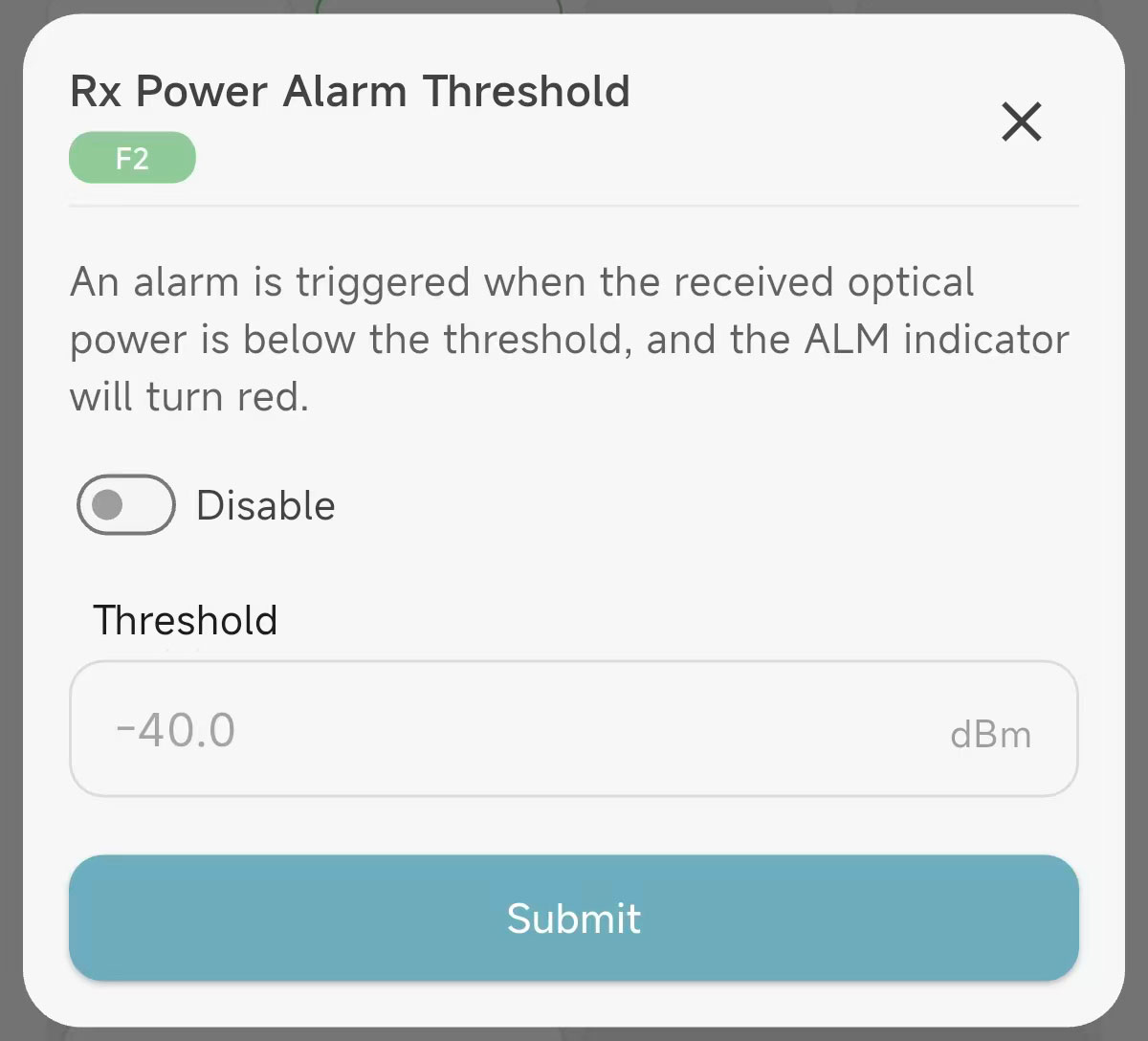

► APP/Web management functions: Graphical interface presenting detailed device information; SFP module information and DDM data; User-defined optical power thresholds; User-defined scheduled reboot, etc.
The LNK-AI2802-OEO-3R series 25G (3R) OEO Converter is part of E-link's independently developed AI NETWORK series, redefining device management with intelligent features designed to enhance efficiency and reduce costs. It eliminates the need for dedicated test equipment, allowing users to configure devices and monitor real-time status—including power and port conditions, as well as detailed SFP module data such as optical power, wavelength, transmission distance, data rate, and temperature—directly via a mobile app or the built-in display. Designed for ease of use, it incorporates multiple alarm mechanisms and streamlined maintenance workflows, significantly reducing installation and operational expenses. This provides a highly cost-effective line management solution tailored to the demands of modern networks.

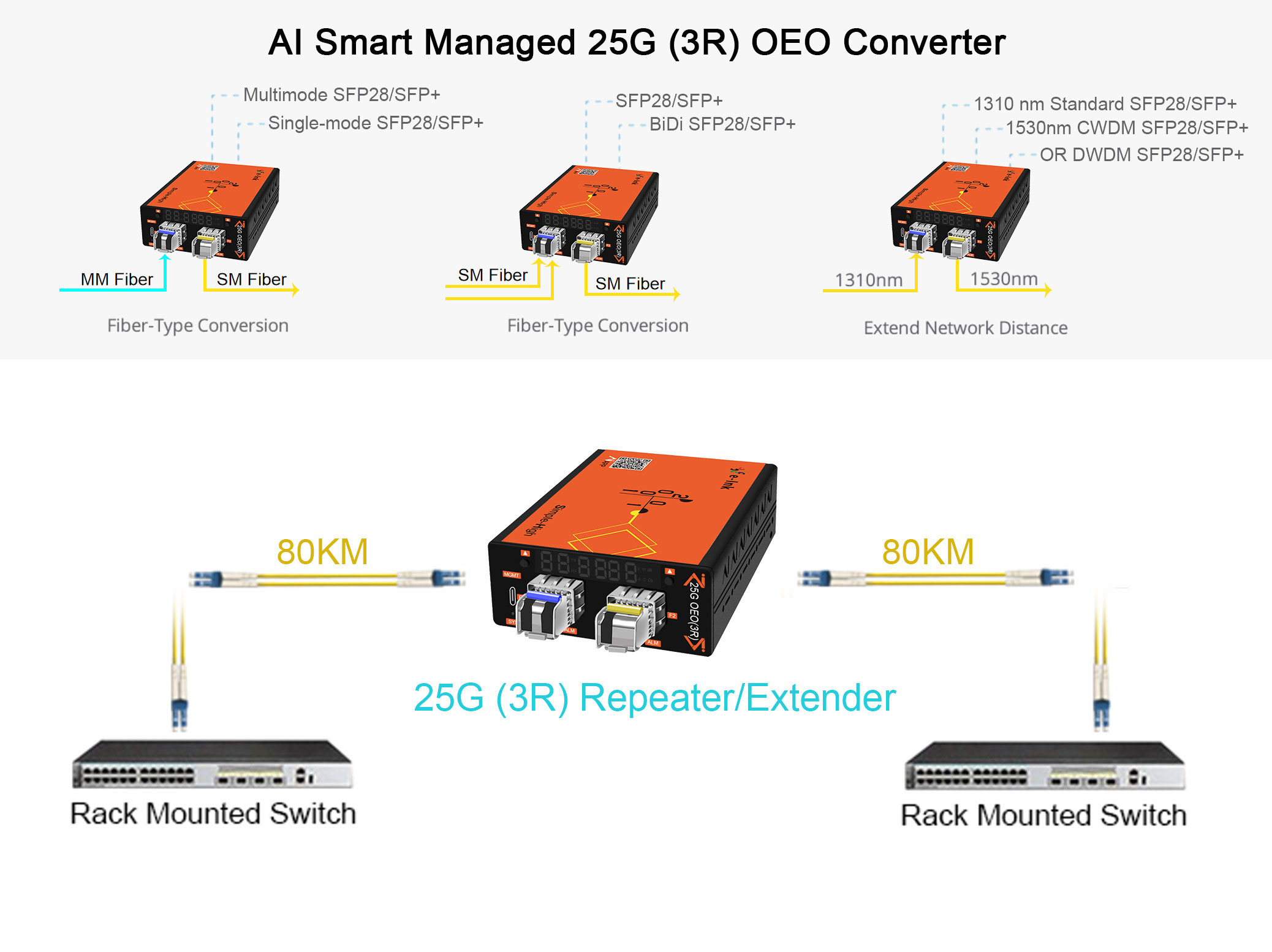

The converter is suitable for network backbone applications, including SAN, LAN, and MAN infrastructures. It supports SDH/SONET STM-64/OC-192, 25G Fiber Channel, and 25G Ethernet standards, making it ideal for deployment in R&D laboratories, data centers, and telecommunications rooms. Additionally, it features optical wavelength conversion for 1310 nm, 1550 nm, CWDM, and DWDM, and supports loopback testing for enhanced diagnostics.

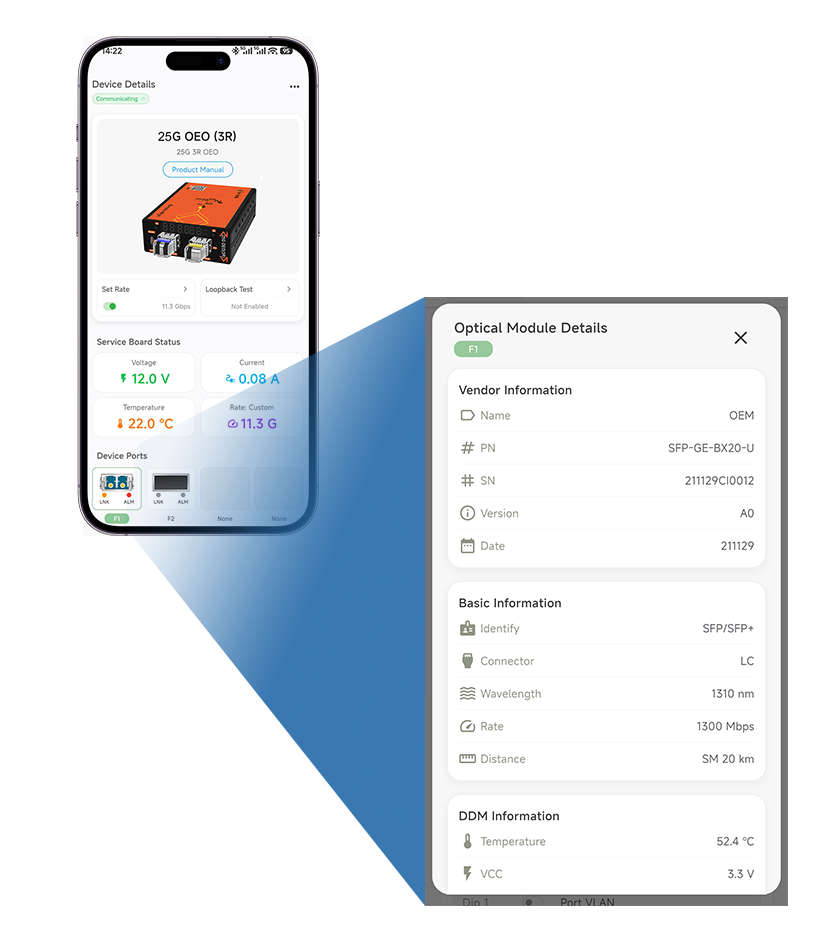

► Mobile APP / Web Management: Monitoring and control via self-developed Mobile APP or Web interface.

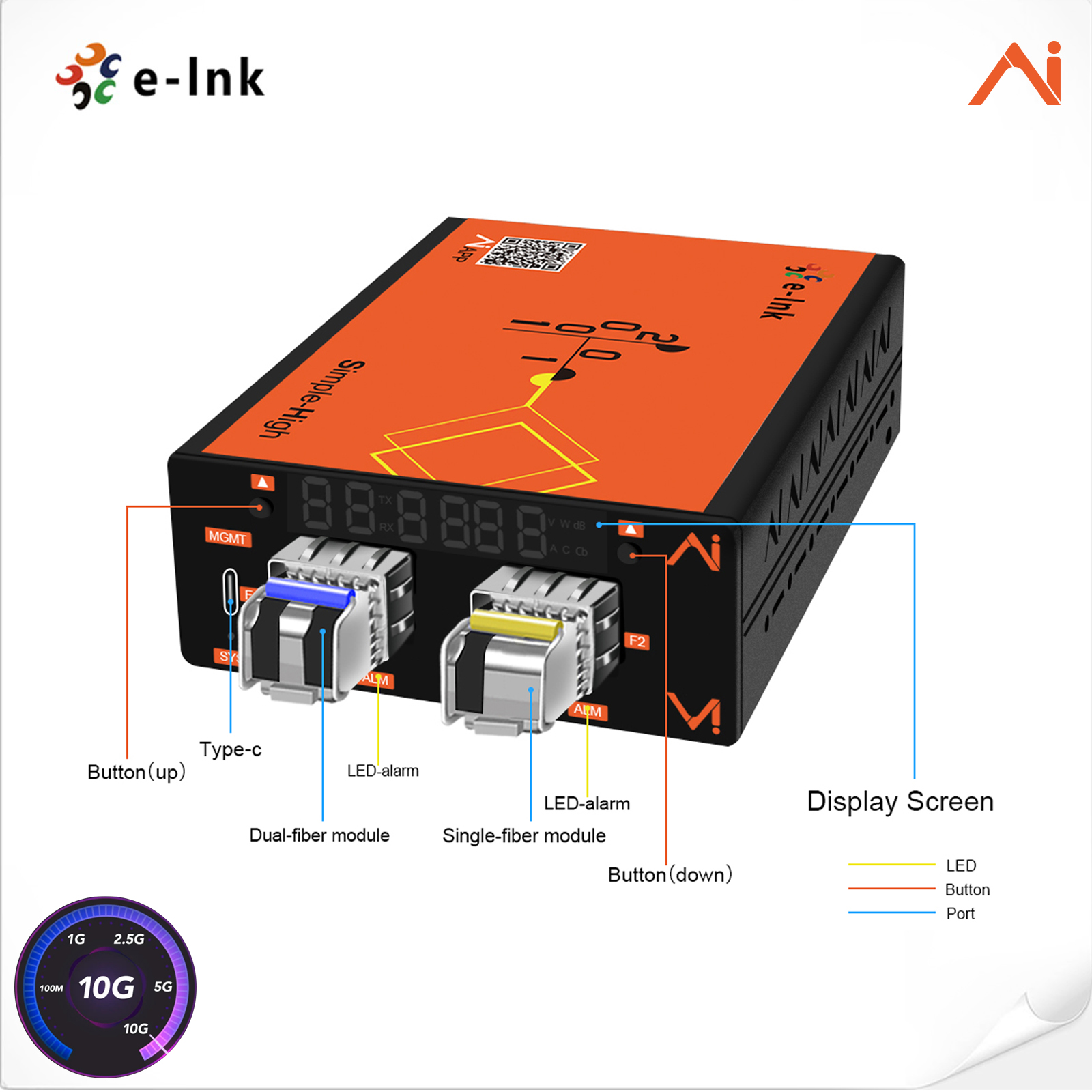

► Build-in Front Panel Screen Display: Front panel screen with buttons displays page by page the real-time information including current, voltage, temperature, TX/RX optical power, data rate.
► User-Friendly Interface: Simplified and visual design, highlighting key parameters, makes it easy for even nonprofessionals to operate and maintain devices.
► Type-C port for easy access to device.
► Support loop-back test.
► Support SFP28/SFP+ 10.3125G ~ 25.78125G (Software Option Acceptable)
► Support 3R function (Re-amplify, Re-shape and Re-time)
|
Access Mode |
Multi-rate10.3125G-25.78125G(Software Option Acceptable) SFP+ to SFP+ slot 25G(3R) OEO Converter Support 3R function |
||
|
Fiber Ports |
|||
|
Transmission Speed |
25G:10.3125G-25.78125Gb/s |
||
|
Optical Port F1 |
1 x SFP28/SFP+ 10.3125G-25.78125Gb/s (Software Option Acceptable) Support 3R function |
||
|
Optical Port F1 |
1 x SFP28/SFP+ 10.3125G-25.78125Gb/s (Software Option Acceptable) Support 3R function |
||
|
Interface port |
|||
|
Management Port |
Standard Type-C port for easy access to device |
||
|
Display Screen |
Display voltage, current, temperature and two optical modules TX/RX power, data rate |
||
|
AI Smart Managed Functions |
|||
|

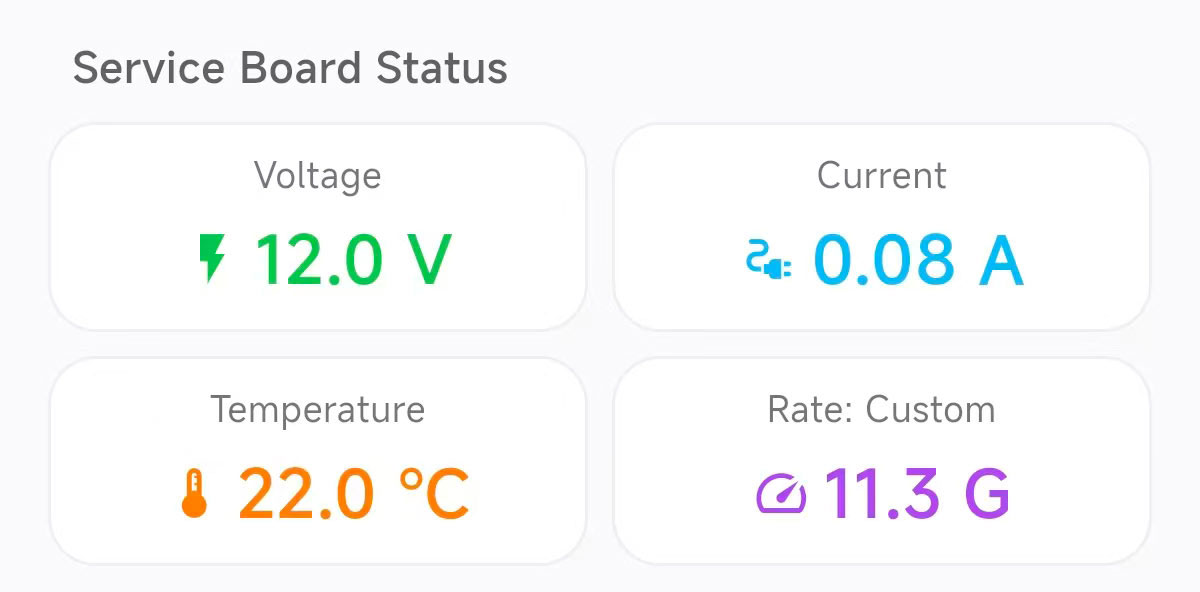

Service Board Status |
Temperature |
|
|
|
Voltage |
|||
|
Current |
|||
|

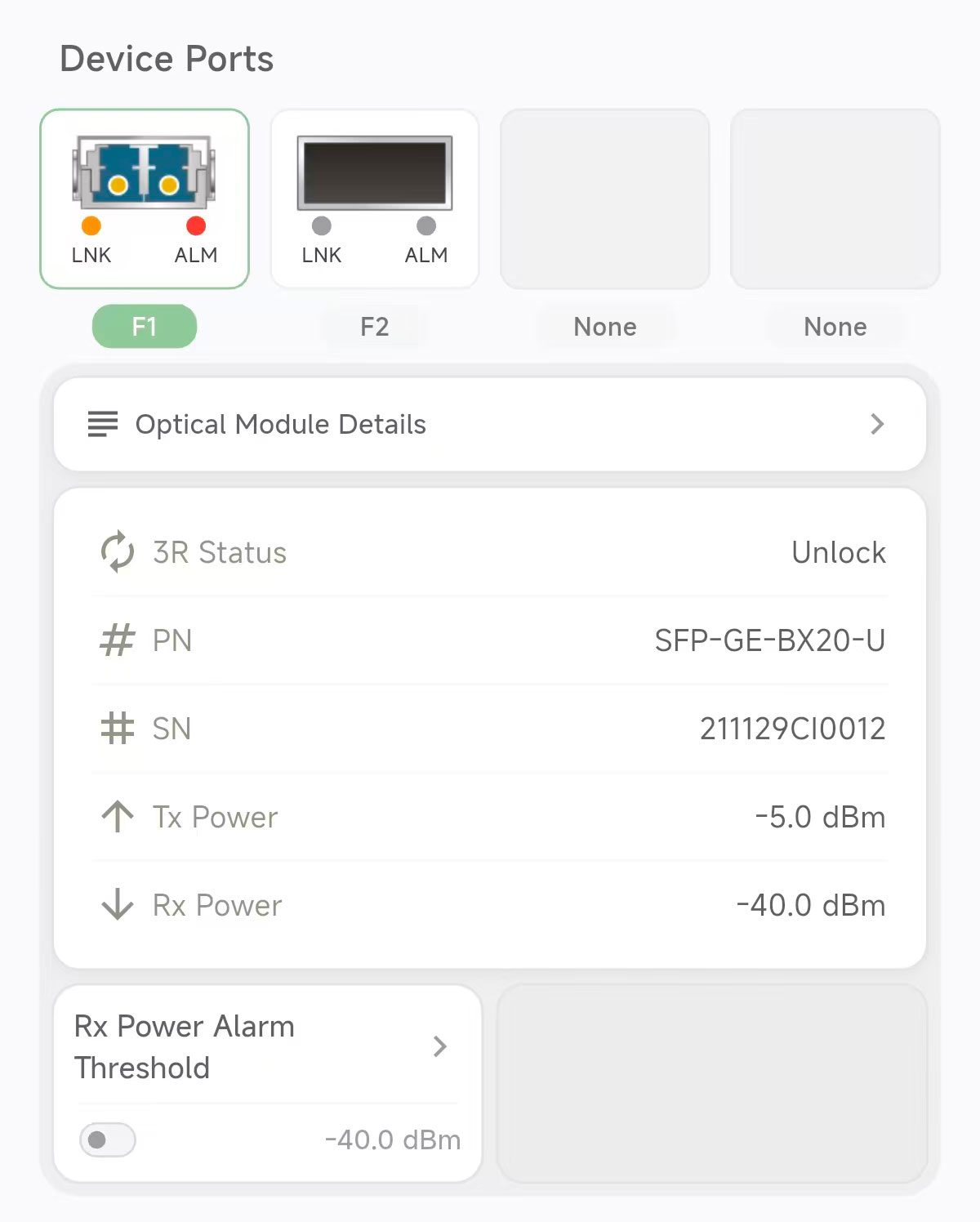

SFP Port F1 (Support 3R function) |
Link Status |
|
|
|
PN/SN |
|||
|
TX Power |
|||
|
RX Power |
|||
|
All DDM Information |
|||
|

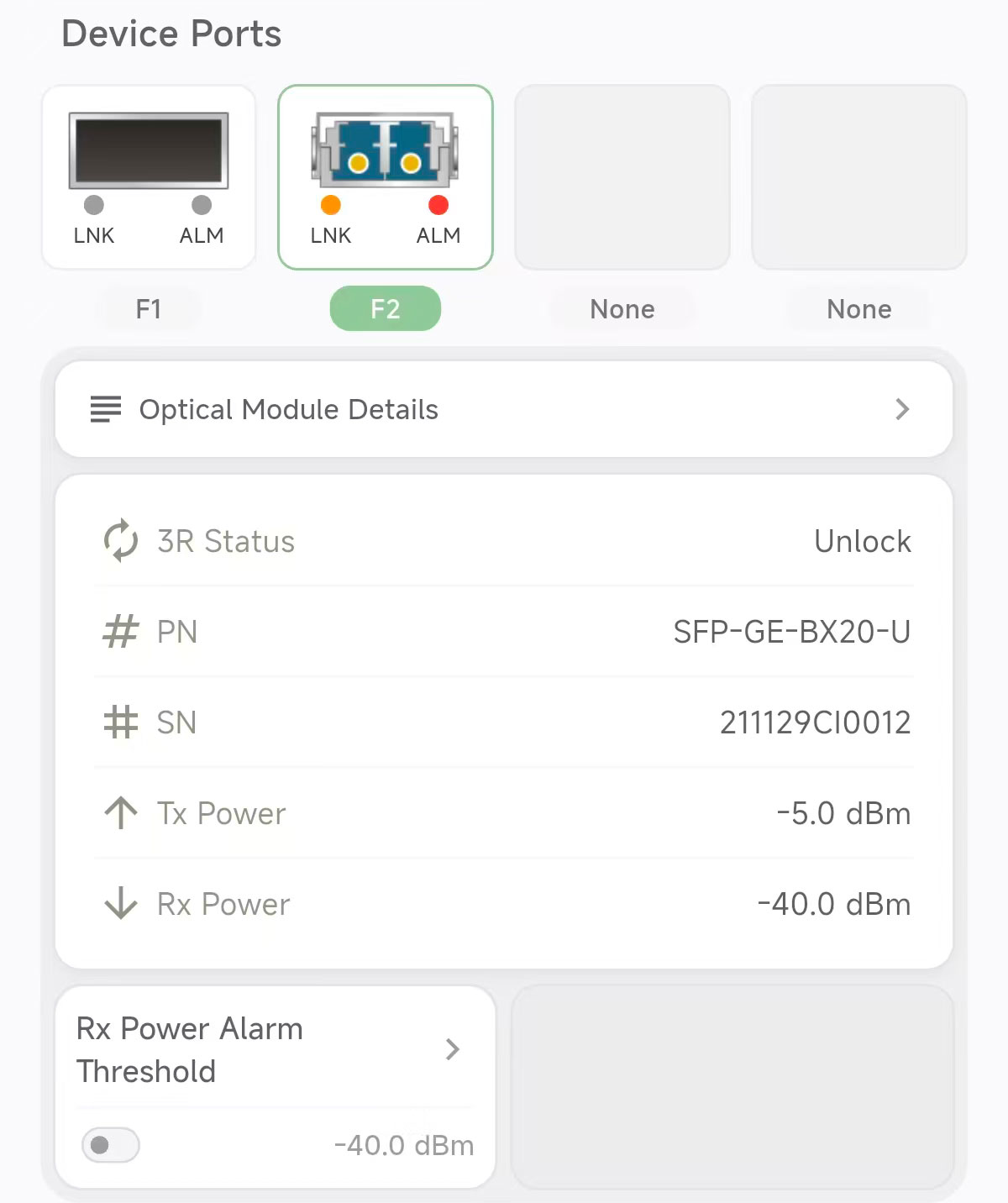

SFP Port F2 (Support 3R function) |
Link Status |
|
|
|
PN/SN |
|||
|
TX Power |
|||
|
RX Power |
|||
|
All DDM Information |
|||
|
Fiber Port Alarm |
Support |
|
|
|

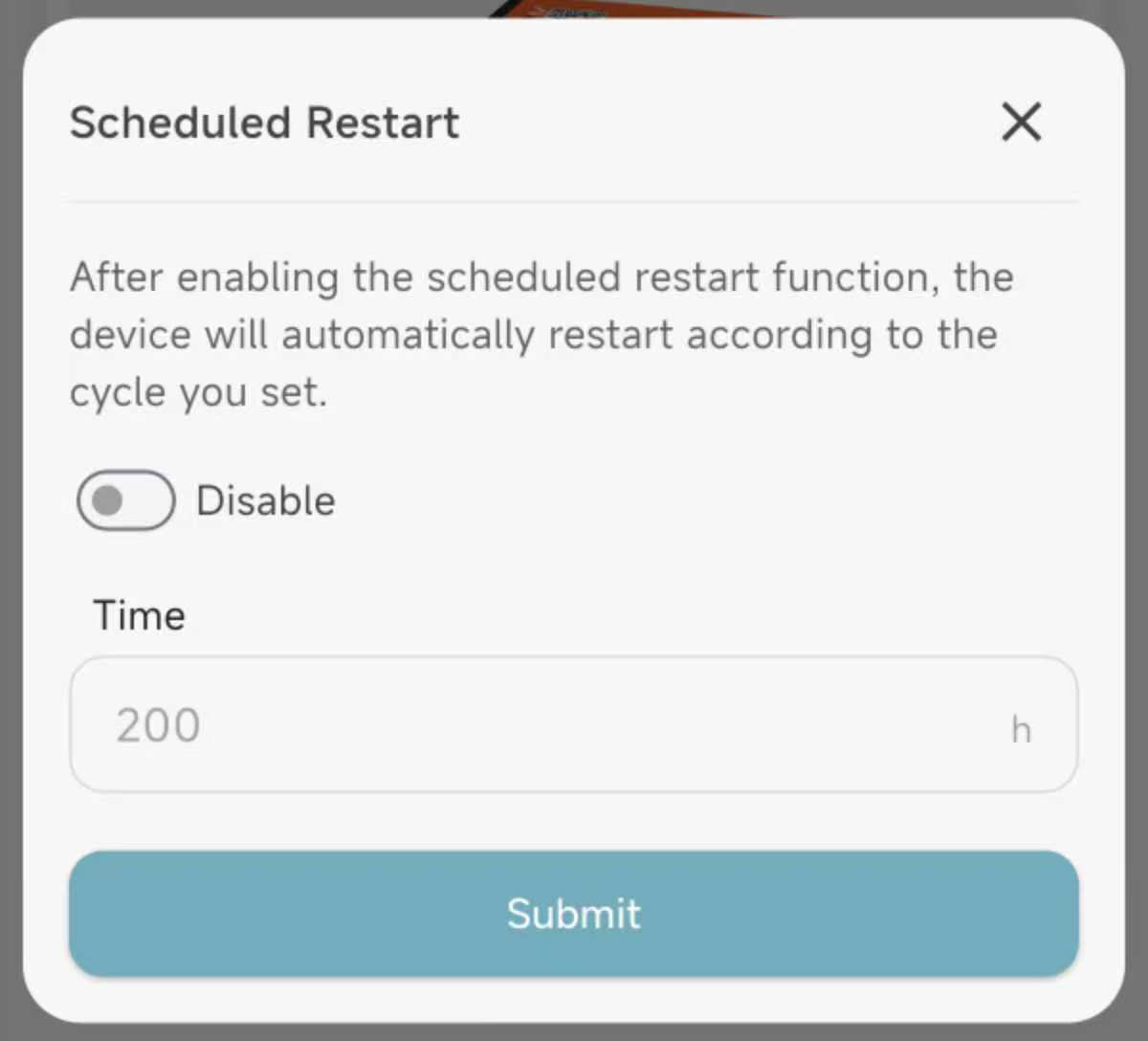

Scheduled Reset |
Support |
|
|
|
Electrical and Mechanical |
|||
|
Input Power |

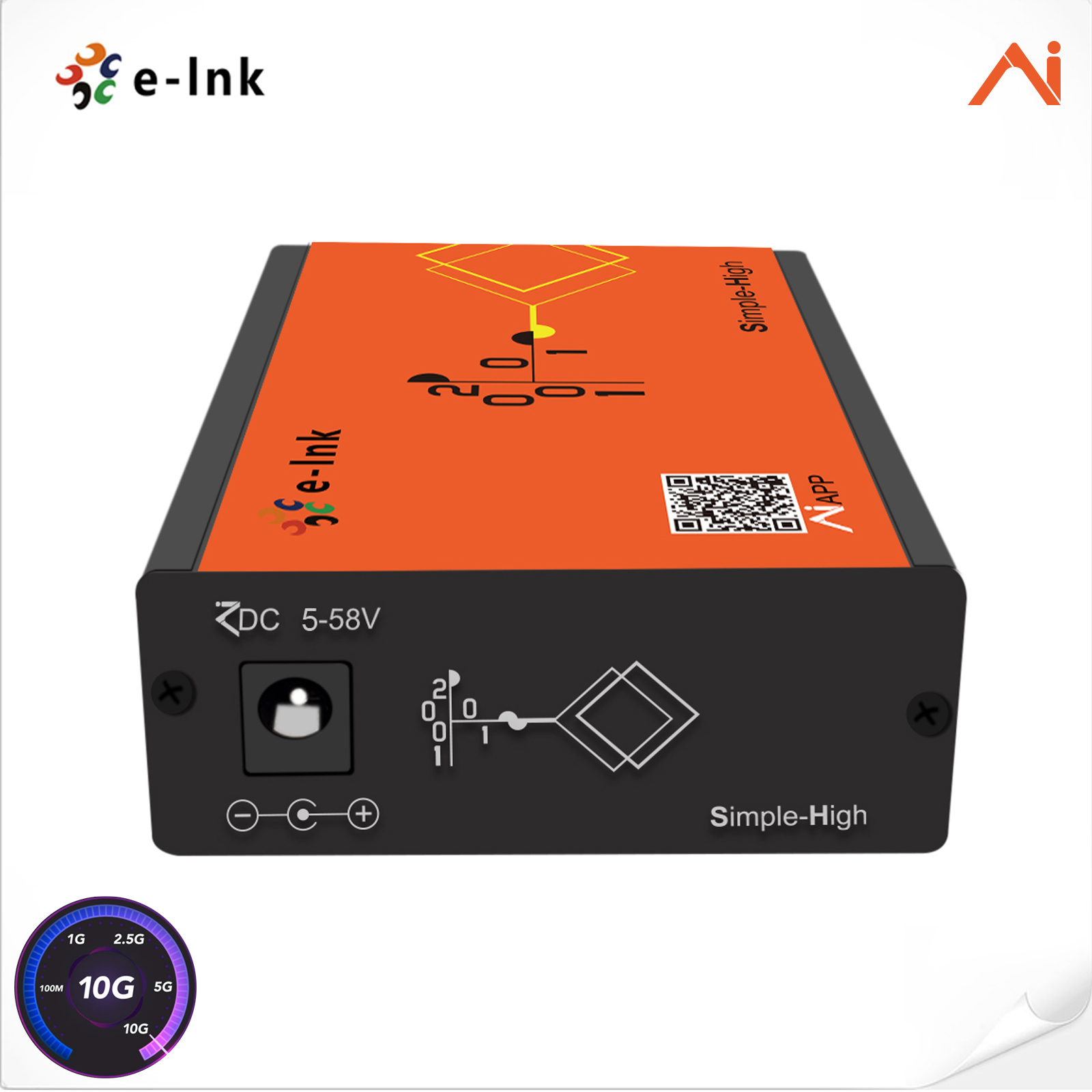

5~58V DC, 5.5 x 2.1 mm Power Socket |
||
|
External AC-to-DC Adapter |
|||
|
Power Consumption |
1W (Not Include SFP modules) |
||
|

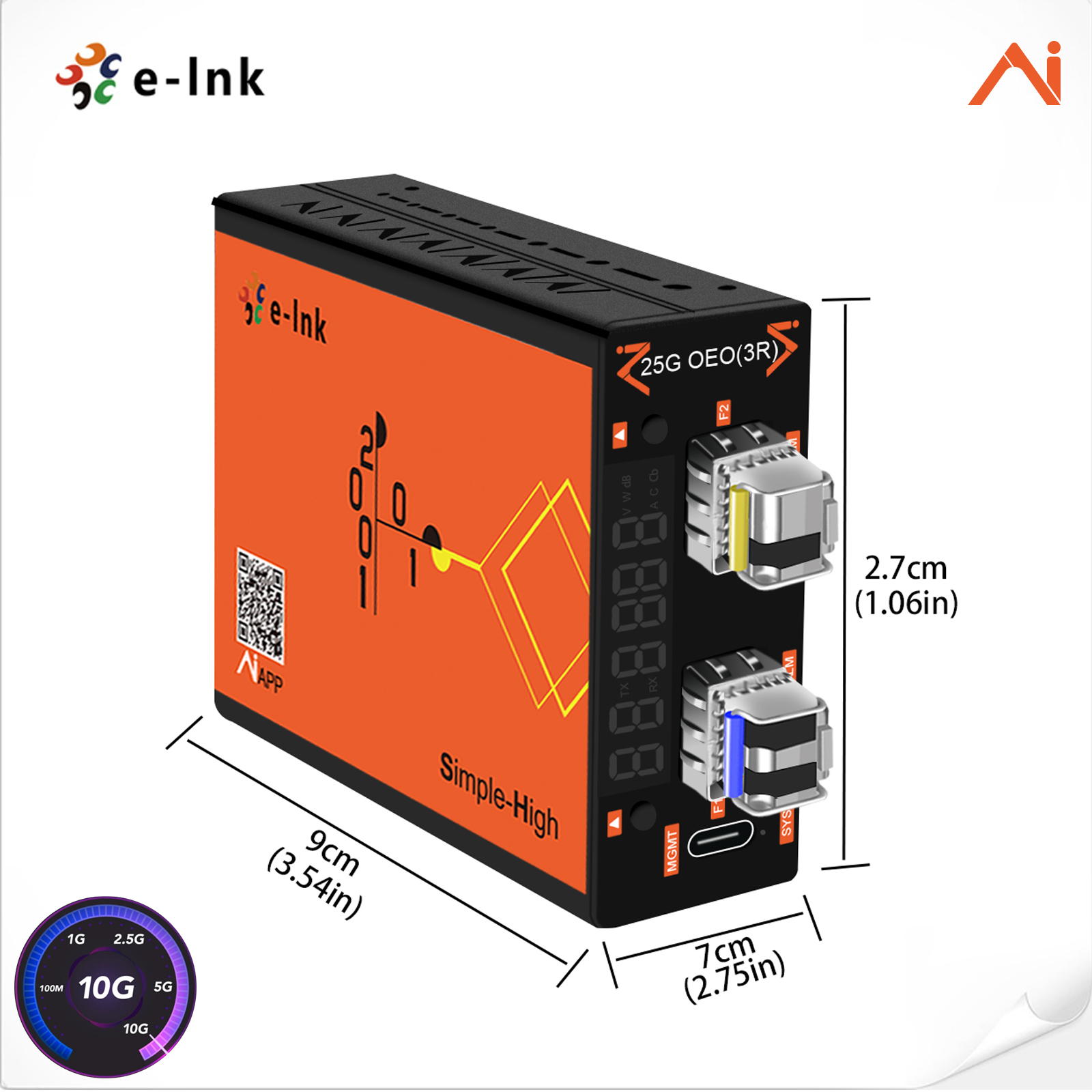

Dimensions (W x D x H) |
93 x 71 x 29 mm |
||
|
Weight |
100g |
||
|
Casing |
Aluminum Case |
||
|
Mounting Options |
Desktop or mounted on standard 14 slots rack |
||
|
LED Indicators |
|||
|
SYS |
Blink(green): Running |
||
|
Blink(orange): USB data transmission |
|||
|
F1 (LNK) |
On(green): Signal lock |
||
|
Blink: Signal unlock with optical power normal |
|||
|
On(orange): Optical power abnormal with optical module plug-in |
|||
|
Off: No optical module |
|||
|
F1 (ALM) |
On(red): Optical power alarm |
||
|
On(orange): Optical power warning |
|||
|
Off: Optical power normal |
|||
|
F2 (LNK) |
On(green): Signal lock |
||
|
Blink: Signal unlock with optical power normal |
|||
|
On(orange): Optical power abnormal with optical module plug-in |
|||
|
Off: No optical module |
|||
|
F2 (ALM) |
On(red): Optical power alarm |
||
|
On(orange): Optical power warning |
|||
|
Off: Optical power normal |
|||
|
Environmental |
|||
|
Operating Temperature |
-20°C to 70°C (-20°F to 162°F) |
||
|
Storage Temperature |
-40°C to 85°C (-40°F to 185°F) |
||
|
Relative Humidity |
5% to 95% non-condensing |
||
|
MTBF |
> 200,000 hrs |
||
|
Regulatory Approvals |
|||
|
ISO9001, CE, FCC Part 15 Class A, RoHS |
|||
- Download FileName：E-link LNK-AI2802-OEO-3R AI Smart Managed 25G OEO Converter (3R Repeater) Datasheet -20260124.pdf Size： 2.48MB
|
Model |
Description |
|
LNK-AI2802-OEO-3R |
AI Smart Managed 25G SFP28/SFP+ (3R) OEO Converter 10.3125G-25.78125Gb/s (Software Option Acceptable), Support 3R function |
|
SFP Options |
► SFP option. Please select your SFP on our SFP Options Page. |
|
► SFP module is to be purchased separately. |
